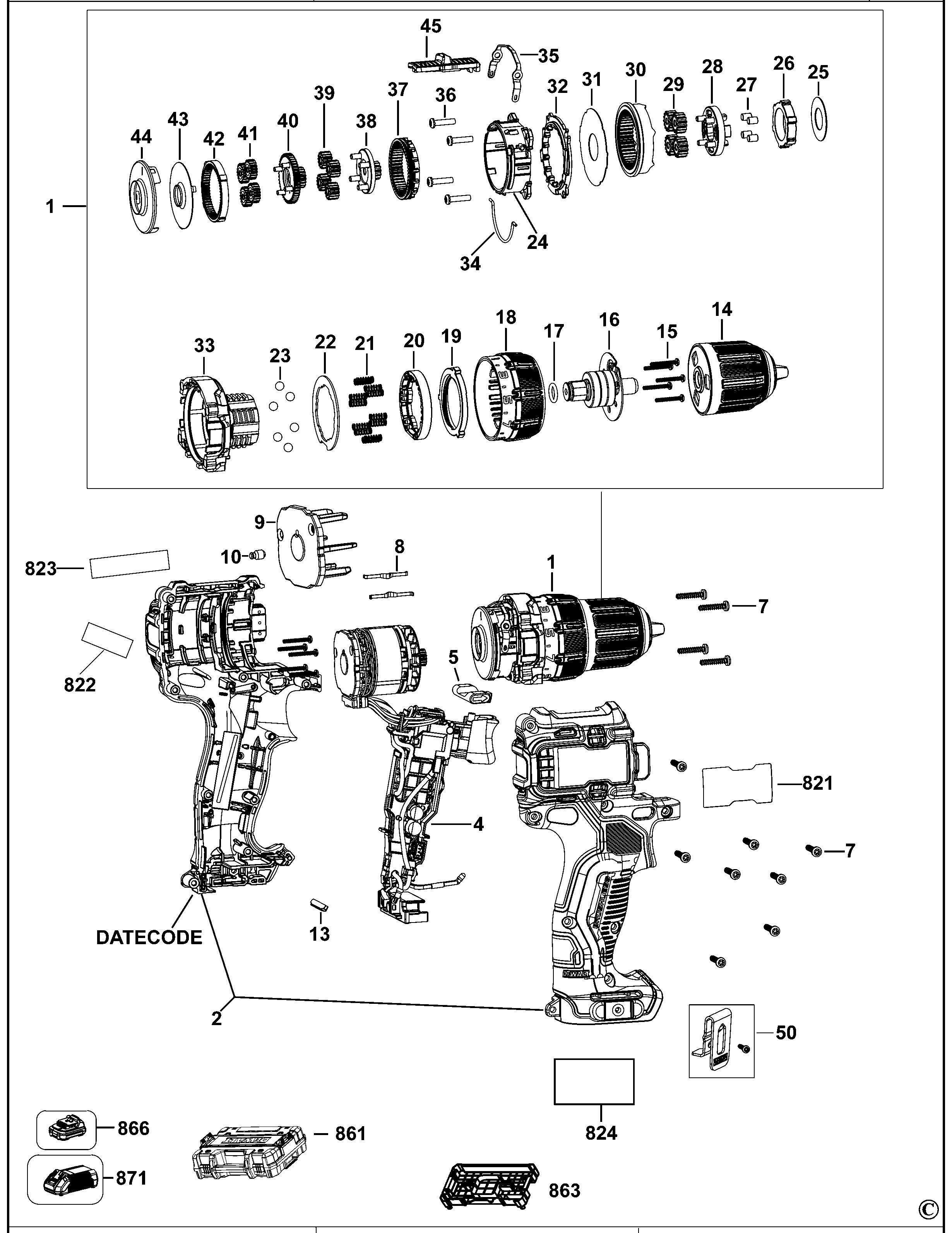

DCD701 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N681261 | 1 | TRANSMISSION SA | KR | |||
| 2 | N569260 | 1 | CLAMSHELL SET | KR | |||
| 4 | N681272 | 1 | MOTOR & SWITCH SA | KR | |||
| 5 | N399342 | 1 | ACTUATOR FWD/REV | KR | |||
| 7 | N463678 | 12 | SCREW | KR | |||
| 8 | N014681 | 2 | LEAF SPRING | KR | |||
| 9 | N552144 | 1 | PLASTIC ADAPTOR | KR | |||
| 10 | N593131 | 1 | PLUG | KR | |||
| 13 | N660916 | 1 | PIN | KR | |||
| 14 | N607312 | 1 | CHUCK KEYLESS | KR | |||
| 15 | N039795 | 5 | SCREW | KR | |||
| 16 | N681262 | 1 | SPINDLE SA | KR | |||
| 17 | N638045 | 1 | O RING | KR | |||
| 18 | N529547 | 1 | COLLAR | KR | |||
| 19 | N527880 | 1 | ADJUSTER TORQUE | KR | |||
| 20 | N527879 | 1 | SPRING | KR | |||
| 21 | N527878 | 12 | SPRING | KR | |||
| 22 | N527877 | 1 | WASHER | KR | |||
| 23 | N510716 | 6 | BALL | STEEL, 5MM | KR | ||
| 24 | N531638 | 1 | HOUSING | KR | |||
| 25 | N527659 | 1 | WASHER LOCK | KR | |||
| 26 | N769849 | 1 | LOCKING RING | KR | |||
| 27 | N647513 | 4 | PIN | KR | |||
| 28 | N681264 | 1 | CARRIER SA | KR | |||
| 29 | N532276 | 4 | GEAR | KR | |||
| 30 | N531435 | 1 | GEAR | KR | |||
| 31 | N531627 | 1 | WASHER | KR | |||
| 32 | N531634 | 1 | RING | KR | |||
| 33 | N527876 | 1 | HOUSING | KR | |||
| 34 | N552206 | 1 | WIRE STEEL | KR | |||
| 35 | N551526 | 1 | LINK | KR | |||
| 36 | N075506 | 4 | SCREW | KR | |||
| 37 | N531632 | 1 | GEAR | KR | |||
| 38 | N681265 | 1 | CARRIER SA | KR | |||
| 39 | N531633 | 4 | GEAR | KR | |||
| 40 | N681266 | 1 | CARRIER SA | KR | |||
| 41 | N531637 | 4 | GEAR | KR | |||
| 42 | N549298 | 1 | GEAR | KR | |||
| 43 | N550764 | 1 | WASHER | KR | |||
| 44 | N549069 | 1 | PLATE | KR | |||
| 45 | N702960 | 1 | SELECTOR SA | KR | |||
| 50 | N735595 | 1 | HOOK SA | KR | |||
| 821 | N704627 | 1 | RATING LABEL | KR | |||
| 822 | N658202 | 1 | LABEL | KR | |||
| 823 | N658203 | 1 | BRAND LABEL | KR | |||
| 824 | N714997 | 1 | LABEL | FOOT | KR | ||
| 861 | N614791 | 1 | KITBOX | KR | |||
| 861 | N279261 | 1 | KITBOX | KR | |||
| 863 | N654480 | 1 | INSERT | KR | |||
| 866 | DCB127-KR | 2 | BATTERY PACK 10.8V | KR | |||
| 866 | DCB124-KR | 2 | BATTERY PACK | KR | |||
| 871 | DCB112-KR | 1 | CHARGER 10.8V | KR |
