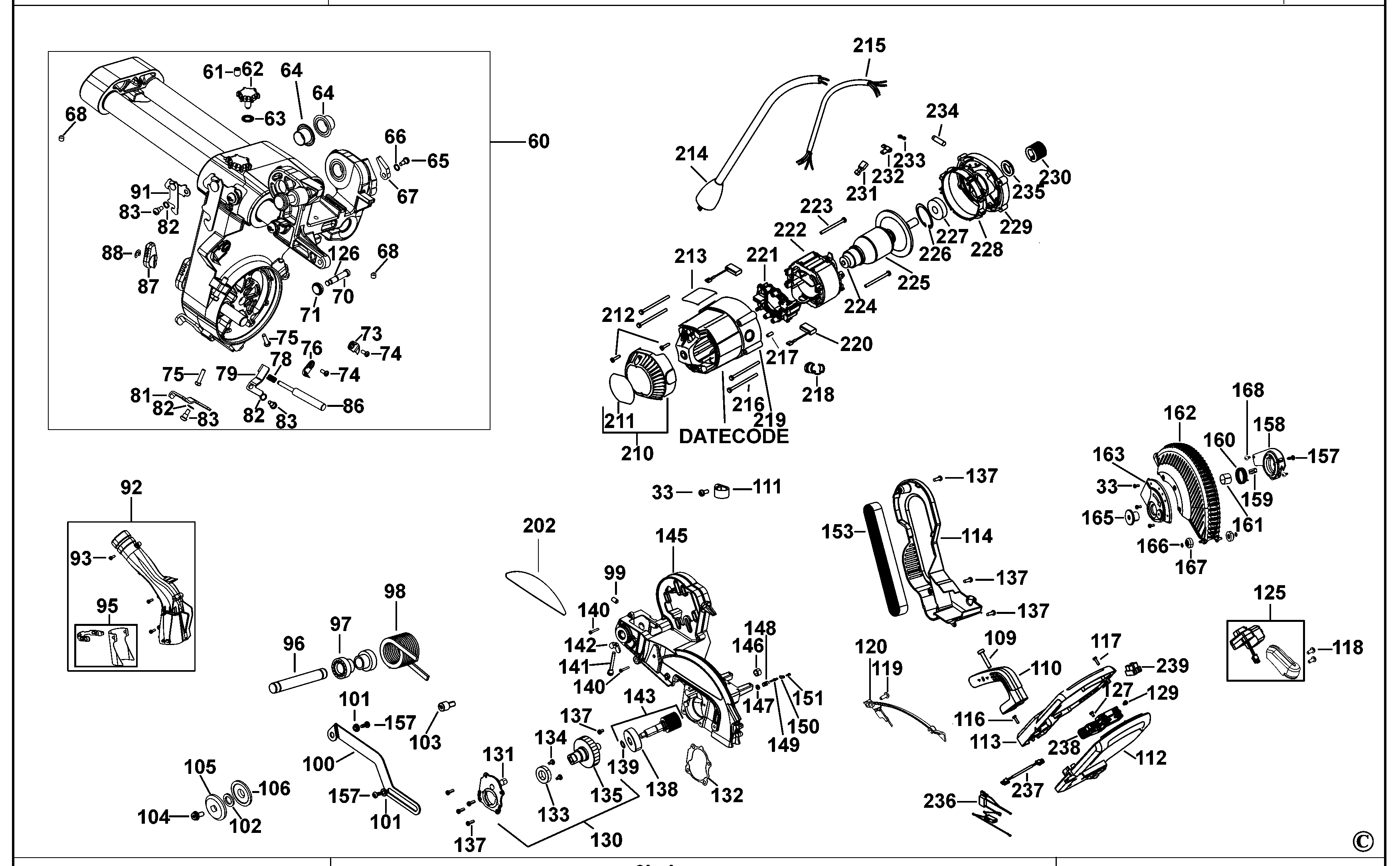

DWS727 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N747692 | 1 | BASE | KR | |||
| 2 | N542847 | 2 | HOLDER | KR | |||
| 3 | 330045-05 | 2 | SCREW | KR | |||
| 4 | 98025-35 | 1 | SCREW | KR | |||
| 5 | 49787-00 | 1 | O RING | KR | |||
| 6 | 153792-00 | 2 | WASHER | KR | |||
| 7 | 153451-00 | 1 | BEARING THRUST | KR | |||
| 8 | N074448 | 1 | NUT | KR | |||
| 9 | N556926 | 1 | CAP | KR | |||
| 10 | N690033 | 1 | SCALE | KR | |||
| 11 | 604410-00 | 2 | SCREW | KR | |||
| 12 | 330045-23 | 2 | SCREW | KR | |||
| 13 | N767631 | 1 | HEX KEY | HEX6-T30-L135X32 | KR | ||
| 14 | N592585 | 1 | RUBBER | KR | |||
| 15 | N540765 | 1 | LEVER | KR | |||
| 16 | N419627 | 1 | NUT | KR | |||
| 17 | 621322-00 | 1 | NUT | KR | |||
| 18 | N577744 | 1 | BAR LOCKING | KR | |||
| 19 | N597803 | 1 | PIN | KR | |||
| 20 | 330045-45 | 5 | SCREW | KR | |||
| 21 | 641448-00 | 1 | RETAINER | KR | |||
| 22 | N704030 | 1 | ACTUATOR | KR | |||
| 23 | 397070-00 | 1 | SPRING | KR | |||
| 24 | 330045-55 | 5 | SCREW | KR | |||
| 25 | 397062-00 | 1 | PLATE | KR | |||
| 26 | N655907 | 1 | LOCK | KR | |||
| 27 | 641423-00 | 1 | SPRING | KR | |||
| 28 | 641422-00 | 1 | KNOB | MITER OVERRIDE | KR | ||
| 29 | 330019-12 | 1 | SCREW | KR | |||
| 30 | 610707-00 | 2 | WARNING LABEL | KR | |||
| 31 | 397048-00 | 1 | POINTER | KR | |||
| 32 | N540767 | 1 | INSERT | KR | |||
| 33 | 330045-49 | 6 | SCREW | KR | |||
| 34 | N090294 | 1 | BEVEL SCALE | KR | |||
| 35 | N600059 | 1 | BOLT | KR | |||
| 36 | N058315 | 1 | SCREW.SPECIAL | KR | |||
| 37 | 385946-00 | 2 | WASHER SPRING | KR | |||
| 38 | N043045 | 2 | PAWL | KR | |||
| 39 | N043046 | 2 | PAWL | KR | |||
| 40 | N536137 | 1 | BOLT | 10 X 80 | KR | ||
| 41 | N600034 | 1 | SCREW | KR | |||
| 42 | N747695 | 1 | ROTARY TABLE | KR | |||
| 43 | N540749 | 1 | FENCE | LH | KR | ||
| 44 | N540748 | 1 | FENCE | KR | |||
| 45 | N540750 | 1 | FENCE | RH | KR | ||
| 46 | 613270-00 | 3 | WASHER | KR | |||
| 47 | N638426 | 1 | STOP | KR | |||
| 48 | N056883 | 1 | LOCK HANDLE | KR | |||
| 49 | N463949 | 1 | BEARING THRUST | KR | |||
| 50 | 612008-00 | 1 | SCREW | KR | |||
| 51 | 612008-00 | 1 | SCREW | KR | |||
| 52 | N769115 | 2 | PLASTIC SCREW | KR | |||
| 53 | N583687 | 2 | RETAINER | KR | |||
| 54 | 098105-03 | 4 | SCREW | KR | |||
| 55 | 147107-07 | 2 | KNOB LOWER | KR | |||
| 56 | 153639-00 | 1 | SCREW | KR | |||
| 57 | N587154 | 1 | CONNECTING WIRE | KR | |||
| 58 | 153792-00 | 1 | WASHER | KR | |||
| 59 | 330016-04 | 1 | WASHER | KR | |||
| 60 | N747696 | 1 | TRUNNION | KR | |||
| 61 | 153576-04 | 1 | SCREW | KR | |||
| 62 | N080677 | 1 | KNOB | M8x1.0 THD | KR | ||
| 63 | 659919-00 | 1 | SPRING | KR | |||
| 64 | N083191 | 2 | BUSH | KR | |||
| 65 | 153639-00 | 1 | SCREW | KR | |||
| 66 | 153655-00 | 2 | WASHER | KR | |||
| 67 | 153603-01 | 1 | PAWL | KR | |||
| 68 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | KR | ||
| 70 | 387130-00 | 1 | LOCKING PIN | KR | |||
| 71 | N654500 | 1 | KNOB | KR | |||
| 73 | N058308 | 1 | POINTER | KR | |||
| 74 | N058314 | 2 | SCREW | KR | |||
| 75 | N058312 | 2 | SCREW | KR | |||
| 76 | N058309 | 1 | POINTER | KR | |||
| 78 | 167785-00 | 1 | SPRING | KR | |||
| 79 | N049689 | 1 | STOP RH | KR | |||
| 81 | N051519 | 1 | STOP LH | KR | |||
| 82 | 153655-00 | 4 | WASHER | KR | |||
| 83 | 153639-00 | 5 | SCREW | KR | |||
| 86 | N041865 | 1 | PIN | KR | |||
| 87 | N080199 | 1 | KNOB | KR | |||
| 88 | 60325-01 | 1 | RING | KR | |||
| 91 | N095579 | 1 | LEVER SA | KR | |||
| 92 | N592588 | 1 | DUST PORT | KR | |||
| 93 | 330019-05 | 1 | SCREW | KR | |||
| 95 | N751540 | 1 | CHUTE | KR | |||
| 96 | 146751-00 | 1 | SHAFT | KR | |||
| 97 | 146732-00 | 2 | SPACER | KR | |||
| 98 | N039404 | 1 | SPRING | KR | |||
| 99 | 150075-00 | 2 | SCREW | KR | |||
| 100 | 641436-00 | 1 | LINK | KR | |||
| 101 | 146740-00 | 2 | SLEEVE | KR | |||
| 102 | 604770-00 | 1 | ADAPTOR | KR | |||
| 102 | 152636-00 | 1 | BLADE HOLDER | KR | |||
| 103 | N460123 | 1 | SCREW | KR | |||
| 104 | N600011 | 1 | BLADE BOLT | KR | |||
| 105 | N542995 | 1 | CLAMP OUTER | KR | |||
| 106 | N600470 | 1 | WASHER INNER CLAMP | KR | |||
| 109 | 330019-76 | 1 | SCREW | M5.74x32 | KR | ||
| 110 | N703990 | 1 | Handle | KR | |||
| 111 | N592587 | 1 | CORD CLAMP | KR | |||
| 112 | N502785 | 1 | HANDLE HALF | ASSEMBLY BOTTOM | KR | ||
| 113 | N502786 | 1 | HANDLE HALF | COVER TOP | KR | ||
| 114 | N655904 | 1 | COVER BELT | KR | |||
| 116 | 330045-18 | 4 | SCREW | KR | |||
| 117 | 330019-32 | 5 | SCREW | KR | |||
| 118 | 330045-49 | 2 | SCREW | KR | |||
| 119 | 330045-45 | 2 | SCREW | KR | |||
| 120 | N589571 | 1 | COVER | KR | |||
| 125 | N515802 | 1 | LED & POWER SUPPLY KIT | KR | |||
| 126 | 34158-00 | 1 | SEAL | KR | |||
| 127 | 330019-12 | 1 | SCREW | KR | |||
| 129 | 384127-01 | 4 | SCREW | KR | |||
| 130 | 641495-00SV | 1 | GEARCASE COVER SA | KR | |||
| 131 | 391616-00 | 1 | BEARING NEEDLE | KR | |||
| 132 | 641459-00 | 1 | GASKET | KR | |||
| 133 | 330003-66 | 1 | BEARING,BALL | KR | |||
| 134 | 385915-04 | 2 | SCREW | KR | |||
| 135 | 641465-00SV | 1 | GEAR & SPINDLE SA | KR | |||
| 137 | 330045-14 | 8 | SCREW | KR | |||
| 138 | 605040-69 | 1 | BEARING | KR | |||
| 139 | 153752-00 | 1 | RETAINER | KR | |||
| 140 | 330019-05 | 2 | SCREW | KR | |||
| 141 | N185664 | 1 | SCREW | KR | |||
| 142 | 150718-00 | 1 | NUT WING | KR | |||
| 143 | N066269SV | 1 | SHAFT SA | w/PULLEY | KR | ||
| 145 | N571290 | 1 | ARM | INC 146 | KR | ||
| 146 | 386780-00 | 1 | BEARING | KR | |||
| 147 | 153559-00 | 1 | WASHER | KR | |||
| 148 | 448176-00 | 1 | SPRING | KR | |||
| 149 | 153561-00 | 1 | LOCKING PIN | KR | |||
| 150 | 393071-00 | 1 | PLATE | KR | |||
| 151 | 330045-45 | 1 | SCREW | KR | |||
| 152 | 330045-15 | 1 | SCREW | KR | |||
| 153 | N767583 | 1 | BELT | KR | |||
| 155 | 330045-23 | 4 | SCREW | KR | |||
| 156 | N611941 | 4 | WASHER | KR | |||
| 157 | 330045-23 | 3 | SCREW | KR | |||
| 158 | N041974 | 1 | PLATE | KR | |||
| 159 | 146768-00 | 1 | BUMPER | KR | |||
| 160 | 661454-00 | 1 | SPRING | KR | |||
| 161 | 148295-00 | 1 | SLEEVE | KR | |||
| 162 | N540770 | 1 | GUARD LOWER | KR | |||
| 163 | N592582 | 1 | PLATE | KR | |||
| 165 | 146750-03 | 1 | RETAINING PLATE | KR | |||
| 166 | 142273-00 | 2 | RING | KR | |||
| 167 | 625825-00 | 2 | ROLLER | KR | |||
| 168 | 330045-55 | 3 | SCREW | KR | |||
| 200 | N753539 | 1 | CLAMP SA | KR | |||
| 202 | N627027 | 1 | BRAND LABEL | KR | |||
| 210 | N655905 | 1 | END CAP SA | INC 211 | KR | ||
| 212 | 330019-13 | 4 | SCREW | M4X19 T20 | KR | ||
| 213 | N774984 | 1 | RATING PLATE | KR | KR | ||
| 214 | 330120-23 | 1 | CORDSET (EURO) | KR | |||
| 215 | N458818 | 1 | MOTOR CABLE | KR | |||
| 216 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | KR | ||
| 217 | 145312-00 | 1 | PLUG | KR | |||
| 218 | 682149-00 | 1 | BUSH | KR | |||
| 219 | 391317-00 | 1 | FIELDCASE | KR | |||
| 220 | 381028-07 | 2 | BRUSH & LEAD | KR | |||
| 221 | N458123 | 1 | BRUSHPLATE | KR | |||
| 222 | N503672 | 1 | FIELD 230V | KR | |||
| 223 | 330019-19 | 2 | SCREW | KR | |||
| 224 | 394034-00 | 1 | SCREW | KR | |||
| 225 | N284339 | 1 | ARMATURE SA | 230V | KR | ||
| 226 | 930098-00 | 1 | RETAINER | KR | |||
| 227 | N127530 | 1 | BEARING BALL | KR | |||
| 228 | 391375-00 | 1 | BAFFLE FAN | KR | |||
| 229 | 394036-00 | 1 | PLATE | KR | |||
| 230 | N004510 | 1 | DRIVE PULLEY | KR | |||
| 231 | 450212-00 | 1 | TERMINAL | KR | |||
| 232 | 145332-00 | 4 | TERMINAL | KR | |||
| 233 | 395716-00 | 3 | TERMINAL | KR | |||
| 234 | 394034-00 | 1 | SCREW | KR | |||
| 235 | 153783-00 | 1 | RING | KR | |||
| 236 | 618159-01 | 1 | LEAD SA | LASER POWER SUPPLY | KR | ||
| 237 | N482050 | 1 | LEAD SA | KR | |||
| 237 | N801693 | 1 | LEAD SA | KR | |||
| 238 | N548978 | 1 | SWITCH | KR | |||
| 239 | 656549-00 | 1 | TERMINAL BLOCK | KR |
