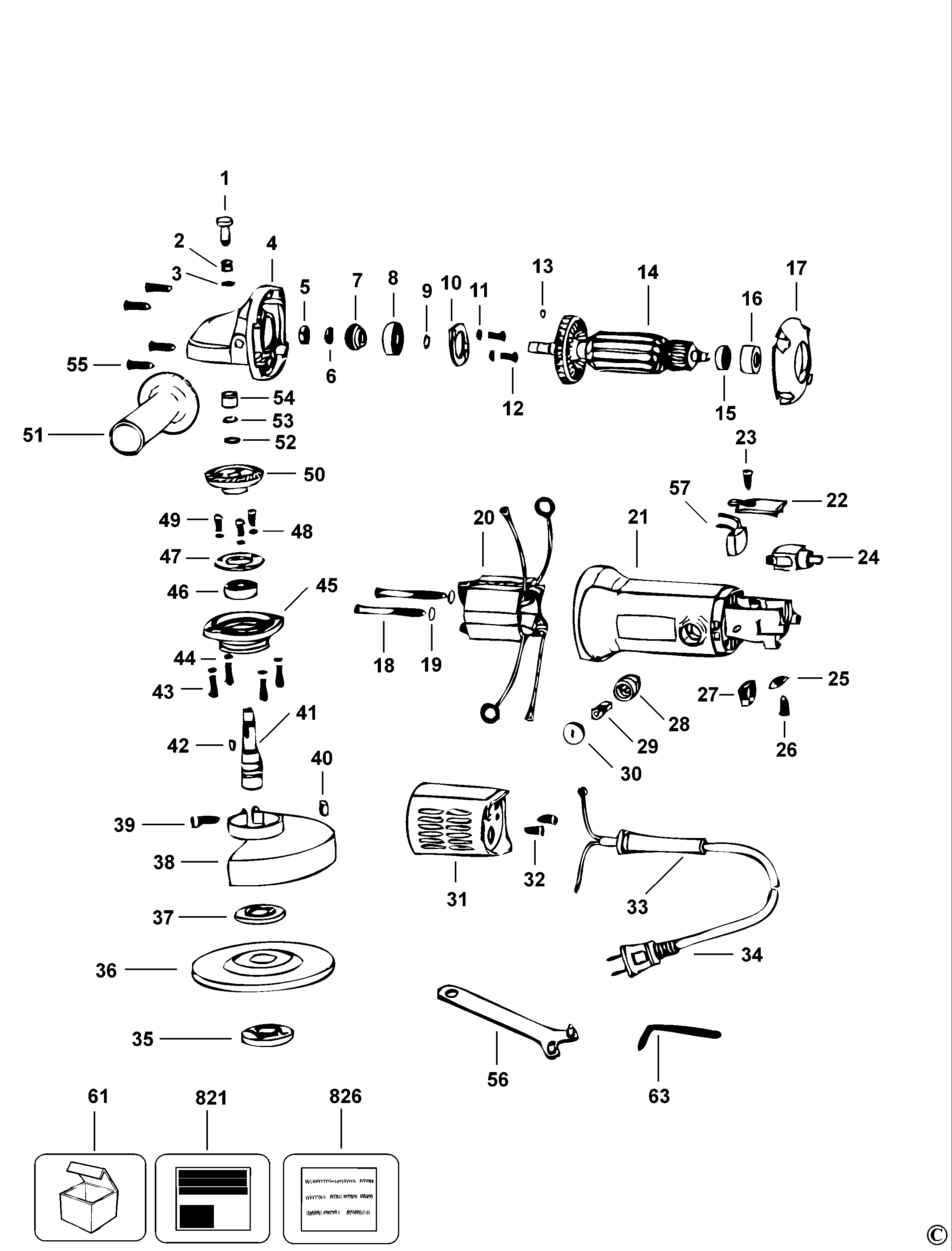

KG100-----E ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1003364-00 | 1 | PIN | KR | |||
| 2 | 1003365-00 | 1 | SPRING | KR | |||
| 3 | 1003366-00 | 1 | RING | KR | |||
| 4 | 1003367-00 | 1 | GEARBOX | KR | |||
| 5 | 1003368-00 | 1 | NUT | KR | |||
| 6 | 1003369-00 | 1 | WASHER LOCK | KR | |||
| 7 | 1003370-00 | 1 | PINION GEAR | KR | |||
| 8 | 1003371-00 | 1 | BEARING | KR | |||
| 9 | 1003372-00 | 1 | CIRCLIP | KR | |||
| 10 | 1003373-00 | 1 | CAP | KR | |||
| 11 | 1003374-00 | 2 | WASHER | KR | |||
| 12 | 1003375-00 | 2 | SCREW | KR | |||
| 13 | 1003376-00 | 1 | ROLLER | KR | |||
| 14 | 1003377-00 | 1 | ARMATURE | KR | |||
| 15 | 1003379-00 | 1 | BEARING | KR | |||
| 16 | 1003380-00 | 1 | RUBBER BOOT | KR | |||
| 17 | 1003381-00 | 1 | GUIDE | KR | |||
| 18 | 1003382-00 | 2 | SCREW | KR | |||
| 19 | 1003383-00 | 2 | WASHER LOCK | KR | |||
| 20 | 1003384-00 | 1 | STATOR | 230 V | KR | ||
| 21 | 1003386-00 | 1 | SHAFT | KR | |||
| 22 | 1003387-00 | 1 | SWITCH COVER | KR | |||
| 23 | 1003388-00 | 1 | SCREW | KR | |||
| 24 | 1003389-00 | 1 | SWITCH | KR | |||
| 25 | 1003390-00 | 1 | CORD CLAMP | KR | |||
| 26 | 1003391-00 | 1 | SCREW | KR | |||
| 27 | 1003393-00 | 1 | CAP | KR | |||
| 28 | 1003394-00 | 1 | BRUSH HOLDER | KR | |||
| 29 | 5170015-51 | 1 | BRUSH PAIR | KR | |||
| 30 | 1003396-00 | 1 | BRUSH CAP | KR | |||
| 31 | 1003397-00 | 1 | END CAP | KR | |||
| 32 | 1003399-00 | 2 | SCREW | KR | |||
| 33 | 1003400-00 | 1 | CORD PROTECTOR | KR | |||
| 34 | 1003405-00 | 1 | CORDSET | KR | |||
| 35 | 1003407-00 | 1 | LOCK NUT | KR | |||
| 36 | 1003409-00 | 1 | WHEEL GRINDING | KR | |||
| 37 | 1003413-00 | 1 | FLANGE | KR | |||
| 38 | 1003414-00 | 1 | GUARD | KR | |||
| 39 | 1003415-00 | 1 | SCREW | KR | |||
| 40 | 1003416-00 | 1 | NUT | KR | |||
| 41 | 1003417-00 | 1 | SPINDLE | KR | |||
| 42 | 1003418-00 | 1 | WOODRUFF KEY | KR | |||
| 43 | 1003419-00 | 4 | SCREW | KR | |||
| 44 | 1003420-00 | 4 | WASHER LOCK | KR | |||
| 45 | 1003421-00 | 1 | CAP | KR | |||
| 46 | 1003422-00 | 1 | BEARING | KR | |||
| 47 | 1003423-00 | 1 | COVER BEARING | KR | |||
| 48 | 1003424-00 | 3 | WASHER LOCK | KR | |||
| 49 | 1003425-00 | 3 | SCREW | KR | |||
| 50 | 1003426-00 | 1 | GEAR | KR | |||
| 51 | 1003427-00 | 1 | SIDE HANDLE | KR | |||
| 52 | 1003428-00 | 1 | WASHER SPRING | KR | |||
| 53 | 1003429-00 | 1 | CIRCLIP | KR | |||
| 54 | 1003430-00 | 1 | BEARING | KR | |||
| 55 | 1003431-00 | 4 | SCREW | KR | |||
| 56 | 1003432-00 | 1 | WRENCH PIN | KR | |||
| 57 | 1003433-00 | 1 | CAPACITOR | KR | |||
| 821 | 1003436-00 | 1 | RATING PLATE | KR | |||
| 826 | 1003434-00 | 1 | BRAND LABEL | KR |
