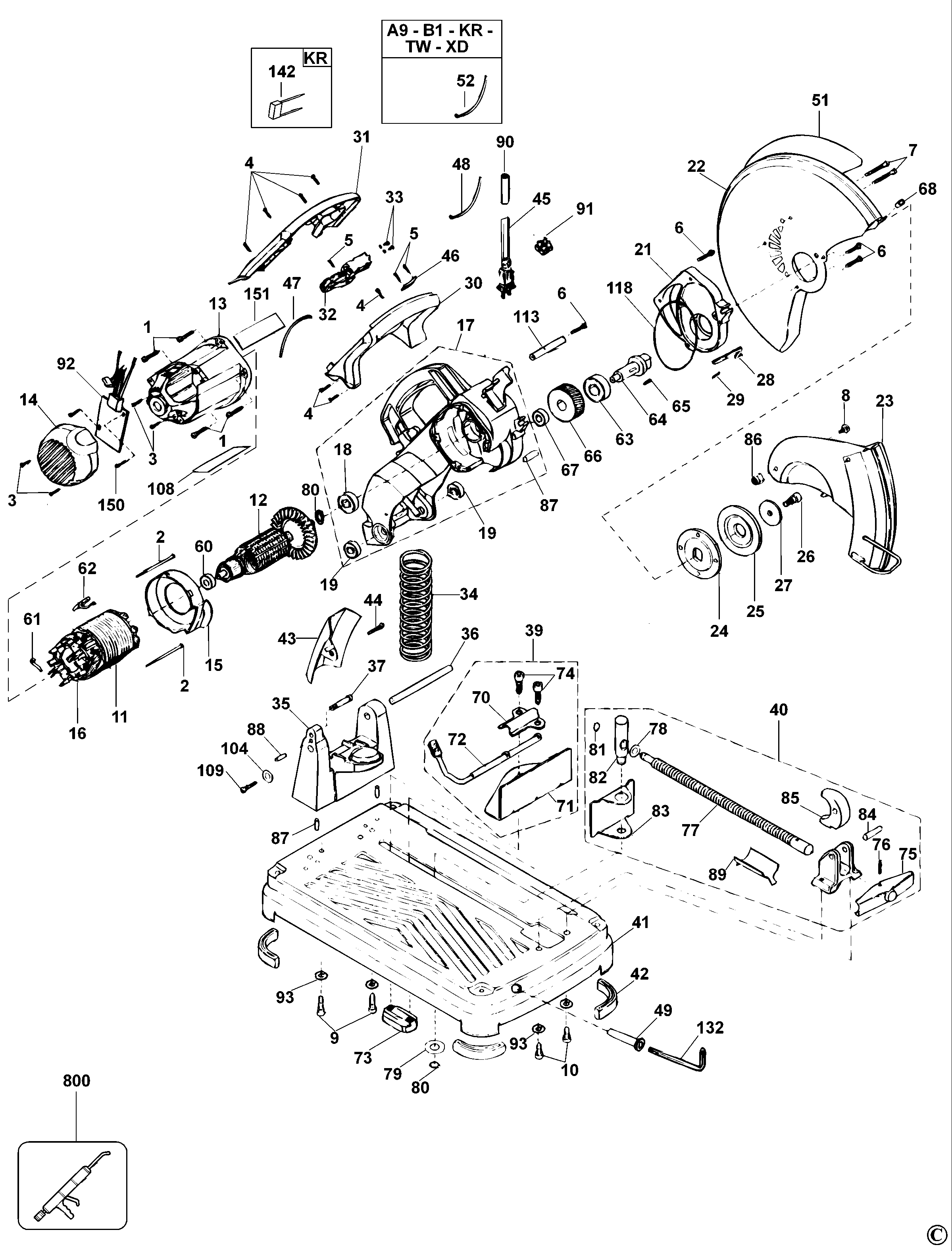

DW871 CHOP SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-16 | 4 | SCREW | TW | |||
| 2 | 330019-33 | 2 | SCREW | TW | |||
| 3 | 330019-13 | 4 | SCREW | M4X19 T20 | TW | ||
| 4 | 330019-14 | 7 | SCREW | TW | |||
| 5 | 330019-02 | 3 | SCREW | TW | |||
| 6 | 330045-17 | 4 | SCREW | M5x30 MTL THD FMG | TW | ||
| 7 | 330045-20 | 2 | SCREW | M5*45 T25 | TW | ||
| 8 | 384844-00 | 1 | SCREW SPECIAL | TW | |||
| 9 | 098123-25 | 2 | SCREW | TW | |||
| 10 | 098123-16 | 2 | SCREW | TW | |||
| 11 | 624158-00 | 1 | FIELD 115V | TW | |||
| 12 | 383652-08 | 1 | ARMATURE 115V | TW | |||
| 13 | 383151-02 | 1 | FIELDCASE | TW | |||
| 14 | 383155-00 | 1 | END CAP | TW | |||
| 15 | 383167-00 | 1 | BAFFLE FAN | TW | |||
| 16 | 383685-00 | 1 | BRUSH PLATE SA | TW | |||
| 17 | 386628-00 | 1 | GEARCASE SA | TW | |||
| 18 | 605040-27 | 1 | BEARING | TW | |||
| 19 | 330003-64 | 2 | BEARING | ID 12 x OD 28 x 8mm | TW | ||
| 21 | 383158-00 | 1 | GEARCASE COVER SA | TW | |||
| 22 | 386527-02 | 1 | GUARD SA | TW | |||
| 23 | 383175-00 | 1 | GUARD COVER | TW | |||
| 24 | 607173-00 | 1 | INNER FLANGE | TW | |||
| 25 | 382884-00 | 1 | CLAMP OUTER | TW | |||
| 26 | 383286-00 | 1 | SCREW | TW | |||
| 27 | 383246-00 | 1 | WASHER | TW | |||
| 28 | 383966-00 | 1 | LOCKING PIN | TW | |||
| 29 | 384716-00 | 1 | SPRING | TW | |||
| 30 | 383159-01 | 1 | HANDLE HALF | TW | |||
| 31 | 383160-00 | 1 | HANDLE COVER | TW | |||
| 32 | 621514-01 | 1 | SERVICE KIT | TW | |||
| 33 | 387746-00 | 4 | SCREW | M3.5x0.6x7.5 W/LOCKW | TW | ||
| 34 | 387282-00 | 1 | SPRING | TW | |||
| 35 | 383168-00 | 1 | PIVOT BLOCK | TW | |||
| 36 | 383118-00 | 1 | PIN | TW | |||
| 37 | 383148-00 | 1 | LOCKING PIN | TW | |||
| 39 | 384137-00 | 1 | FENCE SA | TW | |||
| 40 | 384180-00 | 1 | VICE | TW | |||
| 40 | N510986 | 1 | VICE JAW | TW | |||
| 41 | 382366-01 | 1 | BASE | TW | |||
| 42 | 383243-00 | 4 | FOOT | TW | |||
| 43 | 384159-00 | 1 | DEFLECTOR | TW | |||
| 44 | 330045-23 | 1 | SCREW | TW | |||
| 45 | 380080-42 | 1 | CABLE SA | TW | |||
| 45 | 380080-41 | 1 | CABLE SA | TW | |||
| 46 | 386540-00 | 1 | CORD CLAMP | TW | |||
| 47 | 384762-00 | 1 | LEAD | TW | |||
| 48 | 386515-00 | 1 | LEAD | TW | |||
| 49 | 386765-00 | 1 | HOLDER TOOL | TW | |||
| 51 | 384771-00 | 2 | LABEL | TW | |||
| 52 | 386474-00 | 1 | LEAD | TW | |||
| 60 | 330003-17 | 1 | BEARING | TW | |||
| 61 | 384612-00 | 2 | SPRING | TW | |||
| 62 | N920185 | 1 | BRUSH PAIR | TW | |||
| 62 | 384613-00 | 2 | BRUSH 120V | BK95 | TW | ||
| 63 | 330003-49 | 1 | BEARING | TW | |||
| 64 | 382882-00 | 1 | SPINDLE | TW | |||
| 65 | 382675-00 | 1 | KEY | TW | |||
| 66 | 386277-00 | 1 | GEAR | TW | |||
| 67 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | TW | ||
| 68 | 386526-00 | 1 | STOP RUBBER | TW | |||
| 70 | 391459-00 | 1 | PLATE LOCK | TW | |||
| 71 | 382677-00 | 1 | FENCE | TW | |||
| 72 | 382540-00 | 1 | LEVER | TW | |||
| 73 | 383254-00 | 1 | BLOCK | TW | |||
| 74 | 383450-00 | 2 | SCREW | TW | |||
| 75 | 383252-00 | 1 | LOCK HANDLE | TW | |||
| 76 | 330036-08 | 1 | PIN | TW | |||
| 77 | 395856-00 | 1 | ROD | TW | |||
| 78 | 384365-00 | 1 | WASHER | TW | |||
| 79 | 607592-00 | 1 | WASHER | TW | |||
| 80 | 144803-00 | 2 | CIRCLIP | TW | |||
| 81 | 383169-00 | 1 | CIRCLIP | TW | |||
| 82 | 5140000-11 | 1 | PIN | & RETAINING RING | TW | ||
| 83 | 607278-00 | 1 | VICE JAW | TW | |||
| 84 | 386525-01 | 1 | DOWEL | TW | |||
| 85 | 383828-00 | 1 | LOCKING DEVICE | TW | |||
| 86 | 330021-06 | 1 | NUT | TW | |||
| 87 | 386525-00 | 5 | DOWEL | TW | |||
| 88 | 033055-00 | 1 | PLUG | TW | |||
| 89 | 383451-00 | 1 | SADDLE | TW | |||
| 90 | 386491-00 | 1 | SLEEVE | TW | |||
| 93 | 098197-09 | 4 | WASHER | TW | |||
| 104 | 388354-00 | 2 | WASHER | TW | |||
| 108 | 386333-00 | 1 | IDENTITY LABEL | TW | |||
| 109 | 330045-49 | 2 | SCREW | TW | |||
| 113 | 391740-00 | 1 | SPACER | TW | |||
| 118 | 391485-00 | 1 | O RING | TW | |||
| 132 | 384717-00 | 1 | WRENCH | TW | |||
| 150 | 562097-01 | 1 | SCREW | TW | |||
| 151 | 394492-00 | 1 | WARNING LABEL | TW | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | TW |
