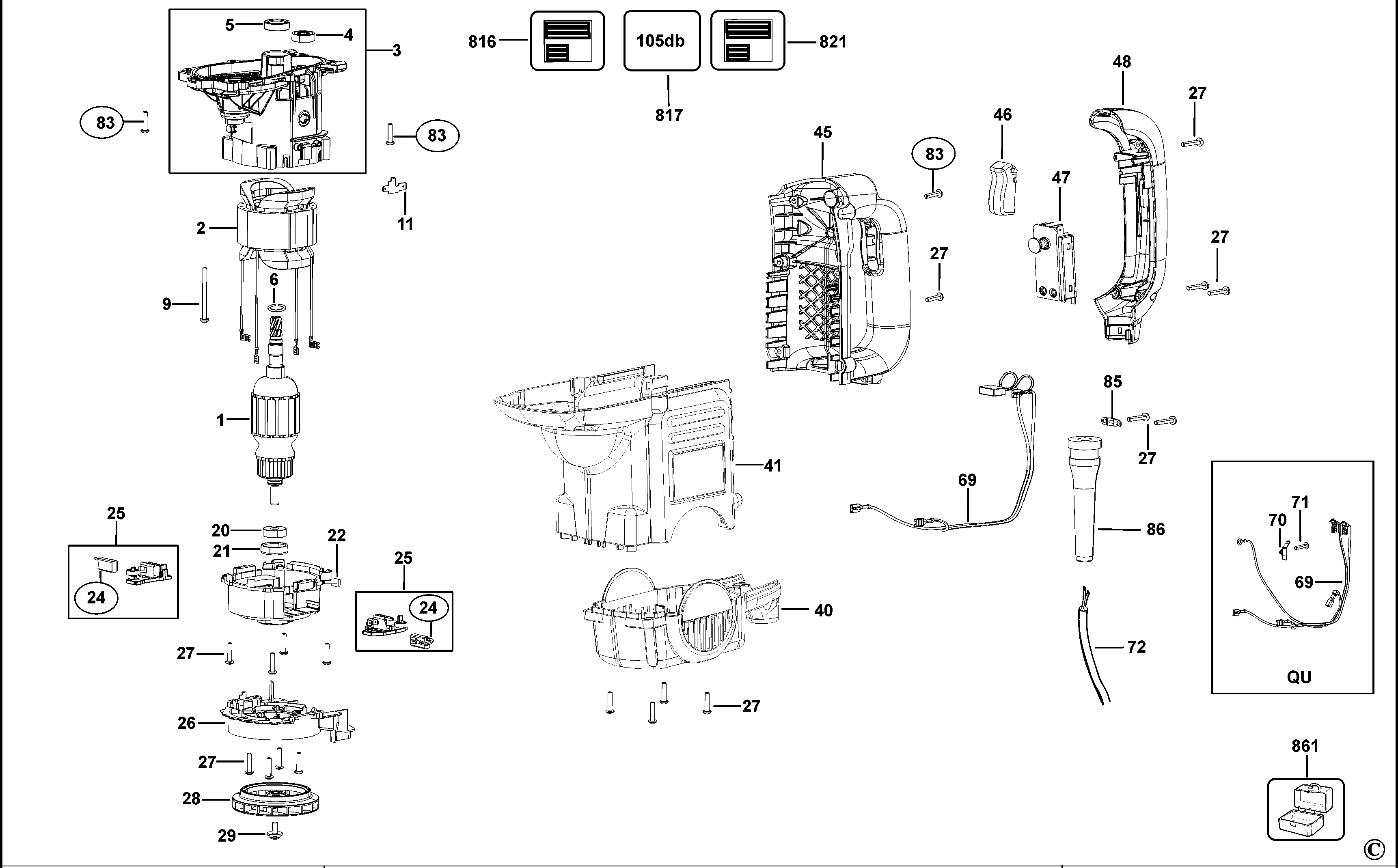

D25501K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N046419 | 1 | ARMATURE 120V | TW | |||
| 2 | N041826 | 1 | FIELD 120V | TW | |||
| 3 | N047284 | 1 | HOUSING SA | TW | |||
| 4 | 330003-39 | 1 | BEARING | TW | |||
| 5 | 327141-03 | 1 | SEAL | TW | |||
| 6 | 577746-00 | 1 | RING | TW | |||
| 9 | 330065-21 | 2 | SCREW | TW | |||
| 11 | 1007970-00 | 2 | CONNECTOR | TW | |||
| 20 | 330003-60 | 1 | BEARING | TW | |||
| 21 | 1007732-00 | 1 | SLEEVE | TW | |||
| 22 | 1007798-00 | 1 | BRIDGE | TW | |||
| 24 | N047425 | 1 | BRUSH PAIR 120V | TW | |||
| 25 | N047445 | 2 | BRUSH & HOLDER 115V | TW | |||
| 26 | N016922 | 1 | BAFFLE FAN | TW | |||
| 27 | 330065-08 | 25 | SCREW | M4x18 T20 | TW | ||
| 28 | 1006592-00 | 1 | FAN | TW | |||
| 29 | 324119-02 | 1 | SCREW | TW | |||
| 40 | N021935 | 1 | END CAP | TW | |||
| 41 | 1006576-02 | 1 | MOTOR COVER | TW | |||
| 45 | 1008798-00 | 1 | HOUSING HANDLE | TW | |||
| 46 | 587114-01 | 1 | TRIGGER | TW | |||
| 47 | 587274-00 | 1 | SWITCH | TW | |||
| 48 | 1008682-00 | 1 | HANDLE COVER | TW | |||
| 69 | N047305 | 1 | SET OF LEAD WIRES | TW | |||
| 72 | N093992 | 1 | CORDSET | TW | |||
| 83 | 324007-11 | 19 | SCREW | M5 X 18 | TW | ||
| 85 | 821070 | 1 | CORD CLAMP | TW | |||
| 86 | 323091-01 | 1 | CORD PROTECTOR | TW | |||
| 100 | 329816-00 | 1 | LIP SEAL | TW | |||
| 101 | 326575-01 | 1 | COLLAR | TW | |||
| 102 | 479247-00 | 1 | SLEEVE SA | TW | |||
| 103 | 918825-02 | 4 | SCREW | TW | |||
| 104 | 1006572-00 | 1 | COVER | TW | |||
| 105 | 325878-00 | 2 | ROLLER | TW | |||
| 106 | 325929-00 | 2 | HALF WASHER | TW | |||
| 107 | 327208-00 | 1 | GUIDE | TW | |||
| 108 | 323395-06 | 1 | SPRING | TW | |||
| 109 | 487118-00 | 1 | SPRING | TW | |||
| 110 | 325930-00 | 1 | SPRING GUIDE | TW | |||
| 112 | N437292 | 1 | SIDE HANDLE | TW | |||
| 115 | N073105 | 1 | HANDLE SIDE SA | TW | |||
| 116 | N040996 | 1 | DEPTH ROD | TW | |||
| 119 | N038151 | 1 | FELT | TW | |||
| 120 | N045793 | 1 | BUSH | TW | |||
| 122 | 1007828-00 | 1 | SEAL | TW | |||
| 123 | N041835 | 1 | HOUSING | Inc 120, 122 | TW | ||
| 126 | 1005982-00 | 2 | WASHER | TW | |||
| 127 | 496191-00 | 1 | DAMPER | TW | |||
| 128 | N041834 | 1 | SPINDLE | TW | |||
| 129 | N041847 | 1 | BEAT PIECE | TW | |||
| 130 | N244259 | 1 | SEAL | TW | |||
| 131 | 323711-10 | 1 | O RING | TW | |||
| 135 | N064329 | 2 | WASHER | TW | |||
| 140 | 494857-00 | 1 | BUSH | TW | |||
| 141 | 1006283-00 | 1 | GASKET | TW | |||
| 142 | 1005748-00 | 2 | SPRING | 2X40.2 | TW | ||
| 143 | N210233 | 2 | O RING | TW | |||
| 144 | 1006778-00 | 1 | BUSH | TW | |||
| 145 | N041846 | 1 | CYLINDER | TW | |||
| 146 | 577744-00 | 2 | O RING | TW | |||
| 147 | N041845 | 1 | RAM | 5KG | TW | ||
| 148 | 576232-01 | 2 | O RING | 23 X 4 | TW | ||
| 149 | N041844 | 1 | SLEEVE | TW | |||
| 150 | 1005749-00 | 1 | SELECTOR FORK | TW | |||
| 160 | N041842 | 1 | BEVEL GEAR | TW | |||
| 161 | 325905-00 | 1 | RETAINER | TW | |||
| 162 | 330041-22 | 1 | PIN | TW | |||
| 163 | N041843 | 1 | PISTON | TW | |||
| 164 | 494724-00 | 1 | CON ROD | TW | |||
| 165 | 1008393-00 | 1 | COVER RH | R/H | TW | ||
| 166 | 1006786-00 | 1 | SELECTOR | TW | |||
| 167 | 326467-00 | 1 | DETENT | TW | |||
| 168 | 1006575-00 | 1 | COVER-TOP | TW | |||
| 169 | 323711-57 | 1 | O RING | 8 X 2.2 | TW | ||
| 172 | 496856-00 | 1 | ECCENTRIC | TW | |||
| 180 | 1006784-00 | 1 | SLIDER | 5 KG | TW | ||
| 181 | 323395-32 | 2 | SPRING | TW | |||
| 182 | 1006783-00 | 1 | CONNECTOR | 5 KG | TW | ||
| 183 | 496857-00 | 1 | COVER | TW | |||
| 184 | 323711-59 | 1 | O RING | 65 X 4 | TW | ||
| 185 | 1006785-00 | 1 | PLATE | TW | |||
| 186 | N041841 | 1 | CRANKSHAFT | 5 KG | TW | ||
| 187 | 323711-26 | 1 | O RING | TW | |||
| 188 | N041840 | 1 | HOUSING SA | TW | |||
| 190 | 577745-01 | 1 | BEARING,BALL | TW | |||
| 191 | 586301-00 | 1 | BEARING,NEEDLE | TW | |||
| 192 | 323711-57 | 1 | O RING | 8 X 2.2 | TW | ||
| 193 | 1008427-00 | 1 | SCREW.SPECIAL | TW | |||
| 201 | 1008392-00 | 1 | COVER LH | R/H | TW | ||
| 202 | N041839 | 1 | CHAIN | P8 X 40 | TW | ||
| 203 | N041837 | 1 | GEAR | TW | |||
| 204 | 1006280-00 | 1 | GUIDE | TW | |||
| 205 | N551770 | 1 | CLUTCH SA | 1 STEP | TW | ||
| 206 | 1006282-00 | 1 | GASKET | TW | |||
| 800 | 870889-02 | 1 | GREASE | TW | |||
| 810 | N040237 | 1 | TUBE OIL | TW | |||
| 816 | N064908 | 1 | BRAND LABEL | TW | |||
| 817 | 487395-01 | 1 | LABEL | TW | |||
| 821 | N092449 | 1 | RATING PLATE | TW | |||
| 836 | 1003938-99 | 1 | SERVICE TOOL | TW | |||
| 837 | 559645-99 | 1 | S.T.SEAL FITTING TOOL | TW | |||
| 847 | N095944 | 1 | SERVICE KIT 120V | TW | |||
| 861 | 574931-22 | 1 | KITBOX | TW |
