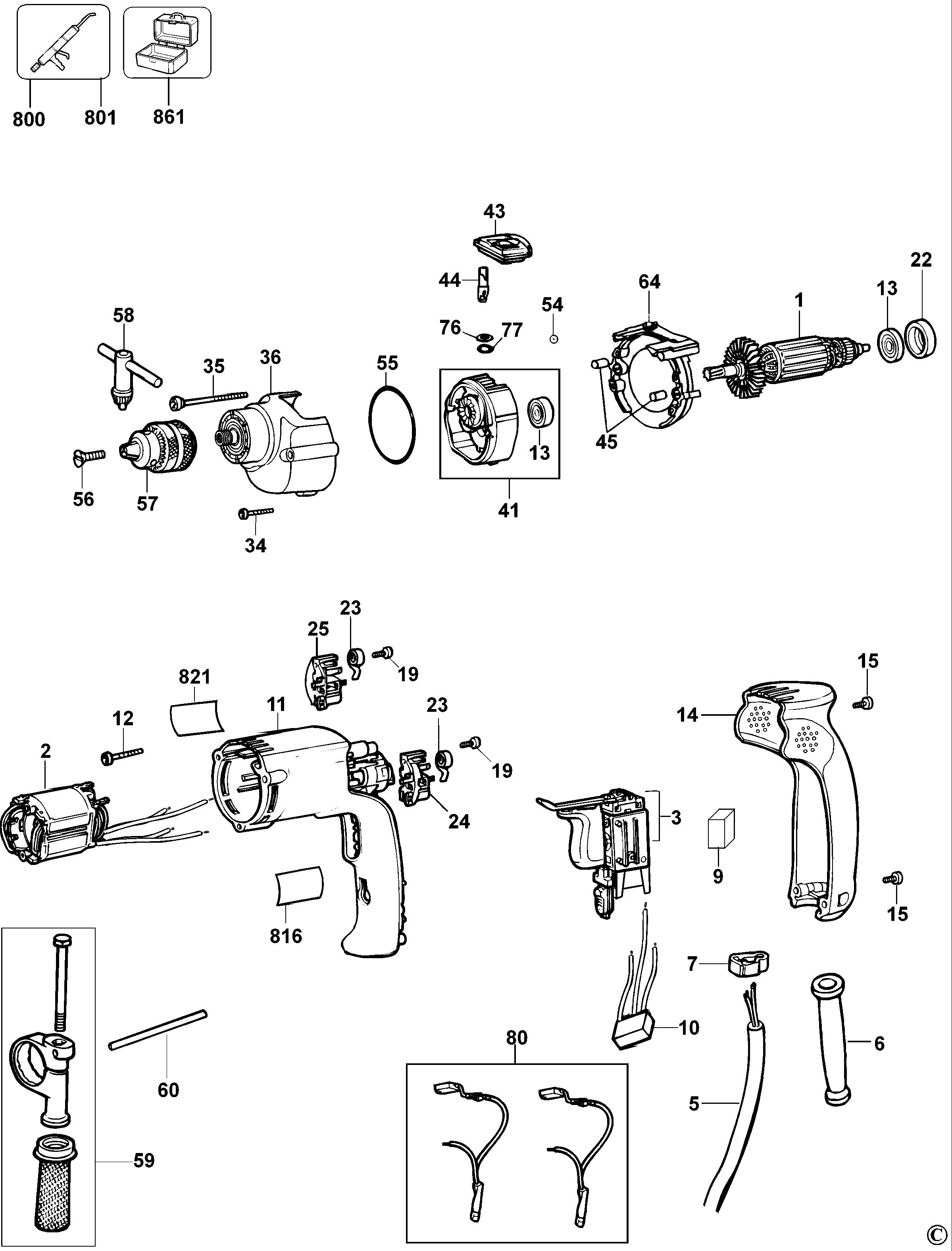

D21710 HAMMER DRILL Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495832-00 | 1 | ARMATURE SA | A9 | |||
| 2 | 495833-00 | 1 | FIELD SA | 220 V | A9 | ||
| 3 | 616576-01 | 1 | SWITCH | A9 | |||
| 5 | 330114-15 | 1 | CORDSET | A9 | |||
| 6 | 401751-00 | 1 | CORD PROTECTOR | A9 | |||
| 7 | 603255-00 | 1 | CORD CLAMP | A9 | |||
| 9 | 930026-01 | 1 | BUMPER | A9 | |||
| 10 | 496516-00 | 1 | CAPACITOR | A9 | |||
| 11 | N014400 | 1 | FIELD CASE | A9 | |||
| 11 | N014400 | 1 | FIELD CASE | A9 | |||
| 12 | 496932-00 | 2 | SCREW | A9 | |||
| 13 | 605040-08 | 2 | BEARING | A9 | |||
| 14 | 610140-00 | 1 | HANDLE COVER | A9 | |||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | A9 | ||
| 19 | 330065-06 | 2 | SCREW | A9 | |||
| 22 | 389824-00 | 1 | BOOT | A9 | |||
| 23 | 402759-00 | 2 | BRUSH SPRING | A9 | |||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | A9 | |||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | A9 | |||
| 34 | 330019-14 | 1 | SCREW | A9 | |||
| 35 | 330019-17 | 2 | SCREW | A9 | |||
| 36 | 584529-00 | 1 | HOUSING | A9 | |||
| 41 | 584525-02 | 1 | GEARCASE SA | A9 | |||
| 43 | 590107-00 | 1 | SELECTOR SA | A9 | |||
| 44 | 946106-00 | 1 | PIN | A9 | |||
| 45 | 949638-02 | 2 | DAMPER | A9 | |||
| 54 | 000903-00 | 1 | BALL | A9 | |||
| 55 | 401847-00 | 1 | SEAL | A9 | |||
| 56 | 490910-00 | 1 | SCREW | A9 | |||
| 57 | 584925-02 | 1 | CHUCK 13MM | A9 | |||
| 58 | 330034-07 | 1 | CHUCK KEY | A9 | |||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | A9 | |||
| 60 | 940357-00 | 1 | DEPTH STOP | A9 | |||
| 64 | 585994-00 | 1 | BAFFLE FAN | A9 | |||
| 76 | 050050-00 | 1 | RING | A9 | |||
| 77 | 176659-00 | 1 | WASHER | A9 | |||
| 80 | 578393-02 | 1 | BRUSH KIT 230V | A9 | |||
| 800 | 429911-00 | 1 | GREASE 40 GMS | A9 | |||
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | A9 | ||
| 816 | 395047-00 | 1 | BRAND LABEL | A9 | |||
| 821 | 496869-00 | 1 | RATING PLATE | A9 | |||
| 861 | 496146-00 | 1 | KITBOX | A9 |
