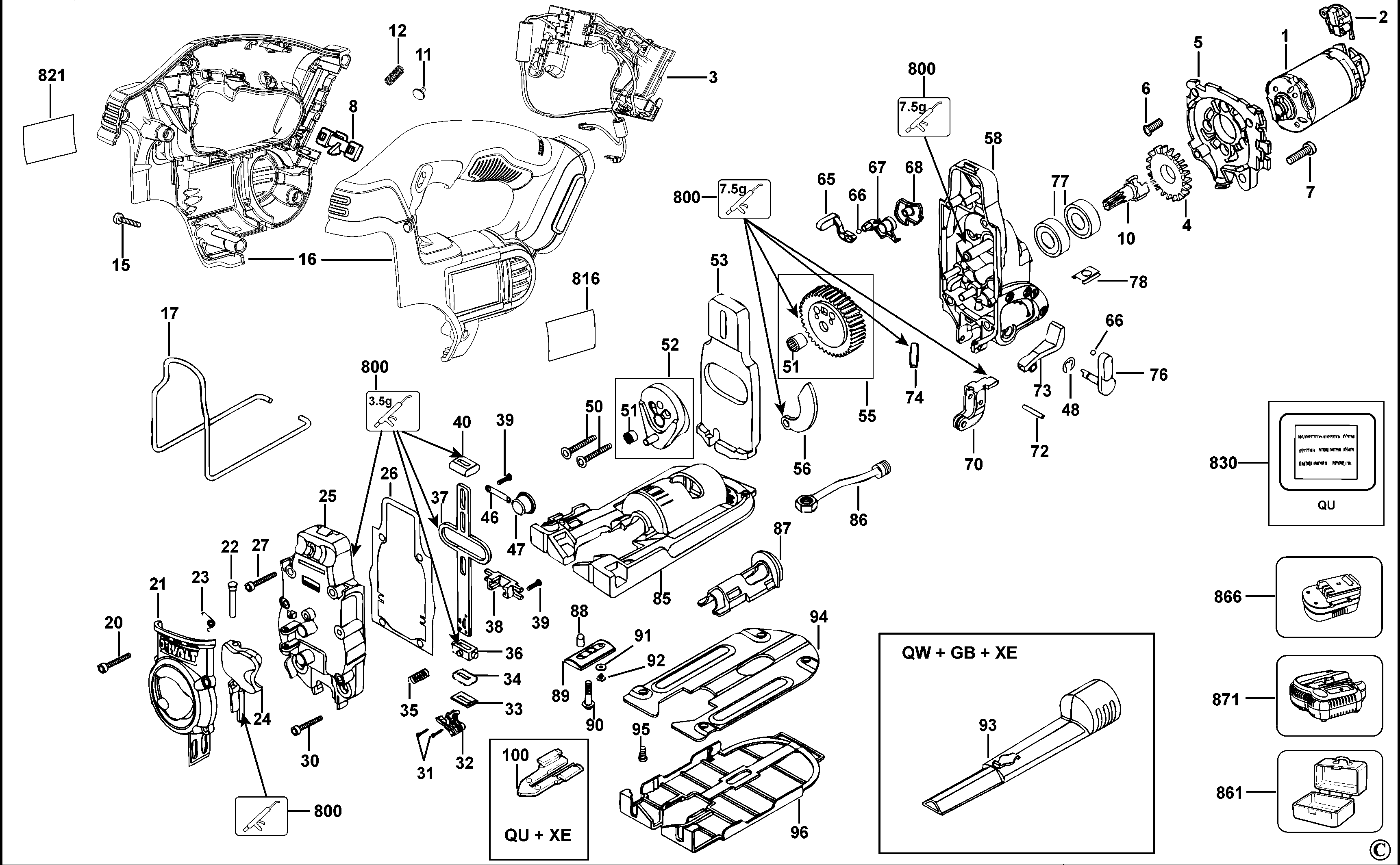

DCS331 CORDLESS JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495083-00 | 1 | MOTOR SA | 18V | A9 | ||
| 2 | 493511-00 | 1 | BRUSH PAIR | A9 | |||
| 3 | N165192 | 1 | ELECTRONIC & SWITCH | A9 | |||
| 4 | 329810-00 | 1 | FAN | A9 | |||
| 5 | 583069-00 | 1 | ADAPTOR | A9 | |||
| 6 | 812171 | 3 | SCREW | A9 | |||
| 7 | 330045-15 | 4 | SCREW | A9 | |||
| 8 | N060864 | 1 | BUTTON LOCK-OFF | A9 | |||
| 10 | 589147-00 | 1 | PINION | A9 | |||
| 11 | N091479 | 1 | MOUNT | A9 | |||
| 12 | N119679 | 1 | SPRING | A9 | |||
| 15 | 330019-03 | 9 | SCREW | A9 | |||
| 16 | N165199 | 1 | CLAMSHELL PAIR | 14.4v; 18v | A9 | ||
| 17 | 581269-00 | 1 | GUARD | A9 | |||
| 20 | 324006-00 | 4 | SCREW | A9 | |||
| 21 | 581577-00 | 1 | CASTING | A9 | |||
| 22 | 584627-00 | 1 | PIN | A9 | |||
| 23 | 581418-00 | 1 | SPRING | A9 | |||
| 24 | 589055-00 | 1 | ACTUATOR | A9 | |||
| 25 | N142820 | 1 | GEARCASE COVER | 18v | A9 | ||
| 26 | N444301 | 1 | GASKET | A9 | |||
| 27 | 330045-09 | 2 | SCREW | M4x30 T20 MTLTHDFMG | A9 | ||
| 30 | 330045-06 | 2 | SCREW | A9 | |||
| 31 | 582837-00 | 1 | BOLT | A9 | |||
| 32 | N127658 | 1 | BLADE CLAMP | A9 | |||
| 33 | 582262-00 | 1 | HOLDER | A9 | |||
| 34 | 582263-00 | 1 | FELT SEAL | A9 | |||
| 35 | 586646-00 | 1 | SPRING | A9 | |||
| 36 | 490330-00 | 1 | BEARING | A9 | |||
| 37 | 589013-00 | 1 | SHAFT | A9 | |||
| 38 | 582260-00 | 1 | SUPPORT BEARING | A9 | |||
| 39 | 324006-00 | 4 | SCREW | A9 | |||
| 40 | 490329-00 | 1 | BEARING | A9 | |||
| 46 | 582261-00 | 1 | CLAMP | A9 | |||
| 47 | 582257-00 | 1 | DRIVE ROLLER | A9 | |||
| 48 | 571181-00 | 1 | CLIP | A9 | |||
| 50 | N127249 | 2 | SCREW | A9 | |||
| 51 | 330004-02 | 2 | BEARING NEEDLE | A9 | |||
| 52 | 479403-00 | 1 | CRANK KIT | A9 | |||
| 53 | N034837 | 1 | COUNTERWEIGHT | A9 | |||
| 55 | 589014-01 | 1 | GEAR SA | Spur | A9 | ||
| 56 | 581247-00 | 1 | ACTUATOR | A9 | |||
| 58 | 589011-01 | 1 | GEARCASE SA | A9 | |||
| 65 | 581255-05 | 1 | LEVER | A9 | |||
| 66 | 326467-00 | 2 | DETENT | A9 | |||
| 67 | 582830-05 | 1 | BODY | A9 | |||
| 68 | 582831-00 | 1 | BAFFLE | A9 | |||
| 70 | 589056-00 | 1 | SUPPORT BRACKET | A9 | |||
| 72 | 330041-29 | 1 | PIN | A9 | |||
| 73 | 584450-00 | 1 | NOZZLE | A9 | |||
| 74 | 330041-49 | 1 | PIN | A9 | |||
| 76 | 581257-01 | 1 | LEVER | PENDULUM (CORDLESS) | A9 | ||
| 77 | 605040-38 | 2 | BEARING,BALL | A9 | |||
| 78 | 584639-00 | 1 | SPRING CLIP | A9 | |||
| 85 | 581263-00 | 1 | SHOE | A9 | |||
| 87 | 581266-00 | 1 | ADAPTOR | A9 | |||
| 88 | 584686-00 | 1 | PLUNGER | A9 | |||
| 89 | 496996-00 | 1 | CLAMP | A9 | |||
| 90 | 582826-00 | 1 | BOLT | A9 | |||
| 91 | 582828-00 | 1 | WASHER | M5 x 4.5 x 1.5 Thk | A9 | ||
| 92 | 582827-00 | 1 | BOLT | A9 | |||
| 93 | 581281-00 | 1 | VACUUM ADAPTOR | A9 | |||
| 94 | 581264-00 | 1 | SOLE PLATE | A9 | |||
| 95 | N056875 | 4 | SCREW TORX | M4x10 | A9 | ||
| 96 | 581268-00 | 1 | SOLE PLATE | A9 | |||
| 100 | 402140-00 | 1 | ANTI SPLINTER DEVICE | A9 | |||
| 800 | 870889-02 | 1 | GREASE | A9 | |||
| 816 | N137253 | 1 | BRAND LABEL | 18v | A9 | ||
| 821 | N227356 | 1 | RATING PLATE | A9 | |||
| 861 | 581580-03 | 1 | KITBOX | A9 |
