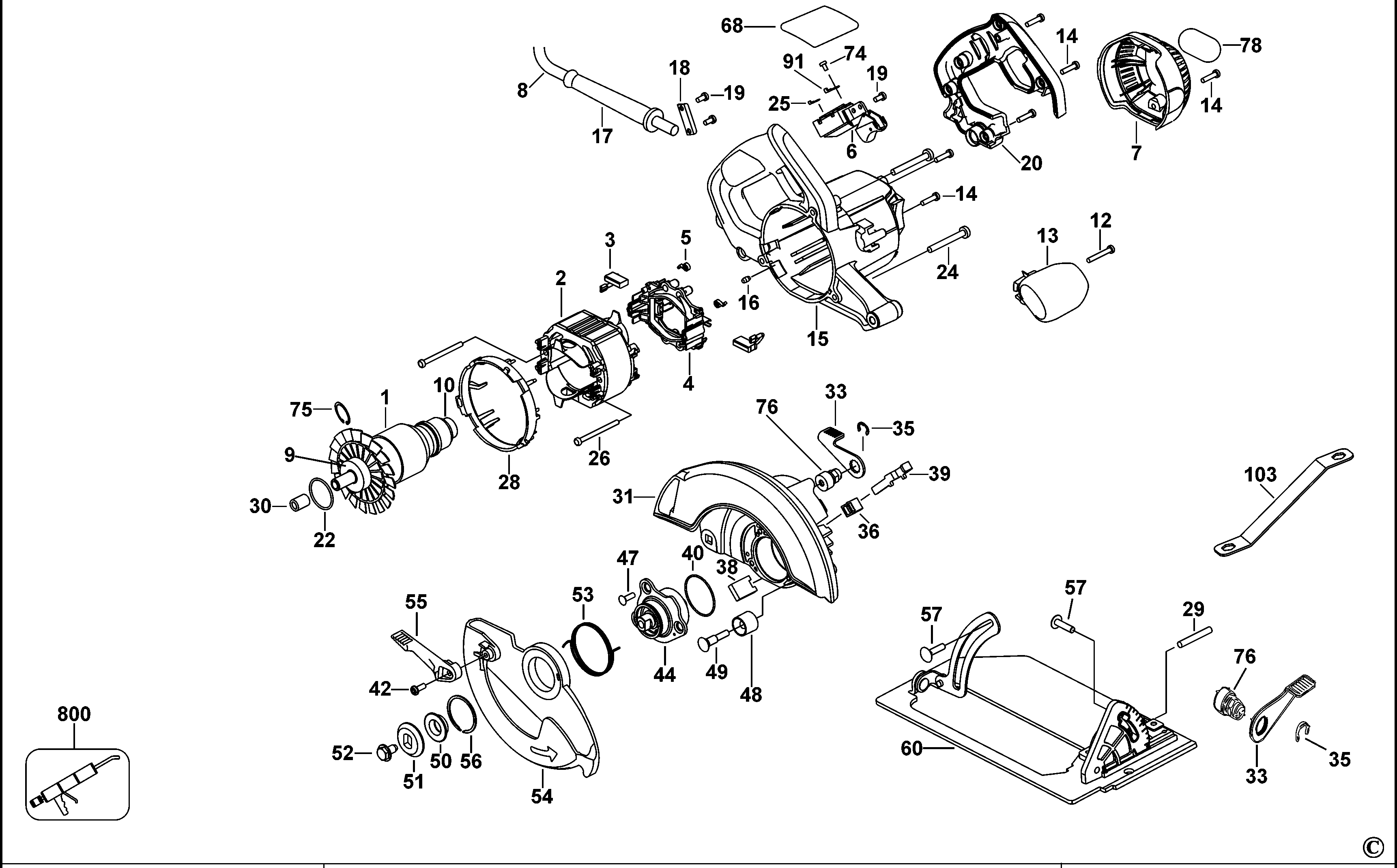

DW368 CIRCULAR SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 623502-00 | 1 | ARMATURE 230V | KR | |||
| 2 | 623514-01 | 1 | FIELD 230V | KR | |||
| 3 | N032830 | 2 | BRUSH & LEAD | KR | |||
| 4 | 622171-00 | 1 | BRUSH PLATE | KR | |||
| 6 | 389524-00 | 1 | SWITCH | KR | |||
| 7 | 389510-00 | 1 | END CAP | KR | |||
| 8 | 330079-35 | 1 | CORDSET | 230V | KR | ||
| 9 | 605040-27 | 1 | BEARING | KR | |||
| 10 | 330003-60 | 1 | BEARING | KR | |||
| 12 | 330019-15 | 1 | SCREW | KR | |||
| 13 | 389553-00 | 1 | HANDLE | KR | |||
| 14 | 330019-13 | 9 | SCREW | M4X19 T20 | KR | ||
| 15 | 389511-01 | 1 | FIELD CASE | KR | |||
| 16 | 145312-00 | 1 | PLUG | KR | |||
| 17 | 330005-02 | 1 | CORD PROTECTOR | KR | |||
| 18 | 381065-00 | 1 | CORD CLAMP | KR | |||
| 19 | 330019-10 | 3 | SCREW | KR | |||
| 20 | 389519-01 | 1 | HANDLE COVER | KR | |||
| 22 | 701297-00 | 1 | SEAL | KR | |||
| 24 | 330045-21 | 3 | SCREW | KR | |||
| 26 | 330019-30 | 2 | SCREW | KR | |||
| 28 | 389507-00 | 1 | BAFFLE | KR | |||
| 29 | 389562-00 | 1 | PIN | KR | |||
| 30 | 330004-06 | 1 | BEARING NEEDLE | KR | |||
| 31 | N032976 | 1 | GUARD UPPER | KR | |||
| 33 | 145347-00 | 2 | LEVER | KR | |||
| 35 | 152211-00 | 2 | RING | KR | |||
| 36 | 389506-00 | 1 | SPRING | KR | |||
| 38 | 389563-00 | 1 | SEAL | KR | |||
| 39 | 612472-00 | 1 | SPINDLE LOCK | KR | |||
| 42 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | KR | ||
| 44 | 648222-01 | 1 | SPINDLE & GEAR SA | KR | |||
| 47 | 647098-00 | 3 | SCREW | KR | |||
| 48 | 381066-00 | 1 | BUMPER | KR | |||
| 49 | 381075-00 | 1 | SCREW | KR | |||
| 50 | 644712-00 | 1 | WASHER INNER CLAMP | KR | |||
| 51 | 644713-00 | 1 | WASHER OUTER CLAMP | KR | |||
| 52 | 145344-00 | 1 | SCREW.SPECIAL | KR | |||
| 53 | 389501-01 | 1 | SPRING | KR | |||
| 54 | N030288 | 1 | GUARD LOWER | KR | |||
| 55 | 389572-00 | 1 | LEVER | KR | |||
| 56 | 388496-03 | 1 | RING | KR | |||
| 57 | 098128-90 | 2 | CARRIAGE BOLT | KR | |||
| 60 | 389550-01SV | 1 | SHOE SA | KR | |||
| 68 | N105197 | 1 | RATING PLATE | KR | KR | ||
| 74 | 384127-01 | 4 | SCREW | KR | |||
| 75 | 144803-00 | 1 | CIRCLIP | KR | |||
| 76 | 610744-00 | 2 | NUT | KR | |||
| 78 | 389549-00 | 1 | LABEL | KR | |||
| 103 | 145378-01 | 1 | WRENCH | KR |
