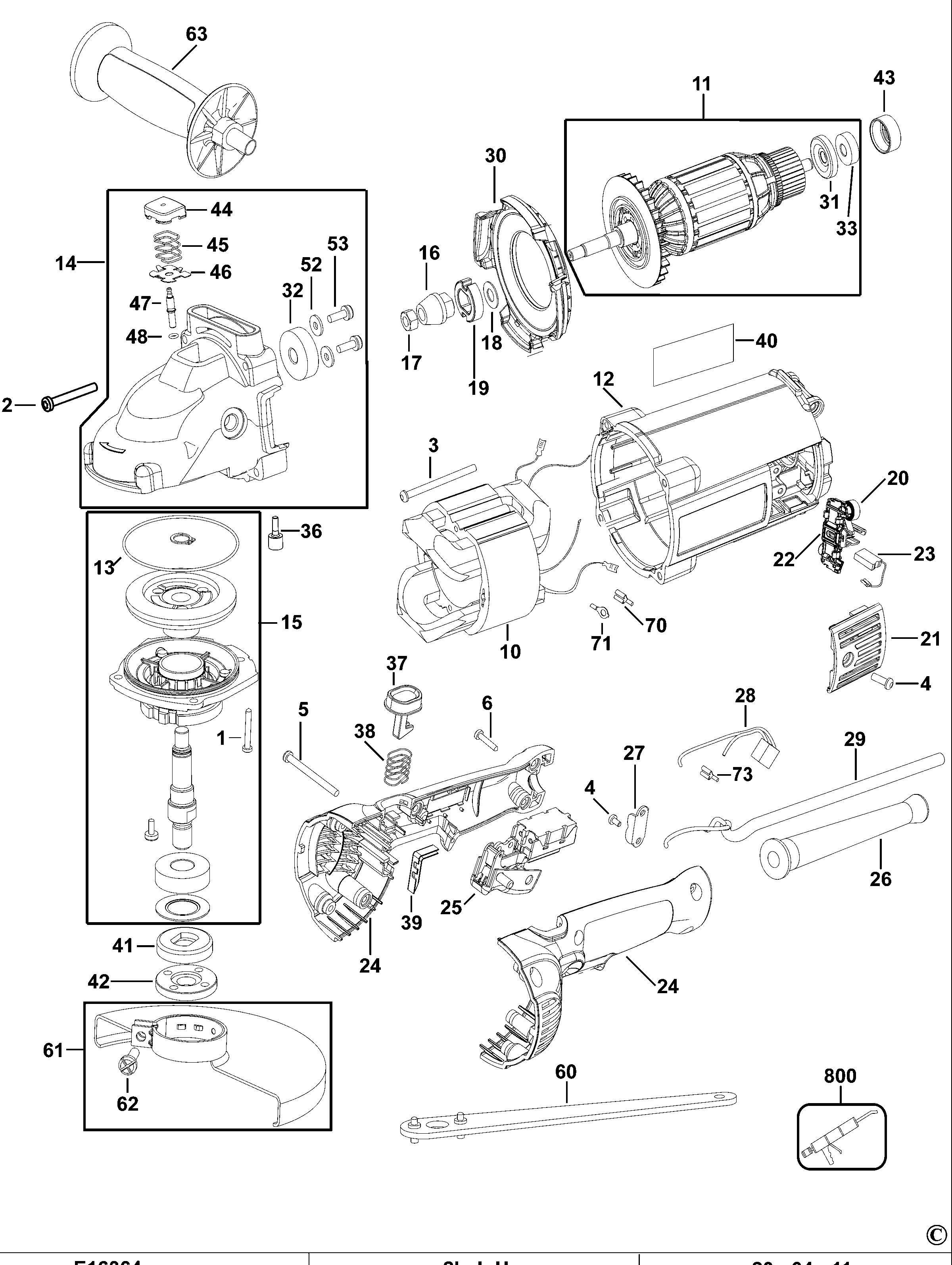

D28490 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 4 | SCREW | RU | |||
| 2 | 330019-26 | 4 | SCREW | RU | |||
| 3 | 330019-19 | 2 | SCREW | RU | |||
| 4 | 330019-11 | 6 | SCREW | M4.55x13 T20 | RU | ||
| 5 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | RU | ||
| 6 | 330019-32 | 4 | SCREW | RU | |||
| 10 | 617004-06 | 1 | FIELD 230V | 230V | RU | ||
| 11 | N467980 | 1 | ARMATURE SA | RU | |||
| 11 | N403185 | 1 | ARMATURE 230V | 230V | RU | ||
| 12 | 393239-01 | 1 | FIELD CASE | RU | |||
| 13 | 397031-00 | 1 | O RING | RU | |||
| 14 | N074214 | 1 | GEARCASE SA | RU | |||
| 15 | N074213 | 1 | GEARCASE COVER SA | RU | |||
| 16 | 629729-00 | 1 | PINION | 6K | RU | ||
| 17 | 330015-03 | 1 | NUT | M8x1.25 | RU | ||
| 18 | 639681-00 | 1 | WASHER | PINION | RU | ||
| 19 | 632702-00 | 1 | COLLAR | RU | |||
| 20 | 609987-00 | 2 | BRUSH SPRING | RU | |||
| 21 | 394387-01 | 2 | BRUSH COVER | RU | |||
| 22 | 629976-00 | 2 | BRUSH HOLDER SA | RU | |||
| 23 | N404514 | 2 | BRUSH PAIR | 230V, SET OF 2 | RU | ||
| 24 | 636499-00 | 1 | HANDLE & COVER | RU | |||
| 25 | N015071 | 1 | SWITCH SA | RU | |||
| 26 | 604118-00 | 1 | CORD PROTECTOR | RU | |||
| 27 | 604119-00 | 1 | CORD CLAMP | RU | |||
| 28 | 632218-00 | 1 | CAPACITOR | RU | |||
| 29 | 562226-65 | 1 | CORDSET (EURO) | RU | |||
| 30 | 631350-00 | 1 | BAFFLE | RU | |||
| 31 | 393238-00 | 1 | SHIELD | RU | |||
| 32 | N389509 | 1 | BEARING | RU | |||
| 33 | N110359 | 1 | BEARING | RU | |||
| 33 | N110359 | 1 | BEARING | RU | |||
| 36 | N033051 | 1 | SCREW | RU | |||
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | RU | |||
| 38 | 636502-00 | 1 | SPRING | RU | |||
| 39 | 641929-00 | 1 | COVER | RU | |||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | PFRU | RU | ||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | LIRU | RU | ||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | LAKA | RU | ||
| 41 | 403150-01 | 1 | INNER FLANGE | RU | |||
| 42 | 401678-05 | 1 | OUTER FLANGE | RU | |||
| 43 | 609970-00 | 1 | SLEEVE INSULATING | RU | |||
| 44 | 630553-00 | 1 | CAP | RU | |||
| 45 | 638328-00 | 1 | SPRING | RU | |||
| 46 | 635908-00 | 1 | RETAINER | RU | |||
| 47 | 634589-00 | 1 | PIN | RU | |||
| 48 | 750831 | 1 | O RING | RU | |||
| 52 | 640591-00 | 2 | WASHER | RU | |||
| 53 | 330045-67 | 2 | SCREW | RU | |||
| 60 | 635261-00 | 1 | WRENCH PIN | RU | |||
| 61 | N036839 | 1 | GUARD SA | KEYED | RU | ||
| 62 | 330024-23 | 1 | SCREW | M8x1.25x30 | RU | ||
| 63 | 651858-01 | 1 | SIDE HANDLE | RU | |||
| 70 | 612273-00 | 2 | TERMINAL | RU | |||
| 71 | 610057-00 | 2 | TERMINAL | RU | |||
| 73 | 053650-00 | 1 | TERMINAL | RU | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | RU | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | RU |
