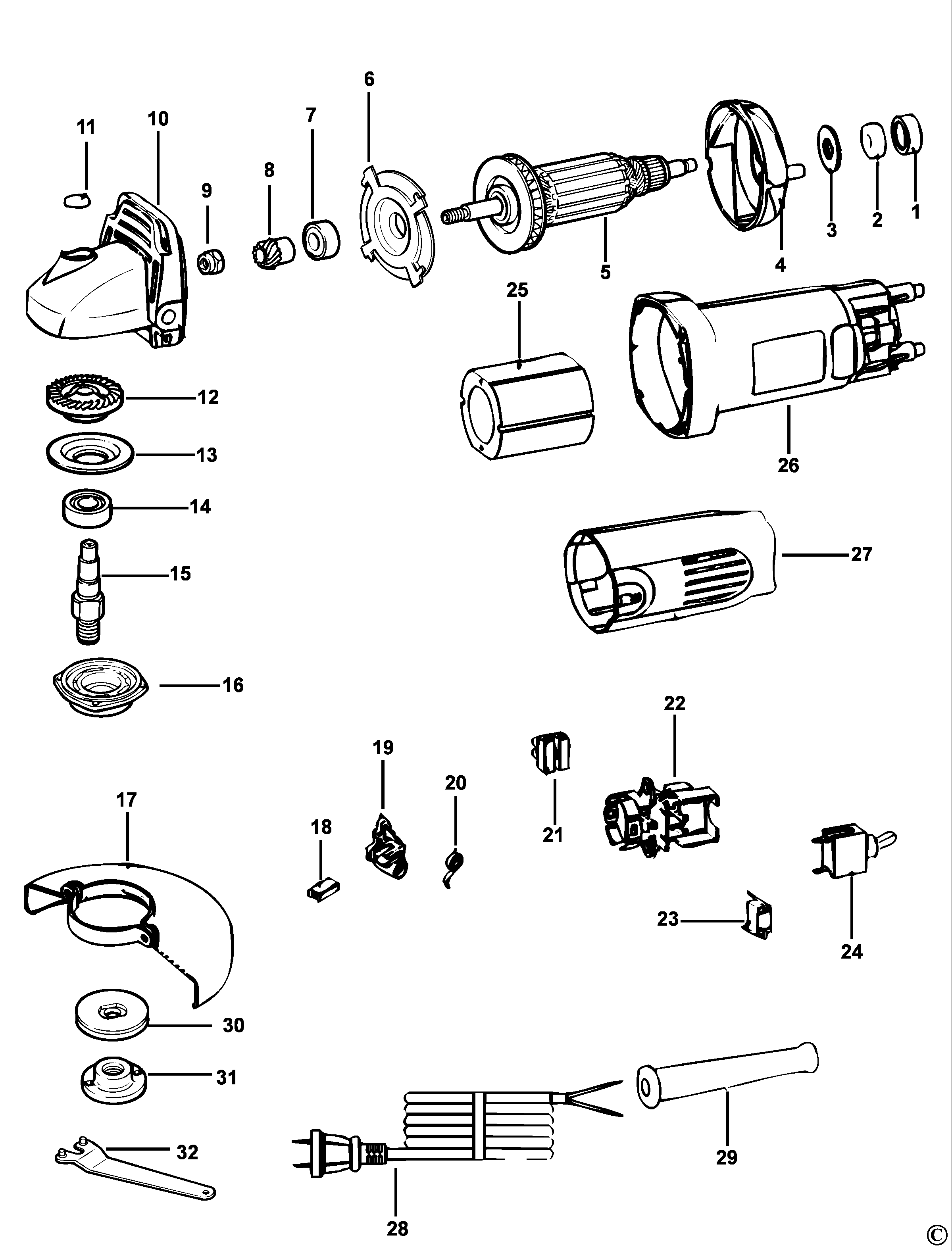

DW800 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 641823-00 | 1 | SLEEVE | A9 | |||
| 2 | 605040-02 | 1 | BEARING | A9 | |||
| 3 | 619327-00 | 1 | INSULATOR | A9 | |||
| 4 | 569823-00 | 1 | BAFFLE FAN | A9 | |||
| 5 | 622829-00 | 1 | ARMATURE SA | A9 | |||
| 6 | 619326-00 | 1 | FLANGE | A9 | |||
| 7 | 390821-01 | 1 | BEARING | 8 MM | A9 | ||
| 8 | 402340-01 | 1 | PINION | 12T | A9 | ||
| 9 | 945292-00 | 1 | NUT | A9 | |||
| 10 | 569599-00 | 1 | GEARCASE | A9 | |||
| 11 | 944575-00 | 1 | BUTTON | A9 | |||
| 12 | 402339-00 | 1 | GEAR | 37T | A9 | ||
| 13 | 945299-00 | 1 | FLANGE | A9 | |||
| 14 | 605040-22 | 1 | BEARING | A9 | |||
| 15 | N039248 | 1 | SPINDLE | M10 | A9 | ||
| 16 | 562185-01 | 1 | GEARCASE COVER | A9 | |||
| 16 | 000000-00 | 1 | NO LONGER AVAILABLE | A9 | |||
| 17 | 562197-00 | 1 | GUARD SA | A9 | |||
| 18 | N035678 | 1 | BRUSH PAIR 230V | A9 | |||
| 18 | N035678 | 1 | BRUSH PAIR 230V | A9 | |||
| 19 | 619321-00 | 2 | BRUSH HOLDER SA | A9 | |||
| 20 | 619985-00 | 2 | SPRING | A9 | |||
| 21 | 320078-00 | 1 | TERMINAL BLOCK | A9 | |||
| 22 | 619325-00 | 1 | SUPPORT | SWITCH | A9 | ||
| 23 | 623070-00 | 1 | CAPACITOR SA | A9 | |||
| 23 | 619986-00 | 1 | CAPACITOR SA | A9 | |||
| 24 | 619324-00 | 1 | SWITCH | A9 | |||
| 25 | 603821-02 | 1 | FIELD SA | A9 | |||
| 26 | 619319-00 | 1 | FIELDCASE | A9 | |||
| 27 | 619320-00 | 1 | Handle | A9 | |||
| 28 | 623292-03 | 1 | CORDSET | A9 | |||
| 29 | 330005-01 | 1 | CORD PROTECTOR | A9 | |||
| 30 | 635488-00 | 1 | INNER FLANGE | A9 | |||
| 30 | N039245 | 1 | INNER FLANGE | M10 | A9 | ||
| 31 | 635489-00 | 1 | OUTER FLANGE | M10 | A9 | ||
| 31 | 622208-00 | 1 | OUTER FLANGE | A9 | |||
| 32 | 401253-00 | 1 | WRENCH ROUND-PINS | A9 | |||
| 33 | 627647-00 | 2 | SCREW | SWITCH | A9 |
