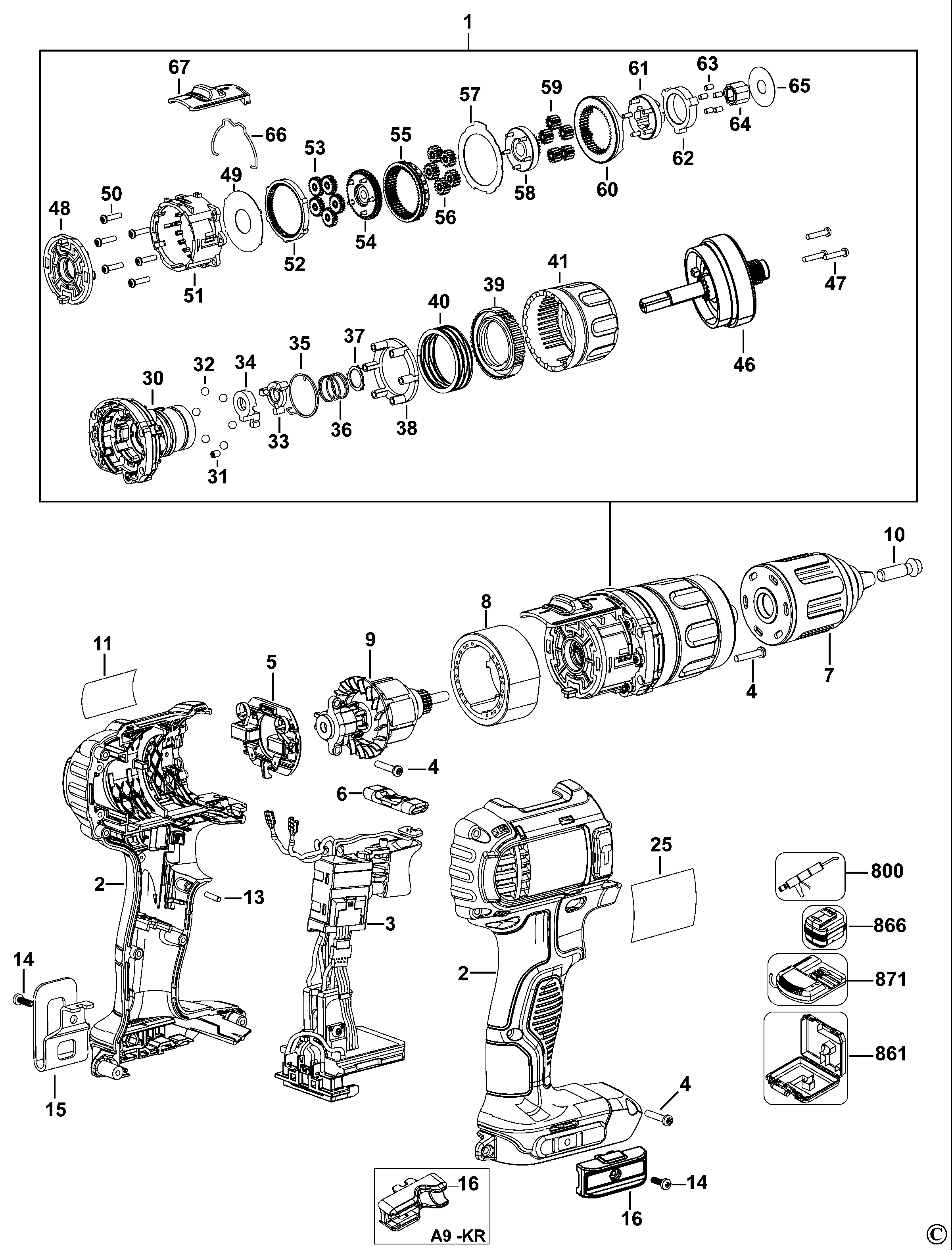

DCD735 CORDLESS DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N110035 | 1 | TRANSMISSION SA | KR | |||
| 2 | N075817 | 1 | CLAMSHELL SET | 14.4V | KR | ||
| 3 | N359939 | 1 | SWITCH SA | KR | |||
| 3 | N359961 | 1 | ELECTRONIC & SWITCH | 14.4V EMI, Weld | KR | ||
| 4 | 682211-00 | 12 | SCREW | KR | |||
| 5 | N109433 | 1 | BRUSH PLATE SA | KR | |||
| 6 | N039788 | 1 | ACTUATOR FWD/REV | KR | |||
| 7 | N092409 | 1 | CHUCK KEYLESS | KR | |||
| 8 | N109712 | 1 | MAGNET | KR | |||
| 9 | N110037 | 1 | ARMATURE SA | 14.4V | KR | ||
| 10 | N092854 | 1 | SCREW | KR | |||
| 11 | N093950 | 1 | BRAND LABEL | KR | |||
| 13 | N071836 | 1 | ROLL PIN | KR | |||
| 14 | N042665 | 2 | SCREW | KR | |||
| 15 | N086039 | 1 | HOOK | KR | |||
| 16 | N095778 | 1 | HOLDER BIT | KR | |||
| 30 | N124588 | 1 | HOUSING | KR | |||
| 31 | 326467-00 | 1 | DETENT | KR | |||
| 32 | N510716 | 6 | BALL | STEEL, 5MM | KR | ||
| 33 | N047986 | 1 | RATCHET | KR | |||
| 34 | N047987 | 1 | RATCHET | KR | |||
| 35 | N047989 | 1 | SPRING | KR | |||
| 36 | N047988 | 1 | SPRING | KR | |||
| 38 | N063688 | 1 | PLATE | KR | |||
| 39 | N036372 | 1 | ADJUSTER TORQUE | KR | |||
| 40 | N077956 | 1 | SPRING | KR | |||
| 41 | N047992 | 1 | COLLAR | KR | |||
| 46 | N110039 | 1 | SPINDLE SA | KR | |||
| 47 | 682211-00 | 3 | SCREW | KR | |||
| 48 | N022994 | 1 | ADAPTOR | KR | |||
| 49 | N063567 | 1 | PLATE | KR | |||
| 50 | N075506 | 6 | SCREW | KR | |||
| 51 | N033869 | 1 | GEARCASE | KR | |||
| 52 | N030988 | 1 | GEAR | 1ST RED | KR | ||
| 53 | N030999 | 5 | GEAR | KR | |||
| 54 | N124371 | 1 | CARRIER SA | KR | |||
| 55 | N031079 | 1 | GEAR | KR | |||
| 56 | N031080 | 5 | GEAR | KR | |||
| 57 | N032409 | 1 | WASHER | KR | |||
| 58 | N122400 | 1 | CARRIER SA | KR | |||
| 59 | N031083 | 5 | GEAR | KR | |||
| 60 | N078410 | 1 | GEAR | KR | |||
| 61 | N122401 | 1 | CARRIER SA | KR | |||
| 62 | N022985 | 1 | LOCKING RING | KR | |||
| 63 | N093416 | 5 | ROLLER | KR | |||
| 64 | N157720 | 1 | ANVIL ASSEMBLY | KR | |||
| 65 | N090435 | 1 | WASHER | KR | |||
| 66 | N035441 | 1 | WIRE STEEL | KR | |||
| 67 | N035051 | 1 | SELECTOR SA | KR | |||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | KR | ||
| 861 | N087499 | 1 | KITBOX | KR | |||
| 866 | N123280 | 1 | BATTERY 14.4V - 1.5AH - 21.6WH | Li-Ion - DCB141-XJ | DCD735C2 | KR | |
| 866 | DCB141-KR | 1 | BATTERY 14.4V - 1.5AH - 21.6WH | XR Li-Ion | KR | ||
| 871 | N120341 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-GB | KR | ||
| 871 | N120346 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-QW | KR | ||
| 871 | DCB115-KR | 1 | CHARGER 18V | KR |
