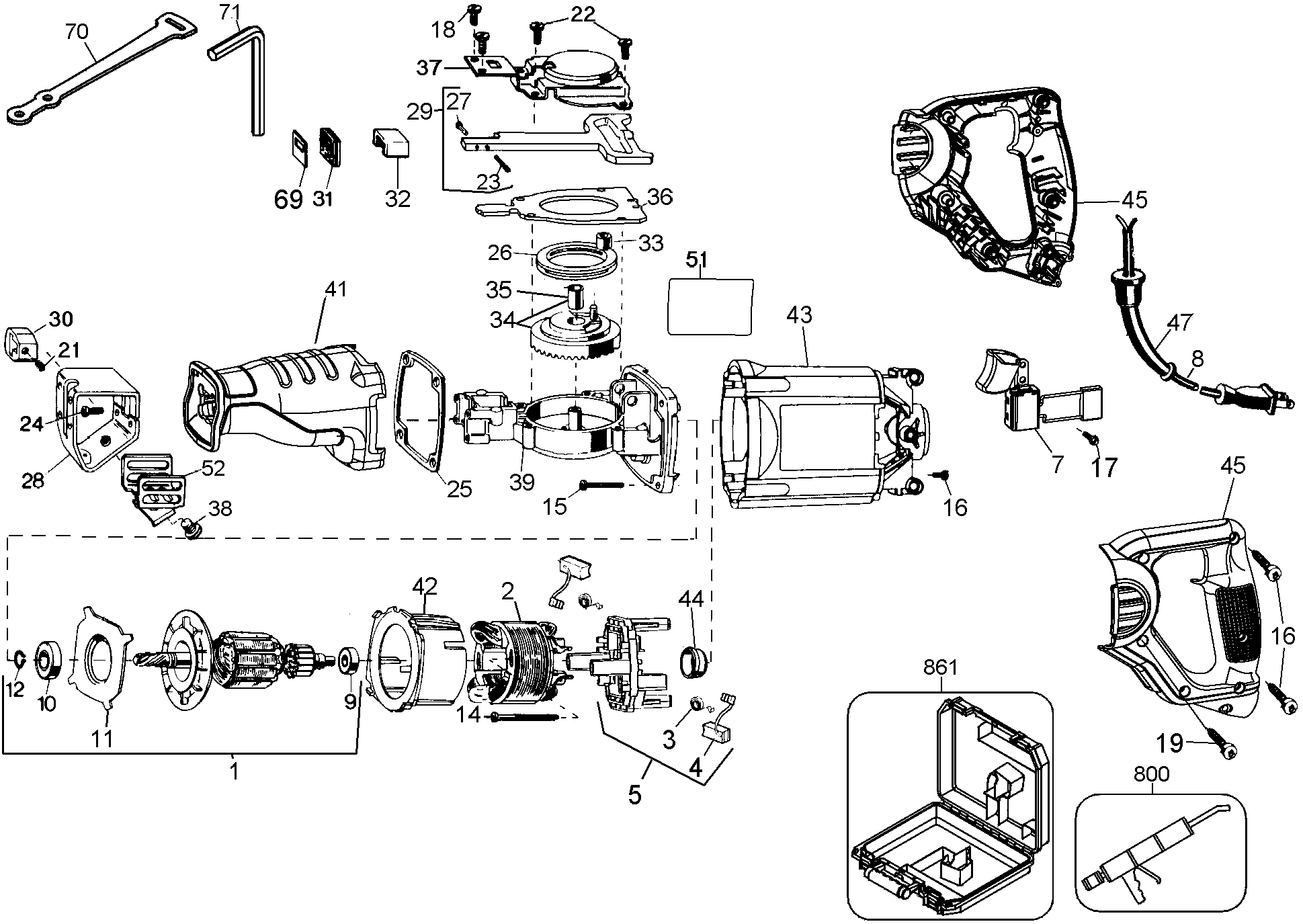

DW303K RECIPROCATING SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N437960 | 1 | ARMATURE SA | KR | |||
| 2 | 448719-78SV | 1 | FIELD | KR | |||
| 3 | 383387-00 | 2 | BRUSH SPRING | KR | |||
| 4 | 5140133-30 | 1 | BRUSH PAIR 230V | 230V | KR | ||
| 5 | N402490 | 1 | BRUSH SA | INCL. 3,4 | KR | ||
| 7 | N054929SV | 1 | SWITCH | KR | |||
| 8 | N053145 | 1 | CORDSET (EURO) | QS | KR | ||
| 9 | 330003-05 | 1 | BEARING | KR | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | KR | ||
| 11 | 383476-00 | 1 | PLATE | KR | |||
| 12 | 696060-00 | 1 | RETAINER | KR | |||
| 14 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | KR | ||
| 15 | 330019-15 | 4 | SCREW | KR | |||
| 16 | 330019-32 | 7 | SCREW | KR | |||
| 17 | 330019-01 | 1 | SCREW | KR | |||
| 18 | 158472-00 | 2 | SCREW | KR | |||
| 19 | 330019-14 | 2 | SCREW | KR | |||
| 21 | 385927-00 | 1 | SCREW | KR | |||
| 22 | 144457-02 | 4 | SCREW | KR | |||
| 23 | 144434-00 | 1 | ROLLPIN | KR | |||
| 24 | 142940-00 | 4 | SCREW | KR | |||
| 25 | 146576-00 | 1 | GASKET | KR | |||
| 26 | N401394 | 1 | RING | KR | |||
| 27 | 158466-00 | 1 | PIN | KR | |||
| 28 | 399725-00 | 1 | SHOE | KR | |||
| 29 | 679869-00 | 1 | SHAFT | INCL.23,27 | KR | ||
| 30 | 381749-01 | 1 | BLADE CLAMP | KR | |||
| 31 | 609488-00 | 1 | FELT SEAL | KR | |||
| 32 | N400905 | 1 | BEARING | KR | |||
| 33 | 385238-00 | 1 | BEARING NEEDLE | KR | |||
| 34 | 448503-14SV | 1 | GEAR | INCL. 35 | KR | ||
| 35 | 135531-00 | 1 | BEARING | KR | |||
| 36 | N083910 | 1 | PLATE | KR | |||
| 37 | 448489-03 | 1 | PLATE | KR | |||
| 38 | 099279-08 | 1 | SCREW | KR | |||
| 39 | 616333-00SV | 1 | GEARCASE | KR | |||
| 41 | N028019 | 1 | COVER | KR | |||
| 42 | N056203 | 1 | BAFFLE FAN | KR | |||
| 43 | N444231 | 1 | FIELD CASE | PKG'D N397220 | KR | ||
| 44 | 694432 | 1 | HOLDER BEARING | KR | |||
| 45 | N427215 | 1 | HOUSING HANDLE | KR | |||
| 47 | 330005-01 | 1 | CORD PROTECTOR | KR | |||
| 51 | N399170 | 1 | RATING LABEL | DW303 KR03 | KR | ||
| 52 | 157325-00 | 1 | GUARD | KR | |||
| 69 | 608202-00 | 1 | RETAINER | PLATE | KR | ||
| 70 | 449817-00 | 1 | HOLDER | KR | |||
| 71 | 098000-11 | 1 | HEX KEY | KR | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | KR | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | KR | ||
| 861 | N003337 | 1 | KITBOX | KR | |||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | KR |
