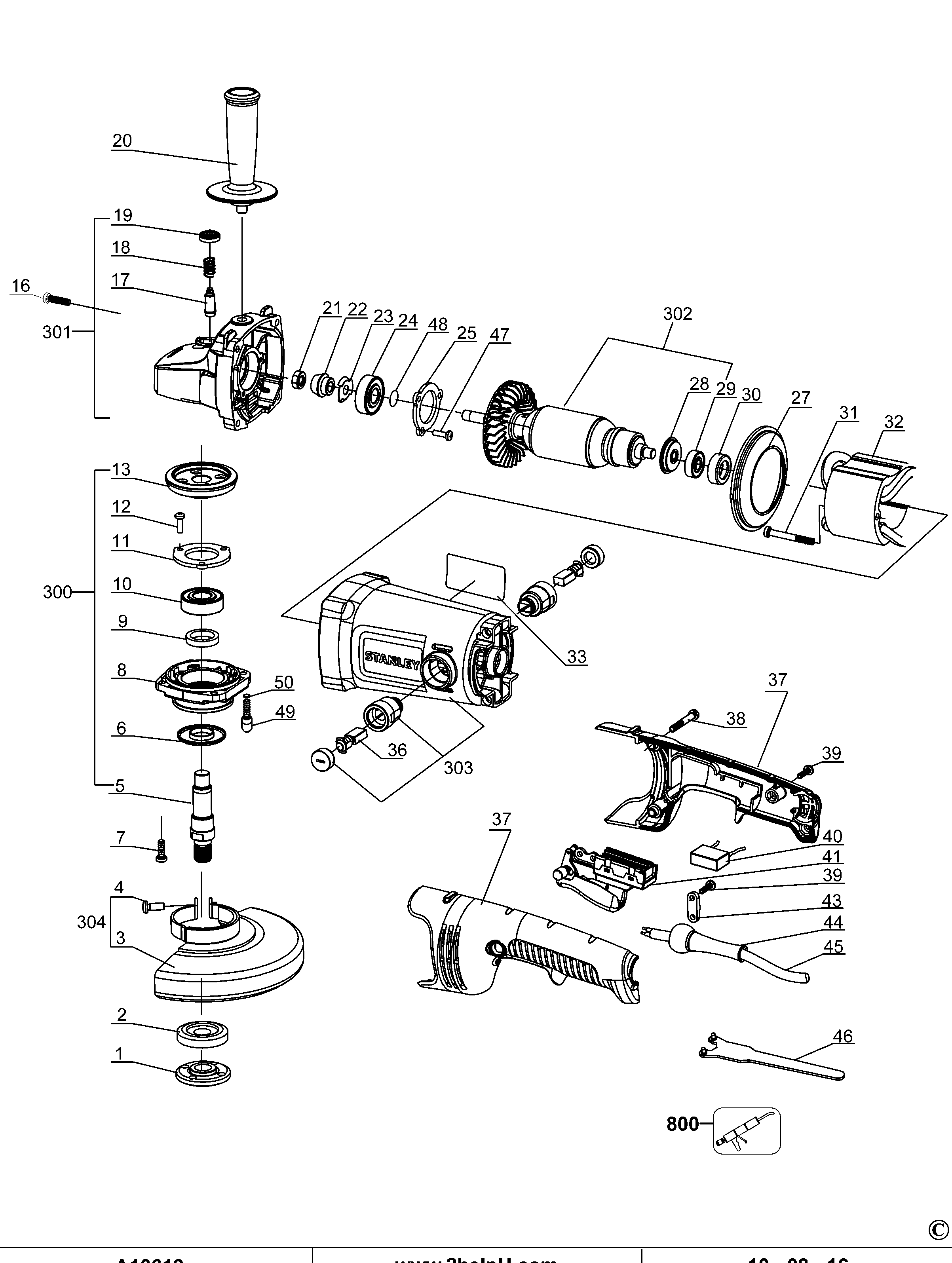

SGM146 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | A9 | |||
| 2 | 4145104002 | 1 | INNER FLANGE | A9 | |||
| 3 | N480752 | 1 | GUARD | A9 | |||
| 4 | 49203052 | 1 | SCREW | A9 | |||
| 5 | N480754 | 1 | SPINDLE | A9 | |||
| 6 | 4145504003 | 1 | CAP | A9 | |||
| 7 | 49203009 | 3 | SCREW | A9 | |||
| 8 | N480758 | 1 | GEARCASE COVER | A9 | |||
| 9 | 4145201009 | 1 | FELT SEAL | A9 | |||
| 10 | 49111036 | 1 | BEARING | A9 | |||
| 11 | 4145104009 | 1 | BEARING PLATE | A9 | |||
| 12 | 49203008 | 8 | SCREW | A9 | |||
| 13 | N480763 | 1 | GEAR | A9 | |||
| 16 | N480766 | 4 | SCREW | A9 | |||
| 17 | 4145204006 | 1 | LOCK PIN | A9 | |||
| 18 | 4145208001 | 1 | SPRING | A9 | |||
| 19 | 4145201012 | 1 | CAP | A9 | |||
| 20 | 4145101001 | 1 | SIDE HANDLE | A9 | |||
| 21 | 49205014 | 1 | NUT | A9 | |||
| 22 | N480772 | 1 | PINION | A9 | |||
| 23 | 4145204005 | 1 | WASHER | A9 | |||
| 24 | N480774 | 1 | BEARING | A9 | |||
| 25 | N480776 | 1 | BEARING PLATE | A9 | |||
| 27 | N480777 | 1 | BAFFLE | A9 | |||
| 28 | N480779 | 1 | WASHER | A9 | |||
| 29 | 49111013 | 1 | BEARING | A9 | |||
| 30 | 4145203004 | 1 | SLEEVE | A9 | |||
| 31 | 49206039 | 2 | SCREW | SELF-TAPPING | A9 | ||
| 32 | N480783 | 1 | FIELD SA | A9 | |||
| 33 | N607223 | 1 | RATING LABEL | A9 | |||
| 36 | N480786 | 1 | BRUSH PAIR | A9 | |||
| 37 | N480787 | 1 | Handle | A9 | |||
| 38 | 49206037 | 2 | SCREW | A9 | |||
| 39 | 49206018 | 4 | SCREW | SELF-TAPPING 4*15 | A9 | ||
| 40 | N495735 | 1 | CAPACITOR | A9 | |||
| 41 | N480219 | 1 | SWITCH | A9 | |||
| 43 | 4100301008 | 1 | CORD CLAMP | A9 | |||
| 44 | N480227 | 1 | CORD PROTECTOR | A9 | |||
| 45 | Z49306065 | 1 | CORDSET | A9 | |||
| 46 | 4140304608 | 1 | WRENCH SET | A9 | |||
| 47 | 49209042 | 3 | SCREW | A9 | |||
| 48 | N480230 | 1 | O RING | A9 | |||
| 49 | N480775 | 1 | SCREW | A9 | |||
| 50 | 49209046 | 1 | WASHER | A9 | |||
| 300 | N521295 | 1 | SHAFT SA | A9 | |||
| 301 | N521296 | 1 | GEARCASE SA | A9 | |||
| 302 | N521297 | 1 | ARMATURE SA | A9 | |||
| 303 | N521298 | 1 | COVER MOTOR SA | A9 | |||
| 304 | N521615 | 1 | GUARD SA | A9 | |||
| 800 | NA360289 | 1 | GREASE | 50G | A9 |
