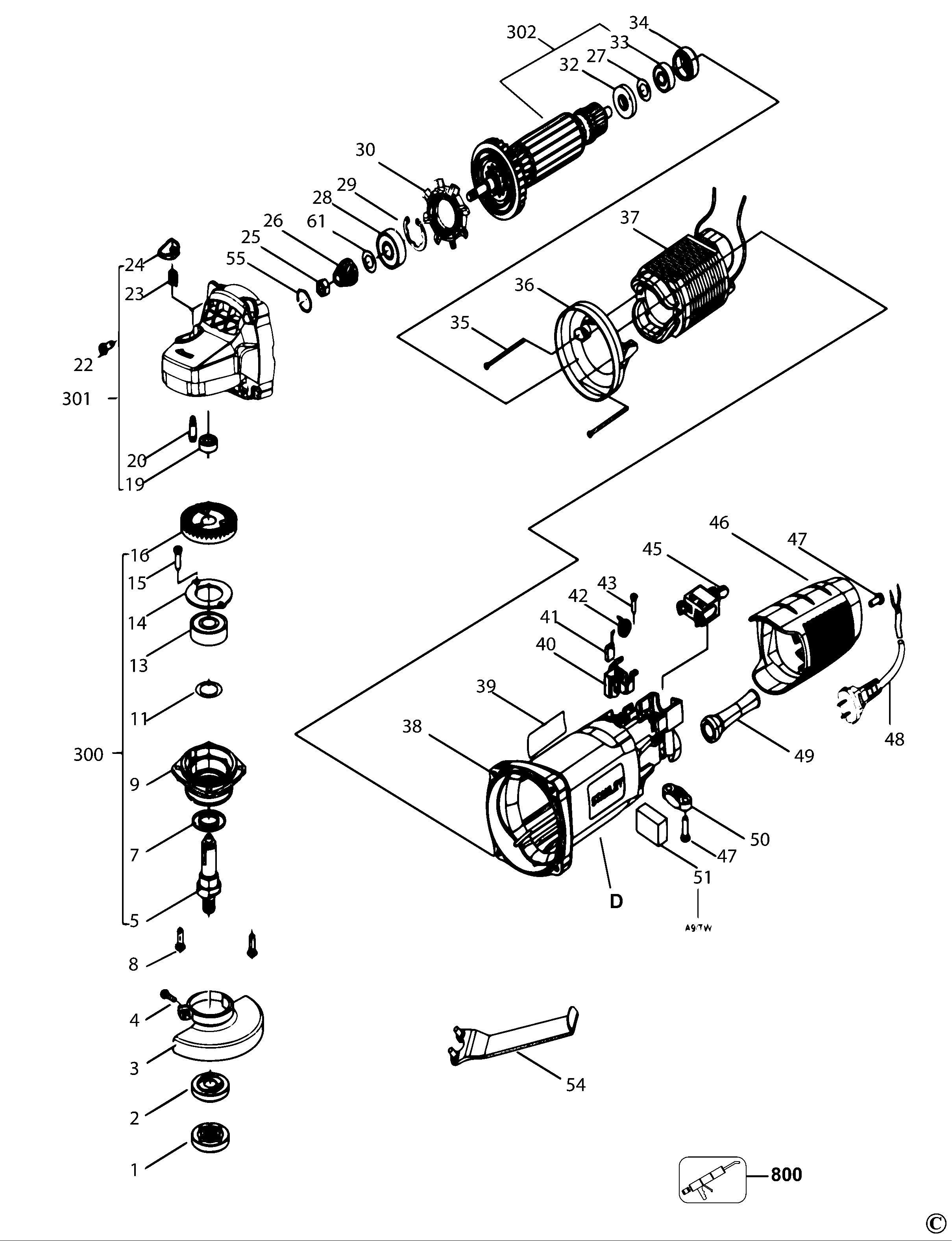

STGT8100 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4140304011 | 1 | OUTER FLANGE | A9 | |||
| 2 | 4140304006 | 1 | INNER FLANGE | A9 | |||
| 3 | 4140304008 | 1 | GUARD SA | A9 | |||
| 4 | 49203052 | 1 | SCREW | A9 | |||
| 5 | N534304 | 1 | SPINDLE | A9 | |||
| 7 | 4141004012 | 1 | DUST GUARD | A9 | |||
| 8 | 49209042 | 4 | SCREW | A9 | |||
| 9 | N569767 | 1 | GEARCASE COVER | A9 | |||
| 11 | 4140704002 | 1 | WASHER | 12 x 26.5 x 0.2 mm; 12*26.5*0.2 | A9 | ||
| 13 | 49111017 | 1 | BEARING | A9 | |||
| 14 | 4141404606 | 1 | BASE PLATE | A9 | |||
| 15 | 49203008 | 8 | SCREW | A9 | |||
| 16 | N539401 | 1 | GEAR | A9 | |||
| 19 | 49111032 | 1 | BEARING | A9 | |||
| 20 | 4141004008 | 1 | LOCK PIN | A9 | |||
| 22 | 49206022 | 4 | SCREW | A9 | |||
| 23 | 4140308003 | 1 | SPRING | A9 | |||
| 24 | 4141001005 | 1 | BUTTON | A9 | |||
| 25 | 49205005 | 1 | NUT | M6 | A9 | ||
| 26 | N539400 | 1 | PINION | A9 | |||
| 27 | 4141004002 | 1 | WASHER | 7 x 16.5 x 0.3 mm; 7*16.5*0.3 | A9 | ||
| 28 | 49111039 | 1 | BEARING | A9 | |||
| 29 | 4141404607 | 1 | CIRCLIP | A9 | |||
| 30 | 4141401607 | 1 | BAFFLE FAN | A9 | |||
| 32 | 4140901007 | 1 | WASHER INSULATING | A9 | |||
| 33 | 49106002 | 1 | BEARING | A9 | |||
| 34 | 4141403001 | 1 | SLEEVE BEARING | A9 | |||
| 35 | 49206031 | 2 | SCREW | 4 x 75 mm; 4*75 | A9 | ||
| 36 | 4141401603 | 1 | BAFFLE | A9 | |||
| 37 | 60314059 | 1 | FIELD SA | A9 | |||
| 38 | 4141401605 | 1 | FIELDCASE | A9 | |||
| 39 | N607198 | 1 | RATING LABEL | A9 | |||
| 40 | 4141007001 | 1 | BRUSH HOLDER | A9 | |||
| 41 | N769623 | 1 | BRUSH PAIR SA | A9 | |||
| 42 | 4141008001 | 1 | BRUSH SPRING | A9 | |||
| 43 | 49206001 | 4 | SCREW | A9 | |||
| 45 | 4141405601 | 1 | SWITCH SA | A9 | |||
| 46 | 4141401606 | 1 | END CAP | A9 | |||
| 47 | 49206018 | 3 | SCREW | SELF-TAPPING 4*15 | A9 | ||
| 48 | Z49306002-1 | 1 | CORDSET | A9 | |||
| 49 | 49303005 | 1 | CORD PROTECTOR | A9 | |||
| 50 | 4240201013 | 1 | CORD CLAMP | A9 | |||
| 51 | 494014 | 1 | CAPACITOR | A9 | |||
| 54 | 4140304007 | 1 | WRENCH SET | A9 | |||
| 55 | 4030203005 | 1 | O RING | A9 | |||
| 56 | 4090104003 | 1 | WASHER | 8 x 15 x 0.2 mm; 8*15*0.2 | A9 | ||
| 57 | 4140304012 | 1 | WASHER | 6 x 16.5 x 0.2 mm; 6*16.5*0.2 | A9 | ||
| 61 | 4140304012 | 1 | WASHER | 6 x 16.5 x 0.2 mm; 6*16.5*0.2 | A9 | ||
| 300 | N592302 | 1 | SPINDLE & GEAR SA | A9 | |||
| 301 | 4141450012 | 1 | GEARCASE SA | A9 | |||
| 302 | 4141450009 | 1 | ARMATURE SA | A9 | |||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | A9 |
