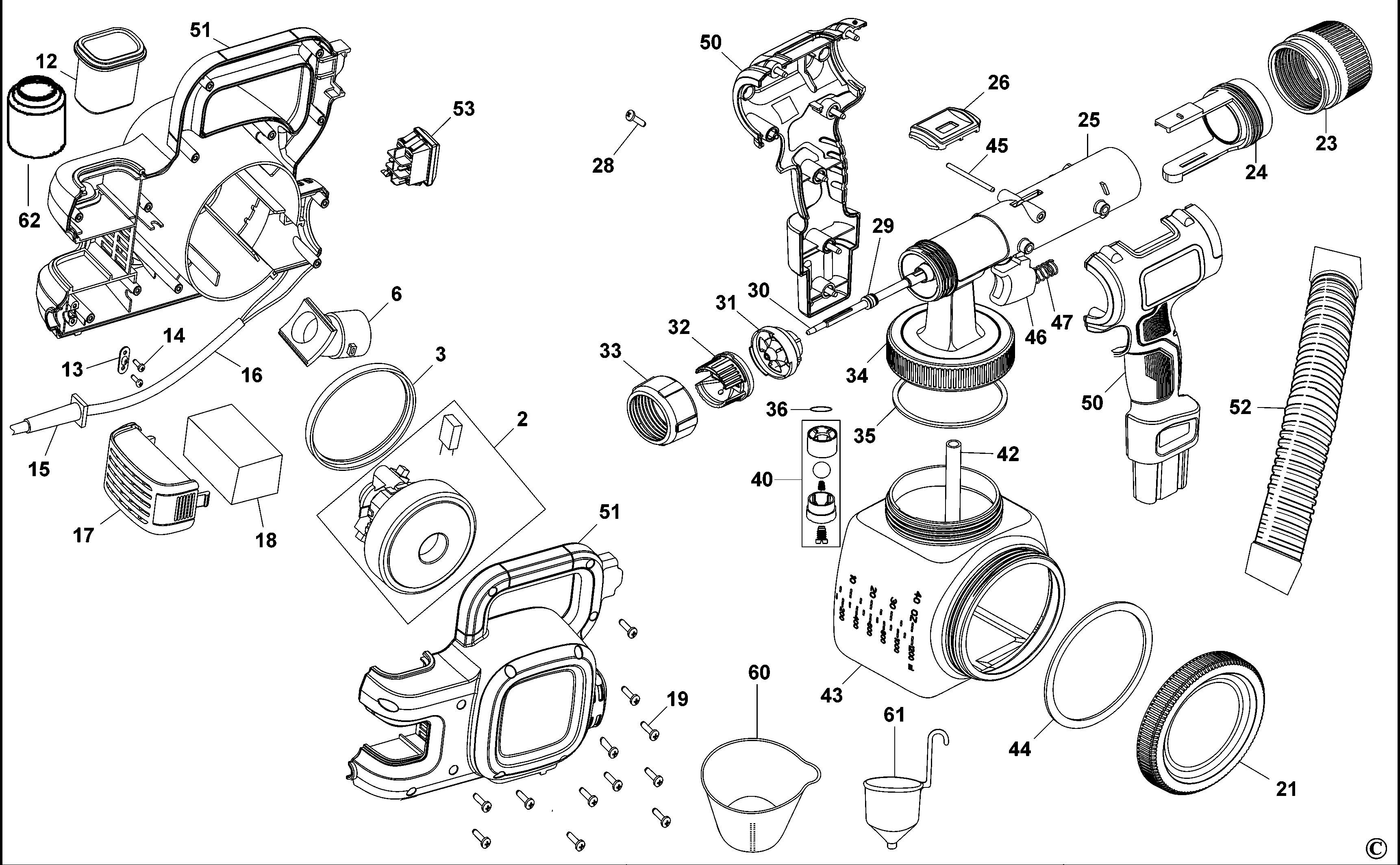

HVLP400 SPRAY GUN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 1004571-29 | 1 | MOTOR SA | B1 |  |
||
| 3 | 1004571-05 | 1 | SEAL | B1 | |
||
| 6 | 1004571-06 | 1 | COUPLER (SPLASH) | B1 |  |
||
| 12 | 1004571-08 | 1 | HOUSING HANDLE | B1 | |
||
| 13 | 1004571-09 | 1 | CLAMP | B1 | |
||
| 14 | 1004570-33 | 2 | SCREW | 3x14 | B1 | |
|
| 15 | 1004570-03 | 1 | SLEEVE | B1 | |
||
| 16 | 1004570-97 | 1 | CORDSET | B1 | |
||
| 17 | 1004571-10 | 1 | COVER | B1 | |
||
| 18 | 1004571-11 | 1 | FILTER | B1 | |
||
| 19 | 1004571-12 | 13 | SCREW | 3.5x15 | B1 | |
|
| 21 | 1004570-02 | 1 | COVER | B1 | |
||
| 23 | 1004571-13 | 1 | KNOB | B1 | |
||
| 24 | 1004571-14 | 1 | INDICATOR | B1 | |
||
| 25 | 1004571-15 | 1 | HOUSING | B1 | |
||
| 26 | 1004571-16 | 1 | WINDOW | B1 | |
||
| 28 | 1004570-17 | 7 | SCREW | 4x16 | B1 | |
|
| 29 | 1004571-17 | 2 | O RING | B1 | |
||
| 30 | 1004571-18 | 1 | NEEDLE | B1 | |
||
| 31 | 1004570-72 | 1 | NOZZLE | B1 | |
||
| 32 | 1004570-71 | 1 | TIP | B1 | |
||
| 33 | 1004570-70 | 1 | LOCK SCREW | B1 | |
||
| 34 | 1004570-24 | 1 | LID | B1 | |
||
| 35 | 1004570-25 | 1 | O RING | ø67x3 | B1 | |
|
| 36 | 1004570-67 | 1 | O RING | ø12x2.1 | B1 | |
|
| 40 | 1004571-27 | 1 | VALVE | B1 | |
||
| 42 | 1004570-61 | 1 | TUBE | B1 | |
||
| 43 | 1004570-00 | 1 | CANISTER | B1 | |
||
| 44 | 1004570-01 | 1 | SEAL | B1 | |
||
| 45 | 1004570-87 | 1 | PIN | ø3 | B1 | |
|
| 46 | 1004571-19 | 1 | TRIGGER | B1 | |
||
| 47 | 1004571-20 | 1 | SPRING | 65mN | B1 | |
|
| 50 | 1004571-00 | 1 | HOUSING SA | B1 | |
||
| 51 | 1004571-01 | 1 | HOUSING LOWER | B1 | |
||
| 52 | 1004571-02 | 1 | SUCTION PIPE | Inc. Adaptors | B1 | |
|
| 53 | 1004571-03 | 1 | SWITCH SA | B1 | |
||
| 60 | 1004571-21 | 1 | CONTAINER | B1 | |
||
| 61 | 1004571-22 | 1 | CUP | B1 | |
||
| 62 | 5140141-74 | 1 | CONTAINER | B1 |
