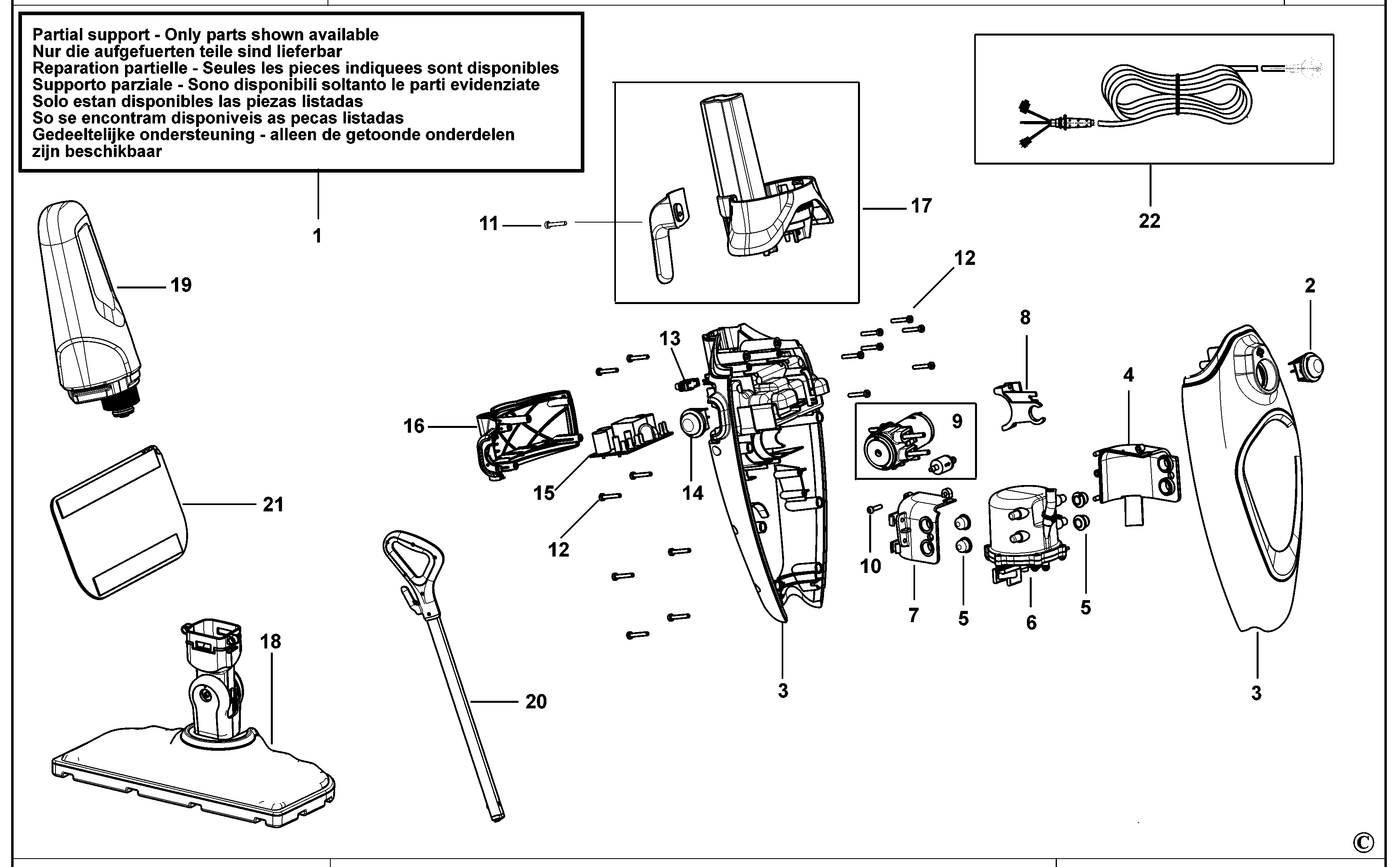

FSM1605 STEAM MOP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1230.30P3 | 1 | TIP | GB | |||
| 2 | 90376599 | 1 | SWITCH SA | GB |  |
||
| 3 | 90621550 | 1 | HOUSING SA | GB | |
||
| 4 | 90581692 | 1 | BRACKET RH | GB | |
||
| 5 | 90578187 | 4 | RUBBER | GB | |
||
| 6 | 90578170-08 | 1 | BOILER SA | GB |  |
||
| 7 | 90581691 | 1 | BRACKET LH | GB | |
||
| 8 | 90619522 | 1 | CLAMP | GB | |
||
| 9 | 90620369 | 1 | PUMP SA | GB | |
||
| 10 | 143062-02 | 6 | SCREW | GB | |||
| 11 | 90595772-01 | 8 | SCREW | GB | |
||
| 12 | 90625935 | 8 | SCREW | GB | |
||
| 13 | 90581491 | 1 | TERMINAL | GB | |
||
| 14 | 90376599-01 | 1 | SWITCH SA | ON/OFF RED | GB | |
|
| 15 | 90618575 | 1 | PCB | GB | |
||
| 16 | 90616729 | 1 | COVER | GB | |
||
| 17 | 90616728 | 1 | HOUSING & COVER | TANK | GB | |
|
| 17 | 90616728-02 | 1 | HOUSING & COVER | Red | FSM1605+R | GB | |
| 18 | 90616990 | 1 | HEAD SA | GB | |
||
| 18 | 90616990-02 | 1 | HEAD SA | Red | FSM1605+R | GB | |
| 19 | 90616851-01 | 1 | TANK | GB | |
||
| 20 | 90615713 | 1 | HANDLE SA | GB | |
||
| 21 | 90622110 | 1 | PAD | GB | |
||
| 22 | 90622119 | 1 | CORDSET | 5m | GB | |
