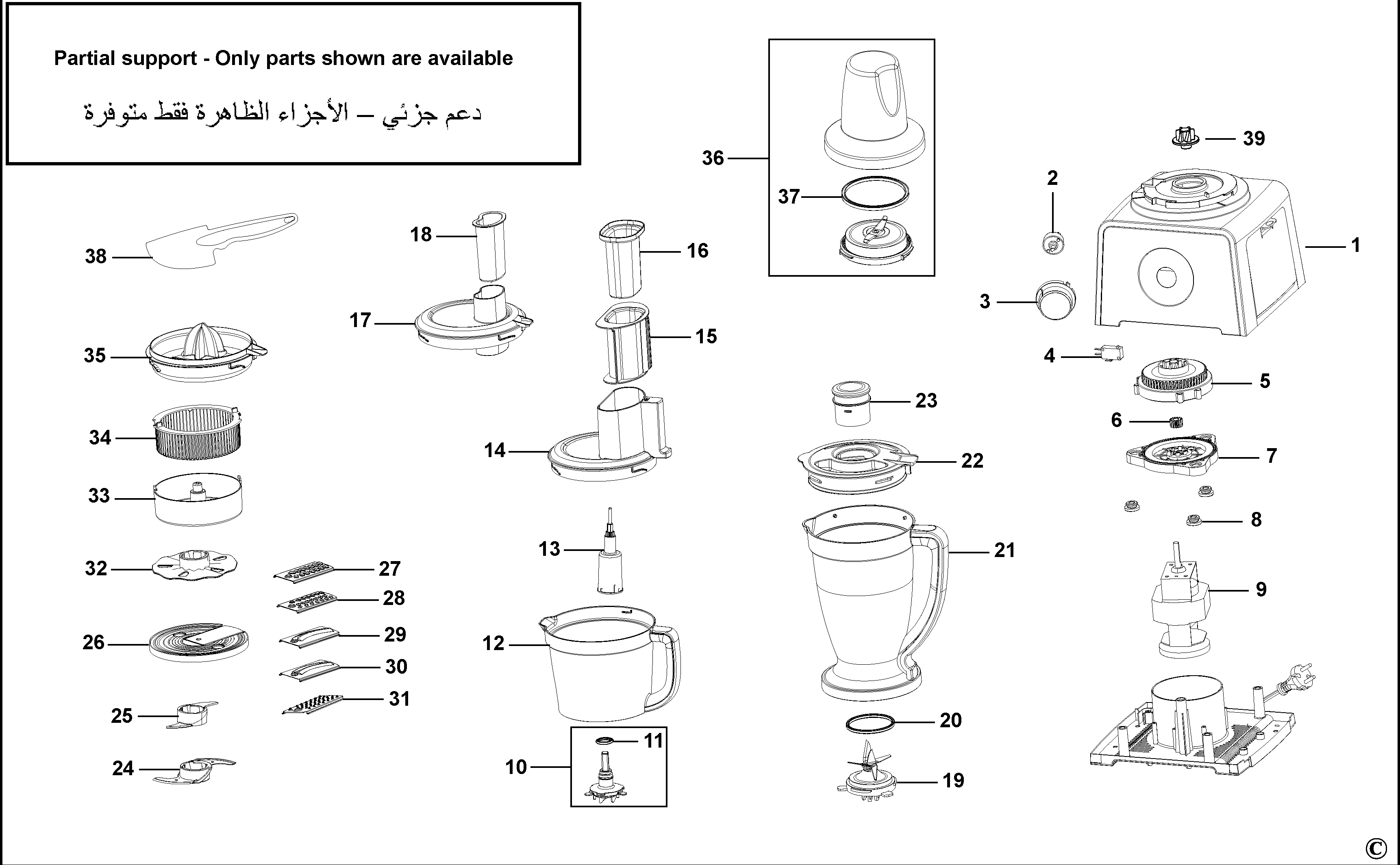

FX810 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | B5 | |||
| 2 | 6010355-90 | 1 | SWITCH | B5 |  |
||
| 3 | 6010355-91 | 1 | KNOB | B5 | |
||
| 4 | 6010355-92 | 1 | MICRO SWITCH | B5 | |
||
| 5 | 6010355-93 | 1 | GEAR SA | B5 | |
||
| 6 | 6010355-96 | 1 | GEAR | B5 | |
||
| 7 | 6010355-94 | 1 | FRAME | B5 | |
||
| 8 | 6010355-95 | 3 | DAMPER | B5 | |
||
| 9 | 6010355-97 | 1 | MOTOR SA | B5 |  |
||
| 10 | 6010355-77 | 1 | DRIVE SHAFT | B5 | |
||
| 11 | 6010356-01 | 1 | SEAL | B5 | |
||
| 12 | 6010355-76 | 1 | BOWL | B5 | |
||
| 13 | 6010355-75 | 1 | SHAFT | B5 | |
||
| 14 | 6010355-80 | 1 | LID SA | B5 | |
||
| 15 | 6010355-79 | 1 | FOOD PUSHER | B5 | |
||
| 16 | 6010355-78 | 1 | FOOD PUSHER | B5 | |
||
| 17 | 6010355-82 | 1 | LID | B5 | |
||
| 18 | 6010355-81 | 1 | PUSHER | B5 | |||
| 19 | 6010355-89 | 1 | BLADE & GEAR SA | B5 | |
||
| 20 | 6010355-88 | 1 | SEAL | B5 | |
||
| 21 | 6010355-87 | 1 | JUG | B5 | |
||
| 22 | 6010355-86 | 1 | LID | B5 | |
||
| 23 | 6010355-85 | 1 | CUP | B5 | |
||
| 24 | 6010355-74 | 1 | BLADE SA | B5 | |
||
| 25 | 6010355-73 | 1 | BLADE PLASTIC | B5 | |||
| 26 | 6010355-71 | 1 | BLADE HOLDER | B5 | |
||
| 27 | 6010355-67 | 1 | BLADE.SHREDDING | Fine | B5 | |
|
| 28 | 6010355-68 | 1 | BLADE.SHREDDING | Coarse | B5 | |
|
| 29 | 6010355-69 | 1 | BLADE | Fine | B5 | |
|
| 30 | 6010355-70 | 1 | BLADE | Coarse | B5 | |
|
| 31 | 6010356-02 | 1 | BLADE | Grating | B5 | ||
| 32 | 6010355-72 | 1 | WHISK | B5 | |
||
| 33 | 6010355-84 | 1 | DRUM | B5 | |||
| 34 | 6010355-83 | 1 | FILTER | B5 | |
||
| 35 | 6010355-66 | 1 | CONE | B5 | |
||
| 36 | 6010355-98 | 1 | GRINDER SA | B5 | |
||
| 37 | 6010356-00 | 1 | SEAL | B5 | |
||
| 38 | 6010355-65 | 1 | SPATULA | B5 | |||
| 39 | 6010394-74 | 1 | COUPLING | B5 | |
