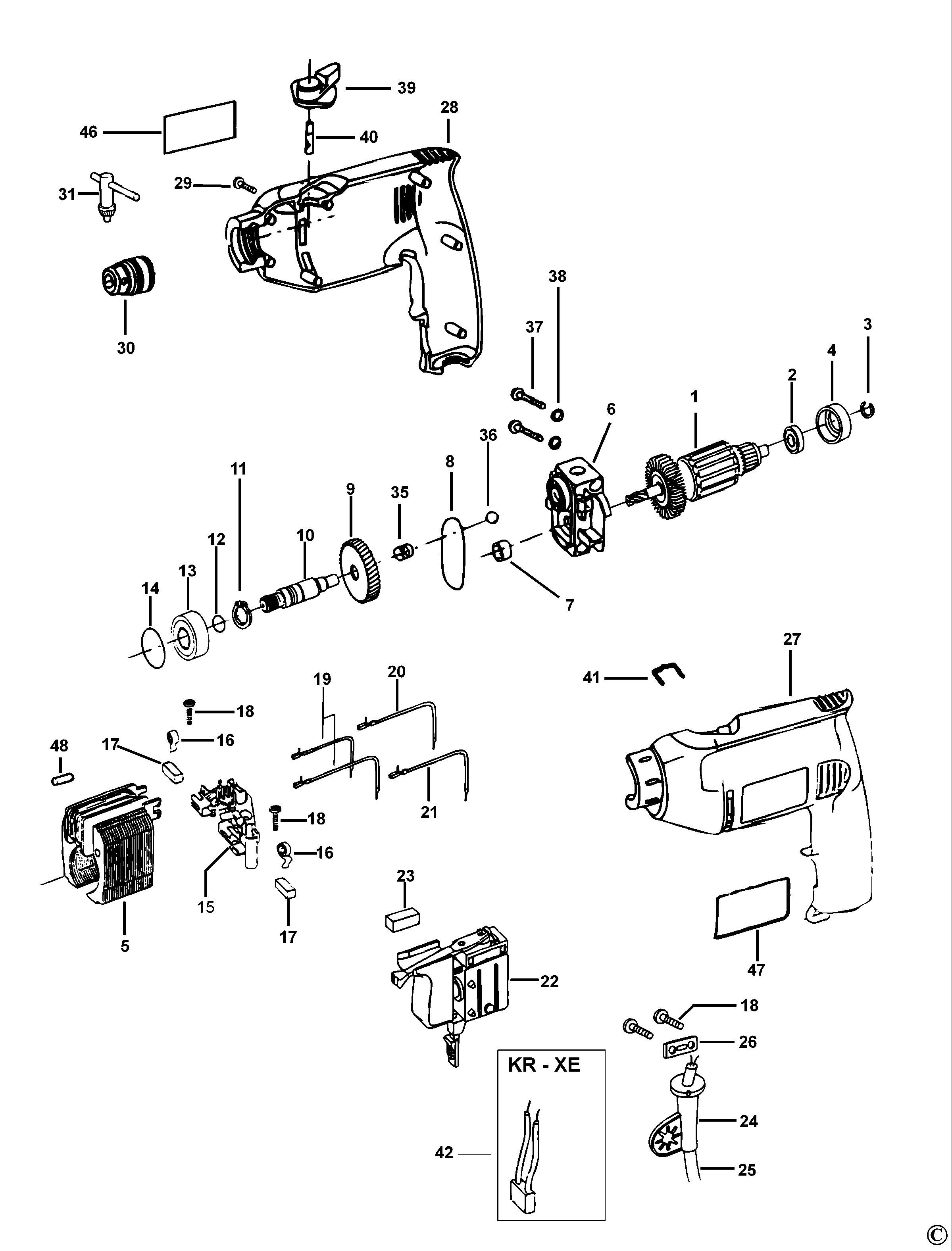

DW201 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 561506-01 | 1 | ARMATURE 115V | B4 |  |
||
| 2 | 330003-02 | 1 | BEARING | B4 |  |
||
| 3 | 939624-00 | 1 | RING | B4 | |
||
| 4 | 930029-00 | 1 | HOLDER BEARING | B4 | |
||
| 5 | 939818-02 | 1 | FIELD | B4 | |
||
| 6 | 946663-00 | 1 | BLOCK SA | B4 | |
||
| 7 | 330004-18 | 1 | BEARING | B4 | |
||
| 8 | 932426-00 | 1 | O RING | B4 | |
||
| 9 | 946559-00 | 1 | GEAR | B4 | |
||
| 10 | 946656-01 | 1 | SHAFT SA | B4 | |
||
| 11 | 930098-00 | 1 | RETAINER | B4 | |
||
| 12 | 930028-00 | 1 | O RING | B4 | |
||
| 13 | 605040-25 | 1 | BEARING,BALL | B4 | |
||
| 14 | 938133-00 | 1 | O RING | B4 | |
||
| 15 | 562162-01 | 1 | BRUSH HOLDER 115V | B4 | |
||
| 16 | 931221-00 | 2 | SPRING | B4 | |
||
| 17 | 932047 | 2 | BRUSH | BK72 | B4 | |
|
| 18 | 562097-05 | 4 | SCREW | B4 | |
||
| 19 | 949801-64 | 2 | LEAD SA | B4 | |
||
| 20 | 000000-00 | 1 | NO LONGER AVAILABLE | B4 | |||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | B4 | |||
| 22 | 176830-13 | 1 | SWITCH SA | B4 | |
||
| 23 | 562213-00 | 1 | BUMPER | B4 | |
||
| 24 | 934961-01 | 1 | CORD PROTECTOR | B4 | |
||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | B4 | |||
| 26 | 930103-00 | 1 | CORD CLAMP | B4 | |
||
| 27 | 561591-00 | 1 | CLAMSHELL LH | B4 | |
||
| 28 | 561592-00 | 1 | CLAMSHELL RH | B4 | |
||
| 29 | 562097-03 | 7 | SCREW | B4 | |
||
| 30 | 330033-21 | 1 | CHUCK 10MM | B4 | |
||
| 31 | 330034-07 | 1 | CHUCK KEY | ROHM CHUCK | B4 | |
|
| 35 | 934962 | 1 | SPRING | B4 | |
||
| 36 | 000903-00 | 1 | BALL | B4 | |
||
| 37 | 562144-00 | 2 | SCREW | B4 | |
||
| 38 | 932839-00 | 2 | WASHER | B4 | |
||
| 39 | 151254-00 | 1 | KNOB | B4 | |
||
| 40 | 561602-00 | 1 | PIN | B4 | |
||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | B4 | |||
| 46 | 000000-00 | 1 | NO LONGER AVAILABLE | B4 | |||
| 47 | 000000-00 | 1 | NO LONGER AVAILABLE | B4 | |||
| 48 | 941374-01 | 1 | RUBBER | B4 | |
