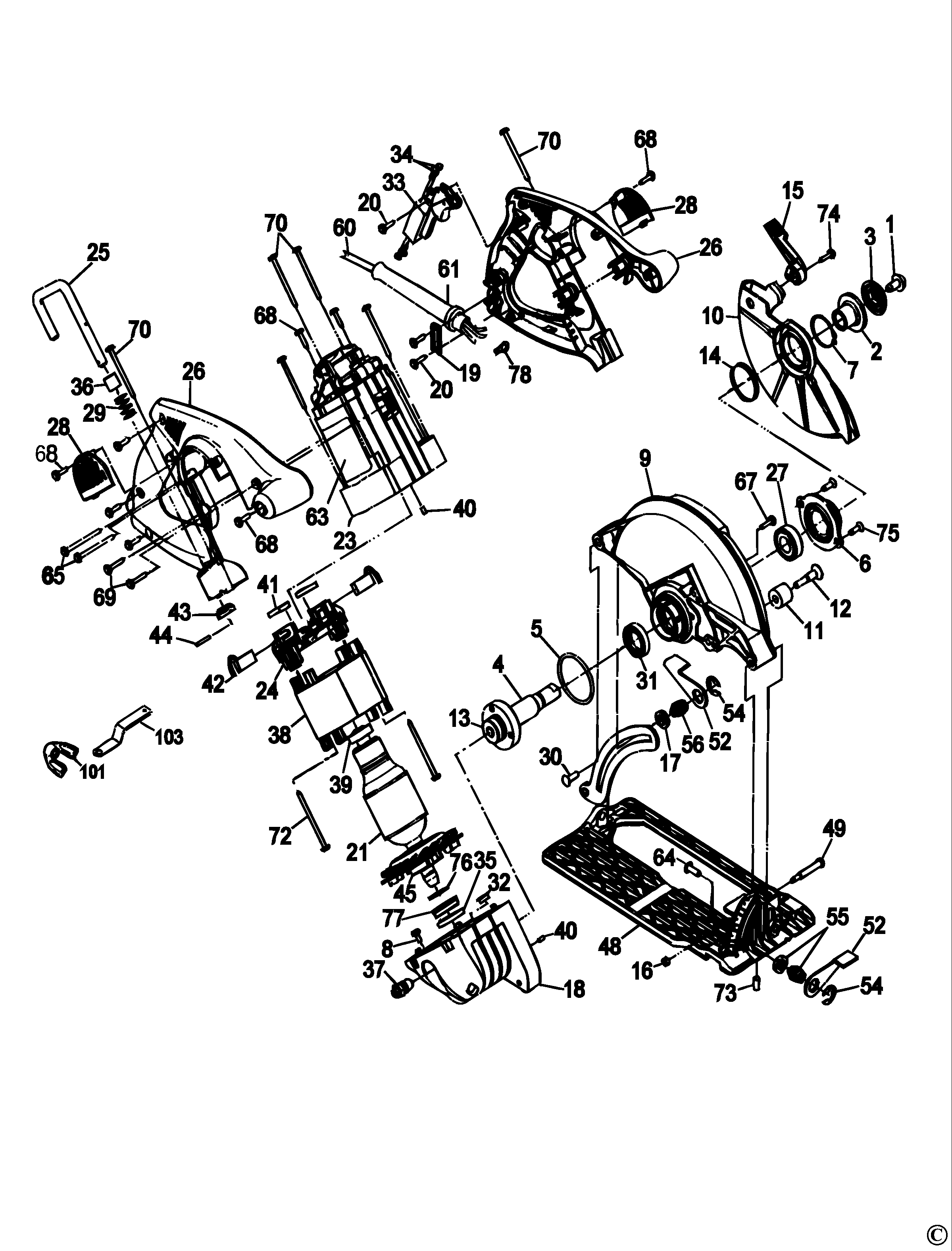

DW378G CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | B5 |  |
|
| 2 | 381018-00 | 1 | BLADE CLAMP | B5 |  |
||
| 3 | 381017-00 | 1 | WASHER OUTER CLAMP | B5 | |
||
| 4 | 381004-00 | 1 | SPINDLE | INC ITEM 13 | B5 | |
|
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 6 | 647437-00 | 1 | GEARCASE COVER | B5 | |
||
| 7 | 388496-00 | 1 | RETAINER | B5 | |
||
| 8 | 385865-00 | 1 | SCREW | B5 | |
||
| 9 | 381057-00 | 1 | GUARD UPPER | INC ITEM 27, 31 | B5 | |
|
| 10 | 381008-01 | 1 | GUARD LOWER | B5 | |
||
| 11 | 381066-00 | 1 | BUMPER | B5 | |
||
| 12 | 381075-00 | 1 | SCREW | B5 | |
||
| 13 | 605040-15 | 1 | BEARING,BALL | NPP | B5 | |
|
| 14 | 647437-00 | 1 | GEARCASE COVER | B5 | |
||
| 15 | 394877-00 | 1 | LEVER | B5 | |
||
| 16 | 148641-00 | 1 | LOCK-NUT | B5 | |
||
| 17 | 610744-00 | 1 | NUT | B5 | |
||
| 18 | 381058-00 | 1 | GEARCASE SA | INC 32, 35, 37, 40 | B5 | |
|
| 19 | 381065-00 | 1 | CORD CLAMP | B5 | |||
| 20 | 330019-02 | 3 | SCREW | B5 | |
||
| 21 | 381054-00 | 1 | ARMATURE 110V | INC ITEM 39 | B5 | |
|
| 23 | 381020-00 | 1 | FIELDCASE | B5 | |
||
| 24 | 381024-00 | 1 | BRUSH & HOLDER SA | INC ITEM 41, 42 | B5 | |
|
| 25 | 381050-01 | 1 | HOOK | B5 | |
||
| 26 | 381063-00 | 1 | HANDLE SA | B5 | |
||
| 27 | 330003-29 | 1 | BEARING,BALL | B5 | |
||
| 28 | 381032-00 | 2 | BRUSH COVER | B5 | |
||
| 29 | 381052-00 | 1 | SPRING | B5 | |||
| 30 | 429913-00 | 1 | BOLT | B5 | |||
| 31 | 381042-00 | 1 | SEAL | B5 | |
||
| 32 | 381043-00 | 1 | SEAL | B5 | |
||
| 33 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 34 | 384127-01 | 4 | SCREW | B5 | |
||
| 35 | 381059-00 | 1 | SEAL | B5 | |
||
| 36 | 381051-00 | 1 | BUSHING | B5 | |
||
| 37 | 388828-00 | 1 | SPINDLE LOCK | B5 | |
||
| 38 | 381056-00 | 1 | FIELD 115V | B5 | |
||
| 39 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 | |
|
| 40 | 145312-00 | 2 | PLUG | B5 | |
||
| 41 | 381024-00 | 2 | BRUSH & HOLDER SA | B5 | |
||
| 42 | 381028-10 | 2 | BRUSH | B5 | |
||
| 43 | 381053-00 | 1 | DETENT | B5 | |
||
| 44 | 330043-01 | 1 | PIN | B5 | |||
| 45 | 330003-13 | 1 | BEARING | B5 | |
||
| 48 | 381071-00 | 1 | SHOE SA | B5 | |
||
| 49 | 396631-00 | 1 | SCREW | B5 | |||
| 52 | 145347-00 | 2 | LEVER | B5 | |
||
| 54 | 152211-00 | 2 | RING | B5 | |
||
| 55 | 610744-00 | 1 | NUT | B5 | |
||
| 56 | 610625-00 | 1 | NUT | B5 | |
||
| 60 | 330100-98 | 1 | CORDSET | B5 | |
||
| 61 | 330005-02 | 1 | CORD PROTECTOR | B5 | |
||
| 63 | 611966-00 | 1 | NAMEPLATE | B5 | |
||
| 64 | 98128-37 | 1 | CARRIAGE BOLT | B5 | |||
| 65 | 330019-30 | 2 | SCREW | B5 | |
||
| 67 | 330045-15 | 1 | SCREW | M5X20 | B5 | |
|
| 68 | 330019-13 | 8 | SCREW | M4X19 T20 | B5 | |
|
| 69 | 330019-14 | 2 | SCREW | B5 | |
||
| 70 | 330045-20 | 6 | SCREW | M5*45 T25 | B5 | |
|
| 72 | 330019-27 | 2 | SCREW | B5 | |
||
| 73 | 381069-00 | 1 | SCREW | B5 | |
||
| 74 | 98094-13 | 1 | SCREW | B5 | |
||
| 75 | 5140160-00 | 2 | SCREW | M5x0.8x16 | B5 | |
|
| 76 | 381045-00 | 1 | O RING | B5 | |
||
| 77 | 381068-00 | 1 | SEAL | B5 | |
||
| 78 | 150339-00 | 3 | TERMINAL | B5 | |
||
| 101 | 392666-00 | 1 | NUT WING | B5 | |
||
| 103 | 145378-01 | 1 | WRENCH | B5 | |
