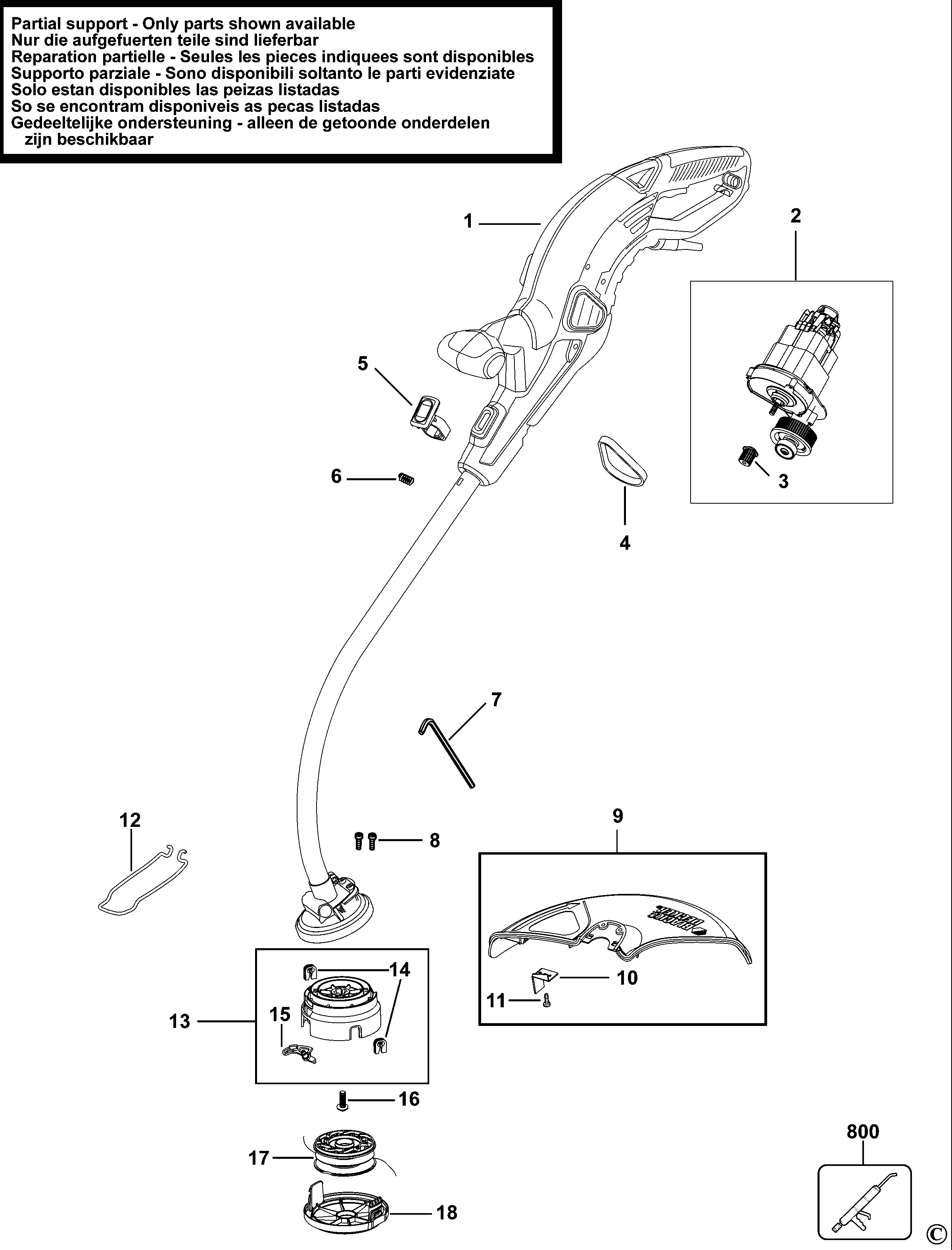

GL716 STRING TRIMMER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1230.30P3 | 1 | TIP | GB | |||
| 2 | 90564816 | 1 | MOTOR SA | GB |  |
||
| 3 | 478626-00 | 1 | DRIVE PULLEY | GB | |
||
| 4 | 90552006 | 1 | BELT | GB |  |
||
| 5 | 478517-00 | 1 | BUTTON | Black | GB | ||
| 6 | 580936-00 | 1 | SPRING | GB | |
||
| 7 | 487848-01 | 1 | HEX KEY 3 MM | GB | |
||
| 8 | 098119-23 | 2 | SCREW | M4 x 16mm | GB | |
|
| 9 | 479749-00 | 1 | GUARD 12" | GB | |
||
| 10 | 487837-00 | 1 | BLADE | 12" | GB | |
|
| 11 | 681914-00 | 1 | SCREW | GB | |
||
| 12 | 479698-00 | 1 | GUIDE | GB | |
||
| 13 | 90529877 | 1 | HOUSING | GB | |
||
| 14 | 495570-00 | 2 | EYELET | GB | |||
| 15 | 479750-00 | 1 | LEVER | GB | |
||
| 16 | 371954-01 | 1 | BOLT | GB | |
||
| 17 | 90553688 | 1 | SPOOL SA | A6495 | GB | |
|
| 18 | 90529055-01 | 1 | COVER SPOOL | Orange | GB | |
|
| 800 | 492241-00 | 1 | GREASE 100 GMS | GWSA GL-9700 | GB | |
