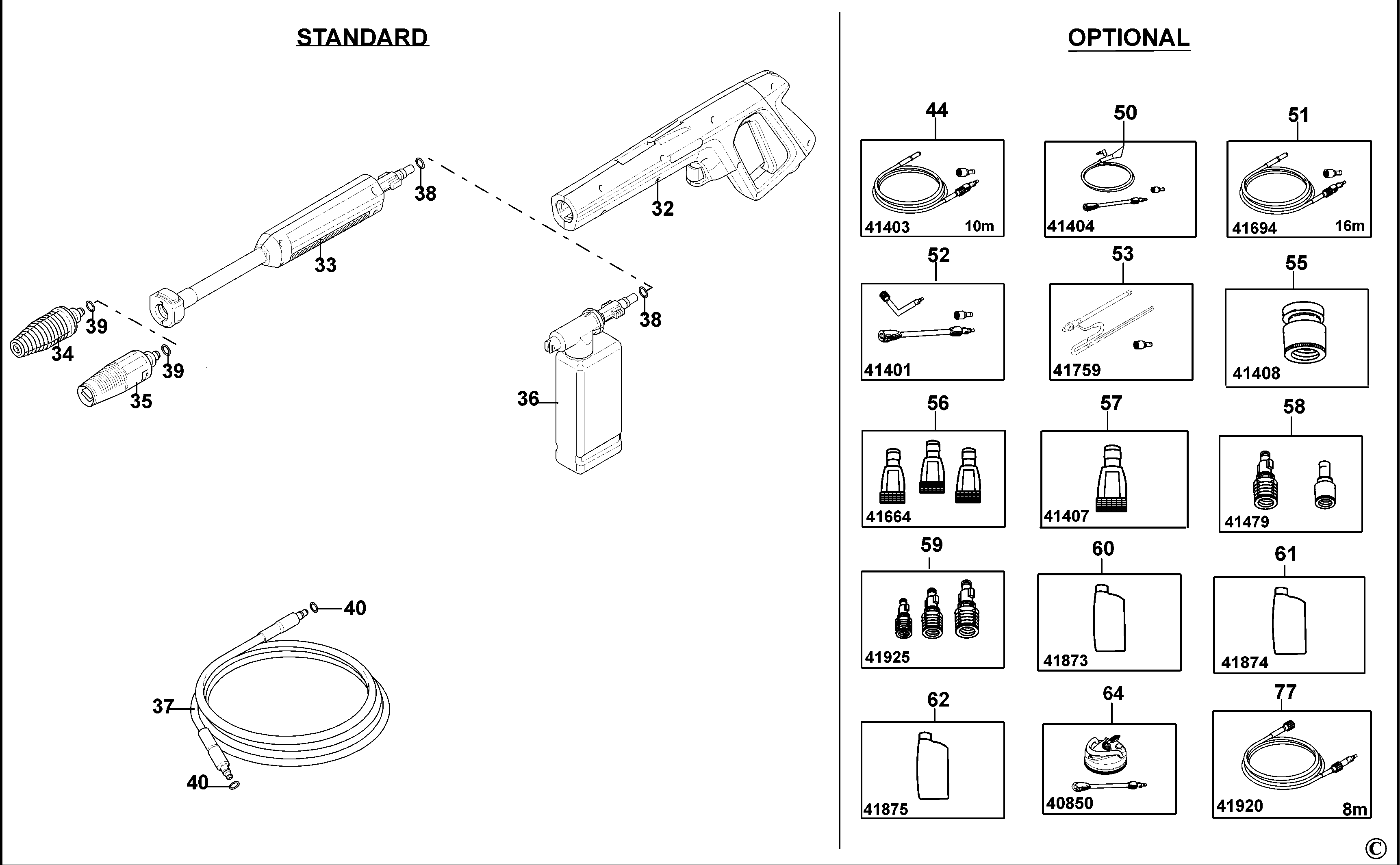

BXPW1600E PRESSURE WASHER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	4380310	1	HANDLE			B5
2	4380250	1	KNOB			B5
3	4380390	1	LEVER			B5
4	4380210	1	HOUSING			B5
5	1004455-07	1	GLAND			B5
6	2560910	1	CORDSET			B5
7	1004700-65	1	COVER			B5
8	1004700-66	1	PIN			B5
9	1004700-67	1	SWITCH SA			B5
10	1004512-08	1	FORK			B5
11	4383200	1	COUPLING			B5
12	4381660	1	PUMP SA			B5
13	1004512-17	1	SUCTION GROUP			B5
14	1004512-19	1	FORK			B5
15	4380370	1	FOOT			B5
16	4380280	1	CARRIER			B5
17	4380170	1	CONVEYOR			B5
18	4380160	1	CONVEYOR			B5
19	1004512-06	1	BRUSH KIT			B5
20	4380350	2	GUARD			B5
21	4381280	1	CLIP SA			B5
22	4380200	1	BASE			B5
23	4380230	1	CARRIER			B5
24	1004700-77	1	COUPLING SA			B5
25	1004700-78	1	SERVICE KIT	TSS KIT		B5
26	1004512-11	1	PISTONS & SEALS KIT			B5
27	1004512-12	1	VALVES & SEALS KIT			B5
28	4381470	1	SCREW KIT			B5
29	4381300	1	KNOB			B5
30	4380380	1	GUARD			B5
31	4380340	2	WHEEL			B5
32	4381481	1	HANDLE SA			B5
33	4381491	1	EXTENSION			B5
34	4100800	1	HEAD SA			B5
35	4381810	1	HEAD SA			B5
36	4381500	1	TANK			B5
37	3500360	1	HOSE			B5
38	3083700	2	O RING			B5
39	3083370	3	O RING			B5
40	3083400	2	O RING			B5
44	1004745-86	1	HOSE SA	10m		B5
50	1004745-85	1	SUCTION GROUP			B5
51	1004745-87	1	HOSE	16m	16m	B5
52	1004745-88	1	EXTENSION	Lance Kit		B5
53	1004745-90	1	KIT	Sand Blasting		B5
55	1004745-94	1	COUPLING			B5
56	1004745-95	1	FILTER SA	Water x3		B5
57	1004745-96	1	FILTER	water x1		B5
58	1004745-97	1	ADAPTOR			B5
59	1004745-98	1	ADAPTOR			B5
60	1004746-01	1	CLEANING FLUID		Heavy duty	B5
61	1004745-99	1	CLEANING FLUID		Bike/Motorbike	B5
62	1004746-00	1	CLEANING FLUID		Boats/Cars	B5
64	1004746-02	1	BRUSH	Mini Patio		B5
77	1004745-92	1	HOSE	8m		B5
