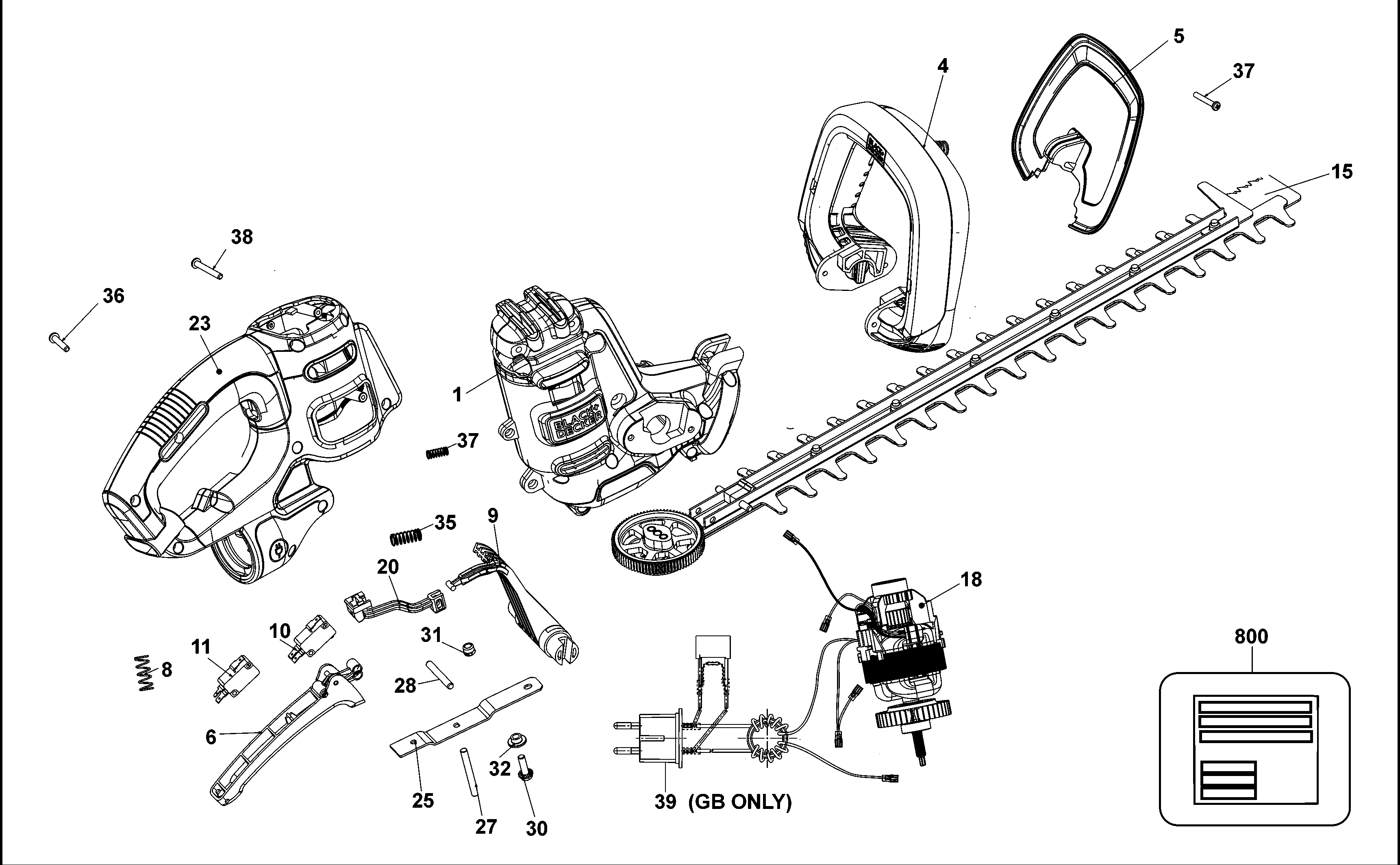

BEHTS301 HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N517771 | 1 | HOUSING MOTOR | GB |  |
||
| 4 | N524980 | 1 | HANDLE | GB | |
||
| 5 | N538676 | 1 | GUARD | GB | |
||
| 6 | N524867 | 1 | TRIGGER | GB | |||
| 8 | 806128 | 1 | SPRING | GB | |
||
| 9 | N510833 | 1 | YOKE | GB | |||
| 10 | 479254-00 | 1 | SWITCH | Black plunger | GB | |
|
| 11 | 479253-00 | 1 | SWITCH | Red plunger | GB | |
|
| 15 | N528287 | 1 | BLADE & GEAR SA | GB |  |
||
| 19 | N562036 | 1 | MOTOR | GB | |||
| 20 | N516981 | 1 | LINK | GB | |||
| 23 | N533861 | 1 | HOUSING | GB | |
||
| 25 | N506447 | 1 | SUPPORT | GB | |||
| 27 | N506433 | 1 | GEAR | GB | |
||
| 28 | N506421 | 1 | SUPPORT | GB | |||
| 30 | 90527921 | 1 | BOLT | GB | |
||
| 31 | 148641-00 | 1 | LOCK-NUT | GB | |
||
| 32 | 376614-01 | 1 | SPACER | GB | |
||
| 35 | N539104 | 1 | SPRING COMPRESSION | GB | |||
| 36 | 747329 | 1 | SCREW | GB | |
||
| 37 | N546037 | 1 | SCREW | GB | |
||
| 38 | N547676 | 1 | SCREW | GB | |||
| 39 | 90574827-01 | 1 | CORDSET | GB | |
||
| 800 | N552198 | 1 | RATING LABEL | GB |
