SSW22 PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4381020 | 1 | HANDLE UPPER | B5 |  |
||
| 2 | 4381120 | 1 | KNOB | B5 | |
||
| 3 | 4101030 | 1 | PLUG | B5 |  |
||
| 4 | 4380970 | 1 | COVER | B5 | |
||
| 5 | 1004455-07 | 1 | GLAND | B5 | |
||
| 6 | 4381640 | 2 | FOOT | B5 | |
||
| 7 | 1004744-79 | 2 | O RING | B5 | |
||
| 8 | 1004744-80 | 1 | O RING | B5 | |
||
| 9 | 1004744-78 | 1 | HOSE | B5 | |
||
| 10 | 4381070 | 1 | CARRIER | B5 | |
||
| 11 | 4381060 | 1 | CARRIER | B5 | |
||
| 12 | 4383470 | 1 | PUMP SA | B5 | |
||
| 13 | 4381840 | 2 | PLATE | B5 | |
||
| 14 | 4381170 | 1 | BRACKET | B5 | |
||
| 15 | 1004712-16 | 2 | FOOT | B5 | |
||
| 16 | 4381050 | 1 | HANDLE | B5 | |
||
| 17 | 1004744-76 | 1 | HOSE | B5 | |
||
| 18 | 1004744-69 | 1 | REGULATOR | B5 | |
||
| 19 | 4381040 | 1 | COVER | B5 | |
||
| 20 | 4381110 | 2 | GUARD | B5 | |
||
| 21 | 4381100 | 2 | WHEEL | B5 | |
||
| 22 | 4380960 | 1 | BASE SA | B5 | |
||
| 23 | 4380990 | 1 | CARRIER SA | B5 | |
||
| 24 | 1004700-77 | 1 | COUPLING SA | B5 | |
||
| 25 | 4381080 | 1 | TANK | B5 | |
||
| 26 | 4381230 | 1 | FOOT | B5 | |
||
| 27 | 4381180 | 1 | KNOB | B5 | |
||
| 28 | 4381200 | 1 | PIN | B5 | |
||
| 29 | 4381030 | 1 | HANDLE | B5 | |
||
| 30 | 4380980 | 1 | GUARD | B5 | |
||
| 31 | 4381210 | 1 | GUARD | B5 | |
||
| 32 | 4381240 | 1 | HOSE | B5 | |
||
| 33 | 4381190 | 1 | LEVER | B5 | |
||
| 34 | 4381160 | 1 | BRACKET | B5 | |
||
| 35 | 3081650 | 1 | FORK | B5 | |
||
| 36 | 1004744-84 | 1 | COUPLING | B5 | |
||
| 37 | 4101520 | 1 | FORK | B5 | |
||
| 38 | 3720730 | 1 | PLUG | B5 | |
||
| 39 | 1004712-79 | 1 | HEAD | B5 | |
||
| 40 | 1004709-97 | 3 | SCREW | B5 | |
||
| 41 | 1004744-75 | 1 | COUPLING | B5 | |
||
| 42 | 1004712-69 | 3 | BUSHING | B5 | |
||
| 43 | 1004712-68 | 3 | BUSHING | B5 | |
||
| 44 | 1004713-41 | 1 | GUIDE | B5 | |
||
| 45 | 1004712-65 | 3 | PLUG | B5 | |
||
| 46 | 1004712-70 | 1 | SCREW | B5 | |
||
| 47 | 1004744-68 | 1 | SPRING | B5 | |
||
| 48 | 1004712-77 | 1 | PIPE | B5 | |
||
| 49 | 1004712-85 | 1 | SHUTTER | B5 | |
||
| 50 | 1004710-37 | 1 | SPRING | B5 | |
||
| 51 | 1004712-86 | 1 | VALVE | B5 | |
||
| 52 | 1004713-92 | 1 | PLUG | B5 | |
||
| 53 | 1004512-95 | 1 | WASHER | B5 | |
||
| 54 | 3400600 | 1 | PLATE | Wobble | B5 | |
|
| 55 | 3409419 | 1 | PUMP SA | B5 | |
||
| 56 | 1004744-71 | 1 | PISTONS & SEALS KIT | B5 | |
||
| 57 | 1004744-72 | 1 | VALVES & SEALS KIT | B5 | |
||
| 58 | 1004744-73 | 1 | SUCTION GROUP | B5 | |
||
| 59 | 1004744-74 | 1 | BEARING | B5 | |
||
| 60 | 3960430 | 1 | COUPLING | B5 | |
||
| 61 | 4240270 | 1 | FORK | B5 | |
||
| 62 | 1004744-77 | 2 | O RING | B5 | |
||
| 63 | 1004709-90 | 1 | O RING | B5 | |
||
| 64 | 1004710-05 | 1 | O RING | B5 | |
||
| 65 | 1004701-09 | 1 | SCREW | B5 | |
||
| 66 | 3400800 | 1 | BEARING | B5 | |
||
| 67 | 1004711-73 | 2 | WASHER | B5 | |
||
| 68 | 1004711-51 | 2 | SCREW | B5 | |
||
| 69 | 1004553-08 | 1 | RING | B5 | |
||
| 70 | 1004712-31 | 4 | SCREW | B5 | |
||
| 71 | 1004714-14 | 1 | BODY | PUMP BODY | B5 | |
|
| 72 | 1004711-53 | 1 | BEARING | B5 | |
||
| 73 | 1004711-45 | 1 | COVER | B5 | |
||
| 74 | 1004711-54 | 1 | SEAL | B5 | |
||
| 75 | 1004709-75 | 1 | O RING | B5 | |
||
| 76 | 1004553-07 | 1 | FAN | B5 | |
||
| 77 | 1004714-15 | 1 | CONVEYOR | B5 | |
||
| 78 | 4383480 | 1 | MOTOR SA | B5 | |
||
| 79 | 1004770-84 | 1 | BEARING | KIT | B5 | |
|
| 80 | 4382450 | 1 | GUARD | B5 | |
||
| 81 | 4382440 | 1 | CARRIER | B5 | |
||
| 82 | 1004770-85 | 1 | BOX | TSS | B5 | |
|
| 83 | 1004712-09 | 1 | FORK | B5 | |
||
| 84 | 1004710-65 | 1 | WASHER | B5 | |
||
| 85 | 1004712-03 | 3 | SCREW | B5 | |
||
| 86 | 1004714-13 | 1 | COVER | B5 | |
||
| 87 | 1004744-81 | 1 | SWITCH | B5 | |
||
| 88 | 1004712-04 | 1 | GLAND | B5 | |
||
| 89 | 1004701-02 | 1 | CORDSET | GB Plug | B5 | |
|
| 90 | 1004712-35 | 1 | O RING | B5 | |
||
| 91 | 1004512-55 | 1 | CAPACITOR | B5 | |
||
| 92 | 1004709-71 | 1 | O RING | B5 | |
||
| 93 | 1004712-17 | 1 | O RING | B5 | |
||
| 94 | 1004709-87 | 1 | O RING | B5 | |
||
| 95 | 1004712-32 | 1 | BOX | B5 | |
||
| 96 | 1004712-01 | 2 | SCREW | B5 | |
||
| 97 | 1004712-04 | 2 | GLAND | B5 | |
||

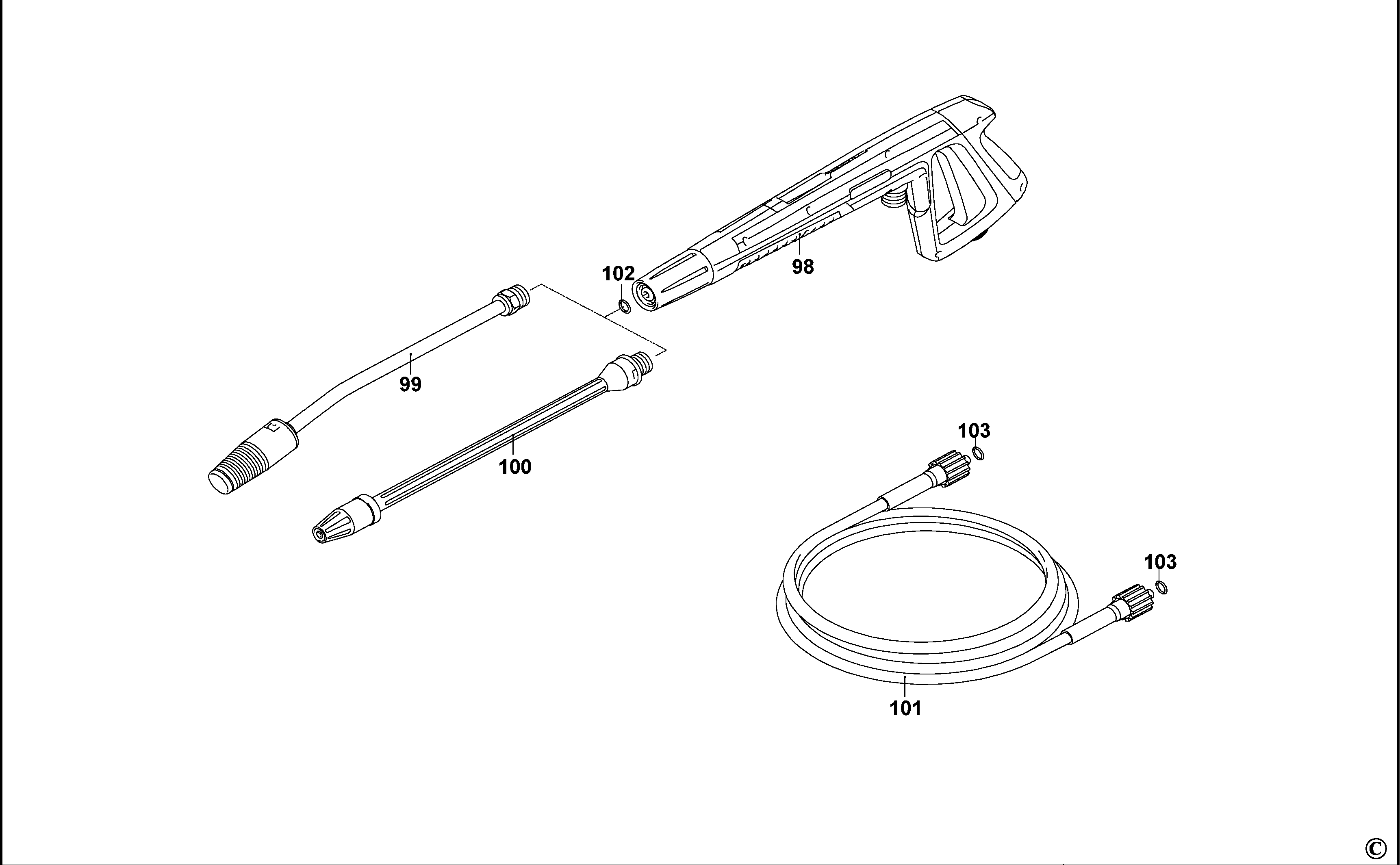

| 98 | 4381910 | 1 | HANDLE SA | B5 | |
||
| 99 | 4382380 | 1 | EXTENSION | + HEAD | B5 | |
|
| 100 | 4382350 | 1 | EXTENSION | + Roto Power Nozzle | B5 | |
|
| 101 | 3083830 | 1 | HOSE SA, REINFORCED | B5 | |
||
| 102 | 3083690 | 1 | O RING | B5 | |
||
| 103 | 3083380 | 2 | O RING | B5 | |
