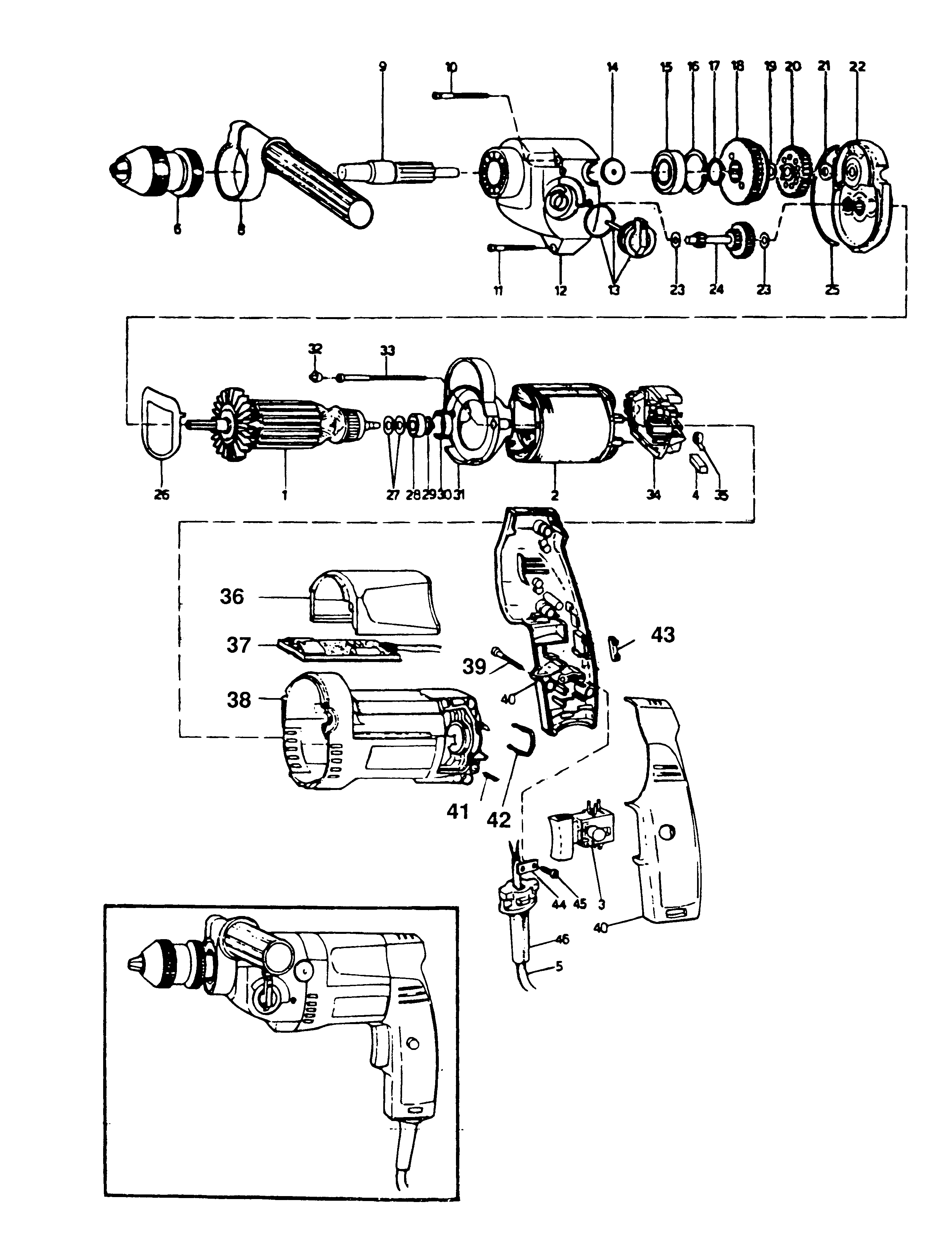

EMD402 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 932954 | 1 | ARMATURE | GB 240V | AE |  |
|
| 1 | 932954 | 1 | ARMATURE | AE | |
||
| 1 | 932955 | 1 | ARMATURE | GB 115V | AE | |
|
| 1 | 932955 | 1 | ARMATURE | AE 115V | AE | |
|
| 2 | 949855-05 | 1 | FIELD 120V | GB 115V | AE | |
|
| 2 | 949855-05 | 1 | FIELD 120V | AE 115V | AE | |
|
| 2 | 934021 | 1 | FIELD 220/240V | GB 240V | AE | |
|
| 2 | 949855-06 | 1 | FIELD SA | AE | |
||
| 3 | 938237 | 1 | SWITCH | GB 240V | AE | |
|
| 3 | 938237 | 1 | SWITCH | GB 115V | AE | |
|
| 3 | 938237 | 1 | SWITCH | AE 115V | AE | |
|
| 3 | 938237 | 1 | SWITCH | AE | |
||
| 4 | 930760-00 | 2 | BRUSH 230V | GB 240V | AE |  |
|
| 4 | 930760-00 | 2 | BRUSH 230V | AE | |
||
| 4 | 930802-00 | 2 | BRUSH | GB 115V | AE | |
|
| 4 | 930802-00 | 2 | BRUSH | AE 115V | AE | |
|
| 5 | 330061-04 | 1 | CORDSET (M/PLUG) | GB 115V | AE | |
|
| 5 | 938109 | 1 | CABLE | AE 115V | AE | |
|
| 5 | 330060-03 | 1 | CABLE & PLUG | GB 240V | AE | |
|
| 5 | 938109 | 1 | CABLE | AE | |
||
| 6 | 930019 | 1 | CHUCK | AE | |
||
| 8 | 930281 | 1 | HANDLE SA | AE | |
||
| 9 | 932928 | 1 | SPINDLE | AE | |
||
| 10 | 931298 | 2 | SCREW | AE | |
||
| 11 | 931297-00 | 1 | SCREW | AE | |
||
| 12 | 935562-00 | 1 | GEARCASE SA | AE | |||
| 13 | 936416 | 1 | LEVER SA | GB 240V | AE | |
|
| 13 | 936416 | 1 | LEVER SA | GB 115V | AE | |
|
| 13 | 936416 | 1 | LEVER SA | AE 115V | AE | |
|
| 13 | 936416 | 1 | LEVER SA | AE | |
||
| 14 | 934233 | 1 | CAP | AE | |
||
| 15 | 605040-25 | 1 | BEARING,BALL | AE | |
||
| 16 | 931398 | 1 | RING | AE | |
||
| 17 | 930098-00 | 1 | RETAINER | AE | |
||
| 18 | 939775 | 1 | GEAR SA | AE | |
||
| 19 | 931892-00 | 1 | WASHER | AE | |
||
| 20 | 939779 | 1 | GEAR | AE | |
||
| 21 | 931395 | 1 | SPACER | AE | |
||
| 22 | 935689 | 1 | GEARCASE COVER | AE | |
||
| 23 | 930102-00 | 2 | WASHER | AE | |
||
| 24 | 939801 | 1 | GEAR & PINION SA | AE | |
||
| 25 | 931286 | 1 | SEAL | AE | |
||
| 26 | 935678 | 1 | SPRING | AE | |
||
| 27 | 932933-00 | 2 | WASHER | AE | |
||
| 28 | 330003-02 | 1 | BEARING | AE | |
||
| 29 | 939624-00 | 1 | RING | AE | |
||
| 30 | 930029-00 | 1 | HOLDER BEARING | AE | |
||
| 31 | 932934 | 1 | BAFFLE | AE | |
||
| 32 | 933657-00 | 2 | CAP | AE | |
||
| 33 | 930752-00 | 2 | SCREW | AE | |
||
| 34 | 930749-00 | 1 | BRUSH HOLDER PLATE | GB 115V | AE | |
|
| 34 | 930749-00 | 1 | BRUSH HOLDER PLATE | AE 115V | AE | |
|
| 34 | 930746-00 | 1 | BRUSH HOLDER SA | GB 240V | AE | |
|
| 34 | 930746-00 | 1 | BRUSH HOLDER SA | AE | |
||
| 35 | 930090-00 | 2 | BRUSH SPRING | AE | |||
| 36 | 938241-00 | 1 | COVER | AE | |
||
| 37 | 937485 | 1 | ELECTRONIC 240V | GB 240V | AE | |
|
| 37 | 937485 | 1 | ELECTRONIC 240V | AE | |
||
| 38 | 938890-00 | 1 | FIELDCASE | AE | |
||
| 39 | 930079-01 | 4 | SCREW | AE | |
||
| 40 | 938240 | 1 | HANDLE SA | AE | |
||
| 41 | 931254-00 | 1 | SCREW | AE | |
||
| 42 | 932930 | 1 | RING | AE | |
||
| 43 | 930187 | 1 | CONNECTOR | AE | |
||
| 44 | 930103-00 | 1 | CORD CLAMP | AE | |
||
| 45 | 930276 | 2 | SCREW | AE | |
||
| 46 | 732456 | 1 | CORD PROTECTOR | GB 240V | AE | |
|
| 46 | 732456 | 1 | CORD PROTECTOR | GB 115V | AE | |
|
| 46 | 732456 | 1 | CORD PROTECTOR | AE 115V | AE | |
|
| 46 | 732456 | 1 | CORD PROTECTOR | AE | |
