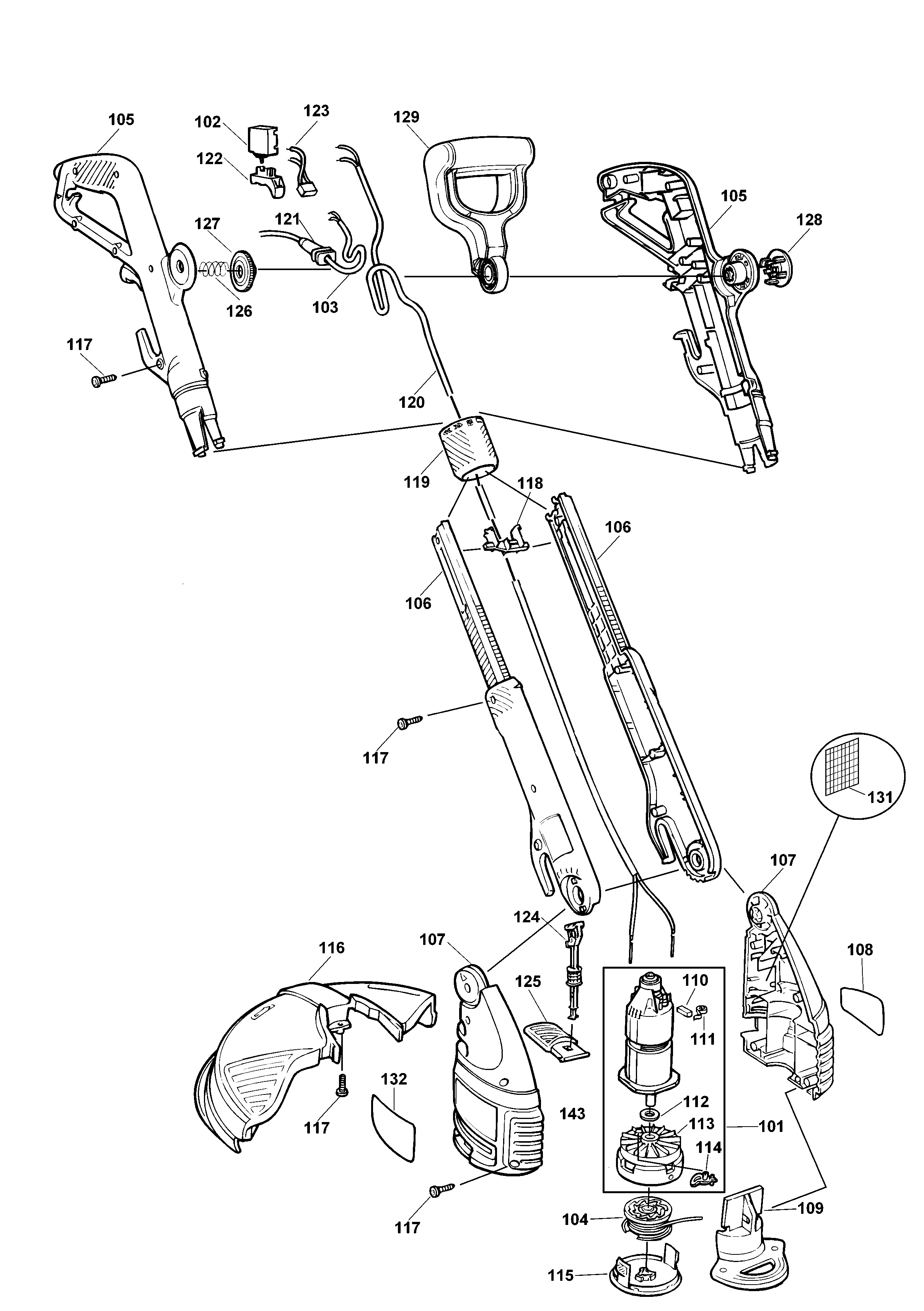

GL570 STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 368022-49 | 1 | MOTOR SA | AE |  |
||
| 102 | 748013 | 1 | SWITCH | AE | |
||
| 103 | 330048-04 | 1 | CORDSET (EURO) | AE | |
||
| 104 | 806856-50 | 1 | SPOOL & LINE | AE | |||
| 105 | 375016-01 | 1 | CLAMSHELL | AE | |
||
| 106 | 375019 | 1 | CLAMSHELL PAIR | AE | |
||
| 107 | 375011-01 | 1 | CLAMSHELL | AE | |
||
| 108 | 806608-11 | 1 | BRAND LABEL | GL570 | AE | |
|
| 108 | 806608-11 | 1 | BRAND LABEL | GL570C | AE | |
|
| 108 | 806608-11 | 1 | BRAND LABEL | GL570 | AE | |
|
| 108 | 806608-11 | 1 | BRAND LABEL | GL570C | AE | |
|
| 109 | 806587 | 1 | GUIDE | AE | |
||
| 110 | 832998-04 | 2 | BRUSH 230V | AE | |
||
| 111 | 747634 | 2 | SPRING BRUSH | AE | |
||
| 112 | 371796 | 1 | WASHER | AE | |
||
| 113 | 806471-01 | 1 | SPOOL SA | AE | |
||
| 114 | 806474 | 1 | ACTUATOR | AE | |||
| 115 | 374746-01 | 1 | COVER SPOOL | AE | |
||
| 116 | 374750 | 1 | GUARD SA | AE | |
||
| 117 | 747329 | 17 | SCREW | AE |  |
||
| 118 | 807019 | 1 | PIN SA | AE | |
||
| 119 | 373128 | 1 | LOCKING RING | AE | |
||
| 120 | 368765 | 1 | CABLE | AE | |
||
| 121 | 806603 | 1 | CORD PROTECTOR | AE | |
||
| 122 | 373126 | 1 | TRIGGER | AE | |
||
| 123 | 807285-10 | 1 | CAPACITOR | AE | |
||
| 124 | 808427 | 1 | LINKAGE SA | AE | |
||
| 125 | 373121 | 1 | PEDAL | AE | |
||
| 126 | 806617 | 1 | SPRING | AE | |
||
| 127 | 806616 | 1 | RING | AE | |
||
| 128 | 806618 | 1 | BUTTON RELEASE | AE | |
||
| 129 | 806607-01 | 1 | HANDLE SA | AE | |
||
| 132 | 579962-00 | 1 | WARNING LABEL | AE | |
||
| 133 | 579962-00 | 1 | WARNING LABEL | AE | |
||
| 837 | 559581-99 | 1 | S.T.RELEASE TOOL | AE | |
