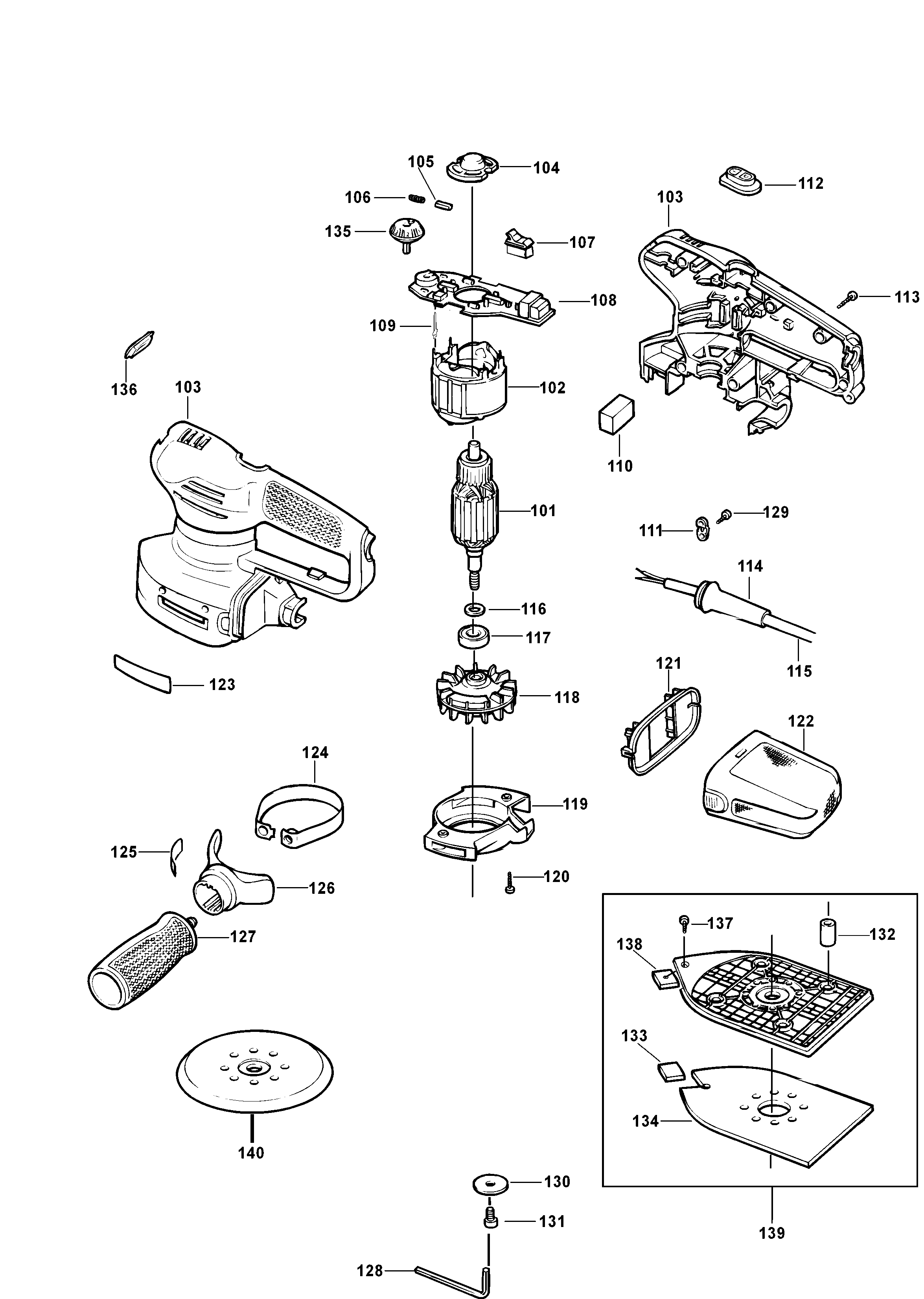

KA220E SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 373311-01 | 1 | ARMATURE 230V | GB |  |
||
| 101 | 324907-02 | 1 | FAN | GB | |||
| 102 | 807254-13 | 1 | FIELD SA | GB | |
||
| 102 | 327086-00 | 1 | PLATE | GB | |
||
| 103 | 580941-04 | 1 | CLAMSHELL SET | ORANGE | TYPE 2 | GB | |
| 103 | 580941-04 | 1 | CLAMSHELL SET | ORANGE | FROM DCODE 010202 | GB | |
| 103 | 374126-01 | 1 | CLAMSHELL | TYPE 1 | GB | |
|
| 104 | 807262 | 1 | HEATSINK SA | GB | |
||
| 105 | 736703 | 2 | BRUSH | GB | |
||
| 106 | 830501 | 2 | SPRING | GB | |
||
| 107 | 368320 | 1 | SWITCH | GB | |
||
| 108 | 807265-00 | 1 | PCB SA | TYPE 1 | GB | |
|
| 108 | 575316-00 | 1 | PCB SA | TYPE 2 | GB | |
|
| 109 | 823723 | 4 | CONNECTOR | GB | |
||
| 110 | 807242 | 1 | PAD | GB | |
||
| 110 | 325328-00 | 1 | SWITCH | GB | |
||
| 111 | 821070 | 1 | CORD CLAMP | GB |  |
||
| 112 | 808495-01 | 1 | ACTUATOR | GB | |
||
| 113 | 747329 | 7 | SCREW | GB | |
||
| 114 | 770235 | 1 | PROTECTOR | GB | |
||
| 114 | 279752-00 | 2 | GUIDE | GB | |
||
| 115 | 330060-53 | 1 | CORDSET | GB | |
||
| 116 | 807246 | 1 | WASHER | UPTO DATE CODE 09-97 | GB | |
|
| 116 | 90626849 | 1 | SPRING | GB | |
||
| 117 | 330003-39 | 1 | BEARING | GB | |
||
| 118 | 807235 | 1 | FAN SA | GB | |
||
| 118 | 6010119-16 | 1 | RING | NO.6X19 | GB | |
|
| 119 | 807241 | 1 | SHROUD | GB | |
||
| 120 | 747329 | 2 | SCREW | GB | |
||
| 120 | 248303-00 | 1 | LEAD | GB | |
||
| 121 | 808766 | 1 | BAFFLE | GB | |
||
| 121 | 248319-00 | 1 | ARMATURE 120V | GB | |
||
| 122 | 807237 | 1 | DUST BAG SA | GB | |
||
| 122 | 248356-00 | 1 | ELECTRONIC 120V | GB | |
||
| 123 | 369881-00 | 1 | BRAND LABEL | KA220E | GB | |
|
| 123 | 369881-02 | 1 | BRAND LABEL | KA210E | GB | |
|
| 123 | 596532-00 | 1 | BOLT | M10 X 75 | GB | |
|
| 124 | 797165-01 | 1 | STRAP | GB | |
||
| 124 | 248331-00 | 1 | SHOE SA | GB | |
||
| 125 | 369996-00 | 1 | BRAND LABEL | GB | |
||
| 125 | 248325-05 | 1 | SCALE | GB | |
||
| 126 | 807255-03 | 1 | BLOCK | GB | |
||
| 126 | 324189-02 | 1 | HANDLE SA | GB | |
||
| 127 | 808144-02 | 1 | SIDE HANDLE | GB | |
||
| 127 | 324165-04 | 1 | INSERT | GB | |
||
| 128 | 807043 | 1 | WRENCH | 4mm | GB | |
|
| 128 | 279743-00 | 1 | CLIP 309510 | M6X45 | GB | |
|
| 129 | 370748 | 2 | SCREW | GB | |
||
| 129 | 279744-00 | 1 | ROD 309610 | M6 HEX | GB | |
|
| 130 | 807936 | 1 | WASHER | GB | |
||
| 131 | 797190 | 1 | SCREW.TEMP | GB | |
||
| 131 | 323497-01 | 1 | ARMATURE 120V | GB | |
||
| 132 | 807224 | 4 | LEG | GB | |
||
| 132 | 6010119-16 | 1 | RING | NO.6X19 | GB | |
|
| 133 | 90558556 | 1 | TIP | GB | |
||
| 133 | 327471-01 | 1 | ARMATURE 120V | GB | |||
| 134 | 807274-01 | 1 | PAD | GB | |
||
| 135 | 807940 | 1 | KNOB | GB | |
||
| 135 | 327401-00 | 1 | RETAINER | GB | |
||
| 136 | 807245 | 1 | SWITCH COVER | GB | |
||
| 137 | 808765 | 1 | SCREW | GB | |
||
| 138 | 377443-01 | 1 | TIP | GB | |
||
| 138 | 6010119-16 | 1 | RING | NO.6X19 | GB | |
|
| 139 | 575772-01 | 1 | SHOE SA | GB | |
||
| 139 | 247601-00 | 1 | GASKET | GB | |
||
| 140 | 807939 | 1 | PLATE | GB | |
||
| 140 | 088235620 | 1 | BLOCK | GB | |
||
| 141 | 326360-01 | 1 | HOUSING | GB | |
||
| 143 | 326357-01 | 1 | HOUSING | GB | |
||
| 145 | 249381-00 | 4 | SPINDLE & GEAR | GB | |
||
| 146 | 6010119-16 | 1 | RING | NO.6X19 | GB | |
|
| 147 | 323902-00 | 1 | PULLEY | GB | |
||
| 148 | 6010119-16 | 2 | RING | GB | |
||
| 150 | 324073-00 | 1 | NUT | GB | |
||
| 151 | 248327-05 | 1 | HOUSING SA | GB | |
||
| 152 | 323950-01 | 1 | RATING PLATE | GB | |
||
| 154 | 876542 | 4 | GEAR SA | GB | |||
| 155 | 247613-05 | 1 | SCREW | GB | |
||
| 156 | 323768-02 | 1 | LEAD 120MM BLACK | GB | |
||
| 157 | 325910-00 | 1 | BAG DUST | GB | |
||
| 158 | 324083-00 | 1 | COVER BELT | GB | |
||
| 159 | 327430-02 | 1 | FIELD 120V | GB | |||
| 160 | 248422-85 | 1 | COVER | GB | |
||
| 161 | 323950-00 | 1 | RATING PLATE | GB | |
||
| 162 | 916982 | 4 | HANDLE LH | GB | |
||
| 163 | 279734-00 | 4 | MOTOR SA 245190 | GB | |
||
| 165 | 248421-85 | 1 | COVER | GB | |
||
| 166 | 088222001 | 1 | SPINDLE SA | 34CM | GB | |
|
| 167 | 088222003 | 1 | FINGER | GB | |
||
| 168 | 567795-00 | 1 | SCREW | GB | |
||
| 169 | 323909-00 | 1 | BELT | GB | |||
| 170 | 326357-02 | 1 | HOUSING | 40LTR | GB | |
|
| 171 | 805890-59 | 1 | CLAMSHELL | 40LTR | GB | |
|
| 172 | 577427-03 | 1 | BRAND LABEL | GB | |
||
| 173 | 324188-02 | 1 | FIELDCASE | GB | |||
| 174 | 324108-01 | 1 | GEAR | 34CM | GB | |
|
| 175 | 327290-02 | 1 | HOUSING SA | GB | |||
| 176 | 327298-03 | 1 | SWITCH COVER | GB | |
||
| 177 | 568061-00 | 1 | BRAND LABEL | GB | |
||
| 178 | 248427-00 | 2 | BAG DUST | GB | |
||
| 300 | 323781-00 | 1 | ADAPTOR | GB | |
||
| 400 | 568431-00 | 1 | FASTENER | 32 LITRE | GB | |
|
| 400 | 568433-00 | 1 | COVER | 40 LITRE | GB | |
|
| 500 | 279746-00 | 1 | SPACER 340060 | GB | |
