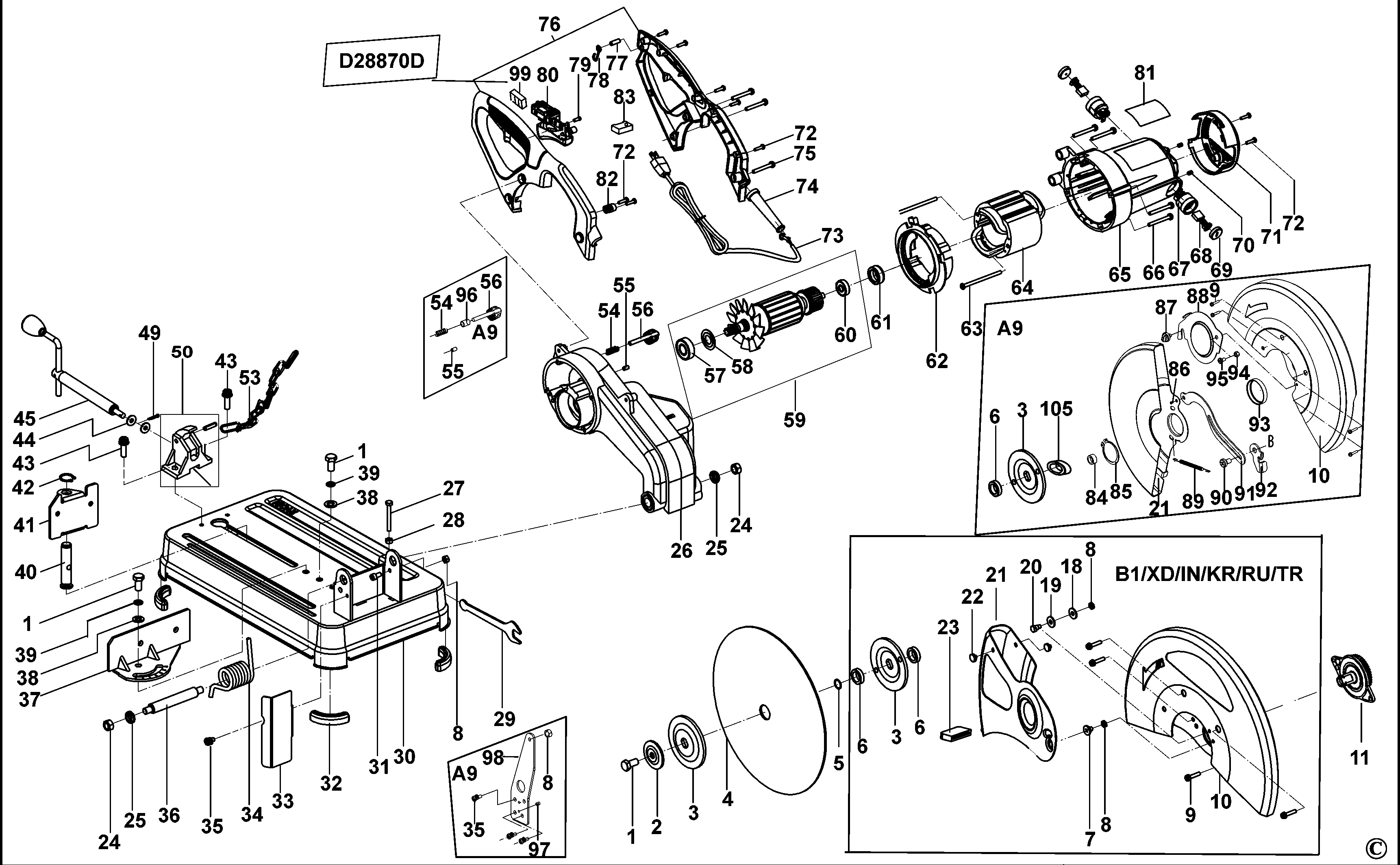

D28720 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140062-44 | 3 | BOLT | M5X8 | XD |  |
|
| 2 | N381289 | 1 | INNER FLANGE | XD |  |
||
| 3 | N381290 | 2 | OUTER FLANGE | 90MM | XD | |
|
| 4 | N398689 | 1 | BLADE 14" | XD | |||
| 5 | 5140062-47 | 1 | O RING | XD | |
||
| 6 | 5140062-48 | 2 | BUSH | XD | |
||
| 7 | 5140062-49 | 1 | SCREW | M6X10 | XD | |
|
| 8 | 5140062-50 | 3 | LOCK NUT | M6 | XD | |
|
| 9 | 5140062-51 | 4 | SCREW | M5X25 | XD | |
|
| 10 | N381292 | 1 | GUARD | XD | |
||
| 11 | 5140062-53 | 1 | GEAR & SPINDLE SA | XD | |
||
| 18 | 5140062-54 | 1 | WASHER | XD | |
||
| 19 | 5140062-55 | 1 | WASHER | Hard Paper | XD | |
|
| 20 | 5140062-56 | 1 | SCREW | M6 | XD | |
|
| 21 | N381293 | 1 | GUARD COVER | XD | |
||
| 22 | 5140062-58 | 2 | RUBBER | XD | |
||
| 23 | 5140062-59 | 1 | PROTECTOR | guard | XD | |
|
| 24 | 5140062-60 | 2 | NUT | M10 | XD | |
|
| 25 | 5140062-61 | 2 | WASHER. CUP | XD | |
||
| 26 | N381294 | 1 | ARM | XD | |
||
| 27 | 5140062-63 | 1 | BOLT | M10X30 | XD | |
|
| 28 | 5140062-64 | 1 | NUT | M10 | XD | ||
| 29 | 5140062-65 | 1 | WRENCH SPECIAL | XD | |
||
| 30 | N381295 | 1 | BASE | XD | |
||
| 31 | 5140062-66 | 1 | BOLT | M6X12 | XD | |
|
| 32 | 5140062-68 | 4 | FOOT | XD | |
||
| 33 | N381297 | 1 | FENCE | XD | |
||
| 34 | 5140062-70 | 1 | SPRING TORSION | XD | |
||
| 35 | N381298 | 1 | SCREW | M6 X 12; M6X12 | XD | |
|
| 36 | 5140062-74 | 1 | SHAFT | XD | |
||
| 37 | N381299 | 1 | FENCE RH | REAR | XD | |
|
| 38 | 5140062-76 | 2 | WASHER | XD | |
||
| 39 | 5140062-77 | 2 | WASHER SPRING | XD | |||
| 40 | N381300 | 1 | SHAFT | XD | |
||
| 41 | N381301 | 1 | FENCE LH | XD | |
||
| 42 | 5140063-27 | 1 | RETAINER | XD | |
||
| 43 | N381302 | 2 | SCREW | M8 X 30 | XD | |
|
| 44 | 5140062-82 | 2 | WASHER | XD | |
||
| 45 | 5140062-84 | 1 | HANDLE SA | XD | |
||
| 49 | 5140062-85 | 1 | PIN | 3.2X18 | XD | |
|
| 50 | 5140062-86 | 1 | LOCKING DEVICE | XD | |
||
| 53 | 5140062-87 | 1 | CHAIN | XD | |
||
| 54 | 5140062-88 | 1 | SPRING | XD | |
||
| 55 | 5140062-89 | 1 | PIN | XD | |
||
| 56 | 5140062-90 | 1 | LOCK PIN | XD | |||
| 57 | N381304 | 1 | BEARING | XD | |
||
| 58 | 5140062-92 | 1 | WASHER | XD | |
||
| 59 | 5140062-94 | 1 | ARMATURE SA | 220V | XD | |
|
| 60 | 5140062-96 | 1 | BEARING | XD | |
||
| 61 | 5140062-97 | 1 | SLEEVE BEARING | XD | |
||
| 62 | 5140062-98 | 1 | DUST DEFLECTOR | XD | |||
| 63 | 5140062-99 | 2 | SCREW | XD | |||
| 64 | 5140063-00 | 1 | FIELD | 220V | XD | |
|
| 65 | N381305 | 1 | HOUSING | XD | |
||
| 66 | 5140063-03 | 4 | SCREW | M5X55 | XD | ||
| 67 | 5140063-04 | 2 | BRUSH HOLDER | XD | |
||
| 68 | N381908 | 1 | BRUSH PAIR | XD | |||
| 69 | 5140063-07 | 2 | BRUSH CAP | XD | |
||
| 70 | 5140063-08 | 2 | SCREW | XD | |
||
| 71 | N381910 | 1 | COVER REAR | XD | |
||
| 72 | 5140063-10 | 10 | SCREW | XD | |
||
| 73 | N398693 | 1 | CORDSET | XD | |||
| 74 | 5140063-19 | 1 | CORD PROTECTOR | XD | |
||
| 75 | 5140063-20 | 3 | SCREW | M5X40 | XD | |
|
| 76 | N381307 | 1 | HANDLE SA | XD | |
||
| 77 | 5140063-22 | 1 | PIN | XD | |
||
| 78 | 5140063-23 | 1 | HOOK | XD | |
||
| 79 | 5140062-93 | 2 | SCREW | XD | |
||
| 80 | 5140063-24 | 1 | SWITCH | XD | |
||
| 81 | N398700 | 1 | RATING LABEL | XD | |||
| 81 | N494067 | 1 | RATING LABEL | D28720D | XD | ||
| 82 | 5140063-26 | 1 | CORD CLAMP | XD | |
||
| 99 | 5170023-59 | 1 | MODULE | D28720D | XD | |
