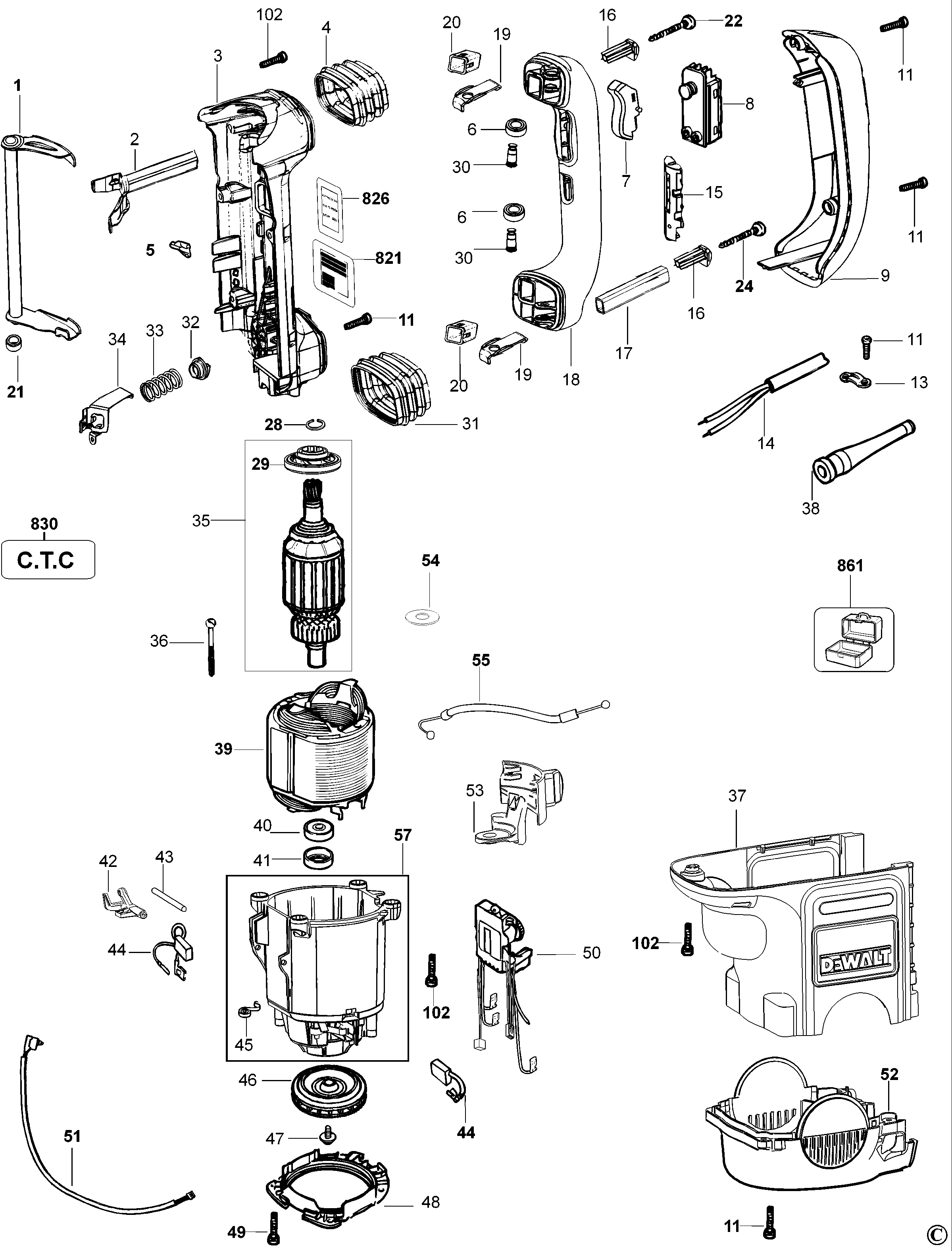

D25730K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N019871 | 1 | REPAIR KIT | GB |  |
||
| 2 | 586415-00 | 1 | GUIDE SA | GB | |
||
| 3 | 585171-00 | 1 | HANDLE COVER | GB | |
||
| 4 | 588639-00 | 1 | BELLOWS | GB | |
||
| 5 | 586045-00 | 1 | LENS | GB | |
||
| 6 | 586411-00 | 1 | ROLLER | GB | |
||
| 7 | 587114-01 | 1 | TRIGGER | GB |  |
||
| 8 | 581070-00 | 1 | SWITCH | GB | |
||
| 9 | 587090-00 | 1 | HANDLE COVER | GB | |
||
| 11 | 330065-08 | 18 | SCREW | M4x18 T20 | GB | |
|
| 13 | 821070 | 1 | CORD CLAMP | GB | |
||
| 14 | 582319-23 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 15 | 477448-00 | 1 | LOCK SA | GB | |
||
| 16 | 494477-00 | 1 | STOP | GB | |
||
| 17 | 586414-00 | 1 | GUIDE ROD | GB | |
||
| 18 | 587085-01 | 1 | SWITCH HANDLE | GB | |
||
| 19 | 586413-00 | 2 | DRIVER | GB | |
||
| 20 | 1005496-00 | 2 | BUSHING | GB | |
||
| 21 | N019871 | 1 | REPAIR KIT | GB | |
||
| 22 | 949886-33 | 1 | SCREW | GB | |
||
| 24 | 330019-33 | 1 | SCREW | GB | |
||
| 28 | 577746-00 | 1 | RING | GB | |
||
| 29 | 586597-00 | 1 | GUARD SA | GB | |
||
| 30 | 586412-00 | 2 | AXLE | GB | |
||
| 31 | 588640-00 | 1 | BELLOWS | GB | |
||
| 32 | 586423-00 | 1 | CARRIER | GB | |
||
| 33 | 586421-00 | 1 | SPRING COMPRESSION | GB | |
||
| 34 | 586422-00 | 1 | RETAINER | GB | |
||
| 35 | 492485-00 | 1 | ARMATURE 230V | GB | |
||
| 36 | 330019-30 | 2 | SCREW | GB | |
||
| 37 | 585169-00 | 1 | MOTOR COVER | GB | |
||
| 38 | 403395-00 | 1 | CORD PROTECTOR | GB | |
||
| 39 | 492487-00 | 1 | FIELD SA 230V | GB | |
||
| 40 | 577745-00 | 1 | BEARING | GB | |
||
| 41 | 590191-00 | 1 | SLEEVE INSULATING | GB | |
||
| 42 | 586435-00 | 1 | LEVER | GB | |
||
| 43 | 586436-00 | 1 | AXLE | GB | |||
| 44 | 489256-00 | 1 | BRUSH PAIR 230V | GB | |
||
| 45 | N833746 | 2 | SELECTOR SA | GB | |
||
| 46 | 586611-00 | 1 | FAN SA | GB | |
||
| 47 | 324119-02 | 1 | SCREW | GB | |
||
| 48 | 586618-00 | 1 | BAFFLE | GB | |
||
| 49 | 330019-30 | 2 | SCREW | GB | |
||
| 50 | 662695-02 | 1 | ELECTRONIC 230V | GB | |
||
| 51 | 477287-02 | 1 | MICRO SWITCH | GB | |
||
| 52 | 587082-00 | 1 | END CAP | GB | |
||
| 53 | 491755-00 | 1 | SLIDER SA | GB | |
||
| 54 | 479165-00 | 1 | RETAINER | GB | |
||
| 55 | 491754-00 | 1 | CABLE | GB | |
||
| 57 | 586610-03 | 1 | MOTOR HOUSING SA | GB | |
||
| 99 | 326467-00 | 1 | DETENT | GB | |
||
| 100 | 323711-49 | 1 | O RING | GB | |
||
| 101 | 477287-01 | 1 | MICRO SWITCH | GB | |
||
| 102 | 324007-11 | 22 | SCREW | M5 X 18 | GB | |
|
| 102 | 5104511-00 | 1 | CLAMSHELL SA | GB | |
||
| 103 | 488067-00 | 1 | FILTER | GB | |
||
| 103 | 5104129-00 | 1 | HANDLE TUBE SA | GB | |||
| 104 | 586031-00 | 1 | COVER | GB | |||
| 104 | 585944-02 | 1 | BRAND LABEL | GB | |
||
| 105 | 323711-56 | 2 | O RING | GB | |
||
| 105 | 90557352 | 1 | BOWL | GB | |||
| 106 | 323711-48 | 1 | O RING | GB | |
||
| 106 | 90559662 | 1 | SWITCH SA | GB | |||
| 107 | 586032-00 | 1 | ECCENTRIC | GB | |
||
| 107 | 576495-00 | 1 | GUARD | GB | |
||
| 108 | 586033-00 | 1 | SPRING | GB | |
||
| 109 | 586036-00 | 1 | SLIDER | GB | |
||
| 109 | 244650-01 | 2 | ACTUATOR | GB | |
||
| 110 | 586038-00 | 1 | SELECTOR | GB | |
||
| 110 | N075277 | 1 | RATING PLATE | BR | GB | ||
| 111 | 585168-02 | 1 | COVER-TOP | GB | |
||
| 111 | 90528126 | 8 | FILTER | FVF90 | GB | |
|
| 112 | N079390 | 1 | PISTON KIT | GB | |
||
| 112 | 492489-00 | 1 | PISTON KIT | GB | |
||
| 113 | 869292-00 | 1 | OUTER FLANGE | GB | |
||
| 114 | 581656-00 | 2 | PIN | GB | |
||
| 114 | 575585-00 | 1 | TOOL CREVICE | GB | |
||
| 115 | A24631 | 1 | LOCK NUT | GB | |
||
| 117 | 487213-00 | 1 | O RING | GB | |
||
| 118 | N503087 | 1 | CRANKSHAFT | GB | |
||
| 119 | 323711-26 | 1 | O RING | GB | |
||
| 120 | 492505-00 | 1 | HOUSING SA | GB | |
||
| 130 | 577744-07 | 1 | O RING | GB | |
||
| 131 | 586034-00 | 1 | SLIDER | GB | |
||
| 132 | N140196 | 1 | CYLINDER | GB | |
||
| 135 | 584715-00 | 1 | BUSH | GB | |
||
| 136 | 487296-00 | 1 | O RING | GB | |
||
| 137 | 492501-00 | 1 | RAM | GB | |
||
| 138 | 491004-00 | 1 | O RING | GB | |
||
| 139 | 478650-00 | 1 | BUSH | GB | |||
| 140 | 584726-00 | 1 | SPRING | GB | |
||
| 151 | 1007908-00 | 1 | REPAIR KIT | GB | |
||
| 152 | 479974-00 | 1 | SPACER | GB | |
||
| 153 | 488688-00 | 1 | GEAR | GB | |
||
| 154 | 577745-02 | 1 | BEARING,BALL | GB | |
||
| 155 | 492506-00 | 1 | BEARING,NEEDLE | GB | |
||
| 156 | 489239-00 | 1 | BEARING BRASS BUSH | GB | |
||
| 157 | 586022-00 | 1 | SEAL | GB | |
||
| 158 | 330003-39 | 1 | BEARING | GB | |
||
| 159 | 327141-08 | 1 | SEAL | GB | |
||
| 160 | 489247-00 | 1 | HOUSING SA | GB | |
||
| 161 | 586392-00 | 1 | PIN | GB | |
||
| 162 | 586403-00 | 1 | SEAL | GB | |
||
| 165 | N079392 | 1 | CLUTCH SA | GB | |
||
| 177 | N079392 | 1 | CLUTCH SA | GB | |
||
| 178 | 586387-00 | 1 | BOLT | GB | |
||
| 179 | 489241-00 | 1 | SHAFT | GB | |
||
| 180 | 479947-00 | 1 | WASHER SPRING | GB | |
||
| 181 | 323872-06 | 1 | BEARING | GB | |
||
| 182 | 586394-00 | 1 | CUP | GB | |
||
| 183 | 586386-00 | 1 | PLATE THRUST | GB | |
||
| 184 | 489242-00 | 1 | GEAR | GB | |
||
| 185 | 368247 | 12 | BALL | GB | |||
| 186 | 586391-00 | 1 | DISC | GB | |
||
| 187 | 586390-00 | 1 | DISC | GB | |
||
| 188 | 586388-00 | 1 | BEARING BUSH | GB | |
||
| 189 | 586393-00 | 1 | PIN | GB | |
||
| 190 | 330003-26 | 1 | BEARING | GB | |||
| 191 | 586402-00 | 1 | NUT | GB | |
||
| 192 | 488097-00 | 1 | RETAINER | GB | |
||
| 193 | 488095-00 | 4 | SPRING | GB | |
||
| 194 | 586436-00 | 2 | AXLE | GB | |||
| 195 | 490613-00 | 1 | COUNTERWEIGHT | GB | |||
| 196 | 488098-00 | 1 | RETAINER | GB | |
||
| 200 | 487238-01 | 1 | SEAL | GB | |
||
| 201 | 487205-00 | 1 | RING | GB | |
||
| 202 | 487241-00 | 1 | WASHER | GB | |
||
| 203 | 487244-00 | 1 | RUBBER | GB | |
||
| 204 | 487236-00 | 1 | SLEEVE | GB | |
||
| 205 | 579784-00 | 1 | LOCKING RING | GB | |
||
| 206 | 487218-00 | 1 | SPRING | GB | |
||
| 207 | 489672-00 | 2 | KEY | GB | |
||
| 208 | 487249-00 | 1 | BUSH | GB | |
||
| 209 | 590377-00 | 1 | GUIDE BUSH | GB | |
||
| 210 | 487216-00 | 1 | SPRING | GB | |
||
| 220 | 584696-00 | 1 | GUIDE | GB | |
||
| 221 | 587081-00 | 1 | COVER BLACK | GB | |
||
| 223 | 949886-32 | 4 | SCREW | GB | |
||
| 224 | 327141-09 | 1 | LIP SEAL | GB | |
||
| 225 | 492502-00 | 1 | BEARING SET | GB | |
||
| 226 | 488787-00 | 1 | RING | GB | |
||
| 227 | 492697-00 | 1 | HOUSING FRONT | GB | |
||
| 228 | 584722-00 | 1 | WASHER SHIM | GB | |
||
| 229 | 589223-00 | 1 | DAMPER | GB | |
||
| 230 | 584727-00 | 1 | BUSH | GB | |
||
| 250 | 492698-00 | 1 | SPINDLE SA | GB | |
||
| 251 | N014007 | 1 | SEAL | GB | |
||
| 252 | 487287-00 | 1 | O RING | GB | |
||
| 253 | 1007543-00 | 1 | BEARING BUSH | GB | |
||
| 254 | 579832-00 | 1 | BEAT PIECE | GB | |
||
| 255 | 492503-00 | 1 | WASHER | GB | |
||
| 256 | 487288-00 | 1 | DAMPER | GB | |
||
| 257 | 579786-00 | 1 | BUSH | GB | |
||
| 260 | N026162 | 1 | HANDLE SA | GB | |
||
| 261 | N022227 | 1 | CLAMP | GB | |
||
| 262 | N021120 | 1 | HANDLE | GB | |
||
| 263 | 326553-00 | 1 | LOCKING RING | GB | |
||
| 264 | 479337-00 | 1 | STRAP | GB | |
||
| 265 | 326552-00 | 1 | BUSH | GB | |
||
| 266 | N079374 | 1 | PIN | GB | |
||
| 800 | 578970-04 | 1 | GREASE | 80g | GB | |
|
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | GB | |
|
| 821 | 591000-21 | 1 | RATING PLATE | GB | |||
| 826 | 487395-01 | 1 | LABEL | GB | |
||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 837 | 559653-99 | 1 | S.T.BEARING EXTRACTOR | O Ring/Bush extracto | GB | |
|
| 838 | 559657-99 | 1 | S.T.BEARING EXTRACTOR | Bearing puller, assm | GB | |
|
| 840 | 559659-99 | 1 | S.T.SEAL FITTING TOOL | GB | |
||
| 845 | 559656-99 | 1 | S.T.SUPPORT JIG | GB | |||
| 847 | 493140-00 | 1 | SERVICE KIT 230V | GB | |
||
| 861 | 381297-94 | 1 | KITBOX | GB | |
