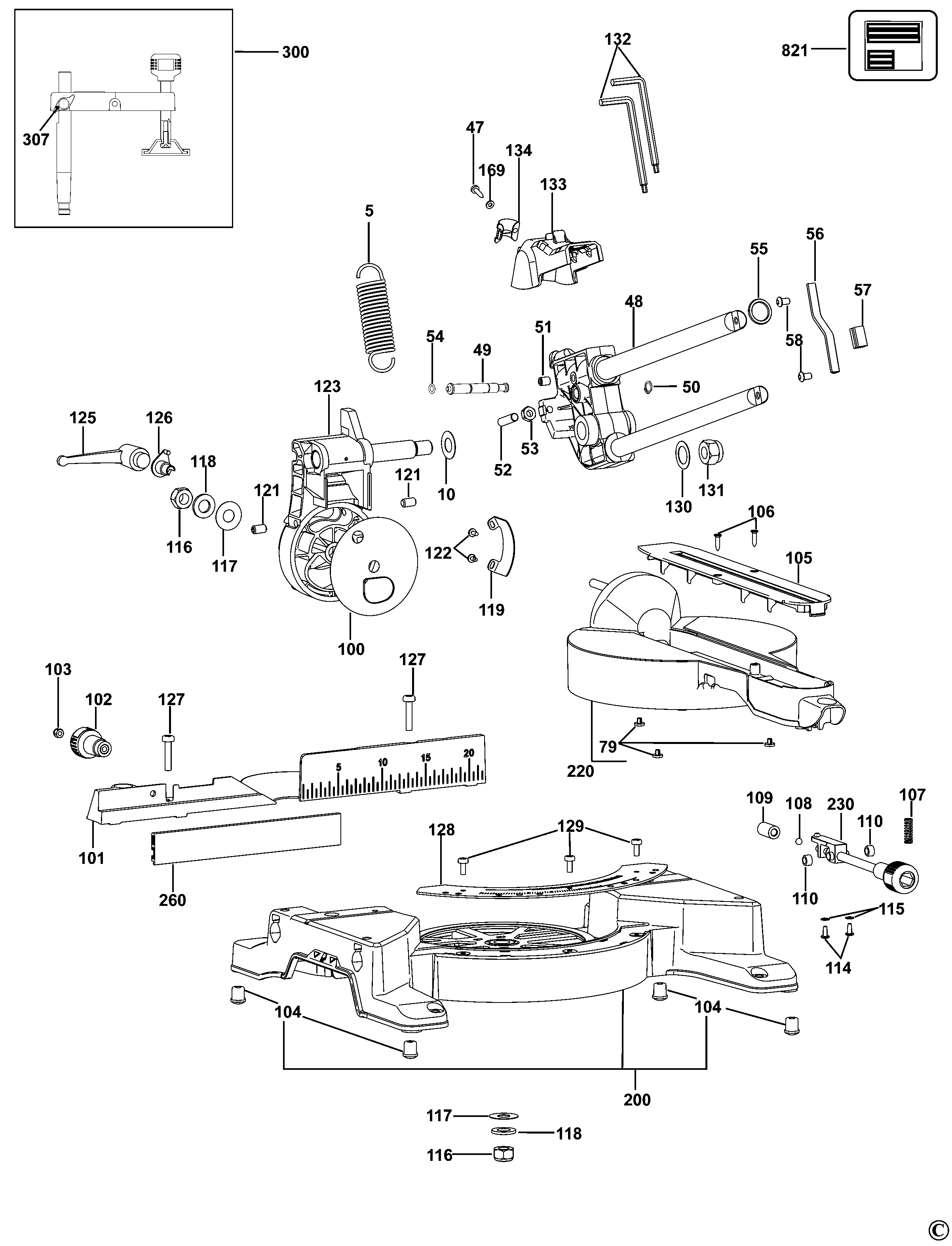

DW770GP MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330065-06 | 1 | SCREW | GB |  |
||
| 2 | 947018-00 | 1 | INSERT | GB |  |
||
| 3 | 947638-00 | 1 | SEAL | GB | |
||
| 4 | 946874-00 | 1 | ADJUSTER | GB | |
||
| 5 | 869142-00 | 1 | SPRING | GB | |
||
| 6 | 940441-00 | 1 | KEY | GB | |
||
| 7 | 949886-26 | 1 | SCREW | GB | |
||
| 8 | 869275-01 | 1 | STOP RUBBER | GB | |
||
| 9 | 947067-00 | 1 | PLUG | GB | |
||
| 10 | 869163-01 | 1 | WASHER | GB | |
||
| 11 | 869159-00 | 1 | FIELDCASE | DeWalt | GB | |
|
| 12 | 145312-00 | 1 | PLUG | GB | |
||
| 13 | 330019-19 | 2 | SCREW | GB | |
||
| 20 | 659512-00 | 1 | BRUSH PAIR | GB | |
||
| 22 | 659513-00 | 1 | BRUSH & HOLDER SA | Inc 20 | GB | |
|
| 24 | 330019-13 | 4 | SCREW | M4X19 T20 | GB | |
|
| 25 | 391933-00 | 1 | END CAP | GB | |
||
| 26 | 610722-00 | 1 | LABEL | GB | |
||
| 27 | 869138-00 | 1 | BAFFLE FAN | GB | |
||
| 28 | 869246-00 | 1 | SPRING | GB | |
||
| 29 | 949729-02 | 1 | CIRCLIP | GB | |
||
| 30 | 949729-03 | 1 | CIRCLIP | GB | |
||
| 31 | 869312-02 | 1 | BRACKET SA | GB | |
||
| 31 | 869312-02 | 1 | BRACKET SA | GB | |
||
| 32 | N379145 | 1 | ARMATURE 230V | GB | |
||
| 33 | N110359 | 1 | BEARING | GB | |
||
| 33 | N110359 | 1 | BEARING | GB | |
||
| 34 | 861721-13 | 1 | BEARING | GB | |
||
| 35 | 869139-00 | 1 | FAN | GB | |
||
| 36 | 860094-02 | 2 | SCREW | GB | |
||
| 37 | 605040-59 | 1 | BEARING | GB | |
||
| 38 | 861721-10 | 1 | BEARING | 6003 2RS | GB | |
|
| 39 | 869316-00 | 1 | SPINDLE | GB | |
||
| 40 | N411964 | 1 | CABLE SA | GB | |||
| 41 | 326057-00 | 1 | TERMINAL BLOCK | GB | |
||
| 42 | 394375-02P | 1 | SWITCH | GB | |
||
| 43 | 384127-01 | 2 | SCREW | GB | |
||
| 44 | 869334-00 | 1 | CAPACITOR SA | 230v | GB | ||
| 45 | 869277-00 | 1 | LEAD | RED | GB | |
|
| 46 | 330045-10 | 4 | SCREW | PH/TT M4X35 | GB | |
|
| 47 | 949896-12 | 4 | SCREW | GB | |
||
| 48 | 869318-00 | 1 | RAIL SA | GB | |
||
| 49 | N325259 | 1 | PIN | GB | |
||
| 50 | 860079-02 | 1 | CIRCLIP | GB | |
||
| 51 | 330022-17 | 1 | GRUB SCREW | GB | |
||
| 52 | 760242-00 | 1 | SCREW | M8 x 30 | GB | |
|
| 53 | 860083-14 | 1 | NUT | GB | |
||
| 54 | 949746-02 | 1 | O RING | GB | |
||
| 55 | 869141-00 | 1 | O RING | 18.6 X 3.5 | GB | |
|
| 56 | 947613-00 | 1 | BRACKET | GB | |
||
| 57 | 869275-00 | 1 | BUMPER | GB | |
||
| 58 | 949609-03 | 2 | SCREW | GB | |
||
| 59 | 869147-00 | 1 | DRIVE PULLEY | GB | |
||
| 60 | 869150-00 | 1 | BELT GROOVED | GB | |
||
| 61 | 869149-00 | 1 | PULLEY | GB | |
||
| 62 | 869140-00 | 1 | LOCKING KNOB | GB | |
||
| 63 | 860083-12 | 1 | NUT M6 | GB | |
||
| 64 | 868082-00 | 1 | SPRING | GB | |
||
| 65 | 761306-00 | 1 | BUMPER | GB | |
||
| 66 | 949896-13 | 1 | SCREW | GB | |
||
| 67 | 760296-01 | 1 | PIVOT | GB | |
||
| 68 | 869161-00 | 1 | SPRING TORSION | GB | |
||
| 69 | 869192-00 | 1 | BUSH | GB | |
||
| 70 | 760270-01 | 1 | WASHER | GB | |
||
| 71 | 949727-04 | 1 | CIRCLIP | GB | |
||
| 72 | 869166-00 | 1 | LOCKING DEVICE | GB | |
||
| 73 | N295980 | 1 | HANDLE & COVER | GB | |||
| 75 | 869420-00 | 1 | GUARD LOWER | GP | GB | |
|
| 76 | 861367-02 | 1 | ROLLER | GB | |
||
| 77 | 760295-01 | 1 | SPRING | GB | |
||
| 78 | 860077-01 | 2 | WASHER | GB | |
||
| 79 | 760298-01 | 2 | INSERT | GB | |
||
| 80 | 860074-01 | 1 | WASHER | GB | |
||
| 81 | 943022-01 | 1 | SCREW | GB | |
||
| 82 | N464700 | 1 | LEVER | GB | |||
| 83 | 869156-00 | 1 | PIN | GB | |
||
| 84 | 869295-00 | 1 | BUSH | GB | |
||
| 87 | 939625-00 | 1 | WASHER | GB | |
||
| 88 | 930076-01 | 1 | SCREW | GB | |
||
| 89 | 860073-00 | 1 | WASHER | GB | |
||
| 90 | 860084-20 | 3 | SCREW | GB | |
||
| 91 | 949896-10 | 5 | SCREW | GB | |
||
| 92 | 949894-04 | 1 | SCREW | GB | |
||
| 93 | 330045-05 | 2 | SCREW | GB | |
||
| 94 | N292720 | 1 | INNER FLANGE | GB | |
||
| 96 | 869292-00 | 1 | OUTER FLANGE | GB | |
||
| 97 | 869245-00 | 1 | SCREW | GB | |
||
| 98 | N358479 | 1 | GUARD UPPER | GP | GB | |
|
| 99 | N456928 | 1 | SCREW | 3.9 X 22 T | GB | ||
| 100 | 947614-00 | 1 | PLATE | GB | |
||
| 101 | N785466 | 1 | FENCE | GB | |
||
| 102 | 869195-00 | 1 | KNOB | GB | |
||
| 103 | 860092-03 | 1 | NUT M5 | GB | |
||
| 104 | 868777-00 | 4 | FOOT | GB | |
||
| 105 | 868688-02 | 1 | INSERT | Black | GB | ||
| 106 | 860205-08 | 2 | SCREW | GB | |
||
| 107 | 868778-00 | 1 | SPRING | GB | |
||
| 108 | 868708-00 | 1 | BALL | GB | |
||
| 109 | 868707-01 | 1 | BUSH | GB | |
||
| 110 | N299799 | 2 | BUSH | GB | |
||
| 114 | 868966-02 | 4 | SCREW | GB | |||
| 115 | 860074-01 | 2 | WASHER | GB | |
||
| 116 | 860092-07 | 1 | NUT | GB | |
||
| 117 | 949705-01 | 2 | WASHER | GB | |
||
| 118 | 860073-05 | 2 | WASHER | GB | |
||
| 119 | 869091-00 | 1 | SCALE | GB | |
||
| 121 | 949743-02 | 2 | SCREW | M8 x 14mm | GB | |
|
| 122 | 949894-12 | 2 | SCREW | GB | |
||
| 123 | 869319-00 | 1 | SEGMENT SA | GB | |
||
| 125 | 861840-03 | 1 | LEVER | GB | |
||
| 126 | 868680-00 | 1 | INSERT | GB | |
||
| 127 | 330045-26 | 2 | SCREW | GB | |
||
| 128 | 868677-00 | 1 | SCALE | GB | |
||
| 129 | 330045-49 | 4 | SCREW | GB | |
||
| 130 | 869163-00 | 1 | WASHER | GB | |
||
| 131 | 860092-09 | 1 | NUT | GB | |
||
| 132 | 868682-00 | 2 | HEX KEY | 4/6mm | GB | |
|
| 133 | N295979 | 1 | GUARD LOWER | GB | |
||
| 134 | 869310-00 | 1 | INLET | GB | |
||
| 169 | 249233-00 | 1 | WASHER | GB | |
||
| 200 | 869313-00 | 1 | TABLE SA | GB | |
||
| 220 | N717627 | 1 | TABLE ROTARY | GB | |||
| 230 | 868943-02 | 1 | LOCKING DEVICE | GB | |
||
| 250 | N467382 | 1 | LEVER SA | GB | |
||
| 260 | 868743-02 | 1 | FENCE | GB | |
||
| 270 | N379143 | 1 | FIELD 230V | GB | |
||
| 300 | 869311-00 | 1 | CLAMP SA | GB | |
||
| 307 | 326573-01 | 1 | SCREW WING | GB | |
||
| 821 | N306070 | 1 | RATING LABEL | GP GB | GB | |
|
| 822 | N325881 | 1 | LABEL | GB | |||
| 823 | N325880 | 1 | LABEL | GB |
