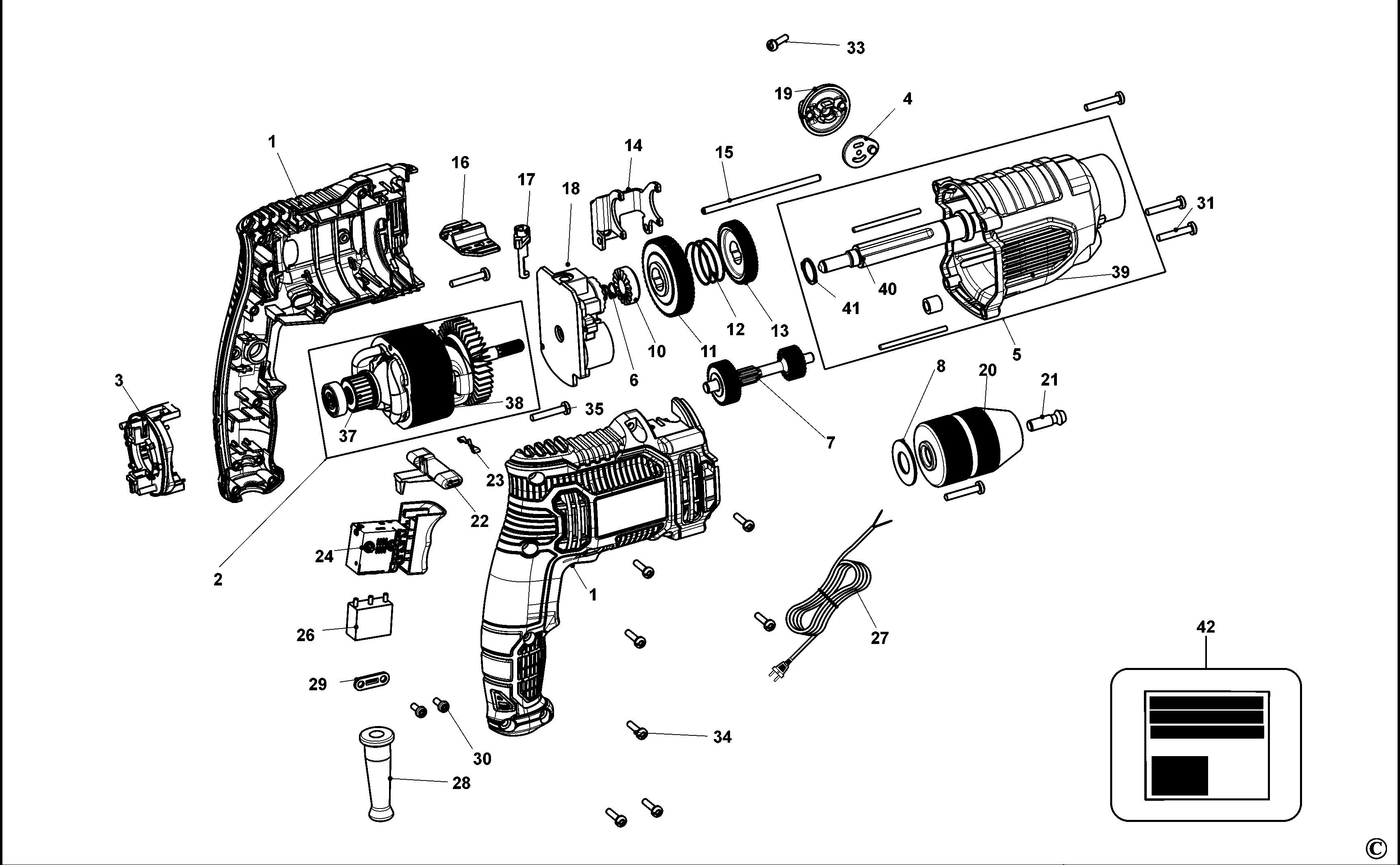

FMEH1100 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N523193 | 1 | HOUSING SA | GB |  |
||
| 2 | N663247 | 1 | MOTOR | GB | |
||
| 3 | N508445 | 1 | BRUSH SA | GB |  |
||
| 4 | 90567833 | 1 | PLATE | GB | |
||
| 5 | N663245 | 1 | GEARCASE | GB | |
||
| 6 | 629149-00 | 1 | SPRING | GB | |
||
| 7 | N786873 | 1 | INTER SHAFT SA | GB | |
||
| 8 | N573696 | 1 | WASHER | GB | |
||
| 10 | 622172-00 | 1 | RATCHET | GB | |
||
| 11 | 90563338 | 1 | GEAR | Ø 51.45mm | GB | |
|
| 12 | 90563340 | 1 | SPRING COMPRESSION | GB | |
||
| 13 | 90563339 | 1 | GEAR | Ø 40.81mm | GB | |
|
| 14 | 90566845 | 1 | PLATE | GB | |
||
| 15 | N498175 | 1 | GUIDE ROD | GB | |
||
| 16 | N507192 | 1 | SELECTOR | GB | |
||
| 17 | 90641385 | 1 | PIN SA | GB | |
||
| 18 | 90567892 | 1 | BEARING PLATE | GB | |
||
| 19 | N500757 | 1 | KNOB | GB | |
||
| 20 | N582979 | 1 | CHUCK | GB | |
||
| 21 | 605256-02 | 1 | SCREW | GB | |
||
| 22 | N506301 | 1 | BAR | GB | |
||
| 23 | 90560638 | 1 | SPRING | GB | |
||
| 24 | N501242 | 1 | SWITCH SA | GB | |
||
| 26 | 90574765 | 1 | CAPACITOR | GB | |
||
| 27 | N585441 | 1 | CORDSET | GB | |
||
| 28 | 90567404 | 1 | CORD PROTECTOR | GB | |
||
| 29 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 30 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 31 | 330019-14 | 1 | SCREW | GB | |
||
| 33 | 330019-02 | 1 | SCREW | GB | |
||
| 34 | 330019-03 | 1 | SCREW | GB | |
||
| 35 | 330019-63 | 1 | SCREW | GB | |
||
| 37 | N663461 | 1 | ARMATURE | GB | |
||
| 38 | 90640577 | 1 | FIELD SA | GB | |
||
| 39 | N663243 | 1 | GEARCASE | GB | |
||
| 40 | 90640071 | 1 | SPINDLE | GB | |
||
| 41 | 144803-00 | 1 | CIRCLIP | GB | |
||
| 42 | N574869 | 1 | RATING LABEL | GB | |
