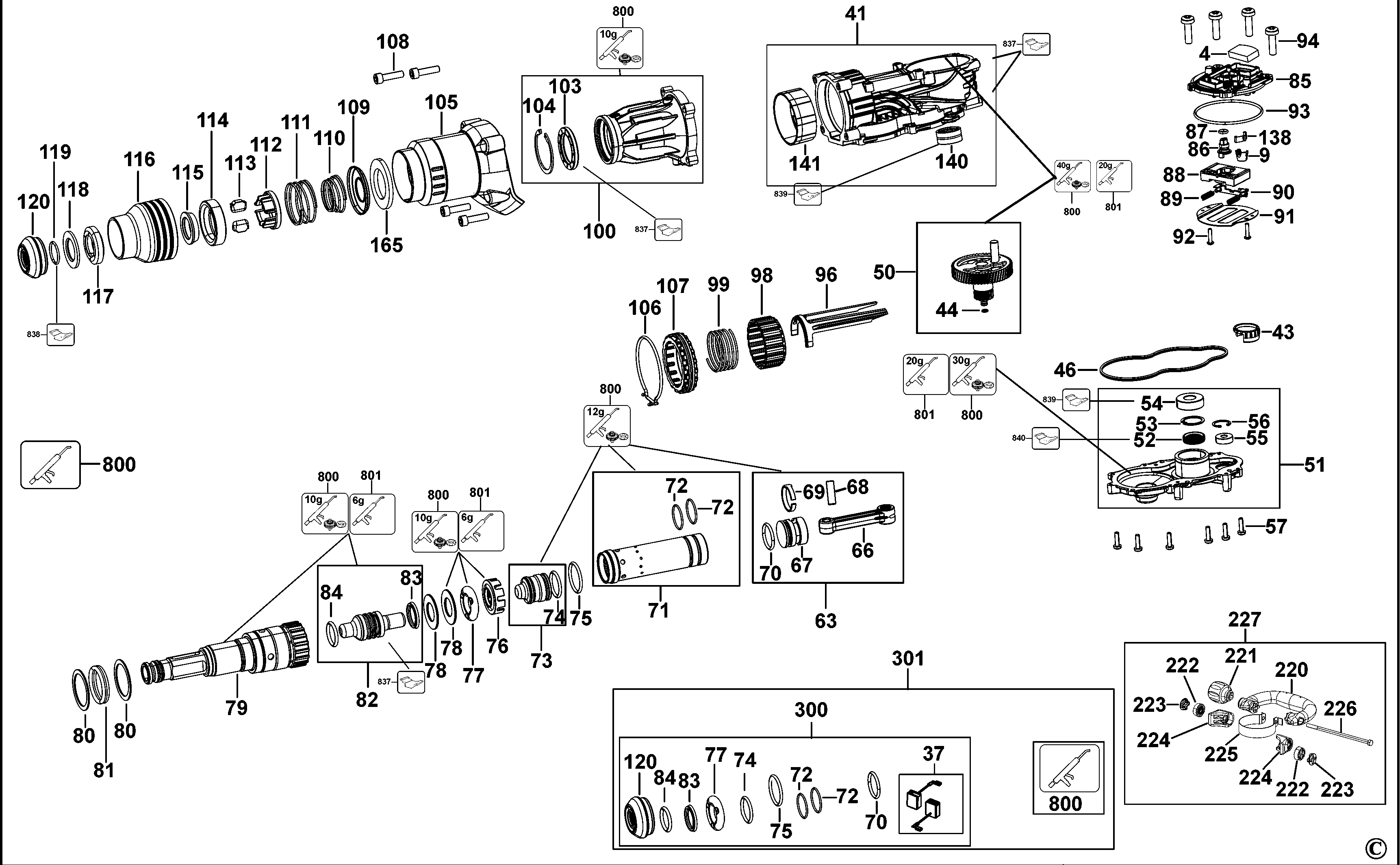

D25872 CHIPPING HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N402325 | 1 | SIDE LH | YELLOW | B4 |  |
|
| 3 | N402326 | 1 | SIDE RH | YELLOW | B4 | |
|
| 4 | N481045 | 1 | FELT | B4 |  |
||
| 5 | N513723 | 1 | COVER-TOP | YELLOW CHIPPER | B4 | |
|
| 6 | N548557 | 8 | SCREW | M5 X 18 T25 | B4 | |
|
| 7 | N463694 | 1 | SELECTOR | MODE | B4 | |
|
| 9 | N607940 | 1 | CAP | B4 | |
||
| 10 | 330065-08 | 1 | SCREW | M4x18 T20 | B4 | |
|
| 11 | N453525 | 1 | PIN | 6 X 60 | B4 | |
|
| 12 | 323091-01 | 1 | CORD PROTECTOR | B4 | |
||
| 13 | 329301-00 | 1 | CORD CLAMP | B4 | |
||
| 14 | 330065-05 | 2 | SCREW | B4 | |
||
| 15 | N467531 | 1 | SWITCH | B4 | |
||
| 16 | N453629 | 1 | BELLOWS | LOWER | B4 | |
|
| 17 | N453630 | 1 | BELLOWS | UPPER | B4 | |
|
| 18 | N501559 | 1 | SPRING | 31.75 X 18.29 | B4 | |
|
| 19 | N152623 | 1 | STOP | B4 | |
||
| 20 | N528838 | 1 | PANEL.REAR | NO LED | B4 | |
|
| 21 | N580497 | 1 | CLAMSHELL SET | NON LOCK ON | B4 | |
|
| 22 | 330065-08 | 6 | SCREW | M4x18 T20 | B4 | |
|
| 23 | N592899 | 1 | CONTROL MODULE SA | 8KG LV | B4 | |
|
| 24 | 330065-08 | 1 | SCREW | M4x18 T20 | B4 | |
|
| 25 | N548557 | 1 | SCREW | M5 X 18 T25 | B4 | |
|
| 26 | 330065-08 | 1 | SCREW | M4x18 T20 | B4 | |
|
| 27 | N389340 | 1 | END CAP | B4 | |
||
| 28 | 330065-08 | 4 | SCREW | M4x18 T20 | B4 | |
|
| 30 | N518938 | 1 | CORDSET | B4 | B4 | |
|
| 31 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | B4 | |
|
| 32 | N585928 | 1 | FIELD 120V | B4 | |
||
| 33 | N580536 | 1 | HOUSING MOTOR | B4 | |
||
| 34 | N449094 | 1 | COVER BEARING | B4 | |
||
| 35 | N425665 | 1 | BRUSH HOLDER SA | B4 | |
||
| 37 | N581444 | 1 | BRUSH PAIR 120V | B4 | |
||
| 38 | N523745 | 2 | BRUSH SPRING | B4 | |
||
| 39 | N405298 | 1 | BAFFLE | B4 | |
||
| 40 | N548557 | 4 | SCREW | M5 X 18 T25 | B4 | |
|
| 41 | N850596 | 1 | HOUSING SA | 8KG CHIPPER | B4 | |
|
| 43 | N537281 | 1 | SPACER | B4 | |
||
| 44 | N537973 | 1 | O RING | B4 | |
||
| 46 | N447147 | 1 | SEAL | 8-10KG | B4 | |
|
| 50 | N580547 | 1 | CRANKSHAFT | 8KG | B4 | |
|
| 51 | N851025 | 1 | GEARCASE COVER SA | B4 | |
||
| 52 | N422626 | 1 | SEAL | B4 | |
||
| 53 | 488147-01 | 1 | CIRCLIP | INTERNAL, 28MM | B4 | |
|
| 54 | 330003-13 | 1 | BEARING | B4 | |
||
| 55 | 330003-60 | 1 | BEARING | B4 | |
||
| 56 | N362699 | 1 | CIRCLIP | B4 | |
||
| 57 | N548557 | 6 | SCREW | M5 X 18 T25 | B4 | |
|
| 63 | N580550 | 1 | PISTON SA | 8KG | B4 | |
|
| 66 | N662674 | 1 | CON ROD | 8KG | B4 | |
|
| 67 | N430664 | 1 | PISTON | 8KG | B4 | |
|
| 68 | N026609 | 1 | PIN | B4 | |
||
| 69 | N439990 | 1 | PISTON RING | B4 | |
||
| 70 | N612854 | 1 | O RING | 27.7 X 3.53 | B4 | |
|
| 71 | N580553 | 1 | CYLINDER | 8KG | B4 | |
|
| 72 | N481377 | 2 | O RING | 29 X 2 | B4 | |
|
| 73 | N580554 | 1 | RAM SA | 8KG | B4 | |
|
| 74 | N612854 | 1 | O RING | 27.7 X 3.53 | B4 | |
|
| 75 | N493644 | 1 | O RING | 34 X 3.5 | B4 | |
|
| 76 | N413144 | 1 | BUSH | 8KG | B4 | |
|
| 77 | N400500 | 1 | DAMPER | 8KG | B4 | |
|
| 78 | N389366 | 2 | WASHER | B4 | |
||
| 79 | N580555 | 1 | SPINDLE | 8KG | B4 | |
|
| 80 | N392234 | 2 | WASHER | B4 | |
||
| 81 | 589223-00 | 1 | DAMPER | B4 | |
||
| 82 | N580556 | 1 | BEAT PIECE | 8KG | B4 | |
|
| 83 | N594490 | 1 | SEAL | 25 X 33 X 4.3 | B4 | |
|
| 84 | N432561 | 1 | O RING | 25 X 4 | B4 | |
|
| 85 | N409943 | 1 | COVER | B4 | |
||
| 86 | N504016 | 1 | ECCENTRIC | B4 | |
||
| 87 | N515556 | 1 | O RING | 8 X 2.2 | B4 | |
|
| 88 | N410143 | 1 | SLIDER | B4 | |
||
| 89 | N520791 | 2 | SPRING | B4 | |
||
| 90 | N410898 | 1 | CONNECTOR | B4 | |
||
| 91 | N427022 | 1 | PLATE | B4 | |
||
| 92 | 330065-08 | 2 | SCREW | M4x18 T20 | B4 | |
|
| 93 | N455140 | 1 | O RING | 81 X 3 | B4 | |
|
| 94 | N548557 | 1 | SCREW | M5 X 18 T25 | B4 | |
|
| 96 | N409698 | 1 | SLIDER | 8KG | B4 | |
|
| 98 | N580533 | 1 | SLEEVE | B4 | |
||
| 99 | N497938 | 1 | SPRING | B4 | |
||
| 100 | N580559 | 1 | HOUSING FRONT | 8KG | B4 | |
|
| 103 | N392582 | 1 | SEAL | B4 | |
||
| 104 | N181847 | 1 | LOCKING RING | B4 | |
||
| 105 | N416525 | 1 | COVER HOUSING | BLACK | B4 | |
|
| 106 | N431324 | 1 | GASKET | B4 | |
||
| 107 | N420195 | 1 | BUSH | B4 | |
||
| 108 | 949886-32 | 4 | SCREW | B4 | |
||
| 109 | N516486 | 1 | GUIDE | B4 | |
||
| 110 | N520784 | 1 | SPRING | B4 | |
||
| 111 | N520782 | 1 | SPRING | B4 | |
||
| 112 | N408040 | 1 | BUSH | B4 | |
||
| 113 | N511836 | 2 | LOCKING DEVICE | B4 | |
||
| 114 | N511834 | 1 | BUSH | B4 | |
||
| 115 | N511805 | 1 | DAMPER | B4 | |
||
| 116 | N468816 | 1 | SLEEVE | B4 | |
||
| 117 | 487244-00 | 1 | RUBBER | B4 | |
||
| 118 | N516487 | 1 | WASHER | B4 | |
||
| 119 | N522784 | 1 | RETAINER | 28 X 2.5 | B4 | |
|
| 120 | 487238-01 | 1 | SEAL | B4 | |
||
| 122 | N448156 | 1 | COIL | B4 | |
||
| 123 | N086775 | 1 | SCREW | B4 | |||
| 125 | 488065-01 | 1 | TRIGGER | B4 | |
||
| 138 | N520790 | 1 | DETENT | B4 | |
||
| 140 | N408073 | 1 | BEARING,NEEDLE | B4 | |
||
| 141 | N408081 | 1 | BUSH | B4 | |
||
| 150 | N585926 | 1 | ARMATURE 120V | B4 | |
||
| 165 | N578605 | 1 | FELT | B4 | |
||
| 195 | 90611830 | 2 | SCREW | TRACKER | B4 | |
|
| 196 | N507221 | 1 | LABEL | 103DB | B4 | ||
| 200 | N551374 | 1 | LABEL | PERFORM AND PROTECT | B4 | |
|
| 220 | N536691 | 1 | SIDE HANDLE | B4 | |
||
| 221 | 487291-00 | 1 | KNOB SA | B4 | |
||
| 222 | 479317-00 | 2 | WASHER LOCK | B4 | |
||
| 223 | 479319-00 | 2 | CLAMPING INSERT | B4 | |
||
| 224 | 479320-00 | 2 | WASHER CLAMP | B4 | |
||
| 225 | N470725 | 1 | CLAMP | B4 | |
||
| 226 | 487343-00 | 1 | BOLT | B4 | |
||
| 227 | N470872 | 1 | LOOP HANDLE | B4 | |
||
| 300 | N593929 | 1 | SERVICE KIT 115V | 8KG CHIPPER | B4 | |
|
| 800 | 578970-06 | 1 | GREASE 150 GMS | B4 | |
||
| 801 | 870889-02 | 1 | GREASE | B4 | |
||
| 837 | 1003972-99 | 1 | S.T.SEAL FITTING TOOL | 8KG BEATPIECE | B4 | |
|
| 837 | 1003974-99 | 1 | S.T.SUPPORT JIG | MAIN HOUSING | B4 | |
|
| 837 | 1003975-99 | 1 | S.T.INSERTION TOOL | FRONT HOUSING | B4 | |
|
| 837 | 1003973-99 | 1 | S.T.SEAL FITTING TOOL | 8-10KG | B4 | |
|
| 838 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | B4 | |
||
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | CIRCLIPREMOVE INSERT | B4 | |
|
| 839 | 1003979-99 | 1 | S.T.BEARING INSERTOR | B4 | |
||
| 840 | 1003978-99 | 1 | S.T.INSERTION TOOL | B4 | |
||
| 861 | N508182 | 1 | KITBOX | B4 | |
