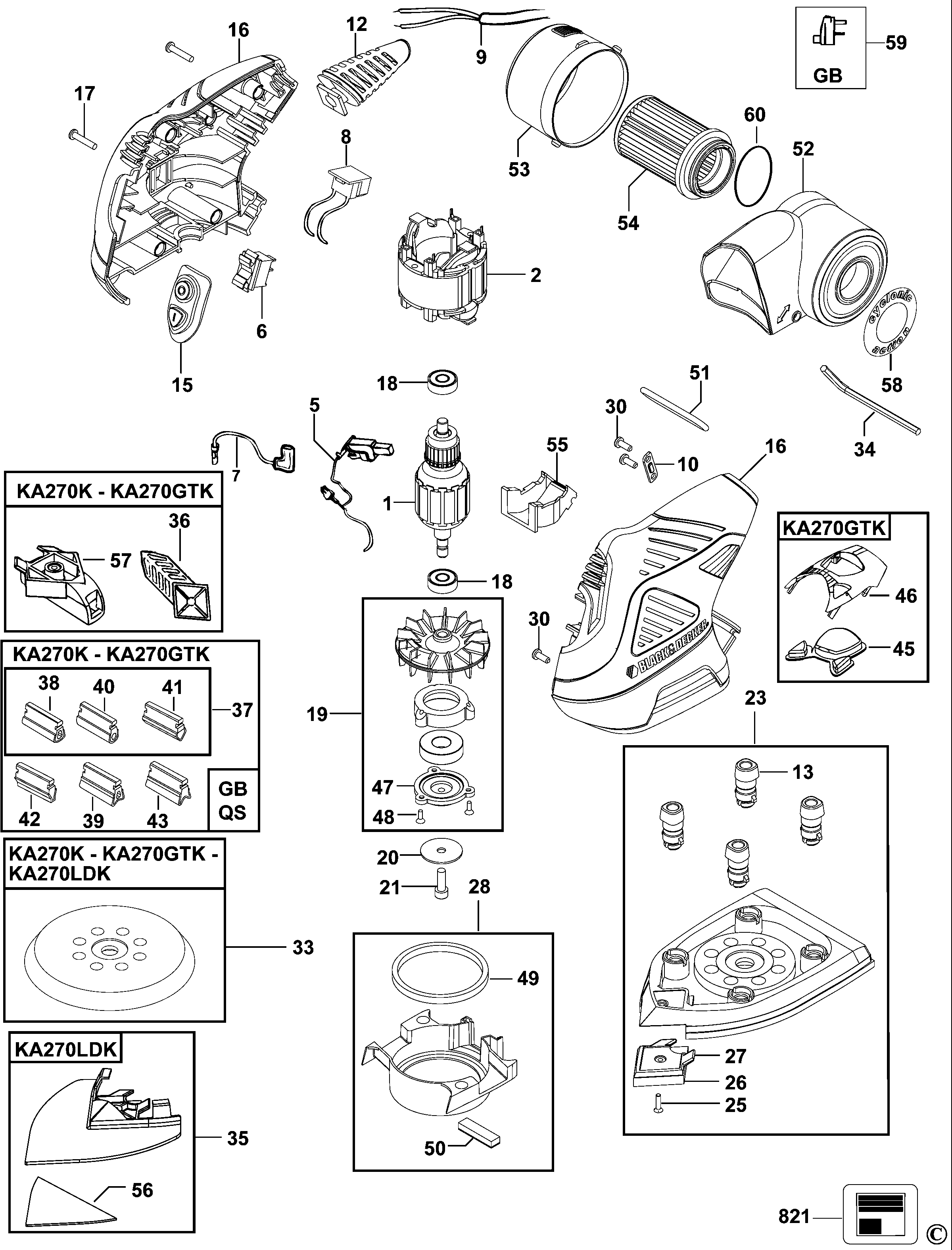

KA270K PONCEUSE ORBITALE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 576373-38 | 1 | S/E ARMATURE | 230V | GB |  |
|
| 2 | 576374-20 | 1 | FIELD 230V | GB | |
||
| 5 | 584751-00 | 2 | S/E BALAI ET SUPPORT | GB | |
||
| 6 | 579050-00 | 1 | INTERRUPTEUR | GB | |
||
| 7 | 581389-00 | 1 | FIL CONDUCTEUR | GB | |
||
| 8 | 579210-01 | 1 | S/E CARTE CIRCUIT IMPRIME | 230V | GB | |
|
| 9 | 330120-11 | 1 | CORDSET (EURO) | See item 59 | GB | |
|
| 10 | 329301-00 | 1 | COLLIER DE CORDON | GB | |
||
| 12 | 477596-00 | 1 | PROTECTEUR DE CORDON | GB | |
||
| 13 | 807224-01 | 4 | PIED | GB |  |
||
| 15 | 489522-00 | 1 | CACHE D'INTERRUPTEUR | GB | |
||
| 16 | 477307-03 | 1 | COQUILLE | KA270K - KA270LDK | GB | |
|
| 16 | 477307-01 | 1 | COQUILLE | Gel | KA270GTK | GB | |
| 17 | 747329 | 5 | VIS | GB | |
||
| 18 | 574853-06 | 2 | PALIER | GB | |
||
| 19 | 477744-00 | 1 | S/E VENTILATEUR | GB | |||
| 20 | 586405-00 | 1 | S/E RONDELLE | GB | |
||
| 21 | 797190 | 1 | SCREW.TEMP | GB | |
||
| 23 | 477606-00 | 1 | PLATINE | GB | |
||
| 25 | 571081-00 | 1 | VIS | M3 x 12 | GB | |
|
| 26 | 90558556 | 1 | POINTE | GB | |
||
| 27 | 582097-00 | 1 | SUPPORT | GB | |
||
| 28 | 479221-00 | 1 | S/E CARENAGE | GB | |
||
| 30 | 370748 | 4 | VIS | GB | |
||
| 33 | 581103-00 | 1 | PLATINE | GB | |
||
| 34 | 807043 | 1 | CLE A BOUGIE | 4mm | GB | |
|
| 35 | 90554651N | 1 | BASE | KA270LDK | GB | |
|
| 36 | 582146-00 | 1 | DOIGT | GB | |
||
| 37 | 579114-01 | 1 | PROFIL | X 3 | GB | |
|
| 38 | 375495-00 | 1 | PROFIL | GB | |
||
| 39 | 375495-01 | 1 | PROFIL | GB | |
||
| 40 | 579117-00 | 1 | PROFIL | Tip Barrel | GB | ||
| 41 | 375495-04 | 1 | PROFIL | GB | |
||
| 42 | 375495-05 | 1 | PROFIL | GB | |
||
| 43 | 375495-02 | 1 | PROFIL | GB | |
||
| 45 | 477587-00 | 1 | PATIN | Gel | KA270GTK | GB | |
| 46 | 478566-00 | 1 | PATIN | Gel | KA270GTK | GB | |
| 47 | 90542324 | 1 | COUVERCLE DE PALIER | GB | |
||
| 48 | 571081-02 | 3 | VIS | M3 x 10 | GB | |
|
| 49 | 90541953 | 1 | JOINT | GB | |
||
| 50 | 478641-00 | 1 | PATIN | GB | |
||
| 51 | 479526-00 | 1 | JOINT TORIQUE | GB | |
||
| 52 | 477602-00 | 1 | COUVERCLE | GB | |
||
| 53 | 477601-00 | 1 | CUVE | GB | |
||
| 54 | 479535-00N | 1 | S/E FILTRE | GB | |
||
| 55 | 478784-00 | 1 | DEFLECTEUR | GB | |
||
| 56 | 90554651N | 1 | BASE | KA270LDK | GB | |
|
| 57 | 582098-00 | 1 | SUPPORT | GB | |
||
| 58 | 488333-00 | 1 | ETIQUETTE | GB | |
||
| 59 | 588384-00 | 1 | S/E ADAPTATEUR | GB | |
||
| 60 | 479525-00 | 1 | JOINT TORIQUE | GB | |
||
| 821 | 90556650 | 1 | PLAQUE SIGNALETIQUE | GB | |
