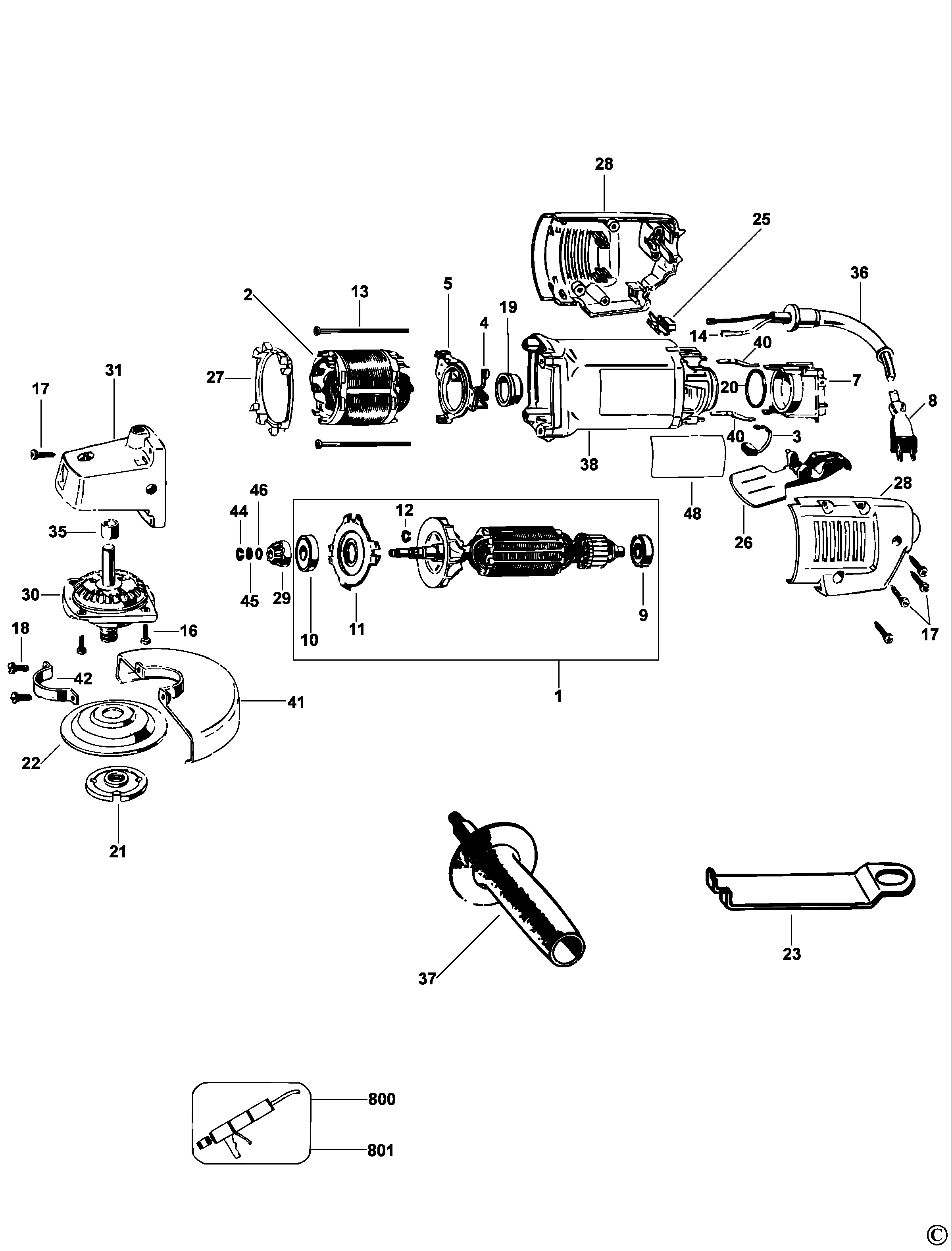

DW402 SMALL ANGLE GRINDER Type 1 | Gambar Teknik
Dokumen
Daftar Suku Cadang
Simpan PDF
Lihat Halaman Lengkap
| Nomor Urut Suku Cadang | Nomor Suku Cadang | Jumlah Per Unit | Deskripsi Produk | Deskripsi Umum | Informasi Lainnya | Market | Status Produk | Harga Panduan |
|---|---|---|---|---|---|---|---|---|
| 1 | 150320-03 | 1 | ARMATURE 220/240V | B1 | ||||
| 2 | 150050-04 | 1 | FIELD SA | B1 | ||||
| 3 | 445861-30 | 2 | BRUSH 220V | B1 | ||||
| 4 | 445860-00 | 2 | BRUSH SPRING | B1 | ||||
| 5 | 449899-05 | 1 | RING | B1 | ||||
| 7 | 5140110-67 | 1 | SWITCH KIT | B1 | ||||
| 8 | 330080-82 | 1 | CORDSET | EURO | B1 | |||
| 9 | 605040-06 | 1 | BEARING,BALL | B1 | ||||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | B1 | |||
| 11 | 150057-00 | 1 | RETAINER | B1 | ||||
| 12 | 444793-00 | 1 | CIRCLIP | B1 | ||||
| 13 | 445880-00 | 2 | SCREW | B1 | ||||
| 14 | 464228-00 | 2 | TERMINAL | B1 | ||||
| 16 | 146929-00 | 4 | SCREW | 8-32x5/8 W/LOCK WSHR | B1 | |||
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | B1 | |||
| 18 | 99284-08 | 2 | SCREW | B1 | ||||
| 19 | 445217-02 | 1 | SLEEVE | B1 | ||||
| 20 | 700248-00 | 1 | SEAL | B1 | ||||
| 21 | 149480-00 | 1 | CLAMP OUTER | B1 | ||||
| 22 | 448156-01 | 1 | FLANGE | B1 | ||||
| 23 | 149645-00 | 1 | WRENCH | B1 | ||||
| 25 | 447847-00 | 1 | LOCK BUTTON | B1 | ||||
| 26 | 150428-00 | 1 | PADDLE | B1 | ||||
| 27 | 445876-00 | 1 | BAFFLE | B1 | ||||
| 28 | 445879-12 | 1 | COVER | B1 | ||||
| 29 | 152487-01 | 1 | PINION | B1 | ||||
| 30 | 5140001-91 | 1 | REPAIR KIT | W/ NUT & WRENCH | INC ITEMS 21 & 23 | B1 | ||
| 31 | N835822 | 1 | GEARCASE SA | B1 | ||||
| 35 | 36826-00 | 1 | SLEEVE BEARING | B1 | ||||
| 36 | N542553 | 1 | CORD PROTECTOR | B1 | ||||
| 36 | N542553 | 1 | CORD PROTECTOR | B1 | ||||
| 37 | N401305 | 1 | SIDE HANDLE | B1 | ||||
| 38 | 445886-06 | 1 | FIELDCASE | B1 | ||||
| 40 | 445882-00 | 2 | CONTACT | B1 | ||||
| 41 | 450733-00 | 1 | GUARD | B1 | ||||
| 42 | 146954-00 | 1 | CLAMP | B1 | ||||
| 44 | 38751-00 | 1 | RING | B1 | ||||
| 45 | 449559-00 | 1 | WASHER | B1 | ||||
| 46 | 050050-00 | 1 | RING | B1 | ||||
| 48 | 395047-00 | 1 | BRAND LABEL | B1 | ||||
| 800 | 870889-02 | 1 | GREASE | B1 | ||||
| 801 | 870889-02 | 1 | GREASE | B1 |
