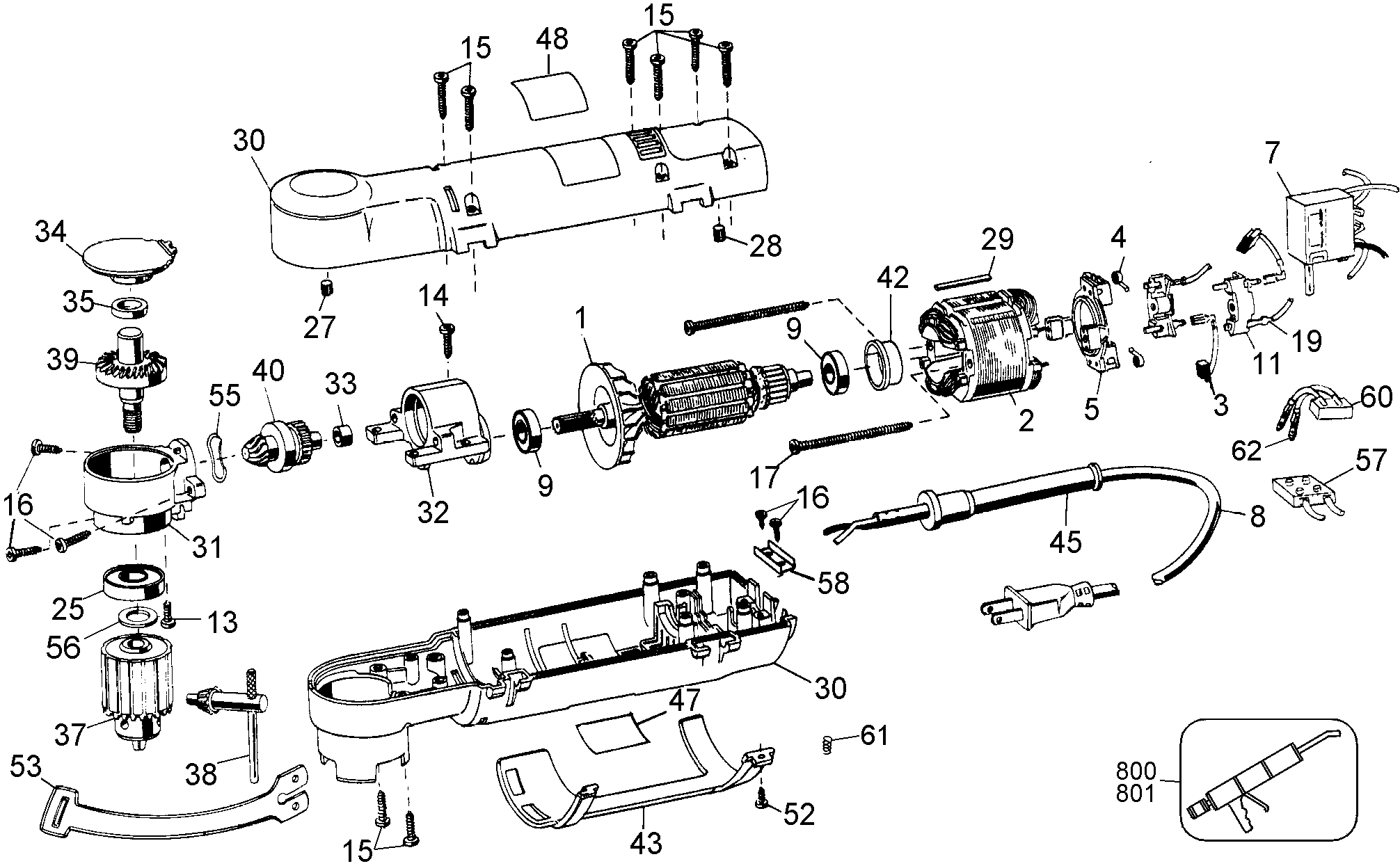

DW160 RIGHT ANGLE DRILL Type 1 | Gambar Teknik
Dokumen
Daftar Suku Cadang
Simpan PDF
Lihat Halaman Lengkap
| Nomor Urut Suku Cadang | Nomor Suku Cadang | Jumlah Per Unit | Deskripsi Produk | Deskripsi Umum | Informasi Lainnya | Market | Status Produk | Harga Panduan |
|---|---|---|---|---|---|---|---|---|
| 1 | 448583-35 | 1 | ARMATURE & FAN | 9 TEETH | B1 | |||
| 2 | 447864-21 | 1 | FIELD 230V | B1 | ||||
| 3 | 761819-00 | 1 | BRUSH | B1 | ||||
| 4 | 445860-00 | 2 | BRUSH SPRING | B1 | ||||
| 5 | 449899-05 | 1 | RING | B1 | ||||
| 7 | 286198-00 | 1 | SWITCH,TRG,A.C. | B1 | ||||
| 8 | 380651-01 | 1 | CORDSET | B1 | ||||
| 9 | 330003-04 | 2 | BEARING | B1 | ||||
| 11 | 449829-00 | 2 | NUT | B1 | ||||
| 13 | 055206-00 | 1 | SCREW | B1 | ||||
| 14 | 133042-00 | 2 | SCREW | B1 | ||||
| 15 | 330019-05 | 8 | SCREW | B1 | ||||
| 16 | 330013-03 | 5 | SCREW | B1 | ||||
| 17 | 448269-00 | 2 | SCREW | B1 | ||||
| 19 | 449192-00 | 2 | TERMINAL | B1 | ||||
| 25 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B1 | |||
| 27 | 030611-00 | 1 | PLUG | B1 | ||||
| 28 | 095114-00 | 1 | RUBBER PLUG | B1 | ||||
| 29 | 445402-00 | 1 | RUBBER PAD | B1 | ||||
| 30 | 448596-06 | 1 | HOUSING PAIR | B1 | ||||
| 31 | 449857-00 | 1 | GEARCASE | B1 | ||||
| 32 | 449033-01 | 1 | GEARCASE | INC 9, 33 | B1 | |||
| 33 | 131557-00 | 1 | SLEEVE | B1 | ||||
| 34 | 448591-00 | 1 | GEARCASE COVER | INC 35 | B1 | |||
| 35 | 445175-00 | 1 | SLEEVE | B1 | ||||
| 37 | 429663-00 | 1 | CHUCK & KEY | B1 | ||||
| 38 | 330034-02 | 1 | CHUCK KEY | B1 | ||||
| 39 | 445414-01SV | 1 | SPINDLE & GEAR SA | 3/8-24 THRD;35 TEETH | B1 | |||
| 40 | 445397-03SV | 1 | GEAR & PINION | 6/32 TEETH | B1 | |||
| 42 | 445217-02 | 1 | SLEEVE | B1 | ||||
| 43 | 286495-00 | 1 | PADDLE | B1 | ||||
| 45 | 330005-01 | 1 | CORD PROTECTOR | B1 | ||||
| 47 | 380602-00 | 1 | RATING PLATE | B1 | ||||
| 48 | 395047-00 | 1 | BRAND LABEL | B1 | ||||
| 52 | 80488-00 | 1 | SPARE PART | B1 | ||||
| 53 | 065288-02 | 1 | HOLDER | B1 | ||||
| 55 | 448373-00 | 1 | WASHER SPRING | B1 | ||||
| 56 | 447765-00 | 1 | WASHER | B1 | ||||
| 58 | 142519-00 | 1 | CABLE CLAMP | B1 | ||||
| 61 | 385257-00 | 1 | SPRING | B1 | ||||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | B1 | ||
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B1 |
