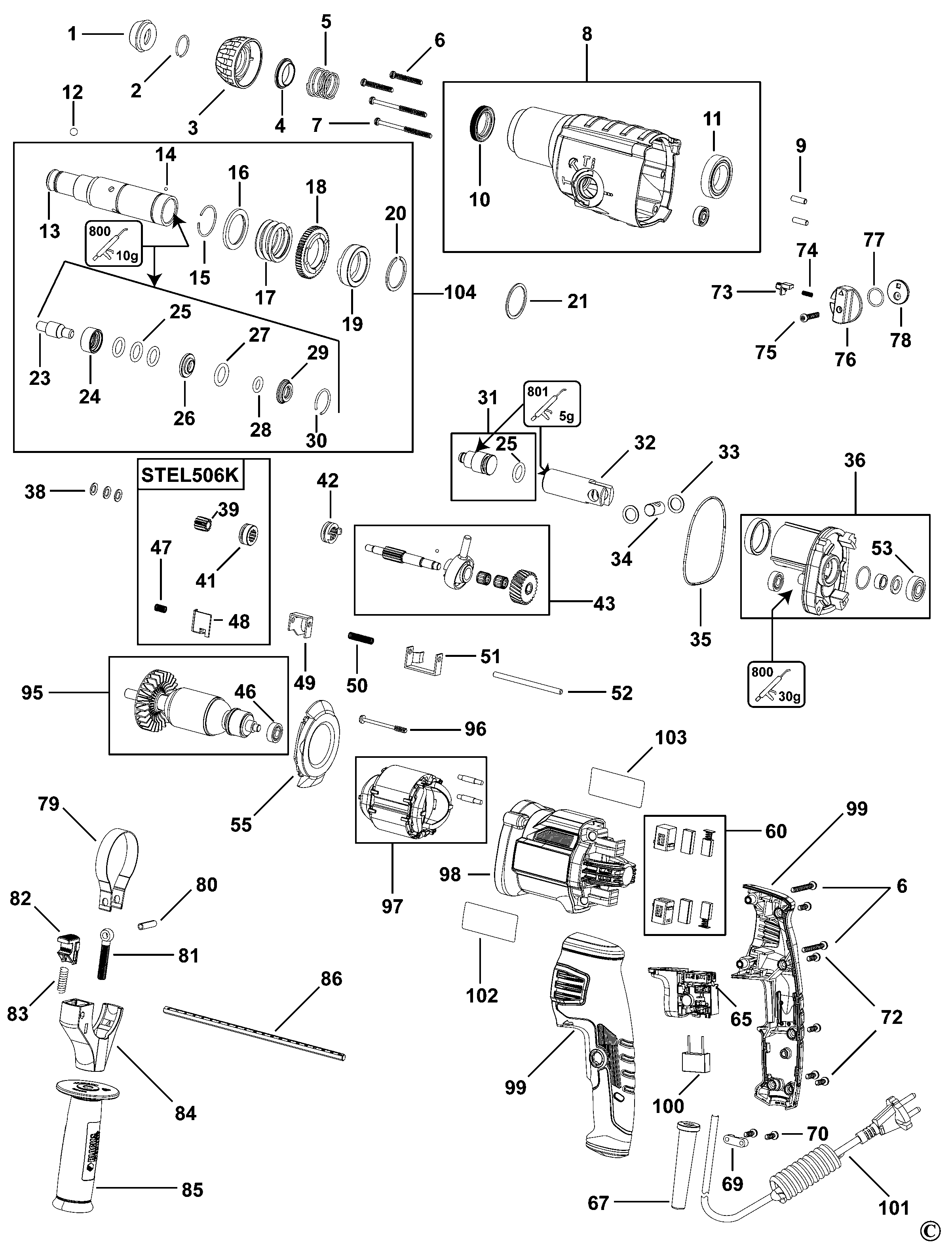

STEL505K ROTARY HAMMER Type 2 | Gambar Teknik
Dokumen
Daftar Suku Cadang
Simpan PDF
Lihat Halaman Lengkap
| Nomor Urut Suku Cadang | Nomor Suku Cadang | Jumlah Per Unit | Deskripsi Produk | Deskripsi Umum | Informasi Lainnya | Market | Status Produk | Harga Panduan |
|---|---|---|---|---|---|---|---|---|
| 1 | 1004518-00 | 1 | COVER | B1 | ||||
| 2 | 1004518-01 | 1 | CIRCLIP | B1 | ||||
| 3 | 1004518-02 | 1 | HOLDER BIT | B1 | ||||
| 4 | 1004518-03 | 1 | BLOCK | B1 | ||||
| 5 | 1004518-04 | 1 | LEAF SPRING | B1 | ||||
| 6 | 1004518-05 | 3 | SCREW | B1 | ||||
| 7 | 1004518-06 | 2 | SCREW | B1 | ||||
| 8 | 1004518-08 | 1 | GEARBOX SA | B1 | ||||
| 9 | 1004518-09 | 2 | KEY | B1 | ||||
| 10 | 1004518-10 | 1 | SEAL | B1 | ||||
| 11 | 1004518-11 | 1 | BEARING | 61905-2RS/GCr15 | B1 | |||
| 12 | 1004518-12 | 1 | BALL | B1 | ||||
| 13 | 1004518-13 | 1 | SPINDLE | B1 | ||||
| 14 | 1004518-14 | 2 | BALL | B1 | ||||
| 15 | 1004518-15 | 1 | CIRCLIP | B1 | ||||
| 16 | 1004518-16 | 1 | WASHER SPRING | B1 | ||||
| 17 | 1004518-17 | 1 | SPRING | B1 | ||||
| 18 | 1004518-18 | 1 | GEAR | B1 | ||||
| 19 | 1004518-19 | 1 | CLUTCH | B1 | ||||
| 20 | 1004518-20 | 1 | CIRCLIP | B1 | ||||
| 21 | 1004518-21 | 1 | WASHER | B1 | ||||
| 23 | 1004518-22 | 1 | BEAT PIECE | B1 | ||||
| 24 | 1004518-23 | 1 | BUSHING | B1 | ||||
| 25 | 1004518-24 | 4 | O RING | B1 | ||||
| 26 | 1004518-25 | 1 | BRACKET | B1 | ||||
| 27 | 1004518-26 | 1 | O RING | B1 | ||||
| 28 | 1004518-27 | 1 | O RING | B1 | ||||
| 29 | 1004518-28 | 1 | COVER | B1 | ||||
| 30 | 1004518-29 | 1 | CIRCLIP | B1 | ||||
| 31 | 1004518-30 | 1 | RAM SA | B1 | ||||
| 32 | 1004518-31 | 1 | CYLINDER | B1 | ||||
| 33 | 1004518-32 | 2 | WASHER | B1 | ||||
| 34 | 1004518-33 | 1 | PIN | B1 | ||||
| 35 | 1004518-34 | 1 | SEAL | B1 | ||||
| 36 | 1004518-35 | 1 | PLATE SA | B1 | ||||
| 38 | 1004518-36 | 3 | WASHER | B1 | ||||
| 42 | 1004518-39 | 1 | SELECTOR | B1 | ||||
| 43 | 1004518-40 | 1 | INTERSHAFT SA | B1 | ||||
| 46 | 1004518-41 | 1 | BEARING | B1 | ||||
| 49 | 1004518-44 | 1 | SELECTOR | B1 | ||||
| 50 | 1004518-45 | 1 | SPRING | B1 | ||||
| 51 | 1004518-46 | 1 | SELECTOR | B1 | ||||
| 52 | 1004518-47 | 1 | ROD | B1 | ||||
| 53 | 1004518-48 | 1 | BEARING | B1 | ||||
| 55 | 1004518-49 | 1 | FAN COVER | B1 | ||||
| 60 | 1004518-50 | 1 | BRUSH PAIR SA | PAIR | B1 | |||
| 65 | 1004560-00 | 1 | SWITCH SA | 230V | B1 | |||
| 67 | 1004518-52 | 1 | CORD PROTECTOR | B1 | ||||
| 69 | 1004518-53 | 1 | CORD CLAMP | B1 | ||||
| 70 | 1004518-54 | 2 | SCREW | B1 | ||||
| 72 | 1004518-55 | 5 | SCREW | B1 | ||||
| 73 | 5170008-49 | 1 | KNOB | B1 | ||||
| 74 | 1004518-57 | 1 | SPRING | B1 | ||||
| 75 | 1004518-58 | 1 | SCREW | ST4X25F | B1 | |||
| 76 | 1004518-59 | 1 | KNOB | B1 | ||||
| 77 | 1004518-60 | 1 | O RING | B1 | ||||
| 78 | 1004518-61 | 1 | KNOB | B1 | ||||
| 79 | 1004518-62 | 1 | CLAMP | B1 | ||||
| 80 | 1004518-63 | 1 | PIN | B1 | ||||
| 81 | 1004518-64 | 1 | BOLT | B1 | ||||
| 82 | 1004518-65 | 1 | BUTTON | B1 | ||||
| 83 | 1004518-66 | 1 | SPRING | B1 | ||||
| 84 | 1004518-67 | 1 | BASE | B1 | ||||
| 85 | 1004560-02 | 1 | SIDE HANDLE | B1 | ||||
| 86 | 1004518-69 | 1 | DEPTH ROD | B1 | ||||
| 95 | 1004518-70 | 1 | ROTOR | B1 | ||||
| 96 | 1004518-72 | 2 | SCREW | ST4.2x45F | B1 | |||
| 97 | 1004518-74 | 1 | STATOR | B1 | ||||
| 98 | 5170008-50 | 1 | HOUSING | B1 | ||||
| 99 | 5170008-51 | 1 | HANDLE SA | B1 | ||||
| 100 | 1004518-82 | 1 | CAPACITOR | 0.33mF | B1 | |||
| 101 | 1004518-84 | 1 | CORDSET | B1 | ||||
| 102 | 1004560-05 | 1 | BRAND LABEL | STEL | B1 | |||
| 103 | 5170008-52 | 1 | RATING PLATE | B1 | ||||
| 104 | 90601165 | 1 | SPINDLE SA | B1 | ||||
| 800 | 1004517-01 | 1 | GREASE 50 GMS | B1 | ||||
| 801 | 1004517-00 | 1 | GREASE 10 GMS | B1 |
