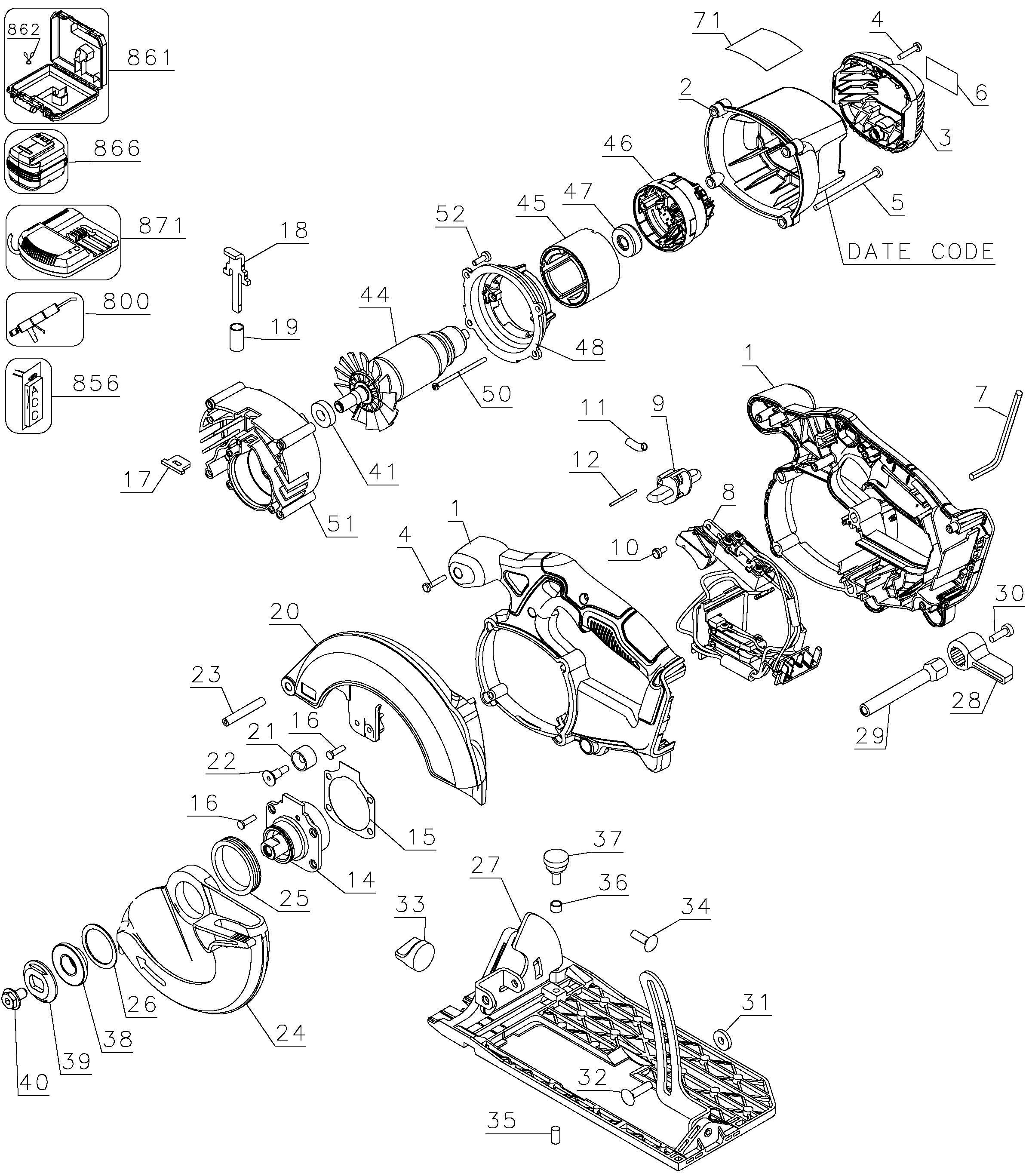

DCS391D2 18V CIRCULAR SAW WITH 2.0 Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | B1 |  |
|||
| 2 | N054423 | 1 | MOTOR COVER | B1 | |
|||
| 3 | N173219 | 1 | END CAP | B1 | |
|||
| 4 | 330019-04 | 8 | SCREW | B1 |  |
5.78 INR | ||
| 5 | 398987-00 | 4 | SCREW | B1 | |
|||
| 6 | N094673 | 1 | BRAND LABEL | B1 | |
|||
| 7 | 098000-11 | 1 | HEX KEY | B1 | |
|||
| 8 | N092315 | 1 | SWITCH ASSEMBLY | B1 | ||||
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | B1 | |
|||
| 10 | 330019-40 | 1 | SCREW | B1 | |
|||
| 11 | 389120-00 | 1 | SPRING | B1 | |
|||
| 12 | 388531-00 | 1 | PIN | B1 | |
|||
| 14 | 659417-00SV | 1 | SPINDLE SA | B1 | ||||
| 15 | 605081-01 | 1 | GASKET | B1 | |
|||
| 16 | 613783-00 | 8 | SCREW | B1 | |
|||
| 17 | 605094-00 | 1 | WIPER | B1 | |
|||
| 18 | 629444-00 | 1 | SPINDLE LOCK | B1 | |
|||
| 19 | 058698-00 | 1 | SPRING | B1 | |
|||
| 20 | N086228 | 1 | GUARD UPPER | B1 | |
|||
| 21 | N248899 | 1 | BUMPER | B1 | |
|||
| 22 | 610134-00 | 1 | SCREW | B1 | |
|||
| 23 | 614048-00 | 1 | SPIROL PIN | B1 | |
|||
| 24 | 611925-00 | 1 | GUARD LOWER | B1 | |
|||
| 25 | N035365 | 1 | SPRING | B1 | |
|||
| 26 | 150383-00 | 1 | RETAINER | B1 | |
|||
| 27 | N491713 | 1 | SHOE SA | B1 | ||||
| 28 | 605105-00 | 1 | LEVER | B1 | |
|||
| 29 | 618901-00 | 1 | SHAFT | B1 | |
|||
| 30 | 330045-14 | 1 | SCREW | B1 | |
11.76 INR | ||
| 31 | N112241 | 1 | WASHER | B1 | |
|||
| 32 | 098128-85 | 1 | CARRIAGE BOLT | B1 | |
|||
| 33 | 395889-00 | 1 | KNOB | B1 | ||||
| 34 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | B1 | |
||
| 35 | 381069-00 | 1 | SCREW | B1 | |
|||
| 36 | 058287-00 | 1 | SPRING | B1 | |
3.82 INR | ||
| 37 | 396992-02 | 1 | KNOB | MALE, 1/4-20 THD | B1 | |
||
| 38 | 610046-00 | 1 | WASHER INNER CLAMP | B1 | |
|||
| 39 | N621119 | 1 | WASHER OUTER CLAMP | B1 | ||||
| 40 | 648697-00 | 1 | BLADE BOLT | B1 | |
|||
| 41 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | B1 | |
226.68 INR | |
| 44 | N415907 | 1 | ARMATURE SA | 4-Pole Motor | B1 | |||
| 45 | N436044 | 1 | MAGNET | B1 | |
|||
| 46 | N412223 | 1 | BRUSH HOLDER SA | B1 | |
339.68 INR | ||
| 47 | N330639 | 1 | BEARING,BALL | B1 | |
|||
| 48 | N333139 | 1 | BAFFLE | B1 | |
|||
| 50 | N389143 | 2 | SCREW | B1 | |
4.13 INR | ||
| 51 | N068175SV | 1 | GEARCASE SA | B1 | |
|||
| 52 | 330045-45 | 4 | SCREW | B1 | |
101.95 INR | ||
| 71 | N445302 | 1 | RATING LABEL | DCS391-B1 TY2 | B1 | |
||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B1 | |||
| 856 | N703809 | 1 | BLADE | 6 1/2 -16T 5/8 Arbor | B1 | |||
| 861 | N153976 | 1 | KITBOX | B1 | |
|||
| 862 | 605265-00 | 1 | SPRING CLIP | B1 | |
|||
| 871 | DCB105-KR | 1 | CHARGER SA | KR | B1 |
