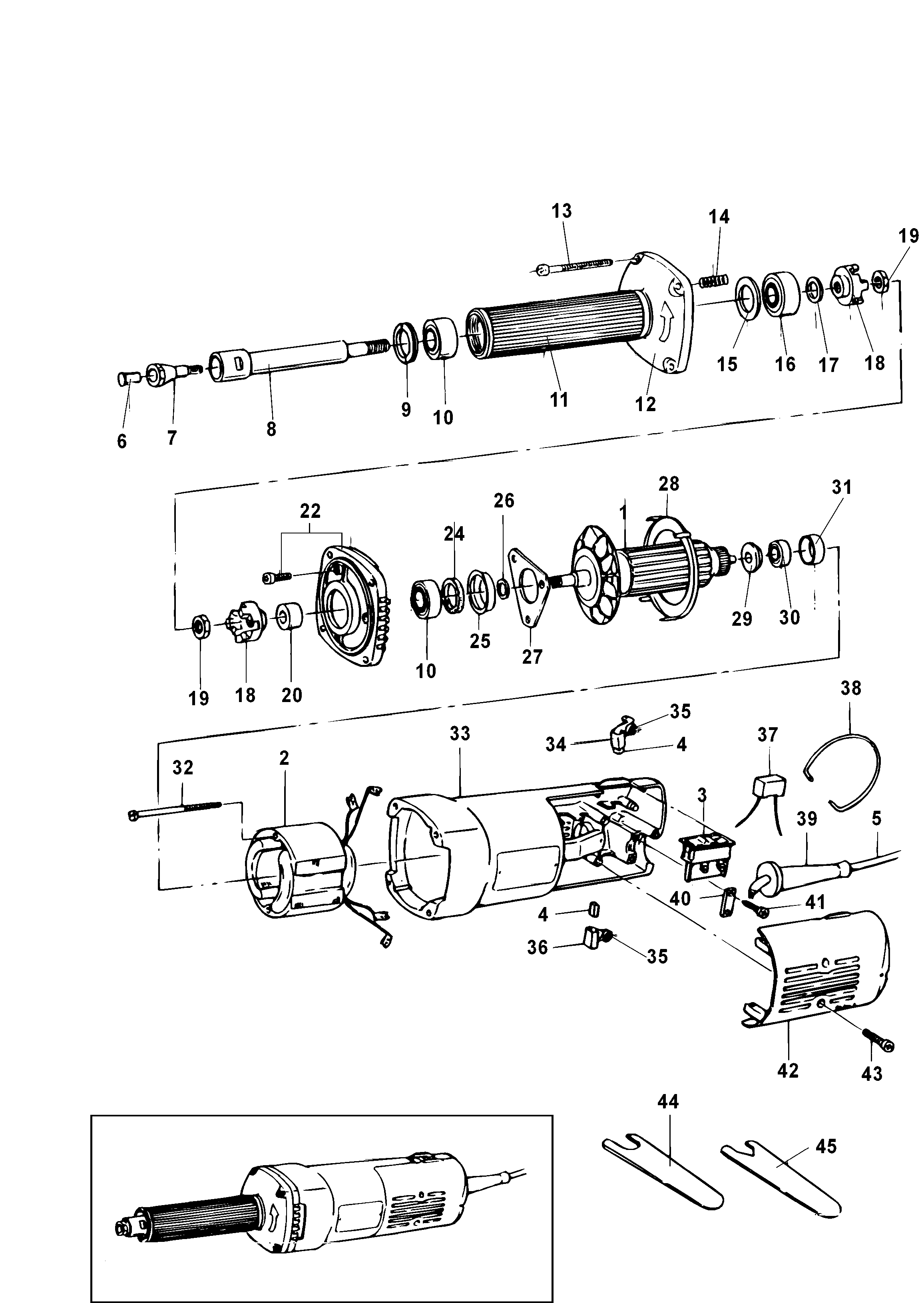

DW886 DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868600-00 | 1 | ARMATURE | XD |  |
||
| 2 | 000000-00 | 1 | NO LONGER AVAILABLE | XD | |||
| 3 | 937689 | 1 | SWITCH | XD | |
||
| 4 | 937690-00 | 1 | BRUSH | XD | |
||
| 5 | 000000-00 | 1 | NO LONGER AVAILABLE | XD | |||
| 6 | 935803 | 1 | NUT | XD | |
||
| 7 | 935810-00 | 1 | COLLET 6.35MM | XD | |
||
| 8 | 935804-01 | 1 | SPINDLE | XD | |
||
| 9 | 935811-01 | 1 | NUT | XD | |
||
| 10 | 577745-00 | 1 | BEARING | XD | |
||
| 11 | 935812-00 | 1 | CONNECTOR | XD | |
||
| 12 | 935808-01 | 1 | GEARCASE | XD | |
||
| 13 | 934512 | 4 | SCREW | XD | |
||
| 14 | 935805 | 3 | SPRING | XD | |
||
| 15 | 935813 | 1 | WASHER | XD | |
||
| 16 | 949719-16 | 1 | BEARING | XD | |
||
| 17 | 940246 | 1 | WASHER | XD | |
||
| 18 | 935807 | 2 | COUPLING | XD | |
||
| 19 | 935815 | 2 | WASHER | XD | |
||
| 20 | 938616 | 1 | SPACER | XD | |
||
| 22 | 935809-01 | 1 | GEARCASE COVER | XD | |
||
| 24 | 938618 | 1 | FELT | XD | |
||
| 25 | 938620 | 1 | COVER | XD | |||
| 26 | 938617 | 1 | SPACER | XD | |
||
| 27 | 938621 | 1 | FLANGE | XD | |||
| 28 | 933516 | 1 | BAFFLE | XD | |
||
| 29 | 934412 | 1 | SPACER | XD | |
||
| 30 | 330003-02 | 1 | BEARING | XD |  |
||
| 31 | 930029-00 | 1 | HOLDER BEARING | XD | |
||
| 32 | 934429 | 2 | SCREW | XD | |
||
| 33 | 937687-01 | 1 | FIELDCASE | XD | |
||
| 34 | 937693 | 2 | PLATE | XD | |
||
| 35 | 934859 | 2 | SPRING | XD | |
||
| 36 | 937694 | 1 | BRUSH HOLDER | XD | |
||
| 38 | 938629 | 1 | RING | XD | |||
| 39 | 933551-00 | 1 | PROTECTOR | XD | |
||
| 40 | 930103-00 | 1 | CORD CLAMP | XD | |
||
| 41 | 930076-00 | 2 | SCREW | XD | |
||
| 42 | 937691 | 1 | COVER | XD | |
||
| 43 | 949896-14 | 3 | SCREW | XD | |
||
| 44 | 938631 | 1 | SPANNER | XD | |
||
| 45 | 938630 | 1 | WRENCH | XD |
