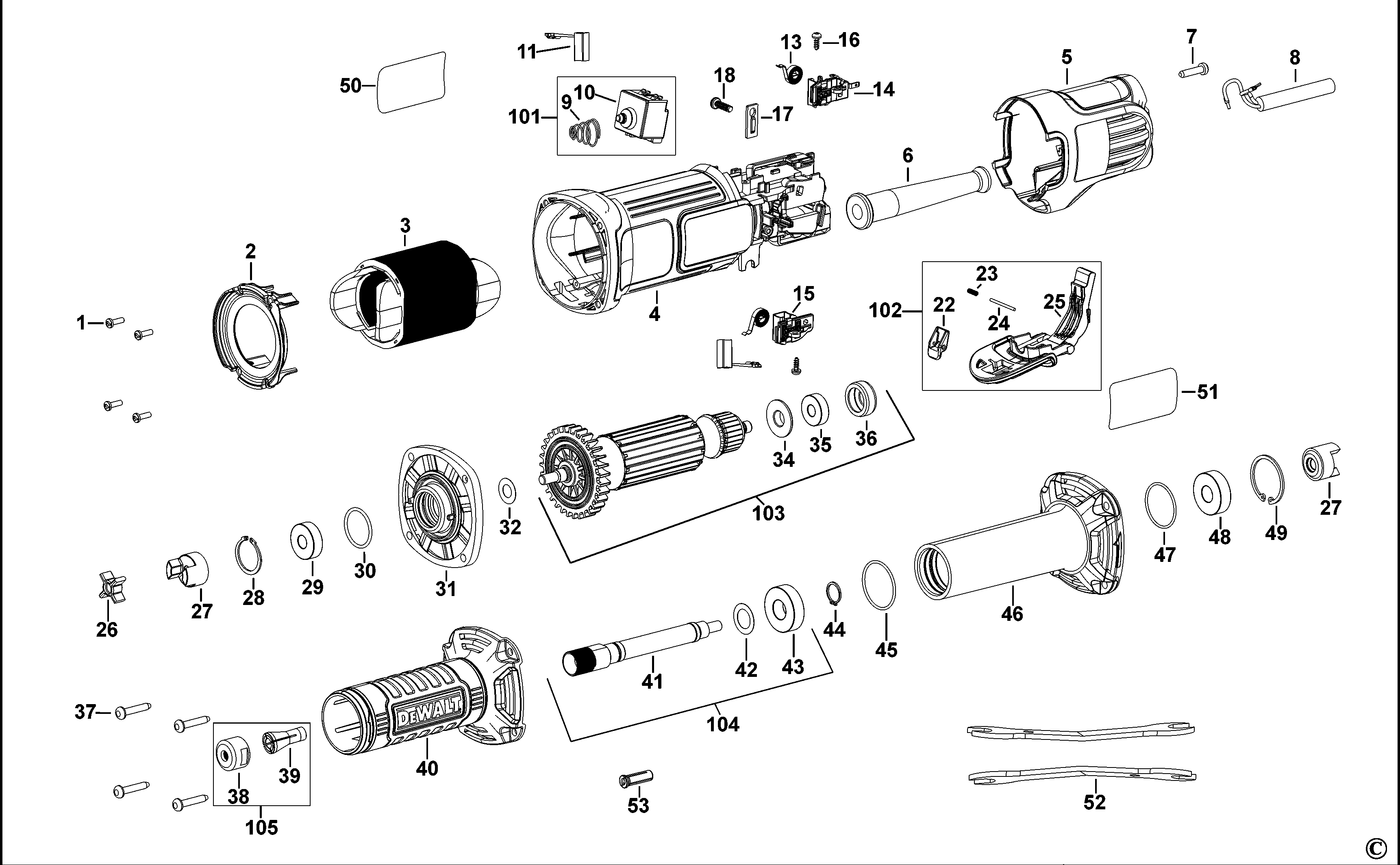

DWE4887N DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330065-25 | 4 | SCREW | B4 |  |
||
| 2 | N132864 | 1 | BAFFLE | B4 | |
||
| 3 | N232484 | 1 | FIELD SA | 230V PKGD N156822 | B4 |  |
|
| 4 | N122019-01 | 1 | FIELDCASE | B4 | |
||
| 5 | N122020-01 | 1 | HOUSING | B4 | |
||
| 6 | N447519 | 1 | CORD PROTECTOR | B4 | |
||
| 7 | N017839 | 1 | SCREW | B4 | |
||
| 8 | 330072-57 | 1 | CORDSET | B4 | |
||
| 9 | N260662 | 1 | SPRING | B4 | |
||
| 10 | N327459 | 1 | SWITCH | B4 | |
||
| 11 | N183726 | 1 | BRUSH PAIR | 120V | B4 | ||
| 13 | N097703 | 2 | SPRING | B4 | |
||
| 14 | N097702 | 1 | BRUSHBOX | B4 | |
||
| 15 | N167600 | 1 | BRUSHBOX | B4 | |
||
| 16 | 593478-00 | 2 | SCREW | M3 X 8 | B4 | |
|
| 17 | 619328-00 | 1 | CORD CLAMP | B4 | |
||
| 18 | 562097-00 | 1 | SCREW | B4 | |
||
| 22 | 397657-00 | 1 | LEVER LOCK-OFF | Lock Off | B4 | |
|
| 23 | 150264-01 | 1 | SPRING | B4 | |
||
| 24 | 099204-14 | 1 | ROLL PIN | B4 | |
||
| 25 | N126770 | 1 | LEVER | B4 | |
||
| 26 | N275347 | 1 | DRIVER | B4 | |
||
| 27 | N275349 | 1 | COUPLING | B4 | |
||
| 28 | N286522 | 1 | RING | B4 | |
||
| 29 | N175104 | 1 | BEARING | B4 | |
||
| 30 | N119639 | 1 | O RING | B4 | |
||
| 31 | N283650 | 1 | STATOR | B4 | |
||
| 32 | N213812 | 1 | WASHER | B4 | |
||
| 34 | N101228 | 1 | WASHER | B4 | |
||
| 35 | N130916 | 1 | BEARING | B4 | |
||
| 36 | 641823-00 | 1 | SLEEVE | B4 | |
||
| 37 | N354900 | 4 | SCREW | B4 | |
||
| 38 | N382458 | 1 | NUT | B4 | |
||
| 39 | N382457 | 1 | COLLET | B4 | |
||
| 40 | N287179 | 1 | NOSE | B4 | |
||
| 41 | N275348 | 1 | OUTPUT SHAFT | B4 | |
||
| 42 | 638229-00 | 1 | WASHER | B4 | |
||
| 43 | 605040-24 | 1 | BEARING | B4 | |
||
| 44 | N027674 | 1 | RETAINER | B4 | |
||
| 45 | N100358 | 1 | O RING | B4 | |
||
| 46 | N275343 | 1 | NOSE | B4 | |
||
| 47 | N308579 | 1 | O RING | B4 | |
||
| 48 | 605040-17 | 1 | BEARING BALL | B4 | |
||
| 49 | N184706 | 1 | RETAINER | B4 | |
||
| 50 | N319740 | 1 | RATING PLATE | B4 | B4 | |
|
| 51 | N149175 | 1 | BRAND LABEL | B4 | |
||
| 52 | N332459 | 2 | SPANNER | B4 | |
||
| 53 | N275352 | 1 | COLLET | B4 | |
||
| 101 | N261500 | 1 | SWITCH SA | B4 | |||
| 102 | N232486 | 1 | PADDLE | B4 | |||
| 103 | N386327 | 1 | ARMATURE SA | 120V | B4 | |
|
| 104 | N396960 | 1 | SPINDLE SA | B4 | |||
| 105 | N382456 | 1 | COLLET & NUT SA | B4 |
