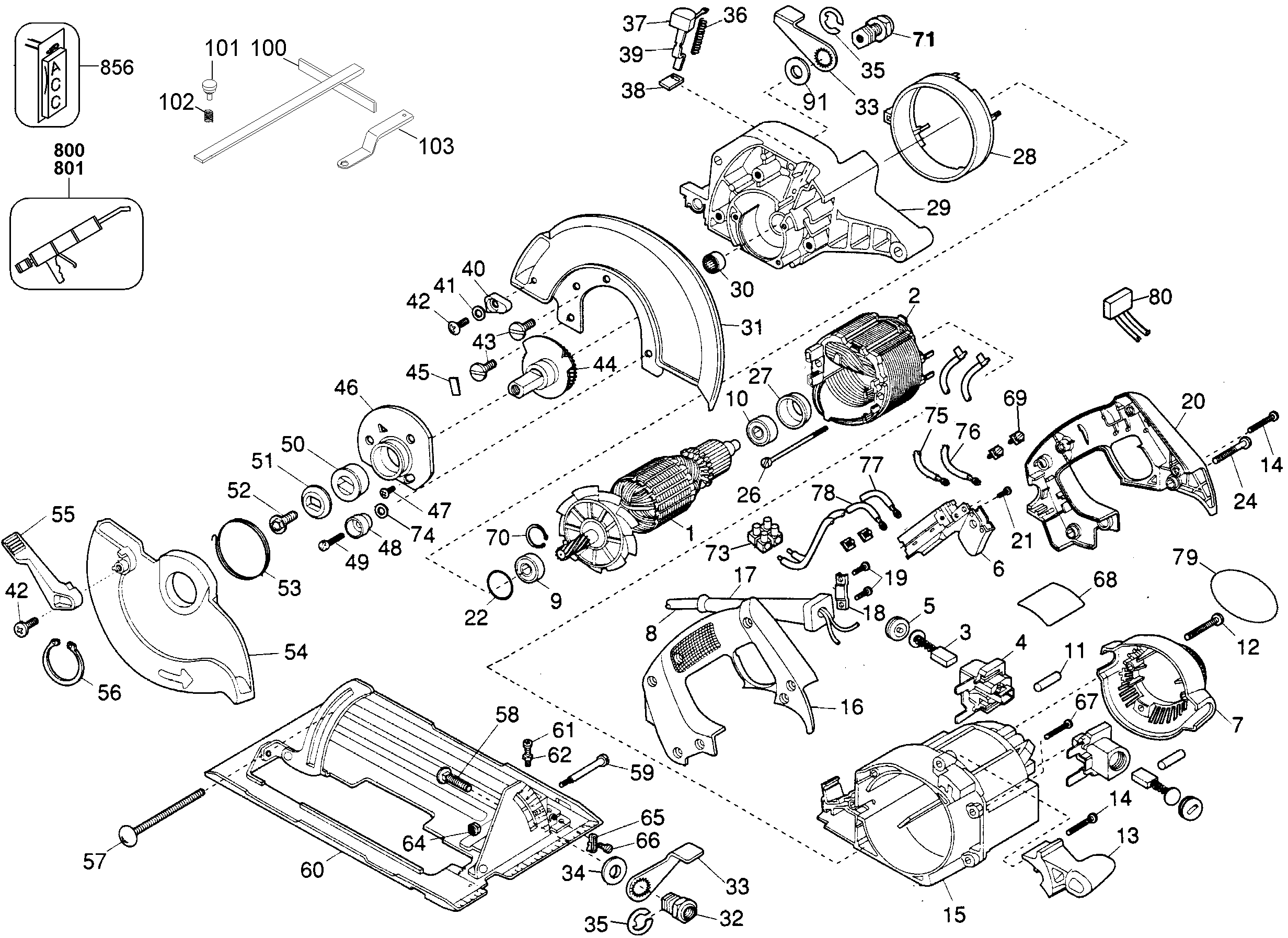

3057-40 7 1/4 IN SAWCAT SEA. Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 144785-10SV | 1 | ARMATURE & FAN | 10 TEETH | B5 |  |
|
| 2 | N078042SV | 1 | FIELD SA | 230V | B5 | |
|
| 3 | 145323-06 | 2 | BRUSH SA | B5 |  |
||
| 4 | 147097-09 | 2 | BRUSH HOLDER SA | INC 3, 5 | B5 | |
|
| 5 | 448084-01 | 2 | BRUSH CAP | B5 | |
||
| 6 | 5140028-45 | 1 | SWITCH KIT | B5 | |||
| 7 | 382251-00 | 1 | END CAP SA | B5 | |
||
| 8 | 330080-50 | 1 | CORDSET | B5 | |||
| 9 | 605040-27 | 1 | BEARING | B5 | |
||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 | |
|
| 11 | 87205-00 | 2 | PLUG | B5 | |
||
| 12 | 330019-20 | 2 | SCREW | B5 | |
||
| 13 | 144942-02 | 1 | HANDLE | B5 | |
||
| 14 | 330019-14 | 6 | SCREW | B5 | |
||
| 15 | 144945-00 | 1 | FIELDCASE | B5 | |
||
| 16 | 144943-00 | 1 | HANDLE | B5 | |||
| 17 | 445338-00 | 1 | CORD PROTECTOR | B5 | |
||
| 18 | 003618-00 | 1 | CORD CLAMP | B5 | |
||
| 19 | 148461-00 | 2 | SCREW.TEMP | B5 | |
||
| 20 | 144944-00 | 1 | COVER,HANDLE | B5 | |||
| 21 | 330019-10 | 1 | SCREW | B5 | |
||
| 22 | 701297-00 | 1 | SEAL | B5 | |
||
| 24 | 330019-21 | 3 | SCREW.TEMP | B5 | |
||
| 26 | 330019-19 | 2 | SCREW | B5 | |
||
| 27 | 137382-00 | 1 | SLEEVE | B5 | |
||
| 28 | 145301-00 | 1 | BAFFLE FAN | B5 | |
||
| 29 | 145357-00 | 1 | GEARCASE | INC 30 | B5 | |
|
| 30 | 330004-06 | 1 | BEARING NEEDLE | B5 | |
||
| 31 | 144938-00 | 1 | GUARD,UPPER | NO LONGER AVAILABLE | B5 | ||
| 32 | 152015-02 | 1 | NUT | B5 | |
||
| 33 | 145347-00 | 2 | LEVER | B5 | |
||
| 34 | 610744-00 | 2 | NUT | B5 | |
||
| 35 | 152211-00 | 2 | RING | B5 | |
||
| 36 | 150466-00 | 1 | SPRING | B5 | |||
| 37 | 145350-00 | 1 | BUTTON | B5 | |
||
| 38 | 145351-00 | 1 | WIPER | B5 | |||
| 39 | 145349-00 | 1 | LEVER | B5 | |
||
| 40 | 145318-00 | 1 | BUMPER | B5 | |||
| 41 | 330016-07 | 1 | WASHER | B5 | |
||
| 42 | 098094-13 | 2 | SCREW | M5 x 13mm, Pan Hd | B5 | |
|
| 43 | 330045-23 | 2 | SCREW | B5 | |
||
| 44 | 145353-10SV | 1 | SPINDLE & GEAR | 47 TEETH | B5 | ||
| 45 | 147194-00 | 1 | SEAL | B5 | |
||
| 46 | 610906-00 | 1 | GEARCASE COVER | B5 | |
||
| 47 | 098102-13 | 3 | SCREW | B5 | |||
| 48 | 145375-02 | 1 | BUMPER | B5 | |
||
| 49 | 330045-27 | 1 | SCREW | B5 | |
||
| 50 | 151290-02 | 1 | WASHER,INR CLMP | B5 | |||
| 51 | 145343-01 | 1 | WASHER OUTER CLAMP | B5 | |
||
| 52 | 145344-00 | 1 | SCREW.SPECIAL | B5 | |
||
| 53 | N401777 | 1 | TORSION SPRING | B5 | |||
| 54 | 655178-00 | 1 | LOWER GUARD | B5 | |||
| 55 | 389572-00 | 1 | LEVER | B5 | |
||
| 56 | 388496-00 | 1 | RETAINER | B5 | |
||
| 57 | 148457-00 | 1 | CARRIAGE BOLT | B5 | |||
| 58 | N091970 | 1 | CARRIAGE BOLT | M6x1.0x15mm NYLOK | B5 | |
|
| 59 | 396631-00 | 1 | SCREW | B5 | |||
| 60 | 145319-05SV | 1 | SHOE ASSY | B5 | |||
| 61 | 098004-36 | 1 | SCREW | B5 | |||
| 62 | 330015-04 | 1 | NUT | B5 | |
||
| 64 | 148641-00 | 1 | LOCK-NUT | B5 | |
||
| 65 | 145341-00 | 1 | POINTER | B5 | |
||
| 66 | 330045-44 | 1 | SCREW | B5 | |
||
| 67 | 330045-19 | 4 | SCREW | B5 | |
||
| 68 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 69 | 384127-01 | 4 | SCREW | B5 | |
||
| 70 | 144803-00 | 1 | CIRCLIP | B5 | |
||
| 71 | 152015-03 | 1 | NUT | B5 | |||
| 73 | 320078-00 | 1 | TERMINAL BLOCK | B5 | |
||
| 74 | 150246-00 | 1 | SPACER | B5 | |
||
| 75 | 145370-00 | 1 | LEAD SA | BLACK ; 266 MM | B5 | |
|
| 76 | 145374-00 | 1 | LEAD SA | WHITE ; 600 MM | B5 | |
|
| 77 | 149005-00 | 1 | LEAD SA | WHITE ; 152 MM | B5 | |
|
| 78 | 149004-00 | 1 | LEAD SA | BLACK ; 152 MM | B5 | |
|
| 79 | 145408-00 | 1 | LABEL,ID | B5 | |||
| 91 | 152014-00 | 1 | WASHER | B5 | |
||
| 100 | U1915 | 1 | RIP FENCE | ACC | B5 | ||
| 103 | 145378-01 | 1 | WRENCH | B5 | |
||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B5 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B5 | ||
| 856 | 77-717 | 1 | 7 1/4IN 18T PIR CARB BLD | ACC | B5 |
