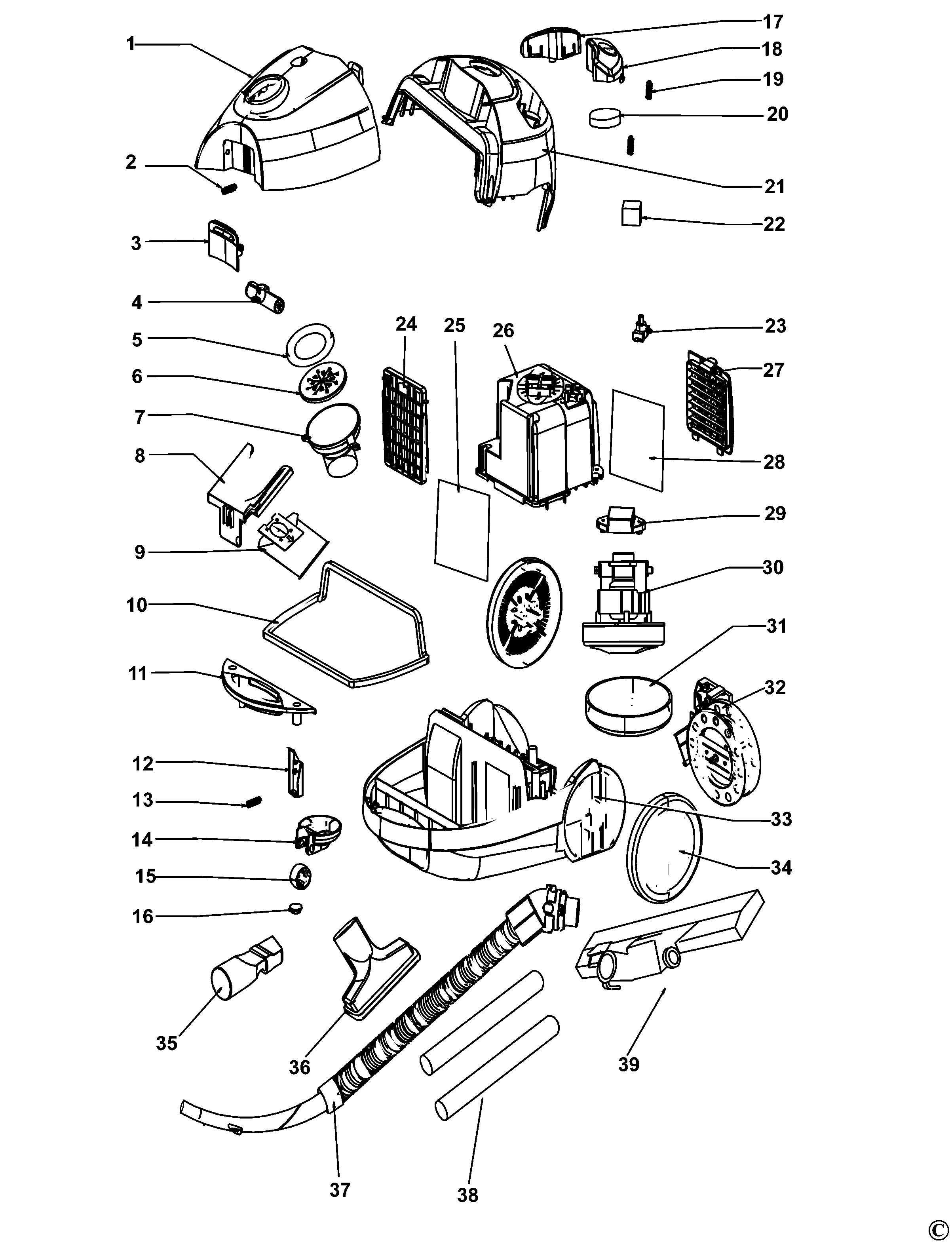

A2B650 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170031-14 | 1 | COVER-TOP | B1 | |||
| 2 | 5170031-15 | 1 | SPRING | B1 | |||
| 3 | 5170031-16 | 1 | LOCK | B1 | |||
| 4 | 5170031-17 | 1 | PIPE SA | B1 | |||
| 5 | 5170031-18 | 1 | SEAL | B1 | |||
| 6 | 5170031-19 | 1 | SEAL | B1 | |||
| 7 | 5170031-20 | 1 | TUBE OUTLET | B1 | |||
| 8 | 5170031-21 | 1 | HOLDER DUSTBAG | B1 | |||
| 9 | 5170031-22 | 1 | DUSTBAG | B1 | |||
| 10 | 5170031-23 | 1 | SEAL | B1 | |||
| 11 | 5170031-24 | 1 | HANDLE COVER | B1 | |||
| 12 | 5170031-25 | 1 | PROTECTOR | B1 | |||
| 13 | 5170031-26 | 1 | SPRING | B1 | |||
| 14 | 5170031-27 | 1 | WHEEL FRONT | B1 | |||
| 15 | 5170031-28 | 1 | WHEEL SUPPORT | B1 | |||
| 16 | 5170031-29 | 1 | CLAMP | B1 | |||
| 17 | 5170031-30 | 1 | KNOB | B1 | |||
| 18 | 5170031-31 | 1 | BUTTON | B1 | |||
| 19 | 5170031-32 | 1 | SPRING | B1 | |||
| 20 | 5170031-33 | 1 | KNOB | B1 | |||
| 21 | 5170031-34 | 1 | COVER-TOP | B1 | |||
| 22 | 5170031-35 | 1 | CLAMP | B1 | |||
| 23 | 5170031-36 | 1 | SWITCH | B1 | |||
| 24 | 5170031-37 | 1 | BAFFLE | B1 | |||
| 25 | 5170031-38 | 1 | FILTER | B1 | |||
| 26 | 5170031-39 | 1 | HOUSING MOTOR | B1 | |||
| 27 | 5170031-40 | 1 | BAFFLE | B1 | |||
| 28 | 5170031-41 | 1 | FILTER | B1 | |||
| 29 | 5170031-42 | 1 | RETAINING PLATE | B1 | |||
| 30 | 5170031-43 | 1 | MOTOR | B1 | |||
| 31 | 5170031-44 | 1 | RETAINING PLATE | B1 | |||
| 32 | 5170031-45 | 1 | CORD PULL | B1 | |||
| 33 | 5170031-46 | 1 | BASE | B1 | |||
| 34 | 5170031-47 | 1 | WHEEL LARGE | B1 | |||
| 35 | 5170031-48 | 1 | NOZZLE | B1 | |||
| 36 | 5170031-49 | 1 | NOZZLE | B1 | |||
| 37 | 5170031-50 | 1 | TUBE GUIDE | B1 | |||
| 38 | 5170031-51 | 1 | TUBE EXTRACTION | B1 | |||
| 39 | 5170031-52 | 1 | NOZZLE BLOWER | B1 |
