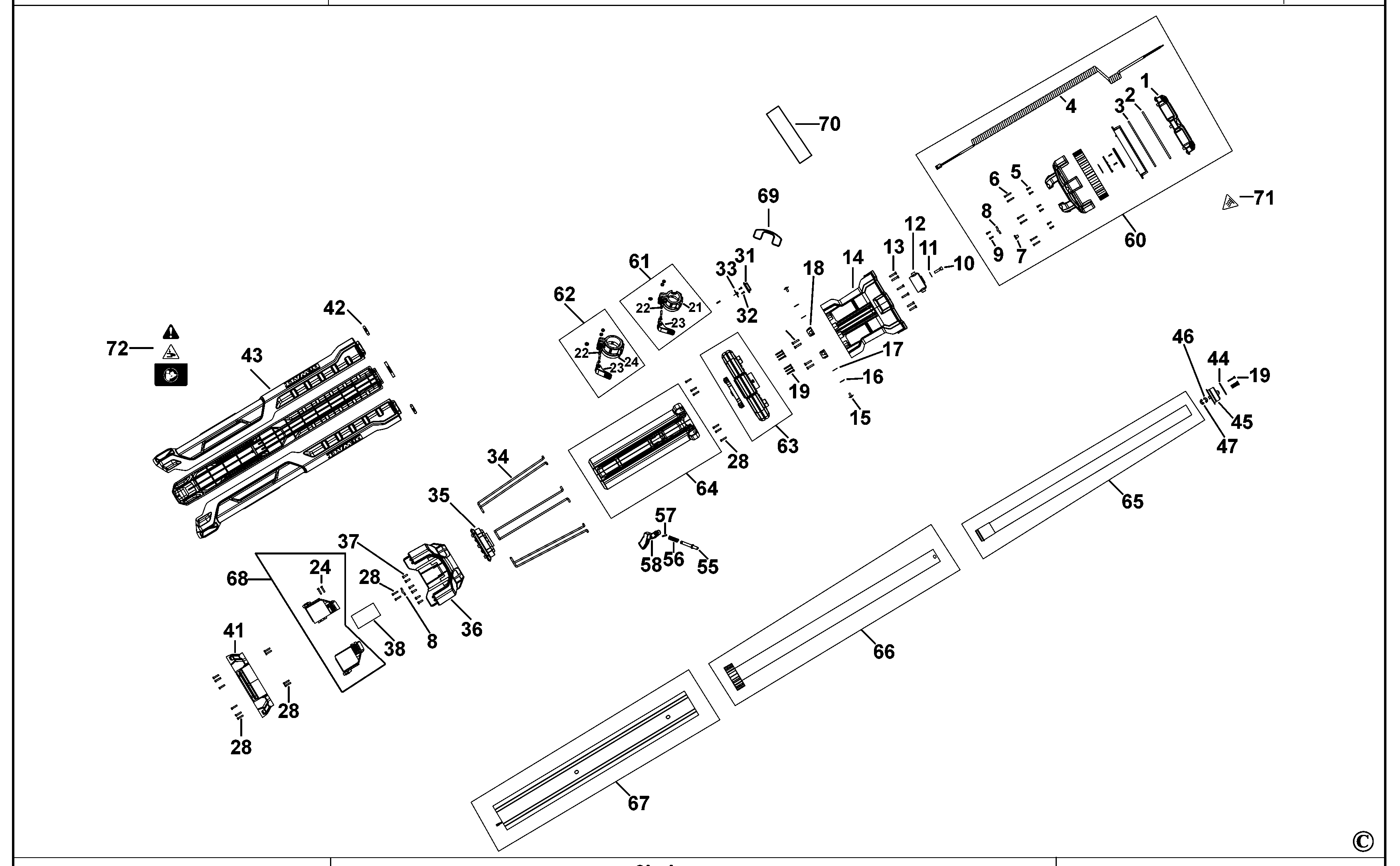

DCL079 LAMP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | N564970 | 1 | COVER | KR | ||||
| 2 | N504820 | 1 | LENS | KR | ||||
| 3 | N507253 | 1 | SEAL | KR | ||||
| 4 | N510286 | 1 | LEAD SA | KR | ||||
| 5 | 330045-01 | 6 | SCREW | KR | ||||
| 6 | 330019-24 | 6 | SCREW | KR | ||||
| 7 | N504828 | 1 | CORD PROTECTOR | KR | ||||
| 8 | N504832 | 1 | CORD CLAMP | KR | ||||
| 9 | 330019-41 | 2 | SCREW | KR | ||||
| 10 | 90640343 | 1 | SCREW | KR | ||||
| 11 | N504836 | 1 | WASHER | KR | ||||
| 12 | N511906 | 1 | INSERT | KR | ||||
| 13 | 330019-04 | 10 | SCREW | KR | ||||
| 14 | N504833 | 1 | SHIELD | KR | ||||
| 15 | N507800 | 2 | SCREW | KR | ||||
| 16 | N504835 | 2 | WASHER | KR | ||||
| 17 | N504836 | 2 | WASHER | KR | ||||
| 18 | N529050 | 2 | HOLDER | KR | ||||
| 19 | 330045-53 | 15 | SCREW | KR | ||||
| 21 | N521634 | 1 | CLAMP | KR | ||||
| 22 | N504851 | 2 | PIN | KR | ||||
| 23 | N504850 | 2 | LEVER | KR | ||||
| 24 | N521635 | 1 | CLAMP | KR | ||||
| 28 | 330019-00 | 20 | SCREW | M3x16 T10 PLASTITE | KR | |||
| 31 | N504843 | 1 | SWITCH COVER | KR | ||||
| 32 | N510973 | 2 | SCREW | KR | ||||
| 33 | N509849 | 1 | PCB | KR | ||||
| 34 | N504797 | 3 | LINK | KR | ||||
| 35 | N506414 | 1 | CAP | KR | ||||
| 36 | N529047 | 1 | HOUSING | KR | ||||
| 37 | 330019-38 | 6 | SCREW | KR | ||||
| 38 | N532980 | 1 | CONTROL MODULE SA | KR | ||||
| 41 | N504775 | 1 | HOUSING | KR | ||||
| 42 | N504801 | 3 | PIN | KR | ||||
| 43 | N529049 | 3 | LEG | KR | ||||
| 44 | N504839 | 1 | O RING | KR | ||||
| 45 | N511906 | 1 | INSERT | KR | ||||
| 46 | N504814 | 1 | CORD PROTECTOR | KR | ||||
| 47 | N504812 | 1 | CORD PROTECTOR | KR | ||||
| 55 | N553786 | 1 | PIN | KR | ||||
| 56 | N504845 | 1 | SPRING | KR | ||||
| 57 | N506089 | 1 | PIN | KR | ||||
| 58 | N504846 | 1 | BUTTON RELEASE | KR | ||||
| 60 | N657896 | 1 | LED LIGHT | KR | ||||
| 61 | N543983 | 1 | CLAMP SA | KR | ||||
| 62 | N543984 | 1 | CLAMP SA | KR | ||||
| 63 | N543981 | 1 | HANDLE SA | KR | ||||
| 64 | N543985 | 1 | COLLAR SA | KR | ||||
| 65 | N543973 | 1 | TUBE ELEVATING SA | KR | ||||
| 66 | N543974 | 1 | TUBE ELEVATING SA | KR | ||||
| 67 | N543978 | 1 | COLUMN SA | KR | ||||
| 68 | N582930 | 1 | FOOT SA | KR | ||||
| 69 | N508875 | 1 | LABEL | KR | ||||
| 70 | N638009 | 1 | RATING LABEL | KR | ||||
| 71 | N547992 | 1 | WARNING LABEL | KR | ||||
| 72 | N547991 | 1 | WARNING LABEL | KR |
