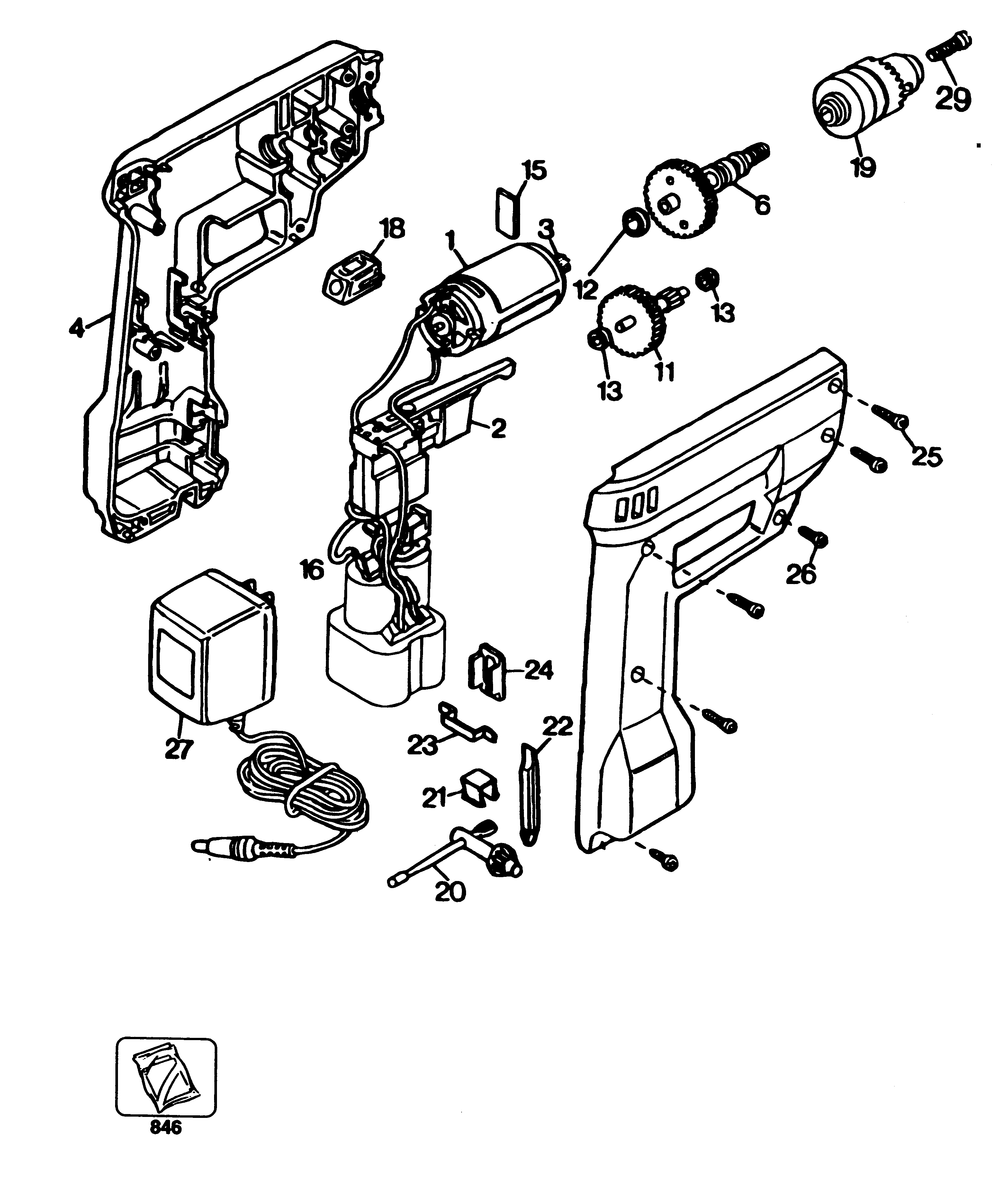

9016 CORDLESS DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 144089-00 | 1 | MOTOR SA | FR | |||
| 2 | 157980-00 | 1 | SWITCH | FR | |||
| 3 | 450305-00 | 1 | PINION | FR | |||
| 11 | 450439-00 | 2 | GEAR & PINION | FR | |||
| 12 | 146836-00 | 1 | BEARING | FR | |||
| 13 | 146837-02 | 2 | BEARING | FR | |||
| 16 | 151025-00 | 1 | BATTERY PACK | FR | |||
| 18 | 143845-00 | 1 | LEVEL | FR | |||
| 19 | 283186-00 | 1 | CHUCK & KEY | FR | |||
| 20 | 330034-00 | 1 | CHUCK KEY 10MM | FR | |||
| 21 | 144088-00 | 1 | CLIP | FR | |||
| 22 | 297757-02 | 1 | BIT PHILLIPS | FR | |||
| 25 | 330013-04 | 4 | SCREW | FR | |||
| 26 | 330013-02 | 2 | SCREW | FR | |||
| 27 | 144126-01 | 1 | CHARGER | FR | |||
| 29 | 65630-00 | 1 | SCREW | FR | |||
| 846 | 147686-00 | 1 | HOLDER | FR |
