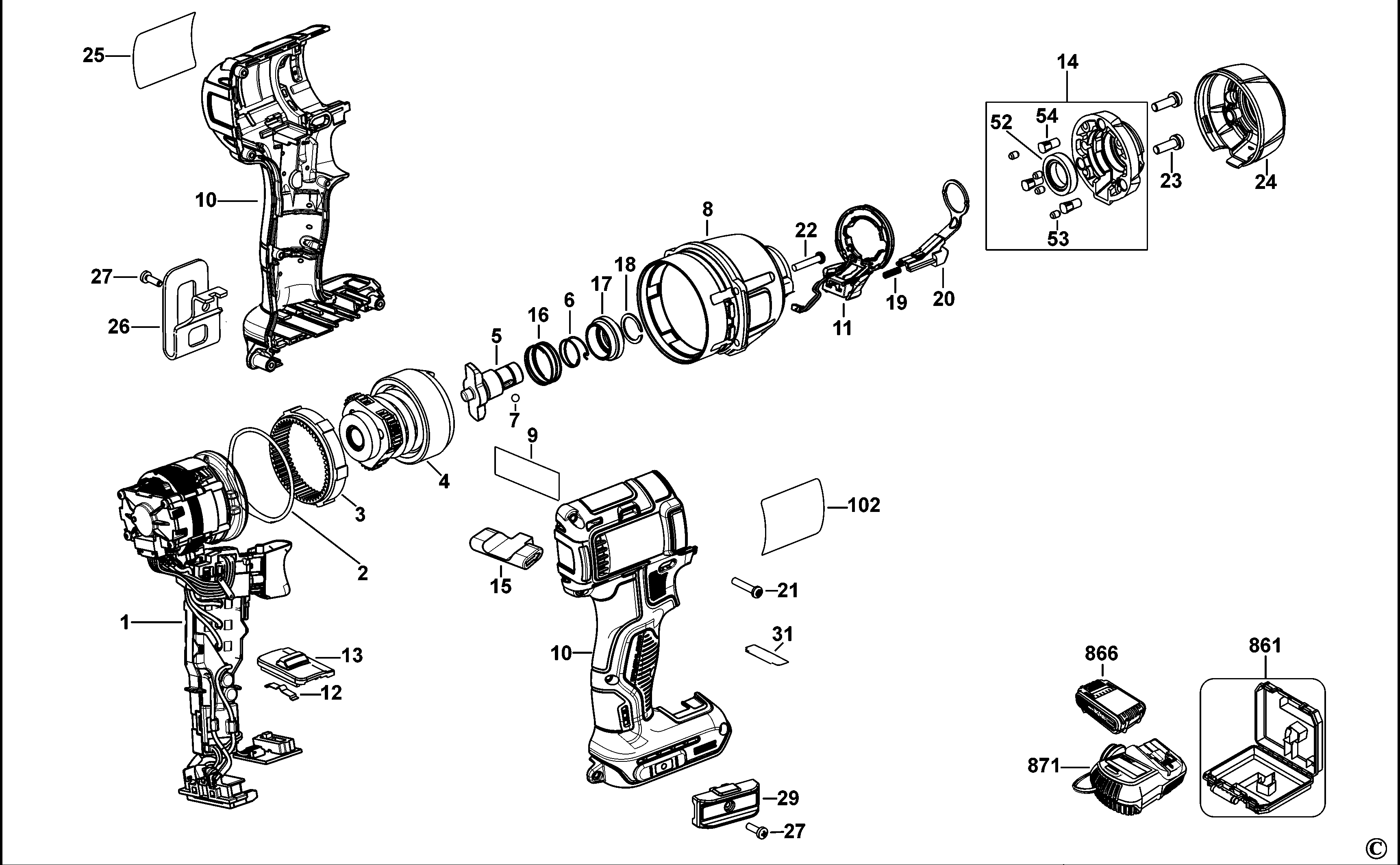

DCF895 IMPACT DRIVER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N434185 | 1 | MOTOR & SWITCH SA | A9 | |||
| 2 | N075339 | 1 | O RING | A9 | |||
| 3 | N112877 | 1 | GEAR | A9 | |||
| 4 | N192430 | 1 | IMPACTOR | A9 | |||
| 5 | N312379 | 1 | ANVIL | A9 | |||
| 6 | N076032 | 1 | SPRING | A9 | |||
| 7 | N089668 | 1 | BALL STEEL | A9 | |||
| 8 | N173898 | 1 | NOSE SA | A9 | |||
| 9 | N153226 | 1 | LABEL | A9 | |||
| 10 | N307899 | 1 | CLAMSHELL SET | A9 | |||
| 11 | N395794 | 1 | LED LIGHT | A9 | |||
| 12 | N087259 | 1 | DETENT | A9 | |||
| 13 | N046201 | 1 | SELECTOR | A9 | |||
| 14 | N173899 | 1 | CAP SA | A9 | |||
| 15 | N399342 | 1 | ACTUATOR FWD/REV | A9 | |||
| 16 | N041808 | 1 | SPRING | A9 | |||
| 17 | N356539 | 1 | SLEEVE | A9 | |||
| 18 | N091014 | 1 | RETAINER | A9 | |||
| 19 | N041809 | 1 | SPRING | A9 | |||
| 20 | N044869 | 1 | ACTUATOR | A9 | |||
| 21 | 682211-00 | 7 | SCREW | A9 | |||
| 22 | N130792 | 4 | SCREW | A9 | |||
| 23 | 562160-12 | 2 | SCREW | A9 | |||
| 24 | N048058 | 1 | COVER | A9 | |||
| 25 | N416357 | 1 | BRAND LABEL | A9 | |||
| 26 | N086039 | 1 | HOOK | A9 | |||
| 27 | N042665 | 2 | SCREW | A9 | |||
| 29 | N095778 | 1 | HOLDER BIT | A9 | |||
| 31 | N098119 | 1 | LABEL | A9 | |||
| 52 | N084674 | 1 | SLEEVE BEARING | A9 | |||
| 53 | 613372-00 | 4 | RUBBER | A9 | |||
| 54 | N125828 | 4 | GUIDE | A9 | |||
| 102 | N483909 | 1 | RATING LABEL | M2 | A9 | ||
| 861 | N068611 | 1 | KITBOX | A9 | |||
| 866 | DCB183-A9 | 2 | BATTERY 18V - 2.0AH - 36WH | DCF895D2 | A9 | ||
| 866 | DCB182-A9 | 2 | BATTERY 18V - 4.0AH - 72WH | DCF895M2 | A9 | ||
| 871 | DCB105-A9 | 1 | CHARGER SA | A9 | A9 |
