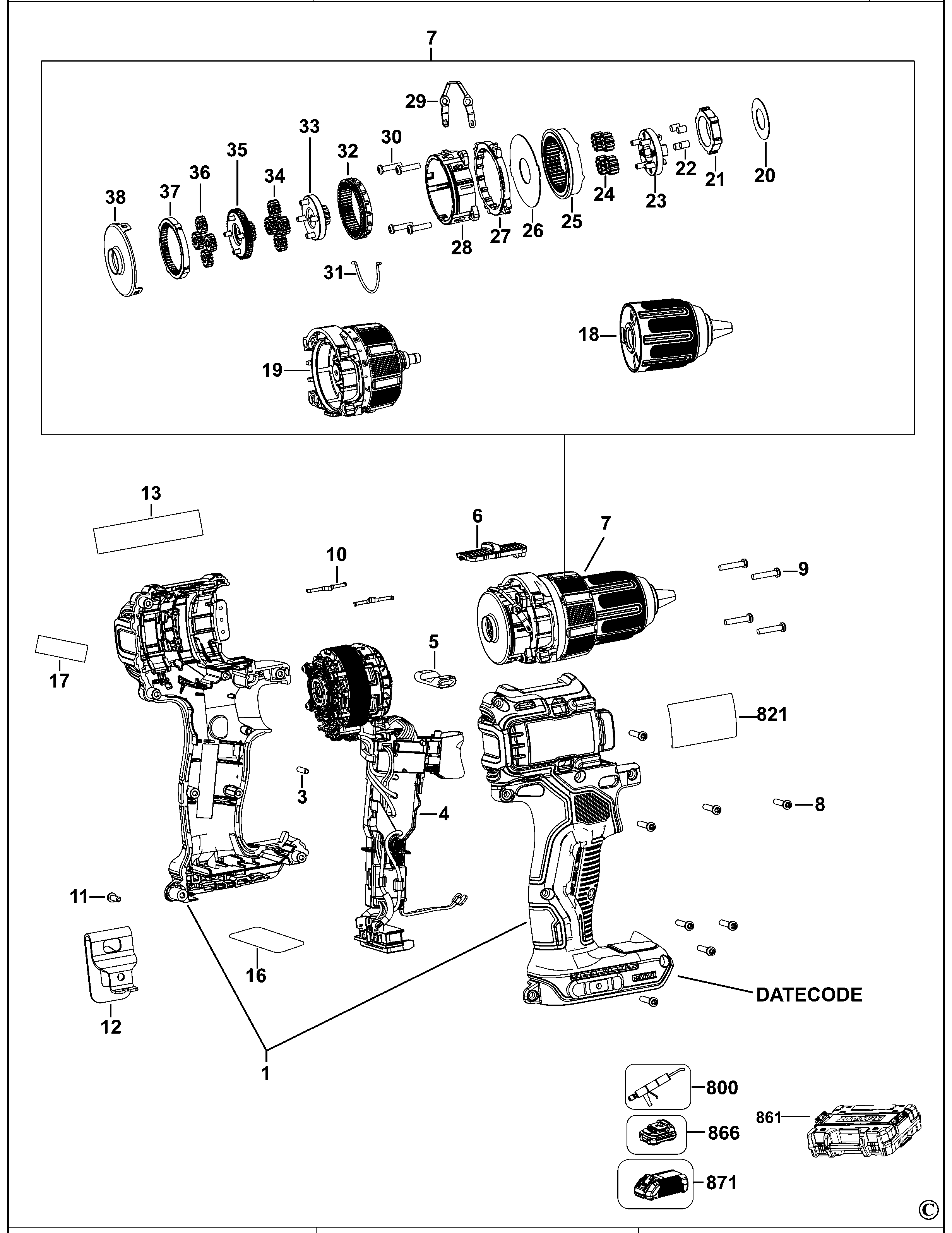

DCD708 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N553813 | 1 | CLAMSHELL SET | A9 | |||
| 3 | N071836 | 1 | ROLL PIN | A9 | |||
| 5 | N399342 | 1 | ACTUATOR FWD/REV | A9 | |||
| 6 | N696450 | 1 | SELECTOR SA | A9 | |||
| 7 | N703439 | 1 | TRANSMISSION ASSEMBLY | A9 | |||
| 8 | N463678 | 8 | SCREW | A9 | |||
| 9 | N474504 | 4 | SCREW | A9 | |||
| 10 | N014681 | 2 | LEAF SPRING | A9 | |||
| 11 | N042665 | 1 | SCREW | A9 | |||
| 12 | N086039 | 1 | HOOK | A9 | |||
| 13 | N592428 | 1 | LABEL | ID LABEL | A9 | ||
| 16 | N592684 | 1 | LABEL | A9 | |||
| 17 | N724250 | 1 | LABEL | A9 | |||
| 18 | N551141 | 1 | CHUCK KEYLESS | A9 | |||
| 19 | N642325 | 1 | HOUSING SA | A9 | |||
| 20 | N527659 | 1 | WASHER LOCK | A9 | |||
| 21 | NA146871 | 1 | LOCKING RING | A9 | |||
| 22 | N549024 | 4 | PIN | A9 | |||
| 23 | N678082 | 1 | CARRIER SA | A9 | |||
| 24 | N543018 | 4 | GEAR | A9 | |||
| 25 | N551385 | 1 | GEAR | A9 | |||
| 26 | N548368 | 1 | WASHER | A9 | |||
| 27 | N543943 | 1 | GEAR | A9 | |||
| 28 | N544134 | 1 | HOUSING | A9 | |||
| 29 | N541904 | 1 | LINK | A9 | |||
| 30 | N075506 | 4 | SCREW | A9 | |||
| 31 | N542091 | 1 | WIRE STEEL | A9 | |||
| 32 | N541279 | 1 | GEAR | A9 | |||
| 33 | N678083 | 1 | CARRIER SA | A9 | |||
| 34 | N541277 | 1 | GEAR | A9 | |||
| 35 | N678084 | 1 | CARRIER SA | A9 | |||
| 36 | N541274 | 4 | GEAR | A9 | |||
| 37 | N541276 | 1 | GEAR | A9 | |||
| 38 | N551410 | 1 | BACKPLATE | A9 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | A9 | ||
| 821 | N724249 | 1 | RATING LABEL | A9 | |||
| 861 | N747679 | 1 | KITBOX | DCD708M2 | A9 | ||
| 866 | DCB182-A9 | 2 | BATTERY 18V - 4.0AH - 72WH | DCD708M2 | A9 | ||
| 871 | DCB1102-A9 | 1 | CHARGER 10.8V | A9 |
