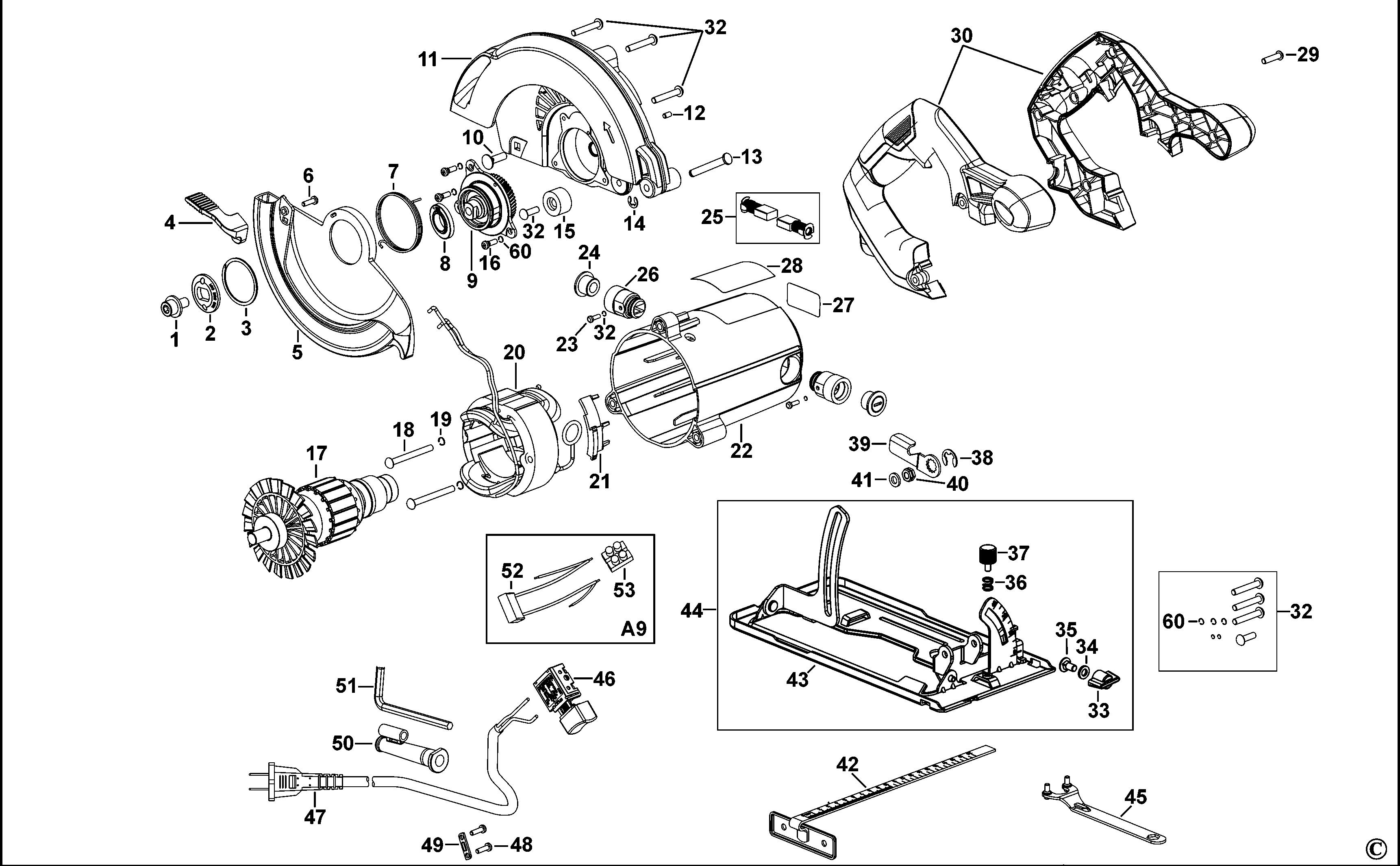

STSC1618 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90585850 | 1 | SCREW | M8 X 18 | A9 | ||
| 2 | 90583637 | 1 | OUTER FLANGE | A9 | |||
| 3 | 90568898 | 1 | RETAINER | A9 | |||
| 4 | 90570231 | 1 | LEVER | A9 | |||
| 5 | 90568775 | 1 | GUARD LOWER | A9 | |||
| 6 | 370748 | 1 | SCREW | A9 | |||
| 7 | 90568897 | 1 | SPRING | A9 | |||
| 8 | 90583770 | 1 | INNER FLANGE | A9 | |||
| 9 | 90582910 | 1 | SPINDLE & GEAR SA | A9 | |||
| 10 | 90569114 | 1 | BOLT | A9 | |||
| 11 | 90581362-02 | 1 | GEARCASE SA | A9 | |||
| 12 | 90574987 | 1 | PLUG | A9 | |||
| 13 | 90578341 | 1 | PIN | A9 | |||
| 14 | 90578384 | 1 | RETAINER | A9 | |||
| 15 | 90569118 | 1 | BUMPER | A9 | |||
| 16 | 330024-06 | 3 | SCREW | A9 | |||
| 17 | 90586786 | 1 | ARMATURE 230V | A9 | |||
| 18 | 330019-17 | 2 | SCREW | A9 | |||
| 19 | 488808-00 | 2 | WASHER LOCK | BDMS200 | A9 | ||
| 20 | 90616396 | 1 | FIELD SA | A9 | |||
| 21 | 90573393 | 1 | RETAINER | A9 | |||
| 22 | 90580006-01 | 1 | FIELDCASE | A9 | |||
| 23 | 330019-41 | 2 | SCREW | A9 | |||
| 24 | 90568789 | 2 | BRUSH CAP | A9 | |||
| 25 | 90586485 | 1 | BRUSH PAIR 230V | A9 | |||
| 26 | 90568788 | 2 | BRUSH HOLDER | A9 | |||
| 27 | 90607003 | 1 | BRAND LABEL | A9 | |||
| 28 | 90615648 | 1 | RATING LABEL | A9 | |||
| 29 | 90579269 | 6 | SCREW | 3.75 X 17 | A9 | ||
| 30 | 90580010-01 | 1 | HANDLE SA | A9 | |||
| 32 | 90586677 | 1 | PARTS PACK | A9 | |||
| 33 | 90568910 | 1 | WING NUT | A9 | |||
| 34 | 90580384 | 1 | WASHER | A9 | |||
| 35 | 90568912 | 1 | BOLT | A9 | |||
| 36 | 90568918 | 1 | SPRING | A9 | |||
| 37 | 90568917 | 1 | SCREW | A9 | |||
| 38 | 90578352 | 1 | RETAINER | A9 | |||
| 39 | 90569116 | 1 | LEVER | A9 | |||
| 40 | 90569115 | 1 | LOCK NUT | A9 | |||
| 41 | 90580384 | 1 | WASHER | A9 | |||
| 42 | 90568785 | 1 | FENCE | A9 | |||
| 43 | 90586676 | 1 | SHOE | A9 | |||
| 44 | 90586484 | 1 | SHOE SA | A9 | |||
| 45 | 90585849 | 1 | WRENCH PIN | A9 | |||
| 46 | 90595774 | 1 | SWITCH SA | A9 | |||
| 47 | 90578999-18 | 1 | CORDSET | A9 | A9 | ||
| 48 | 370748 | 2 | SCREW | A9 | |||
| 49 | 329301-00 | 1 | CORD CLAMP | A9 | |||
| 50 | 90568797 | 1 | CORD PROTECTOR | A9 | |||
| 51 | 90579371 | 1 | HEX KEY | A9 | |||
| 52 | 90581356 | 1 | CAPACITOR | A9 | |||
| 53 | 320078-00 | 1 | TERMINAL BLOCK | A9 | |||
| 60 | 569639-00 | 3 | WASHER SPRING | A9 |
