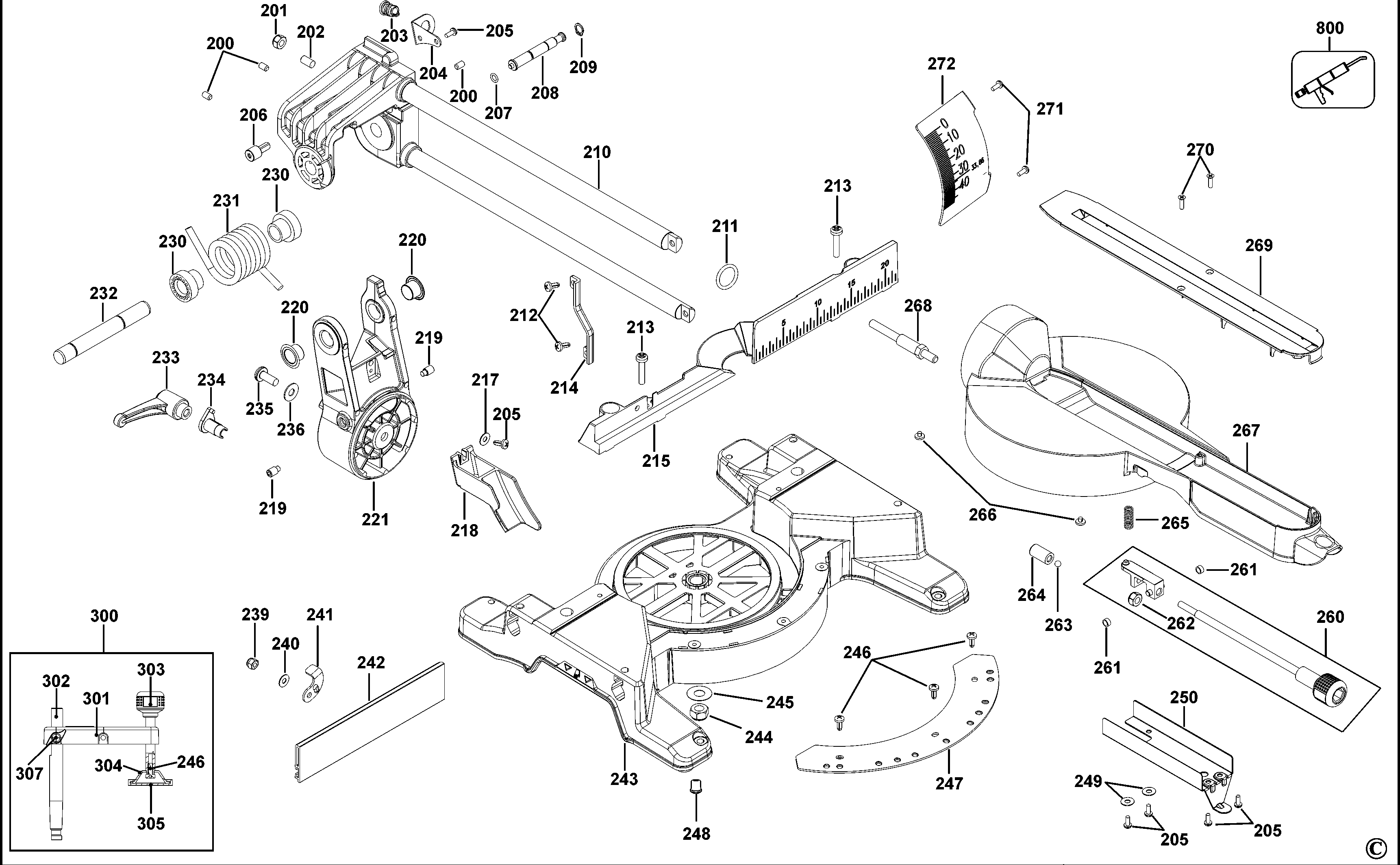

DWS778 MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N243301 | 1 | CORDSET | GB |  |
||
| 3 | 868520-00 | 1 | CORD PROTECTOR | GB |  |
||
| 4 | 860843-01 | 1 | CLAMP | GB | |
||
| 5 | 330045-05 | 3 | SCREW | GB | |
||
| 6 | N075468 | 1 | SA POWER SUPPLY | WORKLIGHT | GB | |
|
| 8 | N110339 | 1 | LEVER SA | GB | |
||
| 9 | 939625-00 | 1 | WASHER | GB | |
||
| 10 | 930076-01 | 1 | SCREW | GB | |
||
| 11 | N464700 | 1 | LEVER | GB | |||
| 13 | 869295-00 | 1 | BUSH | GB | |
||
| 14 | 869156-00 | 1 | PIN | GB | |
||
| 15 | 869192-00 | 1 | BUSH | GB | |
||
| 16 | N466267 | 1 | HOUSING HANDLE | >192014 | GB | |
|
| 17 | 384127-01 | 2 | SCREW | GB | |
||
| 18 | 394375-02P | 1 | SWITCH | GB | |
||
| 19 | 330065-06 | 1 | SCREW | GB | |
||
| 20 | 658093-00 | 1 | CONNECTOR | GB | |
||
| 21 | 760296-01 | 1 | PIVOT | GB | |
||
| 30 | N458806 | 1 | CAPACITOR SA | GB | |
||
| 31 | N210177 | 1 | SET OF LEAD WIRES | GB | |
||
| 32 | N456928 | 1 | SCREW | 3.9 X 22 T | GB | ||
| 33 | N231737 | 1 | LED LIGHT | GB | |
||
| 33 | N231737 | 1 | LED LIGHT | GB | |
||
| 34 | N137473 | 1 | CABLE SA | GB | |
||
| 35 | N130455 | 1 | DUST DEFLECTOR | GB | |
||
| 36 | 860077-01 | 5 | WASHER | GB | |
||
| 37 | N466268 | 1 | COVER HOUSING | GB | |||
| 38 | 330045-05 | 3 | SCREW | GB | |
||
| 39 | N456928 | 10 | SCREW | 3.9 X 22 T | GB | ||
| 40 | N467749 | 1 | RATING PLATE | GB | |||
| 41 | N168410 | 1 | SPRING | GB | |
||
| 42 | 860073-00 | 2 | WASHER | GB | |
||
| 43 | 860084-20 | 1 | SCREW | GB | |
||
| 44 | 761306-00 | 1 | BUMPER | GB | |
||
| 45 | 949896-13 | 1 | SCREW | GB | |
||
| 46 | 943022-01 | 1 | SCREW | GB | |
||
| 47 | 941633-00 | 1 | WASHER | GB | |
||
| 48 | N110318 | 1 | GUARD SA | GB | |
||
| 49 | 760298-01 | 6 | INSERT | GB | |
||
| 50 | 146774-00 | 1 | ROLLER | GB | |
||
| 51 | N486097 | 1 | GUARD UPPER | GB | |
||
| 60 | N142857 | 1 | SPRING CLIP | GB | |
||
| 62 | N106551 | 1 | WASHER INNER CLAMP | GB | |
||
| 63 | N106550 | 1 | WASHER OUTER CLAMP | GB | |
||
| 64 | 869245-00 | 1 | SCREW | GB | |
||
| 65 | N106424 | 1 | BELT GROOVED | 11 Ribs | GB | |
|
| 66 | 760219-00 | 2 | SCREW | GB | |
||
| 67 | 860075-00 | 2 | WASHER | GB | |
||
| 67 | 760241-01 | 1 | SPACER | GB | |
||
| 68 | N106421 | 1 | PULLEY | 11 Ribs | GB | |
|
| 69 | 861721-13 | 2 | BEARING | GB | |
||
| 70 | N116864 | 2 | WOODRUFF KEY | GB | |
||
| 80 | N231745 | 1 | INTER SHAFT | GB | |
||
| 81 | 605040-59 | 2 | BEARING | GB | |
||
| 82 | 930122-00 | 2 | WASHER | GB | |
||
| 83 | 946874-00 | 1 | ADJUSTER | GB | |
||
| 84 | 949729-03 | 1 | CIRCLIP | GB | |
||
| 85 | N231744 | 1 | SPINDLE SA | GB | |
||
| 86 | 861721-10 | 1 | BEARING | 6003 2RS | GB | |
|
| 87 | 949886-26 | 1 | SCREW | GB | |
||
| 88 | N106420 | 1 | DRIVE PULLEY | 11 Ribs | GB | |
|
| 89 | 949729-02 | 1 | CIRCLIP | GB | |
||
| 91 | 860083-03 | 1 | NUT | GB | |
||
| 93 | 869166-00 | 1 | LOCKING DEVICE | GB | |
||
| 94 | N119659 | 1 | DEFLECTOR | GB | |
||
| 95 | 330019-19 | 2 | SCREW | GB | |
||
| 96 | N503672 | 1 | FIELD 230V | GB | |
||
| 97 | 659512-00 | 1 | BRUSH PAIR | GB | |
||
| 98 | 605155-00 | 1 | BUSHING | GB | |
||
| 99 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | GB | |
|
| 100 | 330019-13 | 4 | SCREW | M4X19 T20 | GB | |
|
| 101 | 145312-00 | 1 | PLUG | GB | |
||
| 110 | N187409 | 1 | END CAP SA | inc 158 | GB | |
|
| 112 | 610722-00 | 1 | LABEL | GB | |
||
| 113 | 391317-00 | 1 | FIELDCASE | GB | |
||
| 114 | N231746 | 1 | ARMATURE 230V | GB | |
||
| 114 | N231746 | 1 | ARMATURE 230V | GB | |
||
| 115 | N458123 | 1 | BRUSHPLATE | GB | |
||
| 116 | N110359 | 1 | BEARING | GB | |
||
| 118 | 869140-00 | 1 | LOCKING KNOB | GB | |
||
| 119 | 868082-00 | 1 | SPRING | GB | |
||
| 121 | 330045-10 | 1 | SCREW | PH/TT M4X35 | GB | |
|
| 122 | N106479 | 1 | BELT COVER | GB | |
||
| 123 | N115190 | 1 | BELT GROOVED | 16 Ribs | GB | |
|
| 124 | 860083-17 | 1 | NUT | GB | |
||
| 125 | 869246-00 | 1 | SPRING | GB | |
||
| 126 | N115189 | 1 | PULLEY | 16 Ribs | GB | |
|
| 127 | 860074-05 | 1 | WASHER | GB | |
||
| 129 | N115188 | 1 | DRIVE PULLEY | 16 Ribs | GB | |
|
| 130 | N231743 | 1 | CASTING SA | <192014 | GB | |
|
| 130 | N394543 | 1 | CASTING SA | >192014 | GB | |
|
| 131 | 868682-00 | 1 | HEX KEY | 4/6mm | GB | |
|
| 144 | N106542 | 1 | GUARD LOWER | GB | |
||
| 200 | 150075-00 | 1 | SCREW | GB | |
||
| 201 | 860083-14 | 1 | NUT | GB | |
||
| 202 | 760242-00 | 1 | SCREW | M8 x 30 | GB | |
|
| 203 | N137454 | 1 | BUSHING | GB | |
||
| 204 | N137455 | 1 | BRACKET | GB | |
||
| 205 | 330045-05 | 1 | SCREW | GB | |
||
| 206 | 618198-00 | 1 | SCREW | GB | |
||
| 207 | 943030-00 | 1 | O RING | GB | |
||
| 208 | N129820 | 1 | PIN | GB | |
||
| 209 | 860079-02 | 1 | CIRCLIP | GB | |
||
| 210 | N231740 | 1 | RAIL SA | GB | |
||
| 211 | 869141-00 | 1 | O RING | 18.6 X 3.5 | GB | |
|
| 212 | 949609-03 | 2 | SCREW | GB | |
||
| 213 | 330045-26 | 2 | SCREW | GB | |
||
| 214 | 947613-00 | 1 | BRACKET | GB | |
||
| 215 | N136428 | 1 | FENCE | GB | |
||
| 217 | 941633-00 | 2 | WASHER | GB | |
||
| 218 | N150087 | 1 | CONVEYOR | GB | |
||
| 219 | 949743-02 | 2 | SCREW | M8 x 14mm | GB | |
|
| 220 | N083191 | 2 | BUSH | GB | |
||
| 221 | N106395 | 1 | SEGMENT | GB | |
||
| 230 | 146732-00 | 2 | SPACER | GB | |
||
| 231 | N136651 | 1 | SPRING TORSION | GB | |
||
| 232 | N231736 | 1 | PIVOT SHAFT | GB | |
||
| 233 | 861840-03 | 1 | LEVER | GB | |
||
| 234 | 868680-00 | 1 | INSERT | GB | |
||
| 235 | 612008-00 | 1 | SCREW | GB | |
||
| 236 | 933168-00 | 1 | WASHER | GB | |
||
| 239 | 860092-02 | 1 | NUT | GB | |
||
| 240 | 860075-00 | 1 | WASHER | GB | |
||
| 241 | N128350 | 1 | LEVER LOCK | GB | |
||
| 242 | N497434 | 1 | FENCE SA | GB | |
||
| 243 | 869313-00 | 1 | TABLE SA | GB | |
||
| 244 | 860092-07 | 1 | NUT | GB | |
||
| 245 | 949705-01 | 1 | WASHER | GB | |
||
| 246 | 330045-49 | 4 | SCREW | GB | |
||
| 247 | 868677-00 | 1 | SCALE | GB | |
||
| 248 | 868777-00 | 4 | FOOT | GB | |
||
| 249 | 860074-00 | 2 | WASHER SPRING | GB | |
||
| 250 | N483511 | 1 | COVER | GB | |
||
| 260 | N109532 | 1 | LOCKING DEVICE | GB | |
||
| 261 | N299799 | 2 | BUSH | GB | |
||
| 262 | 860092-05 | 1 | NUT | GB | |
||
| 263 | 868708-00 | 1 | BALL | GB | |
||
| 264 | 868707-01 | 1 | BUSH | GB | |
||
| 265 | 868778-00 | 1 | SPRING | GB | |
||
| 266 | 760298-01 | 3 | INSERT | GB | |
||
| 267 | N717633 | 1 | ROTARY TABLE | GB | |||
| 268 | N115187 | 1 | SHAFT | GB | |
||
| 269 | N106478 | 1 | TABLE INSERT | GB | |
||
| 270 | 860205-08 | 2 | SCREW | GB | |
||
| 271 | 949894-12 | 2 | SCREW | GB | |
||
| 272 | N131182 | 1 | BEVEL SCALE | GB | |
||
| 300 | N171682 | 1 | CLAMP SA | GB | |
||
| 301 | 869306-00 | 1 | ARM | GB | |
||
| 302 | N168123 | 1 | CLAMPING BAR | GB | |
||
| 303 | 869308-00 | 1 | KNOB | GB | |
||
| 304 | 630068-00 | 1 | SUPPORT | GB | |
||
| 305 | 630085-00 | 1 | GRIP | GB | |
||
| 307 | 326573-01 | 1 | SCREW WING | GB | |
||
| 800 | 93488-00 | 1 | GREASE | GB | |
