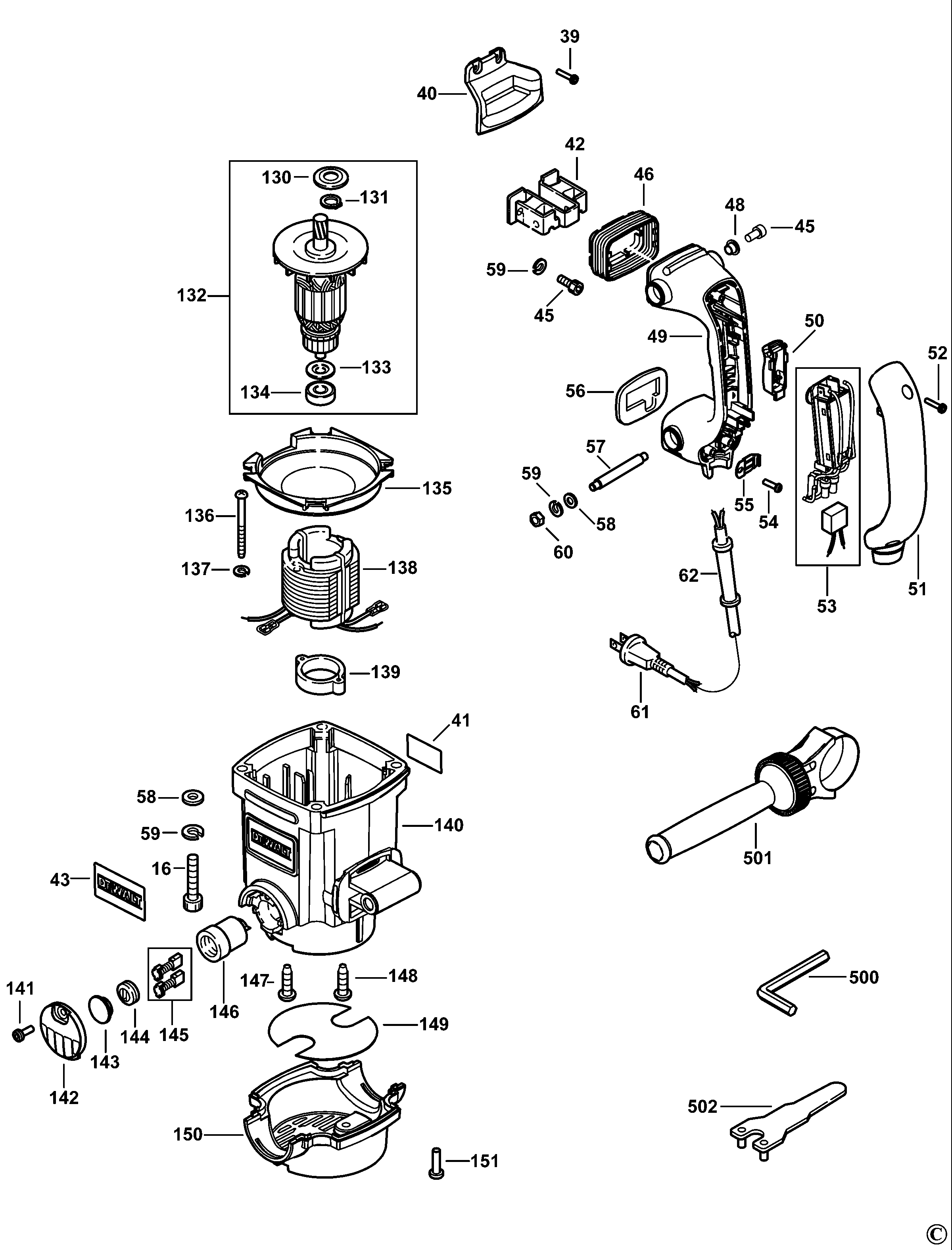

D25580K DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N048300 | 1 | COVER | B1 |  |
||
| 3 | N048307 | 1 | COLLAR | B1 | |
||
| 4 | N149441 | 4 | BOLT | M6x15 | use three bond glue | B1 | |
| 6 | N048314 | 2 | SCREW | B1 | |||
| 7 | N048239 | 1 | RAM | B1 | |
||
| 8 | N048260 | 2 | O RING | B1 | |||
| 9 | N048248 | 1 | PIN | B1 | |||
| 10 | N048238 | 1 | PISTON | B1 | |
||
| 16 | N149443 | 4 | BOLT | B1 | |
||
| 31 | N048306 | 1 | DAMPER | B1 | |
||
| 32 | N048304 | 1 | COLLAR | B1 | |
||
| 33 | N048303 | 1 | COLLAR | B1 | |
||
| 34 | N048246 | 1 | BEAT PIECE | B1 | |
||
| 35 | N048250 | 1 | COLLAR | B1 | |
||
| 36 | N048318 | 1 | RUBBER | B1 | |||
| 37 | N048247 | 1 | CAP | B1 | |
||
| 38 | N048262 | 1 | O RING | B1 | |||
| 39 | N048320 | 2 | SCREW | B1 | |||
| 40 | N048317 | 1 | COVER | B1 | |
||
| 41 | N073487 | 1 | RATING PLATE | B1 | B1 | ||
| 42 | N048251 | 1 | PLATE SA | B1 | |
||
| 43 | N073497 | 1 | BRAND LABEL | B1 | |
||
| 45 | N149442 | 4 | BOLT | B1 | |
||
| 46 | N048252 | 1 | COVER | B1 | |
||
| 48 | N048255 | 2 | BUSH | B1 | |
||
| 49 | N048235 | 1 | HANDLE | B1 | |
||
| 50 | N048256 | 1 | TRIGGER | B1 | |||
| 51 | N048236 | 1 | HANDLE COVER | B1 | |
||
| 52 | N048292 | 3 | SCREW | B1 | |||
| 53 | N048271 | 1 | SWITCH SA | B1 | |
||
| 54 | N048290 | 1 | SCREW | B1 | |||
| 55 | N048270 | 1 | CORD CLAMP | B1 | |
||
| 56 | N048253 | 1 | DUST GUARD | B1 | |
||
| 57 | N048254 | 1 | BOLT | B1 | |
||
| 58 | N048296 | 6 | WASHER | B1 | |||
| 59 | N048294 | 12 | WASHER SPRING | B1 | |||
| 60 | N048297 | 2 | NUT M6 | B1 | |||
| 61 | N063871 | 1 | CORDSET | B1 | B1 | |
|
| 62 | N149445 | 1 | CORD PROTECTOR | B1 | |
||
| 111 | N048277 | 1 | RETAINER | B1 | |||
| 112 | N048240 | 1 | CON ROD | B1 | |
||
| 115 | N048245 | 1 | CRANKSHAFT | B1 | |
||
| 116 | N048220 | 1 | CRANKCASE | B1 | |
||
| 117 | N048263 | 1 | SEAL | B1 | |||
| 118 | N048282 | 1 | BEARING | B1 | |
||
| 119 | N048279 | 1 | RETAINER | B1 | |||
| 120 | N048264 | 1 | KEY | B1 | |
||
| 121 | N048284 | 1 | COLLAR | B1 | |
||
| 122 | N048244 | 1 | GEAR | B1 | |
||
| 123 | N048257 | 1 | O RING | B1 | |||
| 124 | N048283 | 1 | BEARING NEEDLE | B1 | |
||
| 125 | N048221 | 1 | COVER | B1 | |
||
| 126 | N048312 | 1 | PIN | B1 | |||
| 127 | N048280 | 1 | BEARING | B1 | |
||
| 128 | N048308 | 1 | PLATE | B1 | |||
| 129 | N048311 | 3 | SCREW | B1 | |||
| 130 | N048310 | 1 | DUST GUARD | B1 | |
||
| 131 | N048278 | 1 | RETAINER | B1 | |||
| 132 | N077886 | 1 | ARMATURE SA | B1 | |
||
| 133 | N048258 | 1 | DUST GUARD | B1 | |
||
| 134 | N048281 | 1 | BEARING | B1 | |
||
| 135 | N048237 | 1 | BAFFLE FAN | B1 | |||
| 136 | N048288 | 2 | SCREW | B1 | |||
| 137 | N048295 | 2 | WASHER SPRING | B1 | |||
| 138 | N048224 | 1 | FIELD SA | HV | B1 | |
|
| 139 | N048249 | 1 | BEARING HOLDER | B1 | |
||
| 140 | N048219 | 1 | HOUSING MOTOR | B1 | |
||
| 141 | N048289 | 2 | SCREW | B1 | |||
| 142 | N048316 | 2 | HOLDER | B1 | |
||
| 143 | N048313 | 2 | CAP | B1 | |
||
| 144 | N048267 | 2 | CAP | B1 | |
||
| 145 | N077888 | 1 | BRUSH PAIR 230V | B1 |  |
||
| 146 | N048265 | 2 | BRUSH HOLDER | B1 | |
||
| 147 | N077885 | 2 | SCREW | B1 | |||
| 148 | N048291 | 2 | SCREW | B1 | |||
| 149 | N048315 | 1 | FILTER | B1 | |
||
| 150 | N048225 | 1 | END CAP | B1 | |
||
| 151 | N048293 | 2 | SCREW | 5 X 18 TAPPING | B1 | ||
| 152 | N048233 | 1 | DUST GUARD | B1 | |
||
| 153 | N149446 | 1 | STOP | => 2011 - 52 | B1 | ||
| 153 | N155977 | 1 | PARTS PACK(KIT) | < 2011 - 51 | B1 | |
|
| 154 | N149448 | 1 | SLEEVE | B1 | |||
| 155 | N048230 | 1 | COLLAR | B1 | |||
| 156 | N048229 | 1 | SPRING | B1 | |
||
| 157 | N155977 | 1 | PARTS PACK(KIT) | < 2011 - 51 | B1 | |
|
| 157 | N149444 | 1 | RETAINER | => 2011 - 52 | B1 | ||
| 158 | N048234 | 6 | BALL STEEL | B1 | |
||
| 159 | N149447 | 1 | CAP | => 2011 - 52 | B1 | ||
| 159 | N155977 | 1 | PARTS PACK(KIT) | < 2011 - 51 | B1 | |
|
| 167 | N048259 | 2 | O RING | B1 | |||
| 168 | N048261 | 1 | O RING | B1 | |
||
| 169 | N048243 | 1 | CYLINDER | B1 | |
||
| 170 | N048222 | 1 | BARREL | B1 | |
||
| 500 | N075120 | 1 | HEX KEY 5 MM | B1 | |||
| 501 | N386049 | 1 | SIDE HANDLE | B1 | |||
| 502 | N075121 | 1 | WRENCH ROUND-PINS | B1 | |||
| 503 | N077891 | 1 | SERVICE KIT 230V | B1 | |||
| 800 | N077882 | 1 | GREASE | B1 | |
||
| 801 | N077881 | 1 | GREASE | B1 | |
