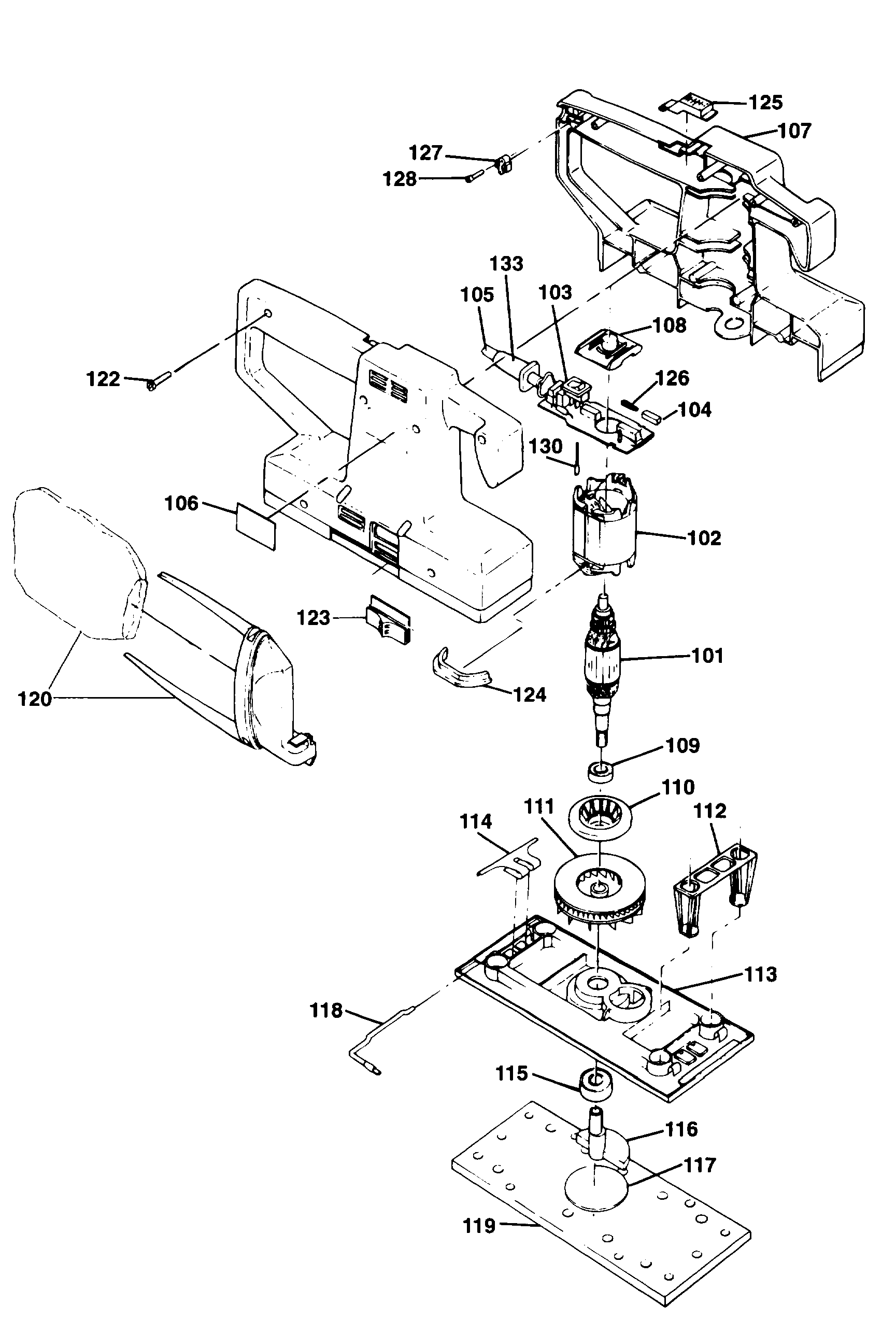

KA273 ORBITAL SANDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376911-09 | 1 | ARMATURE SA | XD | |||
| 102 | 376912-43 | 1 | FIELD SA | XD | |||
| 103 | 578462-00 | 1 | PCB | XD | |||
| 104 | 736703 | 2 | BRUSH | XD |  |
||
| 105 | 330060-53 | 1 | CORDSET | XD | |||
| 106 | 809928 | 1 | BRAND LABEL | XD | |||
| 107 | 374129-01 | 1 | CLAMSHELL | XD | |||
| 108 | 372946-49 | 1 | BEARING SA | XD | |||
| 109 | 330003-19 | 1 | BEARING | XD |  |
||
| 110 | 735653 | 1 | CAGE | XD | |||
| 111 | 370975 | 1 | FAN | XD | |||
| 112 | 733668 | 1 | STUD | XD | |||
| 113 | 370533-49 | 1 | BASE SA | XD | |||
| 114 | 748364 | 2 | GRIP | XD | |||
| 115 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XD | |
|
| 116 | 370539 | 1 | ECCENTRIC | XD | |||
| 117 | 733563 | 1 | PAD | XD | |||
| 118 | 745700 | 2 | LEVER | XD | |||
| 119 | 736516 | 1 | RUBBER PAD | XD | |||
| 120 | 831865 | 1 | BAG SA | XD | |||
| 122 | 849256 | 8 | SCREW | XD | |||
| 123 | 733669 | 1 | COVER | XD | |||
| 124 | 571038-00 | 4 | INSULATOR | XD | |||
| 125 | 578252-00 | 1 | ACTUATOR | XD | |||
| 126 | 830501 | 2 | SPRING | XD | |||
| 127 | 994808 | 1 | CABLE CLAMP | XD | |||
| 128 | 849256 | 2 | SCREW | XD | |||
| 130 | 823723 | 4 | CONNECTOR | XD | |||
| 133 | 770235 | 1 | PROTECTOR | XD | |
