BCASK8967D2 MULTITOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 90099608-01 | 1 | KNOB | QW |  |
||
| 102 | 90597017 | 1 | KNOB | QW | |
||
| 103 | 90551260 | 1 | SPRING | QW | |
||
| 104 | 90592796 | 1 | CLAMP | QW | |
||
| 105 | 90099788 | 1 | ADJUSTER | QW | |
||
| 106 | N490590 | 1 | COVER | QW | |||
| 107 | 90604103 | 1 | BOLT | QW | |
||
| 108 | 90603202 | 2 | SCREW | QW | |
||
| 109 | 90603203 | 2 | SCREW | QW | |
||
| 110 | 624521-00 | 1 | LOCKING RING | QW | |
||
| 111 | 90585879 | 1 | SPROCKET | QW | |||
| 112 | 90577998 | 1 | PLATE | QW | |
||
| 113 | N541722 | 7 | SCREW | QW | |||
| 114 | N490525 | 1 | HOUSING SA | QW | |||
| 115 | N532371 | 1 | SPRING | QW | |||
| 116 | N529957 | 2 | SPRING | QW | |||
| 118 | N532358 | 2 | SCREW | QW | |||
| 119 | N526587 | 1 | SLEEVE | QW | |||
| 120 | 330004-27 | 1 | BEARING,NEEDLE | QW | |
||
| 121 | N526275 | 1 | GEAR | QW | |||
| 122 | N490748 | 1 | GUARD | QW | |||
| 123 | N499874 | 1 | SPRING | QW | |||
| 124 | N494059 | 1 | GUARD | QW | |||
| 125 | N491471 | 1 | SHAFT | QW | |||
| 126 | 574853-08 | 1 | BEARING | QW |  |
||
| 127 | N490313 | 1 | COUPLER (SPLASH) | QW | |||
| 128 | N520834 | 1 | PLATE | QW | |||
| 129 | N542111 | 1 | SCREW | QW | |||
| 130 | N490598 | 1 | PINION | QW | |||
| 131 | 574853-08 | 1 | BEARING | QW | |
||
| 132 | N520478 | 1 | GEAR CASE SA | QW | |||
| 133 | 90621610 | 3 | PLUG | QW | |
||
| 134 | N526276 | 1 | GEAR | QW | |||
| 135 | N491763 | 1 | KEY | QW | |||
| 136 | N491129 | 1 | OUTPUT SHAFT | QW | |||
| 137 | 574853-01 | 1 | BEARING,BALL | QW | |
||
| 138 | N520480 | 1 | COVER | QW | |||
| 199 | N545245 | 1 | RATING LABEL | QW | |||
| 201 | N508656 | 1 | HOUSING SA | QW | |||
| 202 | N529957 | 2 | SPRING | QW | |||
| 203 | N532358 | 2 | SCREW | QW | |||
| 204 | N526587 | 1 | SLEEVE | QW | |||
| 205 | N532371 | 1 | SPRING | QW | |||
| 206 | N490313 | 1 | COUPLER (SPLASH) | QW | |||
| 207 | 90611830 | 3 | SCREW | QW | |
||
| 208 | N490598 | 1 | PINION | QW | |||
| 209 | 605040-15 | 1 | BEARING,BALL | NPP | QW | |
|
| 210 | N507215 | 1 | BEARING | QW | |||
| 211 | 90559833 | 1 | BEARING | QW | |
||
| 212 | 90567077 | 1 | ACTUATOR | QW | |
||
| 213 | N506859 | 1 | SHAFT SA | + HOUSING | QW | ||
| 214 | 90601198N | 1 | SPOOL & LINE | QW | |
||
| 215 | 90601198N | 1 | SPOOL & LINE | QW | |
||
| 216 | 90566944 | 1 | SPRING | QW | |
||
| 217 | 385022-03N | 1 | COVER SPOOL | QW | |
||
| 218 | N508657 | 1 | COVER | QW | |||
| 219 | N541722 | 6 | SCREW | QW | |||
| 220 | 90601669N | 1 | GUARD | QW | |
||
| 221 | 90559116 | 1 | BLADE | QW | |
||
| 222 | 681914-00 | 2 | SCREW | QW | |
||
| 223 | 747329 | 1 | SCREW | QW | |
||
| 299 | N545589 | 1 | RATING LABEL | QW | |
||
| 301 | N497685 | 1 | SHAFT | QW | |||
| 302 | N533759 | 1 | PINION | QW | |||
| 303 | 90581548 | 1 | BEARING,BALL | QW | |
||
| 304 | 574853-08 | 1 | BEARING | QW | |
||
| 305 | N490313 | 1 | COUPLER (SPLASH) | QW | |||
| 306 | N490598 | 1 | PINION | QW | |||
| 307 | N497948 | 1 | OUTPUT SHAFT | QW | |||
| 308 | 624474-01 | 1 | BEARING,NEEDLE | QW | |
||
| 309 | N514358 | 1 | GEAR | QW | |||
| 310 | 574853-08 | 1 | BEARING | QW | |
||
| 311 | 90637028 | 1 | FAN | QW | |
||
| 312 | N541103 | 1 | HOUSING | QW | |||
| 313 | N541106 | 1 | HOUSING SA | QW | |||
| 314 | N504103 | 1 | TUBE SA | QW | |||
| 315 | N541722 | 1 | SCREW | QW | |||
| 316 | 90621610 | 1 | PLUG | QW | |
||
| 317 | N526587 | 1 | SLEEVE | QW | |||
| 318 | N529957 | 1 | SPRING | QW | |||
| 319 | N532371 | 1 | SPRING | QW | |||
| 320 | 90611829 | 1 | SCREW | QW | |
||
| 321 | N532358 | 1 | SCREW | QW | |||
| 322 | 585381-00 | 1 | GREASE | 4 grams | QW | ||
| 399 | N545299 | 1 | RATING LABEL | QW | |
||

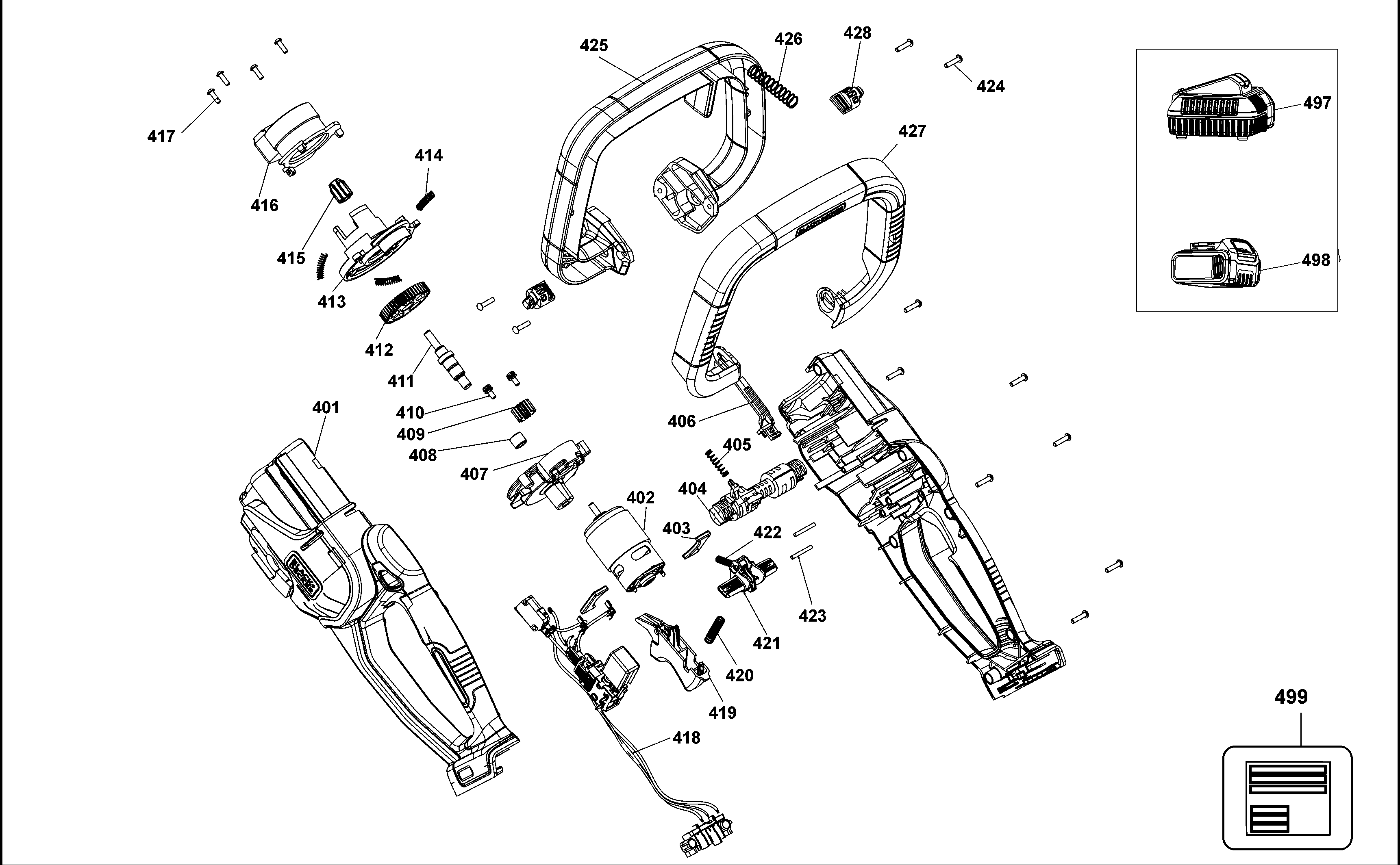

| 401 | N490120 | 1 | HOUSING SA | QW | |
||
| 402 | N501772 | 1 | MOTOR SA | QW | |
||
| 403 | N498351 | 2 | CLAMP | QW | |
||
| 404 | N504087 | 1 | SWITCH | QW | |
||
| 405 | N561352 | 1 | SPRING | QW | |
||
| 406 | N504468 | 1 | BAR | QW | |
||
| 407 | N490297 | 1 | GEARCASE SA | QW | |
||
| 408 | 330004-02 | 1 | BEARING NEEDLE | QW | |
||
| 409 | N510015 | 1 | PINION | QW | |
||
| 410 | N542375 | 2 | SCREW KIT | QW | |||
| 411 | N490311 | 1 | SPINDLE | QW | |
||
| 412 | N510013 | 1 | GEAR | QW | |
||
| 413 | N490299 | 1 | COVER | QW | |
||
| 414 | N525319 | 3 | SPRING | QW | |
||
| 415 | N490312 | 1 | PINION | QW | |
||
| 416 | N490623 | 1 | LOCKING RING | QW | |
||
| 417 | 90611829 | 4 | SCREW | QW | |
||
| 418 | N521783 | 1 | SWITCH SA | QW | |
||
| 419 | 90613570 | 1 | TRIGGER | QW | |
||
| 420 | 90638274 | 1 | SPRING | QW | |
||
| 421 | N554509 | 1 | TRIGGER LOCK-ON | QW | |
||
| 422 | 90604113 | 1 | SPRING | QW | |
||
| 423 | 478230-00 | 1 | BEARING | QW | |
||
| 424 | N541722 | 11 | SCREW | QW | |||
| 425 | N513389 | 1 | HANDLE | QW | |
||
| 426 | N542972 | 1 | SPRING | QW | |
||
| 427 | N513390 | 1 | HANDLE | QW | |
||
| 428 | 90565960 | 2 | INSERT | QW | |
||
| 497 | N879820 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-Ion - BL2018-XJ | QW | |
|
| 498 | 90634971 | 1 | CHARGER SA | 1A - BDCA1-QW | QW | |
|
| 499 | N545510 | 1 | RATING LABEL | QW | |
||
| 501 | N490610 | 1 | HOUSING SA | QW | |
||
| 502 | N529957 | 2 | SPRING | QW | |||
| 503 | N532358 | 2 | SCREW | QW | |||
| 504 | N526587 | 1 | SLEEVE | QW | |||
| 505 | N532371 | 1 | SPRING | QW | |||
| 506 | N490313 | 1 | COUPLER (SPLASH) | QW | |||
| 507 | 90611829 | 3 | SCREW | QW | |
||
| 508 | N490598 | 1 | PINION | QW | |||
| 509 | 574853-08 | 1 | BEARING | QW | |
||
| 510 | N490620 | 1 | SPINDLE | QW | |
||
| 511 | N520834 | 1 | PLATE | QW | |||
| 512 | N501431 | 1 | CLAMP | QW | |
||
| 513 | N490611 | 1 | HOUSING | QW | |
||
| 514 | N541722 | 1 | SCREW | QW | |||
| 515 | N557859 | 1 | GRIP | QW | |
||
| 516 | N523824 | 1 | GRIP | QW | |
||
| 517 | N557862 | 1 | SUPPORT | QW | |
||
| 518 | N557864 | 1 | SHAFT | QW | |
||
| 519 | N557864 | 1 | SHAFT | QW | |
||
| 520 | 90581548 | 4 | BEARING,BALL | QW | |
||
| 521 | N557864 | 1 | SHAFT | QW | |
||
| 522 | N506380 | 1 | HOUSING SA | QW | |
||
| 523 | N511602 | 1 | GEARCASE SA | QW | |
||
| 524 | 90621610 | 4 | PLUG | QW | |
||
| 525 | N510767 | 1 | OUTPUT SHAFT | QW | |
||
| 526 | N510767 | 1 | OUTPUT SHAFT | QW | |
||
| 527 | N490312 | 1 | PINION | QW | |
||
| 528 | N525319 | 3 | SPRING | QW | |
||
| 529 | N490615 | 1 | COUPLER (SPLASH) | QW | |
||
| 530 | N490623 | 1 | LOCKING RING | QW | |
||
| 531 | N511603 | 1 | COVER | QW | |
||
| 532 | 90614124-03 | 9 | SCREW | QW | |
||
| 533 | N506381 | 1 | HOUSING | QW | |
||
| 601 | N490592 | 1 | HOUSING | QW | |
||
| 602 | N541153 | 1 | GEARCASE SA | QW | |
||
| 603 | N490597 | 1 | SPINDLE | QW | |
||
| 604 | 624474-01 | 1 | BEARING,NEEDLE | QW | |
||
| 605 | N508331 | 1 | PINION | QW | |
||
| 606 | 90581539 | 1 | CLIP | QW | |
||
| 607 | 90559833 | 1 | BEARING | QW | |
||
| 608 | N490313 | 1 | COUPLER (SPLASH) | QW | |||
| 609 | N490598 | 1 | PINION | QW | |||
| 610 | N490605 | 2 | BLADE | QW | |
||
| 611 | 90568477 | 2 | PLATE | QW | |||
| 612 | 90566227 | 2 | DISC | QW | |||
| 613 | 90568476 | 1 | SPACER | QW | |||
| 614 | N501801 | 2 | PIN | QW | |
||
| 615 | N501792 | 1 | OUTPUT SHAFT | QW | |
||
| 616 | 574853-01 | 1 | BEARING,BALL | QW | |
||
| 617 | N529735 | 1 | RING | QW | |
||
| 618 | N508332 | 1 | GEAR | QW | |
||
| 619 | 330004-02 | 1 | BEARING NEEDLE | QW | |
||
| 620 | N490607 | 1 | SUPPORT | QW | |
||
| 621 | 376614-01 | 2 | SPACER | QW | |
||
| 622 | 90568482 | 6 | SPACER | QW | |
||
| 623 | 098022-16 | 6 | SCREW | QW | |
||
| 624 | 330021-06 | 6 | NUT | QW | |
||
| 625 | 90568498 | 1 | PLATE | QW | |
||
| 626 | N552914 | 2 | SCREW | QW | |
||
| 627 | N541722 | 7 | SCREW | QW | |||
| 628 | 90611829 | 3 | SCREW | QW | |
||
| 629 | 90621610 | 3 | PLUG | QW | |
||
| 630 | 585381-00 | 1 | GREASE | 4 grams | QW | ||
| 631 | N526587 | 1 | SLEEVE | QW | |||
| 632 | N529957 | 2 | SPRING | QW | |||
| 633 | N532358 | 2 | SCREW | QW | |||
| 634 | N532371 | 1 | SPRING | QW | |||
| 635 | N541722 | 9 | SCREW | QW | |||
| 699 | N545868 | 1 | RATING LABEL | QW | |
