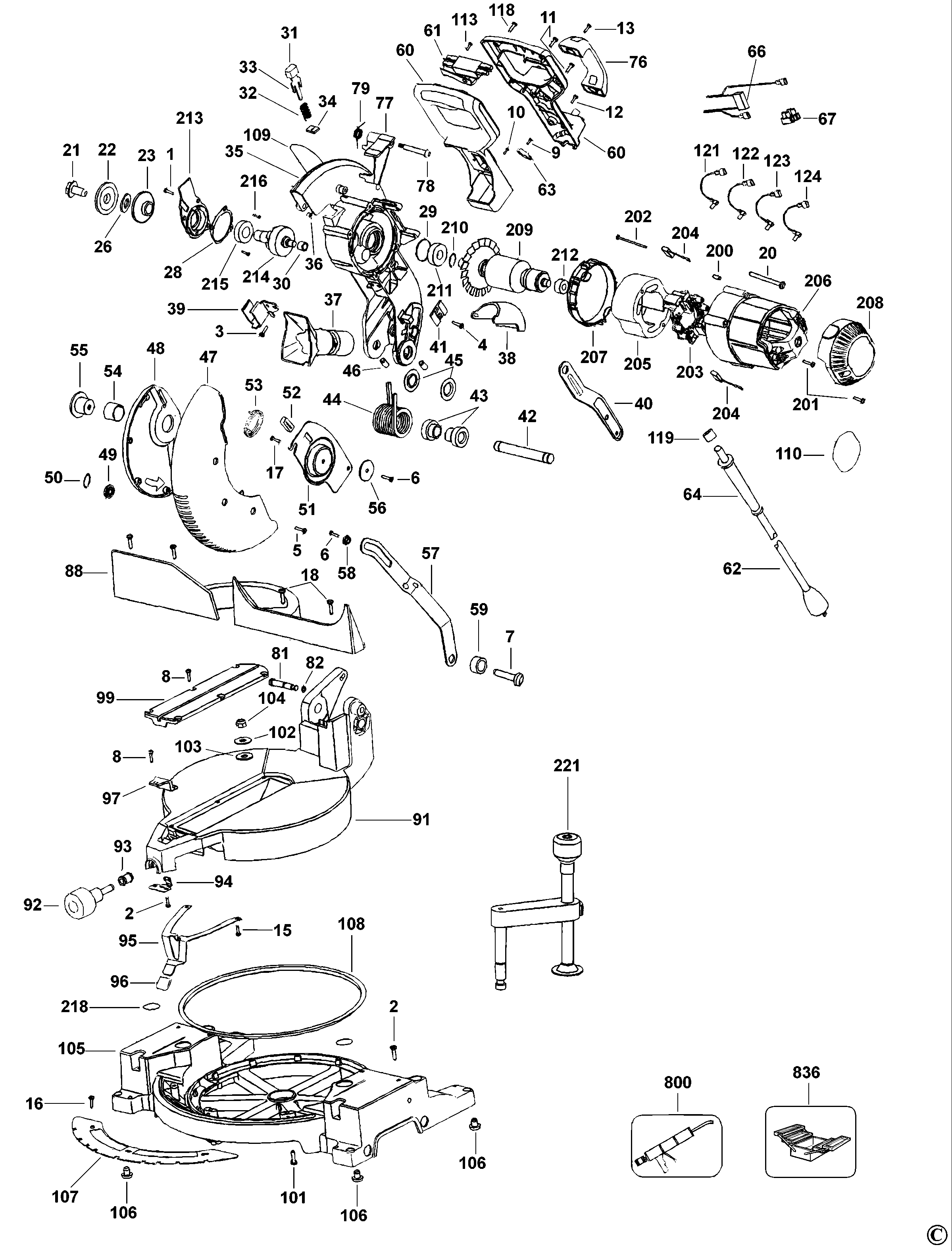

DW702 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 3 | SCREW | LX |  |
||
| 2 | 330045-23 | 4 | SCREW | LX |  |
||
| 3 | 330045-13 | 2 | SCREW | LX | |
||
| 4 | 098102-08 | 2 | SCREW | LX | |
||
| 5 | 394211-00 | 3 | SCREW | LX | |
||
| 6 | 151891-00 | 2 | SCREW | LX | |
||
| 7 | 330045-32 | 1 | SCREW | LX | |
||
| 8 | 330045-05 | 7 | SCREW | LX | |
||
| 9 | 330019-02 | 2 | SCREW | LX | |
||
| 10 | 330045-44 | 1 | SCREW | LX | |
||
| 11 | 330019-32 | 3 | SCREW | LX | |
||
| 12 | 330045-08 | 4 | SCREW | LX | |
||
| 13 | 330019-22 | 2 | SCREW | M5.74x32 | LX | |
|
| 15 | 330045-22 | 2 | SCREW | LX | |||
| 16 | 604410-00 | 3 | SCREW | LX | |
||
| 17 | 394589-01 | 2 | SCREW | LX | |
||
| 18 | 330045-26 | 4 | SCREW | LX | |
||
| 20 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | LX | |
|
| 21 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | LX | |
|
| 22 | 151962-01 | 1 | CLAMP OUTER | LX | |
||
| 23 | 141987-06 | 1 | WASHER INNER CLAMP | LX | |
||
| 26 | 393868-00 | 1 | ADAPTOR | LX | |
||
| 28 | 391632-00 | 1 | GASKET | LX | |
||
| 29 | 701297-00 | 1 | SEAL | LX | |
||
| 30 | 330004-06 | 1 | BEARING NEEDLE | LX | |
||
| 31 | 145350-03 | 1 | BUTTON | LX | |||
| 32 | 398736-00 | 1 | SPRING | LX | |
||
| 33 | 146714-00 | 1 | LOCK | LX | |
||
| 34 | 146710-00 | 1 | WIPER | LX | |
||
| 35 | 394848-01 | 1 | ARM | LX | |
||
| 36 | 148608-00 | 2 | INSERT | LX | |
||
| 37 | 394496-00 | 1 | CHUTE | LX | |
||
| 38 | 148520-00 | 1 | DEFLECTOR | LX | |
||
| 39 | 393731-00 | 1 | GUARD | LX | |
||
| 40 | 145378-01 | 1 | WRENCH | LX | |
||
| 41 | 147190-01 | 1 | CLIP | LX | |
||
| 42 | 146751-00 | 1 | SHAFT | LX | |
||
| 43 | 398251-00 | 2 | SPACER | LX | |||
| 44 | 391606-00 | 1 | SPRING | LX | |
||
| 45 | 148296-00 | 2 | WASHER | LX | |
||
| 46 | 150075-00 | 2 | SCREW | LX | |
||
| 47 | 391612-01 | 1 | GUARD | LX | |
||
| 48 | 391609-00 | 1 | GUARD PLATE | LX | |
||
| 49 | 146774-00 | 1 | ROLLER | LX | |
||
| 50 | 603232-00 | 1 | CIRCLIP | EXTERNAL | LX | |
|
| 51 | 399139-00 | 1 | PIVOT | LX | |
||
| 52 | 146768-00 | 1 | BUMPER | LX | |
||
| 53 | 398735-00 | 1 | SPRING | LX | |
||
| 54 | 148295-00 | 1 | SLEEVE | LX | |
||
| 55 | 146750-01 | 1 | RETAINING PLATE | LX | |
||
| 56 | 148612-00 | 1 | WASHER | LX | |
||
| 57 | 391630-00 | 1 | LINK | LX | |
||
| 58 | 146740-01 | 1 | BUSH | LX | |
||
| 59 | 399042-00 | 1 | BUSHING | LX | |
||
| 60 | 393960-00 | 1 | HANDLE SA | LX | |
||
| 61 | 391926-01 | 1 | SWITCH | LX | |
||
| 62 | 330061-20 | 1 | CORDSET | LX | |
||
| 63 | 003618-00 | 1 | CORD CLAMP | LX | |
||
| 64 | 445338-00 | 1 | CORD PROTECTOR | LX | |
||
| 66 | 393521-05 | 1 | CAPACITOR SA | LX | |
||
| 67 | 393520-00 | 1 | TERMINAL BLOCK | LX | |
||
| 76 | 396375-00 | 1 | HANDLE | LX | |
||
| 77 | 392363-00 | 1 | LEVER | LX | |
||
| 78 | 152852-00 | 1 | BOLT | LX | |
||
| 79 | 386196-00 | 1 | SPRING | LX | |
||
| 81 | 387130-00 | 1 | LOCKING PIN | LX | |
||
| 82 | 34158-00 | 1 | SEAL | LX | |
||
| 88 | 394562-00 | 1 | FENCE | LX | |
||
| 91 | 394560-01 | 1 | ROTARY TABLE | LX | |
||
| 92 | 145439-10 | 1 | KNOB | LX | |
||
| 93 | 398256-00 | 1 | BUSHING | LX | |
||
| 94 | 391357-00 | 1 | CLAMP | LX | |||
| 95 | 146745-00 | 1 | SPRING | LX | |
||
| 96 | 148611-00 | 1 | COVER | LX | |
||
| 97 | 391634-00 | 1 | POINTER | LX | |
||
| 99 | 146726-02 | 1 | PLATE | LX | |
||
| 101 | 98025-25 | 1 | SCREW | LX | |
||
| 102 | 153792-00 | 1 | WASHER | LX | |
||
| 103 | 153781-00 | 1 | WASHER | LX | |
||
| 104 | 330021-02 | 1 | NUT | LX | |
||
| 105 | 394995-00 | 1 | BASE | LX | |
||
| 106 | 153612-00 | 4 | FOOT | LX | |
||
| 107 | 394847-00 | 1 | DETENT | LX | |
||
| 108 | 391635-00 | 1 | RING | LX | |
||
| 109 | 395021-00 | 1 | LABEL | LX | |
||
| 110 | 391325-00 | 1 | IDENTITY LABEL | LX | |
||
| 113 | 330019-03 | 1 | SCREW | LX | |
||
| 118 | 90611830 | 1 | SCREW | LX | |
||
| 119 | 388414-01 | 1 | BUSH | LX | |
||
| 121 | 398562-00 | 1 | LEAD YELLOW | YELLOW | LX | |
|
| 122 | 398563-00 | 1 | LEAD BLACK | BLACK | LX | |
|
| 123 | 398565-00 | 1 | LEAD WHITE | WHITE | LX | |
|
| 124 | 398566-00 | 1 | LEAD RED | RED | LX | |
|
| 200 | 145312-00 | 1 | PLUG | LX | |
||
| 201 | 330019-13 | 1 | SCREW | M4X19 T20 | LX | |
|
| 202 | 330019-19 | 2 | SCREW | LX | |
||
| 203 | 389512-01 | 1 | BRUSH PLATE | LX | |
||
| 204 | 381028-08 | 2 | BRUSH & LEAD | LX | |
||
| 205 | 389532-00 | 1 | FIELD 115V | 4 WIRE FIELD | LX | |
|
| 206 | 391317-04 | 1 | FIELD CASE | LX | |
||
| 207 | 391375-00 | 1 | BAFFLE FAN | LX | |
||
| 208 | 391933-00 | 1 | END CAP | LX | |
||
| 209 | 604286-00 | 1 | ARMATURE SA | 115 Volts | LX | |
|
| 210 | 144803-00 | 1 | CIRCLIP | LX | |
||
| 211 | 868768-07 | 1 | BEARING | LX | |
||
| 212 | 330003-60 | 1 | BEARING | LX | |
||
| 213 | 391573-00 | 1 | GEARCASE COVER | LX | |
||
| 214 | 392628-01 | 1 | SPINDLE & GEAR | LX | |
||
| 215 | 330003-29 | 1 | BEARING,BALL | LX | |
||
| 216 | 330045-13 | 2 | SCREW | LX | |
||
| 218 | 394976-00 | 2 | LABEL | WARNING | LX | |
|
| 221 | 153650-00 | 1 | CLAMP | LX | |
||
| 800 | 93488-00 | 1 | GREASE | LX | |
||
| 836 | 559606-99 | 1 | S.T.SQUARE | Small square | LX | |
